CY1050650650
CY TECH
Telecom
IP 55, IP 65, NEMA 4, NEMA 4X
Floor Mount
500W/1700BTU
19inch, 23inch
650mm/26inch
18U

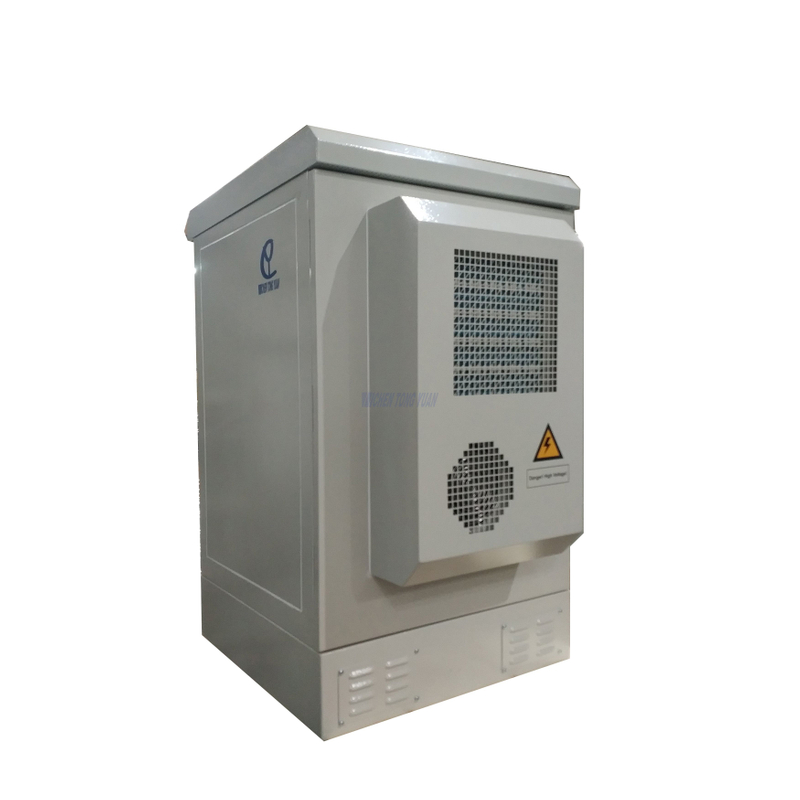

Product Description

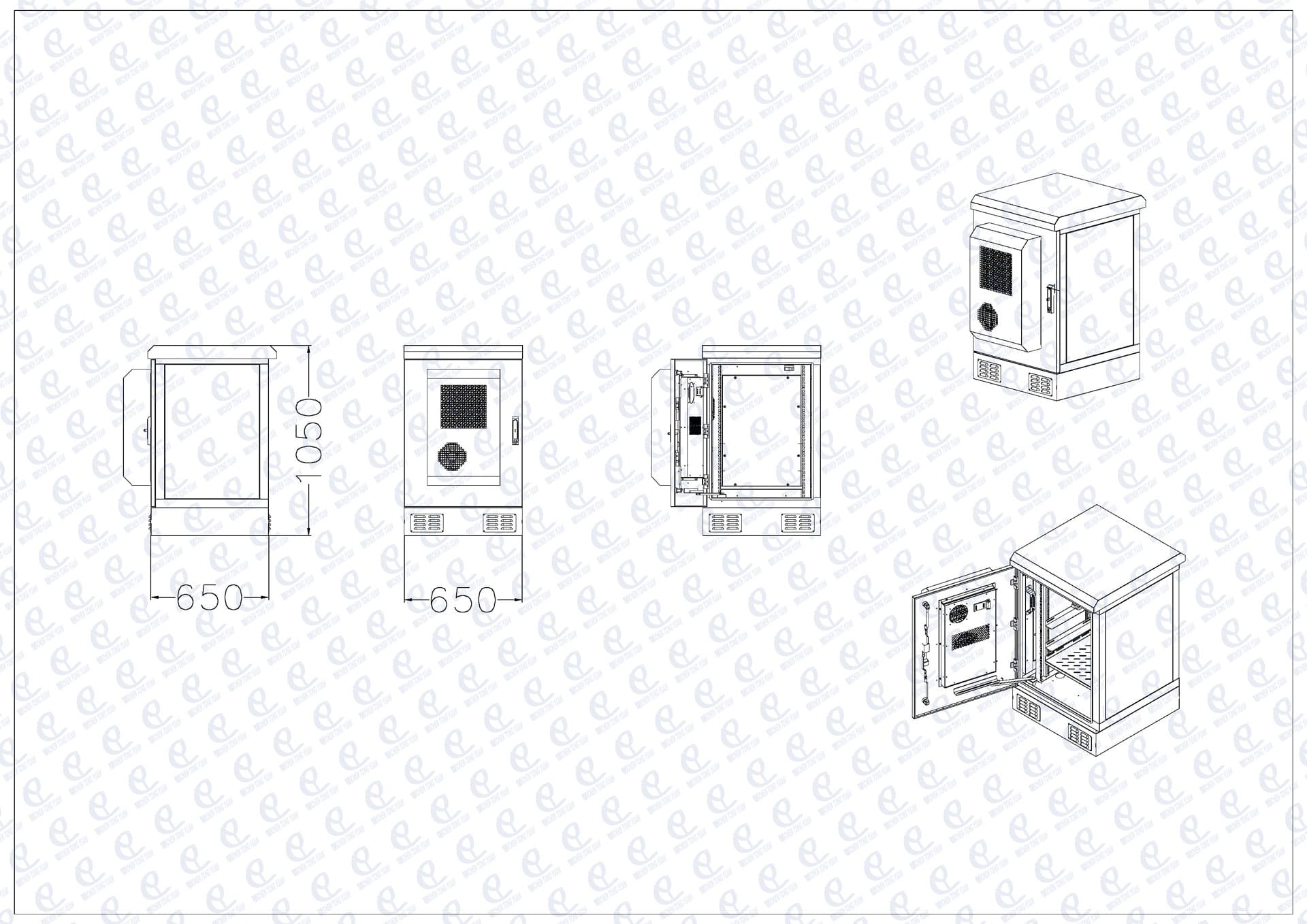

| Name | Technical Parameter |
| External Size | H*W*D=1050*650*650mm (41"x 26"x 26") |
| Cabinet layout | One compartment, for installing 19inch/23inch equipment |
| Cabinet material | Double layer Stainless steel with EPS thermal isolation |
| Security design | Embedded door, embedded hinges, 3-point security lock |
| Protection level | IP55 / IP65 / NEMA 4 / 4X |
| Color | RAL7035 |
| Climate control | AC220V air conditioner and DC48V fan |
| Lighting system | Door sensor+48V LED light(door open, the LED will light on; door closed, the LED will go out.) |
| Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
| Working temperature | - 40 ℃ ~ + 55 ℃ |
| Working Humidity | ≤ 95% (+ 40 ℃) |
| Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Note：The air conditioner can also choose AC 110V 60HZ or DC 48V, and the fan can also choose AC 110V or 220V.
Includes: locking door with air conditioner,19inch rackmount rails,floor mount;plinth or hardwares.
| Name | Quantity | Unit | Technical parameter |
| Outdoor telecom cabinet | 1 | set | External Size:H*W*D=1050*650*650mm (41"x 26"x 26") |
| Air conditioner | 1 | set | Power supply:AC 220V 50/60Hz Cooling capacity:500W |
| Fan | 1 | set | DC48V with temperature control |
| LED Lamp | 1 | set | DC48V,used for illumination in the cabinet |
| Grounding bus bar | 1 | set | 200A Copper bar(13 point M6 and 2 point M8) |
| Equipment supporting | 1 | set | |
| Package | 1 | set | Wooden box , wooden pallet+stretch film or wooden pallet +wooden box |
The following accessories are available for optional ordering.
| Item | Technical parameter | Picture |
| EMS | 19 inch environment monitoring unit 1U; DC48V, support RS232,RS485, SNMP,TCP/IP communication protocol. 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor.
Environmental monitoring system is a comprehensive network of devices and technologies designed to track and assess various aspects of the environment. This system plays a crucial role in gathering data to understand environmental conditions, detect changes, and manage natural resources. |
|
| Fire Extinguisher | Hot aerosol fire extinguishing device is a new, efficient and environment-friendly fire fighting product with Vanguard International Semiconductor Corporation level, which is the first in China. It is a high-tech green fire protection product that benefits humanity, born under the background of the International Montreal Agreement and China's increased awareness of environmental protection. It is an ideal substitute for halon fire extinguishing devices and is suitable for relatively enclosed spaces such as distribution cabinets.
Electric or hot start: Hot start temperature ≥170℃; Electric start temperature ≥700mA. |
|
| Wiring type PDU | AC input：63A/2P*2 with interlock； AC/SPD：30-60KA/2P*1； AC output：63A/1P*1,32A/1P*1，16A/1P*3，3 holes Maintenance socket*1 |
|
| Integrated PDU | Can be customized according to customer requirements. |
|
| Rectifier | AC220V/110V transfer to DC48V, Connect the battery as a backup power,also can be customized according to customer requirements. |
|
ODF | Optic Distribution Frame (ODF) is a critical component in a fiber optic network infrastructure. It serves as a centralized point for the termination, organization, and distribution of fiber optic cables. The primary purpose of a distribution frame is to facilitate efficient and organized connectivity, making it easier to manage, troubleshoot, and expand the network.
Function: 1)Termination Point; 2)Organization and Management; 3)Splicing Trays; 4)Labeling and Documentation; 5)Security and Protection; 6)Scalability;
Can be customized according to customer requirements. |
|
| Backup battery | Can be lithium battery or lead acid battery. |
Flexibility
(1) Material can be Constructed of durable, galvanized steel,sandwich panel ,stainless steel SS304,aluminium.
(2) Compartments can be configured to support between 1-4 bays,multi-compartments supported.
(3) Front and rear access doors allow technicians access to equipment storage areas and cable routing.
(4) Side doors design also ok.
(5) Customized color ,standard color RAL7035,other color acceptable based on appointed color code.
(6) Wide range of thermal management options for even the most demanding heat dissipation needs allows for optimization of thermal performance and reduced energy costs.
(7) The cooling solution adopted compressed air conditioner ,TEC (Thermoelectric Cooler),Hex (heat exchanger),Fans,Combined AC&HEX.
(8) Offers a wide range of configuration options providing maximum flexibility including PDU, rectifier ,integrated AC-DC power systems.
(9) Silk screening Logo and environmental friendly painting artwork for outdoor telecom cabinet.
(10) Offers all kinds environment sensors,including doors,smoke,temperature sensors.
(11) Remote monitoring system supported, communication protocol is RS232/RS485/SNMP.
Options
| Model | Height | Type | Rate | Color | H*W*D | Climate Control | Application |
CY800650650 | Floor stand | IP55 | Grey | 800mm*650mm*650mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
CY1050650650 | 18U | Floor stand | IP55 | Grey | 1050mm*650mm*650mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1400800800 | Floor stand | IP55 | Grey | 1400mm*800mm*800mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
CY1600800800 | Floor stand | IP55 | Grey | 1600mm*800mm*800mm | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
CY1700750750 | Floor stand | IP55 | Grey | 1700mm*700mm*700mm | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
CY2100900900 | Floor stand | IP55 | Grey | 2100mm*900mm*900mm | Air conditioner 1500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
Other size to be continued ,please send us inquiry for futher discussion
Name | Specification |
AC220V 50HZ | |
AC220V 60HZ | |
AC110V 60HZ / DC48V | |
Cooling Capacity : 300W-5000W | |
DC48V | |
40W/K-200W/K | |
AC220V 50HZ & DC48V | |
1500W&80W/K | |
DC48V | |
200W-1200W | |
AC220V 50HZ | |
AC220V 60HZ | |
AC110V 60HZ / DC48V |
How to order
◆ Acceptable temperature range for your equipment;
◆ Heat load of equipment;
◆ The highest local ambient temperature；
◆ Noise Level；
◆ Future Expansion；
By carefully considering these factors, you can select a cabinet climate control system that meets the specific needs of your equipment and environmental conditions.
(1) If conditions permit, try to install the outdoor telecom cabinet in a cool and ventilated place with clean surrounding environment .
(2) After the cable construction is completed, please make sure to seal the gap around the cable with the sealant provided randomly in the cabinet, so as to avoid the condensation caused by moisture entering and affecting the use performance of the equipment.
(3) The grounding bar of the cabinet must be reliably grounded, and the grounding resistance to the ground shall be less than 10 Ω .
(4) Please clean the ventilation and dust screen in the cabinet regularly every month. According to the actual situation, the period of cleaning dust screen can be shortened or extended properly.
Weatherproof telecom enclosures—from rugged outdoor network racks to compact outdoor equipment racks—are engineered to protect sensitive electronics in the harshest conditions. Certified as a NEMA4X NEMA 4 rack mount enclosure, they guard against rain, dust, corrosion and UV exposure. Leading telecom enclosure manufacturers design these cabinets with modularity, security and thermal management in mind. Below is an expert breakdown of their most common applications:
An outdoor network rack (or Outdoor Rack Mount Cabinet) is the backbone of field-deployed telco sites. By housing switches, routers, power supplies and fiber patch panels inside a NEMA4X NEMA 4 rack mount enclosure, carriers can extend coverage into suburban and rural areas without risking weather‑related failures.
For cable-TV and high‑speed internet distribution, an outdoor equipment rack protects amplifiers, splitters and headend gear at neighborhood nodes. The sealed design ensures consistent signal integrity—even during heavy rain—while the rack‑mount format simplifies service and upgrades.
Every 4G/5G base station relies on a weatherproof telecom cabinet to secure RF radios, power distribution units and backup batteries. A robust NEMA4X NEMA 4 rack mount enclosure not only keeps moisture and dust at bay but also supports integrated thermal solutions (filtered fans or air‑to‑air heat exchangers) to maintain optimal operating temperatures.
In off‑grid or backup‑power scenarios—such as remote monitoring sites—solar panels feed charge controllers, inverters and battery banks housed in an outdoor network rack. The IP‑rated enclosure prevents ingress of water and pests, while cable‑entry grommets keep wiring tidy and secure.
As mobile networks densify, small‑cell nodes and microwave links proliferate. An outdoor equipment rack provides a compact, lockable enclosure for radios, PoE switches and surge protectors. Its NEMA4X NEMA 4 certification means fiber and copper terminations stay clean and reliable.
At fiber handoff points—whether in roadside cabinets or utility vaults—telecom providers install NEMA4X NEMA 4 rack mount enclosures to house optical line terminals (OLTs), media converters and network interface devices. This ensures efficient, weatherproof data aggregation between core and edge networks.
Edge computing deployments demand small‑footprint data centers close to end users. Rugged outdoor network racks accommodate servers, storage and networking gear, delivering low‑latency processing power in environments as varied as cell‑tower compounds or roadside shelters.
From railway signaling to airport ground systems, outdoor equipment racks protect intercom units, CCTV encoders and wireless radios mounted along tracks or tarmac perimeters. The result is uninterrupted, mission‑critical communication—rain or shine.
When specifying your next outdoor telecom cabinet, look for telecom enclosure manufacturers who offer:
Certifications: True NEMA4, NEMA4X, IP55, IP65 ratings for water and dust resistance.
Thermal Options: Passive vents, filtered fans or air‑to‑air exchangers.
Security Features: Lockable doors, tamper‑proof hinges and intrusion alarms.
Modularity: Adjustable 19″ rack rails supporting 1U–42U equipment.
Mounting Flexibility: Wall‑mount, pole‑mount or pad‑mount configurations.
By selecting a proven NEMA4X NEMA 4 rack mount enclosure from a reputable manufacturer, you’ll ensure your outdoor telecom infrastructure delivers maximum uptime, longevity and ease of service—no matter where it’s deployed.
