CYESS215kwh
CYTECH

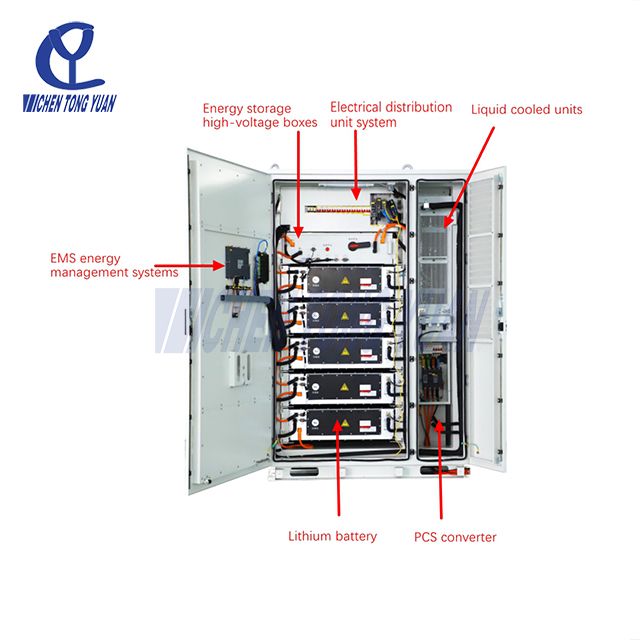

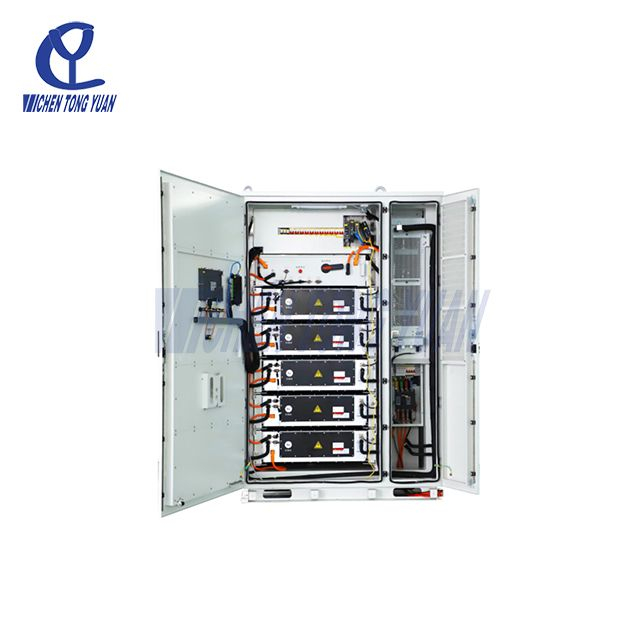

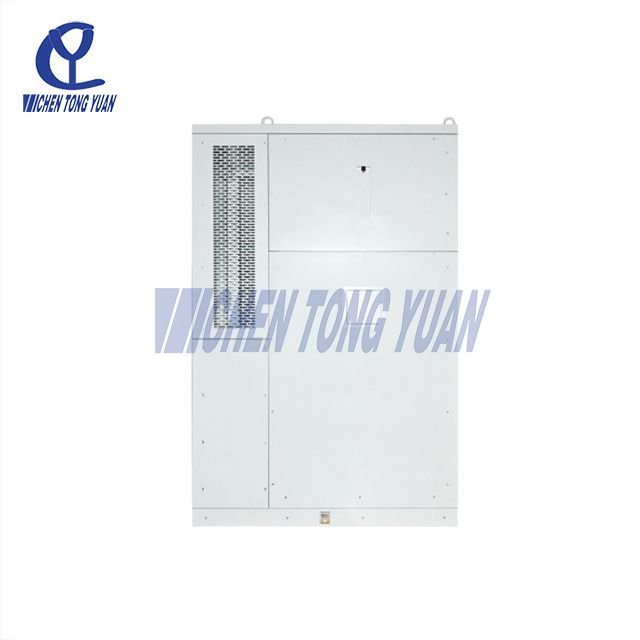

Product Description
Industrial and commercial energy storage system is a system that can store electric energy and supply power, with smooth transition, peak shaving and valley filling, frequency and voltage regulation and other functions. It can smooth the output of solar and wind power generation, and reduce the impact of its randomness, gap and fluctuation on the power grid and users; Charging in the valley price period and discharging in the peak price period can reduce the user's electricity expense; In case of power failure in the large power grid, it can operate independently to ensure uninterrupted power supply to users.

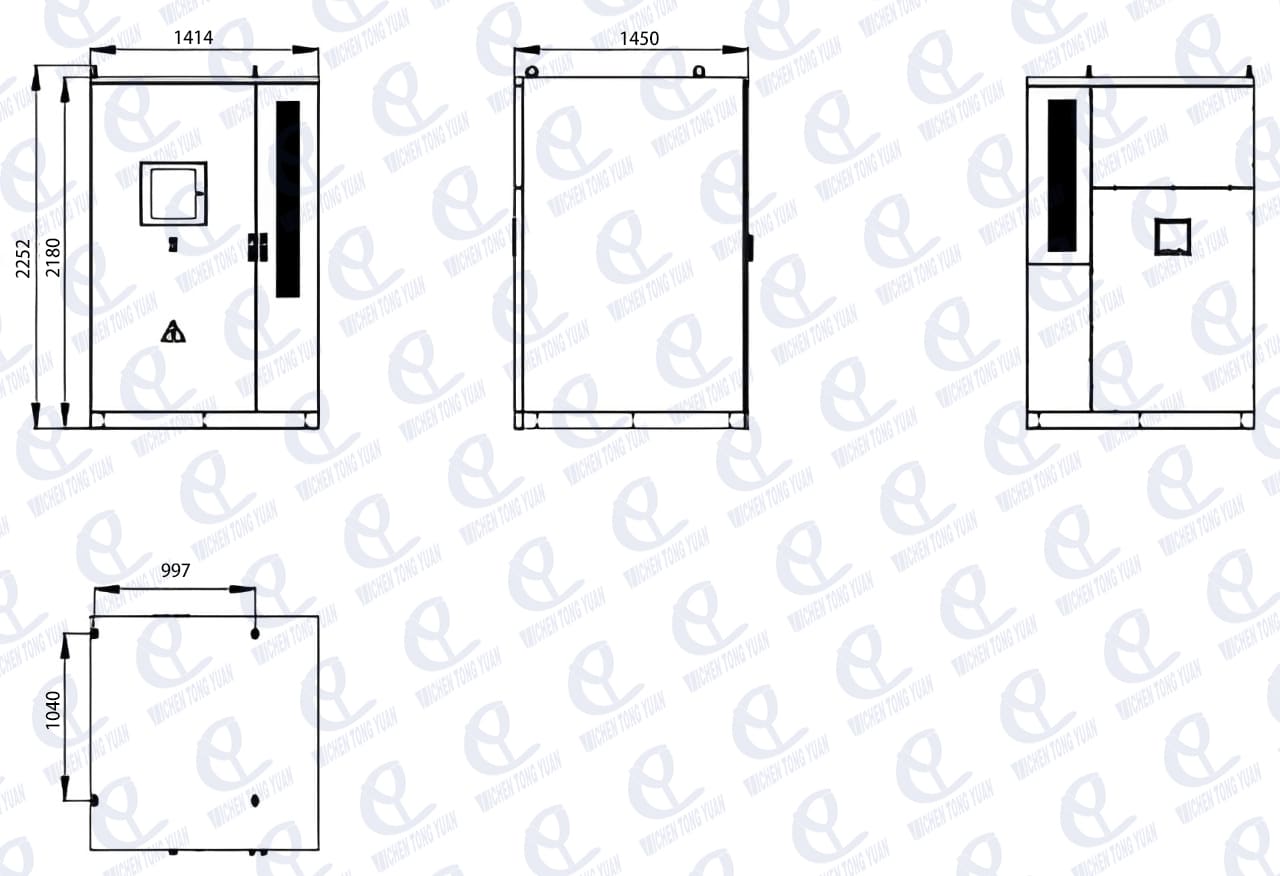

| Item | Technical Parameter | Remark |
| Lithium battery capacity | 215KWH | |
| Lithium battery voltage | 672V DC ~864V DC | |
| Battery cell type | 3.2V/280Ah | |
| Rated power | 100KW | |
| Max power | 110KW | |
| Rated grid voltage | 380V AC | |
| Rated grid frequency | 50/60Hz ±5Hz | |
| Battery cycle life | >5000 cycle(0.5C@25°) | Energy retention rate≥80% |
| Charge discharge rate | ≤0.5C | |
| System efficiency | Max efficiency= 86% | @100kW/1 charge and 1 discharge |
| Charge discharge conversion time | ≤200ms | |
| Thermal management | Intelligent liquid cooling | |
| Fire fighting | Aerosol+Perfluorohexane | |
| UPS | Backup time： 15min | |
| Control mode | Remote/Local | |
| Operating mode | Grid/off grid | Manual off grid |
| Communication method | CAN//Eth/RS485 | 4G Option |
| Access method | Three-phase four-wire | |
| Working tempture | -30℃ ~ +55℃ | |
| Working humidity | 0~95%RH | |
| Storage tempture | -30℃ ~ +60℃ | |
| Working altitude | 2000m No reduction in amount | |
| Protection grade | IP55 | Battery bay |
| Size | 1414*1450*2180mm | |
| Weight | 2700Kg |
Management System
According to the system communication capability and system security, the battery management system adopts a three-layer architecture. The slave control collects the voltage and temperature of each unit. The master controller obtains the slave control data, voltage and current through communication.
Name | Parameter |
System power | DC24V |
Single cell voltage detection range | 0V～5V |
Single cell voltage detection accuracy | ±5mV |
Temperature detection range | 40℃~85℃ |
Temperature detection accuracy | ±1℃ |
Total voltage detection range | 0V～1000V |
Total voltage detection accuracy | 1%FSR |
Insulation detection | Support the maximum voltage of 1200V, and the detection error is less than 10% |
Current detection range | -300A-300A |
Current detection accuracy | 1%FSR |
SOC accuracy | 6% |
Equalizing current | 100mA |
Communication interface | CAN, RS485 |
Overload protection | Over-charge, over-discharge, over-temperature, short circuit and other protection, and the protection setting can be set |
In the energy storage system, in addition to the bidirectional inverter function, the energy storage converter can also support the power grid, ensure the stable operation of the power grid system, provide the ability to withstand short-term impact, smooth power supply, energy storage, peak shaving and valley filling.
Model | 30KW | 60KW | |
DC side parameters | Max voltage | 1000V | 1000V |
Rated voltage | 800V | 800V | |
Working voltage range | 680~1000V | 680~1000V | |
Max charge/discharge current | 44A | 88A | |
AC grid connection parameters | Max input apparent power | 30KVA | 60KVA |
Max input active power | 30KW | 60KW | |
Rated input voltage | 230/400VAC, 3P+N+PE | 230/400VAC, 3P+N+PE | |
Max continuous input current | 43A | 86A | |
Rated input frequency | 50Hz | 50Hz | |
AC off-grid parameters | Rated output voltage | 230/400VAC, 3P+N+PE | 230/400VAC, 3P+N+PE |
Rated output frequency | 50Hz | 50Hz | |
Max continuous output current | 43A | 86A | |
Max output active power | 30KW | 60KW | |
Max output apparent power | 30KVA | 60KVA | |
General parameters | Unbalanced load capacity | 100% | 100% |
power factor | >0.98 | >0.98 | |
Working temperature range | -30～+60℃ (>45℃, wil Derate) | -30～+60℃ (>45℃, wil Derate) | |
Max efficiency | 98.5% | 98.5% | |
AC/DC start function | YES | YES | |
Dimensions (W* D* H) | 436*550*130mm | 436*550*130mm | |
Weight | 25kg | 28kg | |
The power module of MPPT controller adopts the latest optimized hardware design and advanced control algorithm, which has intelligent control and high reliability.
Model | 30A | 60A |
PV side parameter | ||
Max input component power | 42KW | 84KW |
Max input voltage | 1000VDC | 1000VDC |
MPPT voltage range | 200~850VDC | 200~850VDC |
Starting voltage | 200VDC | 200VDC |
MPPT | 1 | 1 |
PV way | 1 | 1 |
Max input current | 100ADC | 200ADC |
DC side parameter | ||
Max DC voltage | 1000VDC | 1000VDC |
Rated voltage | 800VDC | 800VDC |
Voltage range | 350~1000VDC | 350~1000VDC |
Max continuous current | 50ADC | 100VDC |
Max continuous power | 30KW | 60KW |
Dimensions (W* D* H) | 436*550*130mm | 436*550*130mm |
Weight | 25kg | 30kg |
In the energy storage system, the EMS communication topology is divided into two layers. The top layer is the general centralized monitoring system.
Bottom equipment: energy storage converter, battery management system (BMS), environmental monitoring equipment, fire protection system, air conditioning or access control system, etc. are all connected to the monitoring system (currently with administrator authority management, soft access control).
The monitoring host completes the network connection, conversion, data acquisition, data local processing, protocol conversion and command exchange between the on-site monitoring and control systems, local user screen monitoring operation, control strategy, and WEB server functions, and realizes the high-speed collection and transmission of large-capacity real-time data, so as to ensure that the master station system can quickly and accurately obtain all monitoring and monitoring information, and timely feed back the system abnormalities and faults detected by the network, Ensure fast positioning and recovery. (It needs to be realized through station-level BMS)
Selection
PCS power | MPPT power | Battery capacity | BMS | EMS | Air conditioner | Fire extinguisher system | Cabinet QTY |
30KW | 30KW | 81.92KWH | 1 | 1 | 1 | 1 | 1 |
60KW | 60KW | 163.84KWH | 1 | 1 | 2 | 1 | 1 |
120KW | 60/120KW | 163.84KWH | 1 | 1 | 2 | 1 | 1 |
180KW | 120/180KW | 409.6KWH | 1 | 1 | 4 | 2 | 2 |
240KW | 180/240KW | 635.36KWH | 1 | 1 | 6 | 3 | 3 |
Equipment Name | Specification parameter | Unit | Qty | Remark |
PCS | 30kw | pcs | 1 | |
MPPT | 30kw | pcs | 1 | |
Lithium battery | 81.92kwh(5.12kwh/pcs) | pcs | 16 | option |
Air conditioner | pcs | 1 | ||
Fire Extinguisher | pcs | 1 | ||
EMS | pcs | 1 | ||
Solar panel | 440W/pcs | pcs | 64 | option |
Cabinet | Pcs | 1 | ||
Power distribution and auxiliary materials | set | 1 |
Equipment Name | Specification parameter | Unit | Qty | Remark |
PCS | 60kw | pcs | 1 | |
MPPT | 60kw | pcs | 1 | |
Lithium battery | 163.84kwh(5.12kwh/pcs) | pcs | 16 | option |
Air conditioner | pcs | 2 | ||
Fire Extinguisher | pcs | 1 | ||
EMS | pcs | 1 | ||
Solar panel | 440W/pcs | pcs | 128 | option |
Cabinet | Pcs | 1 | ||
Power distribution and auxiliary materials | set | 1 |
Application
Energy storage systems play a crucial role in modern energy management by storing excess energy during times of low demand and releasing it when demand is high. Here are various applications for energy storage systems:
Energy storage helps maintain the stability of the electrical grid by providing quick responses to fluctuations in power demand and supply, thereby stabilizing the grid frequency.
Storage systems can help regulate and stabilize voltage levels on the grid, ensuring a consistent and reliable power supply.
Energy storage helps address the intermittent nature of renewable energy sources, such as solar and wind, by storing excess energy when it's abundant and releasing it when generation is low.
Energy storage systems can store excess energy during periods of high renewable energy generation and release it during peak demand times, reducing the need for additional generation capacity.
Energy storage provides backup power to critical facilities, such as hospitals, data centers, and emergency services, ensuring continuity during power outages.
Large industrial facilities can use energy storage to manage and reduce peak demand charges, leading to cost savings.
