CYESS30KW100KWH
CYTECH
Product Description

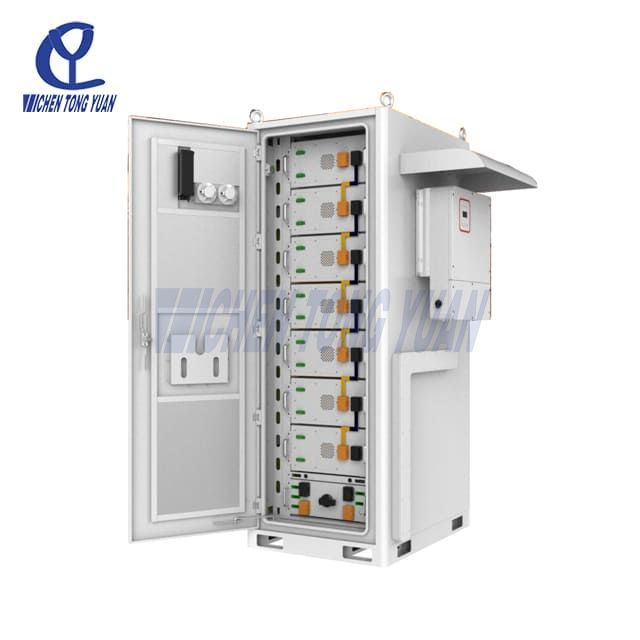

Bess Battery Energy Storage System or commercial and industrial energy storage system is a system that can store electric energy and supply power, with smooth transition, peak shaving and valley filling, frequency and voltage regulation and other functions. It can smooth the output of solar and wind power generation, and reduce the impact of its randomness, gap and fluctuation on the power grid and users; Charging in the valley price period and discharging in the peak price period can reduce the user's electricity expense; In case of power failure in the large power grid, it can operate independently to ensure uninterrupted power supply to users.
◆ Support photovoltaic access；
◆ Multiple communication methods, supporting remote upgrades；
◆ Ultra high energy density, small size, easy installation and transportation；
◆ Modular design, flexible expansion, convenient transportation and maintenance；
◆ Supports 100% unbalanced load and 110% long-term overload；
◆ Adjustable output power, adjustable charging and discharging power, strong adaptability to the power grid.
Lithium battery parameter | |
Battery capacity | 100KWH |
Battery cell type | LPF(LeFePO4) |
Single battery capacity | 14.336KWH |
Battery quantity | 7 |
Rated voltage | 358.4V |
Max charger and discharger current | 140A |
PV input parameter | |
Max input power | 45KW |
Max input voltage | 1000V |
MPPT voltage ranger | 200 ⁓850V |
Starting voltage | 200V |
Rated voltage | 620V |
Max input current of each MPPT | 30A |
Maximum short-circuit current of each MPPT | 38A |
MPPT quantity | 3 |
PV panel quantity of Each MPPT | 2/2/2 |
On Grid output parameter | |
Rated output power | 30KW |
Max output power | 33KW |
Rated output voltage | 400/380V |
Rated output Frequency | 50HZ |
Max grid connected output current | 50A |
Max input current | 50A |
Power factor | 0.8 |
Off grid output parameters | |
Off grid rated power | 30KVA |
Off grid output power | 33KVA |
Max output current | 45.5A |
Rated output voltage | 400/380V |
Rated output frequency | 50HZ |
Application
The commercial battery storage system, including the state‐of‐the‐art bess battery energy storage system and lithium battery storage cabinet, plays a pivotal role in attenuating the transient fluctuations associated with photovoltaic and wind power generation. This commercial energy storage system provides rapid response capabilities that effectively buffer the grid from sudden output variations, thereby optimizing resource utilization and mitigating wind curtailment. Its deployment ensures a more robust and resilient grid infrastructure.
Utilizing a sophisticated commercial energy storage system facilitates precise peak shaving, valley filling, and dynamic load smoothing. This system delivers swift frequency regulation, which is critical for maintaining grid operational stability and reliability. In microgrid configurations, the commercial battery storage system is indispensable for preserving the dynamic equilibrium and ensuring voltage stability for essential loads, thereby enhancing overall system resilience.
By leveraging off-peak electricity consumption, the commercial energy storage system enables significant operational cost reductions. It capitalizes on the temporal price differentials between peak and off-peak periods, optimizing energy procurement strategies. Additionally, its role as a backup power source alleviates peak load stress, contributing to both economic efficiency and enhanced grid reliability.
