CYF-240cores
Cytech
Telecom
IP 65
Floor Mount
Product Description

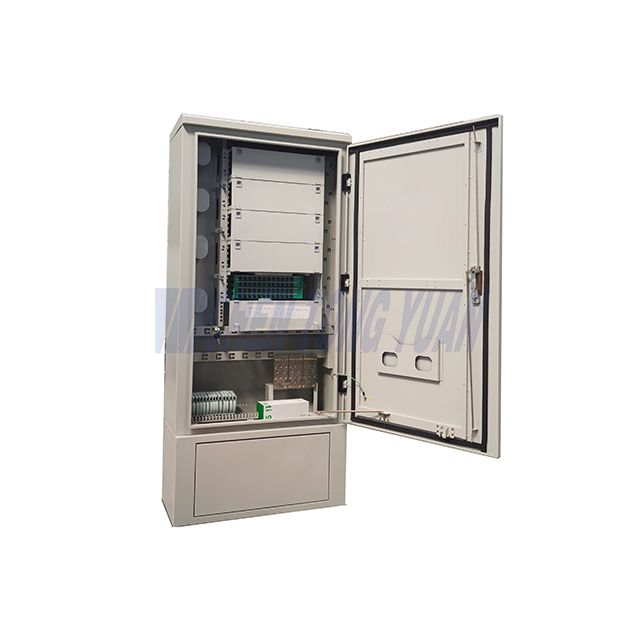

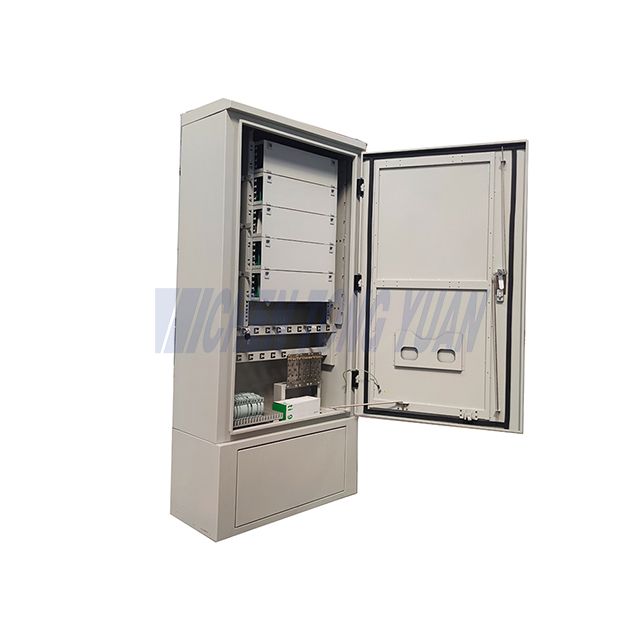

Outdoor fiber cabinet is designed specifically for the cross-connection of fiber optic feeder cables and distribution cables in Fiber the Home (FTTH) networks. It is also used as a protective enclosure for optical fiber splitters in Passive Optical Networks (PON).
The outdoor fiber cabinet is responsible for securing, reserving, and distributing fiber cables, as well as performing fiber splicing, termination, and patching.
The outdoor fiber cabinet is highly reliable in terms of sealing, providing excellent waterproof and dustproof capabilities. Additionally, outdoor fiber cabinet can be customized to accommodate 19-inch rack-mount telecommunication equipment for FTTX applications.
We strictly adhere to industry standards and actively participate in the revision of outdoor fiber cabinet industry norms.
Based on customer feedback and requirements, we continuously improve our product , such as 12 fiber splicing and distribution integrated trays, as well as outdoor fiber optic distribution cabinet through innovation and progress.
We prioritize user-friendly management and operation in product design, ensuring meticulous attention to every detail of outdoor fiber cabinet. The corners of the cabinet are made using arc forming technology and coated with electrostatic spraying to achieve a smooth and polished appearance.
We offer a variety of products to meet different application needs. Our product line includes various capabilities to ensure that we meet customer requirements. In addition, we also provide optical accessories specifically designed for outdoor cross connect cabinets, such as patch cords, pigtails, adapters, and splitters. In addition, we offer a comprehensive turnkey solution that covers installation, splicing, and testing processes.

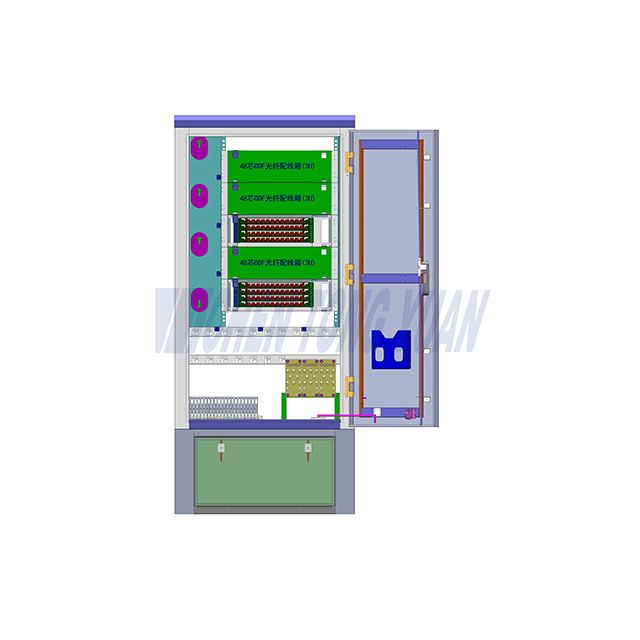

The splicing and distribution integrated tray and splitter tray are composed of 12 optical fibers, and their design purpose is to facilitate installation and maintenance. These pallets of outdoor fiber cabinet are modular and achieve flexible configuration. The interchangeable model of components helps to shorten delivery time, reduce costs, and simplify installation and maintenance procedures.
Material | Galvanized steel, stainless steel,aluminum and SMC |
Splice and distribution tray capacity | 12 pieces SC,FC or ST adapters(12cores); 12 pieces duplex LC adapters(24 cores). |
Applicable adapter | SC,FC(duplex LC or ST is optional) |
Adapter Quantity | 240 cores, also can customized according to your requirement |
Applicable environment | Outdoor |
Protection Grade | IP65 |
Fiber bending radius | >37.5mm(protective tubes are furnished for fibers passing through metallic holes.) |
Cable Bending Radius | >15 times of cable diameter |
Nominal working wavelength | 850nm,1310nm,1550nm |
Insertion loss | ≤0.2dB |
Return loss | ≥45dB (PC), ≥50dB (UPC), ≥60dB (APC) |
Durability | >1000 times |
Insulation resistance | ≥1,000MΩ/500V(DC) |
Voltage resistance | ≥3,000V(DC), 1 min no puncture, no arc-over |
Vertical Pressure | >980N |
Atmospheric Pressure | 70~106KPa |
Relative Humidity | ≤95% (+40°C) |
Operating Temperature | -40°C~+60°C |
Storage Temperature | -40°C~+60°C |
