CY17001300500
Cytech
Telecom
IP 55, IP 65, NEMA 4, NEMA 4X
Floor Mount
4 Fans
19inch, 23inch
32U
Product Description

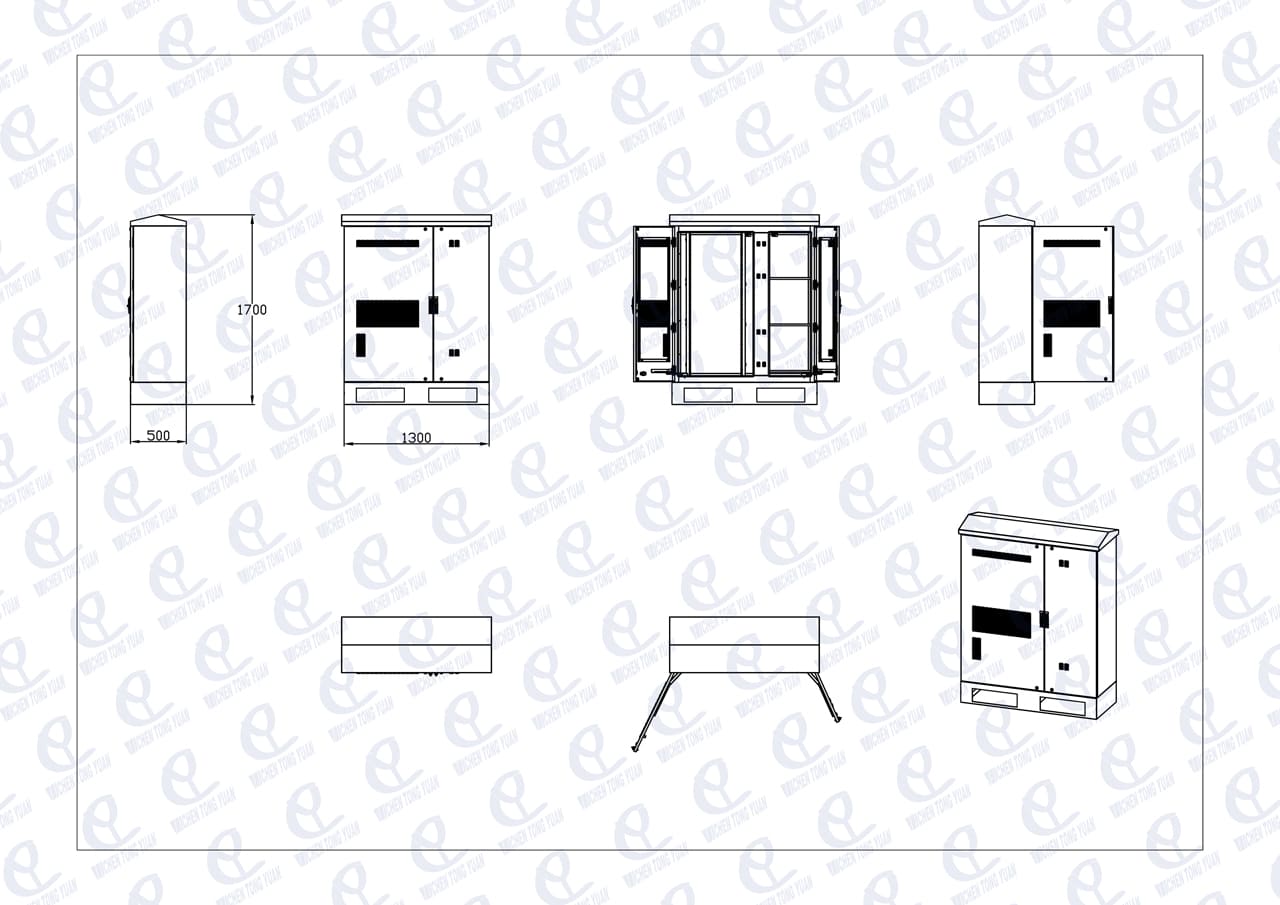

| Name | Technical Parameter |
| External Size | H*W*D=1700*1300*500mm ( 67 x 51 x 20 inch) |

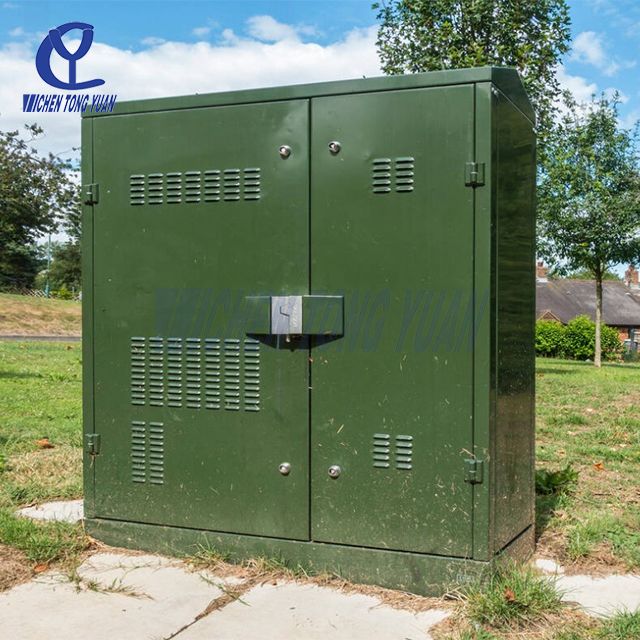

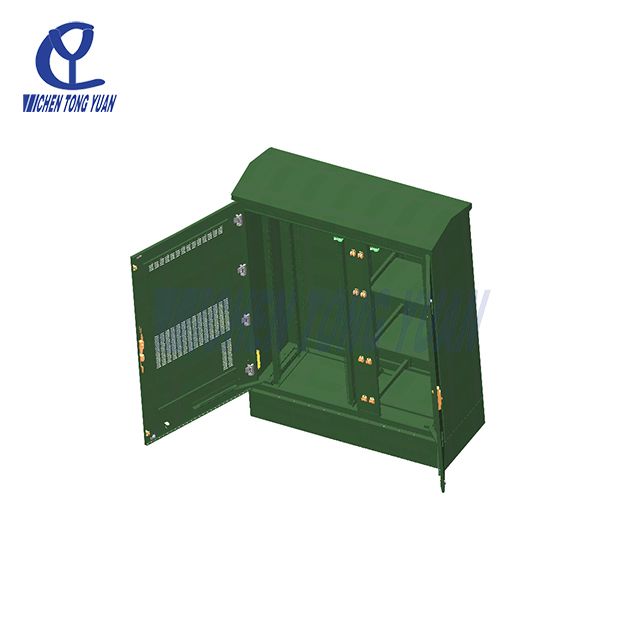

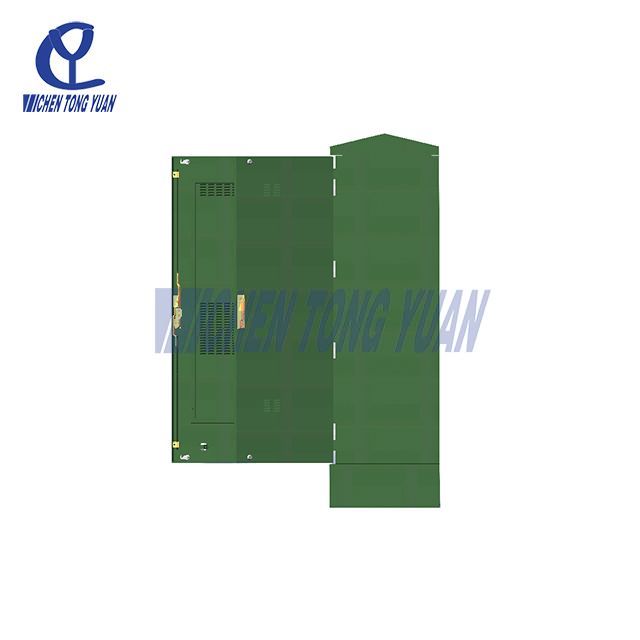

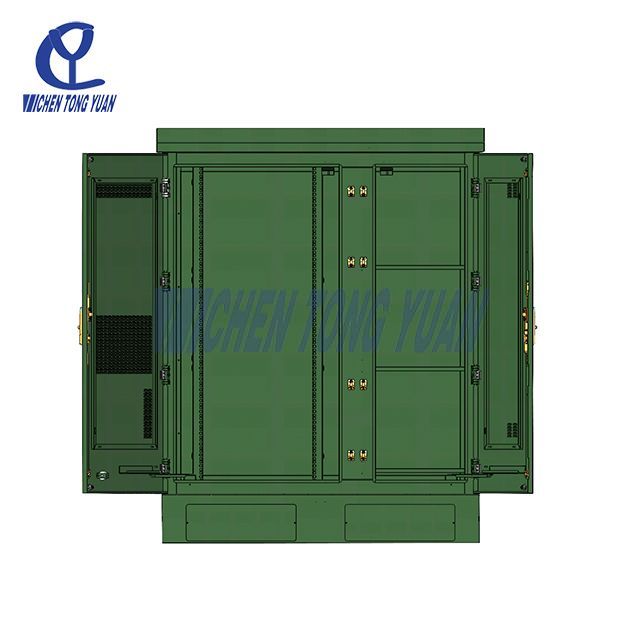

| Cabinet layout | Two compartment, one for installing 19” equipment,one for battery |
| Cabinet material | Single layer Galvanized steel with Green spray coating |

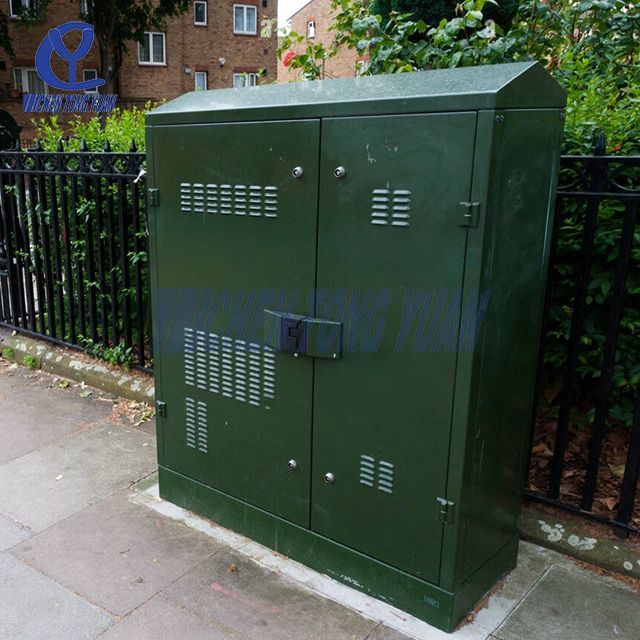

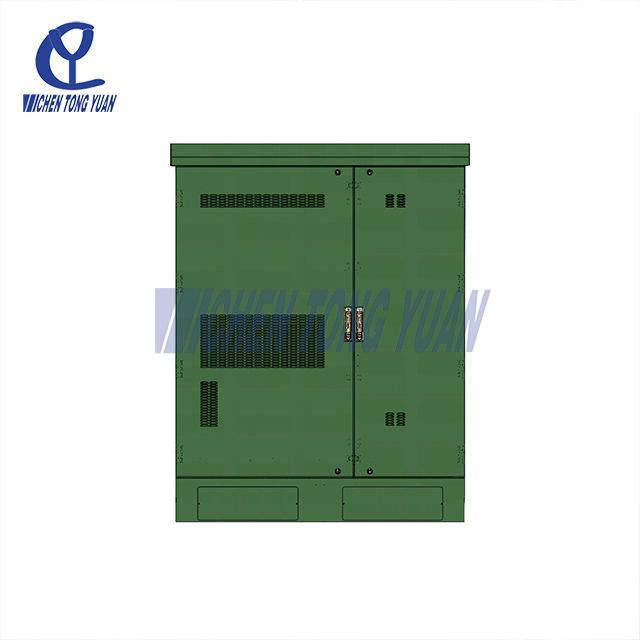

| Security design | Embedded door, embedded hinges, 4-point security lock |
| Protection level | IP55,NEMA 4 |
| Color | RAL6005 |
| Climate control | AC220V and DC48V fan |
| Lighting system | Door sensor+48V LED light(door open, the LED will light on; door closed, the LED will go out.) |
| Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
| Working temperature | - 40 ℃ ~ + 55 ℃ |
| Working Humidity | ≤ 95% (+ 40 ℃) |
| Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Note：The air conditioner can also choose AC 110V 60HZ or DC 48V, and the fan can also choose AC 110V or 220V.
Includes: locking door with air conditioner,19inch rackmount rails,floormount plinth or hardwares.
| Name | Quantity | Unit | Technical parameter |
| Outdoor telecom cabinet | 1 | set | H*W*D=1700*1300*500mm ( 67 x 51 x 20 inch ) |
| Fan | 1 | set | DC48V with temperature control |
| LED Lamp | 1 | set | DC48V,used for illumination in the cabinet |
| Grounding bus bar | 1 | set | 200A Copper bar(13 point M6 and 2 point M8) |
| Equipment supporting | 1 | set | |
| Package | 1 | set | Wooden box , wooden pallet+stretch film or wooden pallet +wooden box |
T he following accessories are available for optional ordering.
| Item | Technical parameter | Picture |
| EMS | 19 inch environment monitoring unit 1U; DC48V, support RS232,RS485, SNMP,TCP/IP communication protocol. 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor.
Environmental monitoring system is a comprehensive network of devices and technologies designed to track and assess various aspects of the environment. This system plays a crucial role in gathering data to understand environmental conditions, detect changes, and manage natural resources. |
|
| Fire Extinguisher | Hot aerosol fire extinguishing device is a new, efficient and environment-friendly fire fighting product with Vanguard International Semiconductor Corporation level, which is the first in China. It is a high-tech green fire protection product that benefits humanity, born under the background of the International Montreal Agreement and China's increased awareness of environmental protection. It is an ideal substitute for halon fire extinguishing devices and is suitable for relatively enclosed spaces such as distribution cabinets.
Electric or hot start : Hot start temperature ≥170℃; Electric start temperature ≥700mA. |
|
| Wiring type PDU | AC input：63A/2P*2 with interlock； AC/SPD：30-60KA/2P*1； AC output：63A/1P*1,32A/1P*1，16A/1P*3，3 holes Maintenance socket*1 |
|
| Integrated PDU | Can be customized according to customer requirements. |
|
| Rectifier | AC220V/110V transfer to DC48V, Connect the battery as a backup power,also can be customized according to customer requirements. |
|

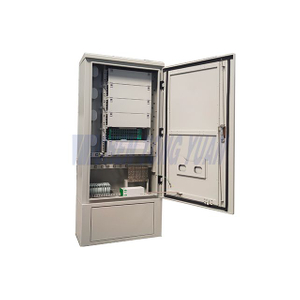

ODF | Optic Distribution Frame (ODF) is a critical component in a fiber optic network infrastructure. It serves as a centralized point for the termination, organization, and distribution of fiber optic cables. The primary purpose of a distribution frame is to facilitate efficient and organized connectivity, making it easier to manage, troubleshoot, and expand the network.
Function: 1)Termination Point; 2)Organization and Management; 3)Splicing Trays; 4)Labeling and Documentation; 5)Security and Protection; 6)Scalability;
Can be customized according to customer requirements. |
|
| Backup battery | Can be lithium battery or lead acid battery. |
Flexibility
The Outdoor Weatherproof FTTX Street Cabinet is designed to meet the dynamic demands of modern telecom networks. As the industry faces increasingly complex outdoor installations, this cabinet offers a combination of advanced materials, innovative design features, and exceptional scalability. Here’s a closer look at the key features that define the flexibility and adaptability of the Outdoor Weatherproof FTTX Street Cabinet:
The Outdoor Weatherproof FTTX Street Cabinet stands out for its use of high-grade, durable materials such as galvanized steel, stainless steel (SS304), innovative sandwich panels, and aluminum. These materials offer superior structural integrity and resistance to environmental stressors, from high winds to extreme temperatures. This robust construction ensures that the cabinet maintains its performance and longevity, even in the harshest outdoor conditions.
A significant strength of the Outdoor Weatherproof FTTX Street Cabinet is its customizable compartment configurations. The cabinet can be tailored to accommodate anywhere from 1 to 4 bays, with multi-compartment options available. This flexibility allows telecom operators to organize their equipment efficiently while also enabling future scalability as network demands evolve. With customizable configurations, the Outdoor Weatherproof FTTX Street Cabinet provides optimal space utilization and adaptability for a variety of network setups.
In outdoor environments, ease of maintenance is critical to minimizing downtime and ensuring operational efficiency. The Outdoor Weatherproof FTTX Street Cabinet has been designed with front and rear access doors, allowing technicians to quickly and easily access equipment for routine maintenance and troubleshooting. An optional side door configuration further enhances accessibility, ensuring that every component of the system is reachable without compromising security or ease of operation.
The Outdoor Weatherproof FTTX Street Cabinet doesn’t just offer technical excellence—it is also designed with aesthetics in mind. The cabinet is available in customizable color finishes, with RAL7035 as the standard. However, customers can request alternative colors based on specific RAL color codes, ensuring that the cabinet blends seamlessly into urban or rural environments. This aesthetic flexibility makes the Outdoor Weatherproof FTTX Street Cabinet a versatile solution that fits within various architectural and environmental settings.
In high-performance telecom networks, maintaining optimal temperature control is essential for equipment longevity. The Outdoor Weatherproof FTTX Street Cabinet incorporates a wide range of advanced thermal management solutions to handle demanding heat dissipation needs. The cabinet can be equipped with compressed air conditioners, thermoelectric coolers (TEC), heat exchangers (HEX), fans, and combined AC & HEX systems. These solutions are tailored to optimize thermal performance, reduce energy consumption, and extend the life of network components housed within the cabinet.
The Outdoor Weatherproof FTTX Street Cabinet excels in providing flexible power management options. It supports a variety of configurations, including power distribution units (PDU), rectifiers, and integrated AC-DC power systems. This extensive range of options allows telecom providers to select the most appropriate power solutions based on the specific needs of their network. Whether dealing with small installations or large-scale systems, the cabinet’s versatility ensures efficient and reliable power management.
The Outdoor Weatherproof FTTX Street Cabinet allows businesses to showcase their brand identity through silk-screened logos and eco-friendly painting techniques. These features not only help promote corporate identity but also ensure that the cabinet meets modern environmental standards. By using sustainable finishing processes, the cabinet provides an eco-conscious solution without compromising on performance or aesthetics.
Equipped with various environmental sensors, the Outdoor Weatherproof FTTX Street Cabinet ensures that the equipment inside remains protected and operates under optimal conditions. Sensors for temperature, smoke, and door status provide continuous monitoring, enabling proactive management and minimizing the risk of equipment failure due to external environmental factors.
The Outdoor Weatherproof FTTX Street Cabinet also features integrated remote monitoring capabilities, making it possible for operators to manage and monitor their equipment remotely. It supports communication protocols such as RS232, RS485, and SNMP, allowing for real-time updates and diagnostics. This connectivity ensures operational continuity, enhances preventive maintenance efforts, and minimizes downtime, making the cabinet a crucial asset in any telecom network.
The Outdoor Weatherproof FTTX Street Cabinet offers maximum flexibility, making it an ideal solution for modern telecom infrastructure. With its combination of advanced materials, custom configurations, and innovative features, the cabinet is built to support the future growth of outdoor telecom networks, ensuring reliable performance and efficient operation in even the harshest environments.
Options
Model | Height | Type | Rate | Color | H*W*D | Climate control | Application |
CY800650650 | 14U | Floor stand | IP55 | Grey | 800mm*650mm*650mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1050650650 | 18U | Floor stand | IP55 | Grey | 1050mm*650mm*650mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1400800800 | 26U | Floor stand | IP55 | Grey | 1400mm*800mm*800mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1600800800 | 30U | Floor stand | IP55 | Grey | 1600mm*800mm*800mm | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1700750750 | 32U | Floor stand | IP55 | Grey | 1700mm*700mm*700mm | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY2100900900 | 42U | Floor stand | IP55 | Grey | 2100mm*900mm*900mm | Air conditioner 1500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
Other size to be continued ,please send us inquiry for futher discussion
Name | Specification |
Air conditioner | AC220V 50HZ |
AC220V 60HZ | |
AC110V 60HZ / DC48V | |
Cooling capacity from 300W-5000W | |
Heat exchanger | DC48V |
40W/K-200W/K | |
Combined air conditioner & heat exchanger | AC220V 50HZ & DC48V |
1500W&80W/K | |
TEC | DC48V |
200W-1200W | |
Fan | AC220V 50HZ |
AC220V 60HZ | |
AC110V 60HZ / DC48V |
How to order
Selecting the appropriate Outdoor Weatherproof FTTX Street Cabinet climate control system is critical to maintaining the performance and lifespan of your telecom equipment. A carefully selected system will protect sensitive components from extreme weather and temperature fluctuations, ensuring the longevity of the Outdoor Weatherproof FTTX Street Cabinet. Consider the following factors when evaluating climate control options:
Every piece of equipment in the Outdoor Weatherproof FTTX Street Cabinet operates optimally within a specified temperature range. Ensuring that your climate control system maintains the appropriate internal temperature is crucial, especially for environments with frequent temperature swings.
The heat load generated by equipment inside the Outdoor Weatherproof FTTX Street Cabinet directly impacts the cooling requirements. Ensure that your climate control system is equipped to manage the cumulative heat output, whether through fans, air conditioning, or thermoelectric coolers (TEC).
The ambient temperature at the installation site of the Outdoor Weatherproof FTTX Street Cabinet plays a significant role in determining the right climate control system. High temperatures in the local environment may require additional cooling systems to maintain a stable internal temperature.
If the Outdoor Weatherproof FTTX Street Cabinet is located in a residential or noise-sensitive area, you’ll want to consider the noise level of the cooling system. Ensure the system is designed to operate quietly without disturbing surrounding areas.
Anticipating future upgrades in equipment within the Outdoor Weatherproof FTTX Street Cabinet means ensuring that the climate control system can handle the increase in heat load. Scalability is crucial for accommodating the evolving needs of telecom networks.
By addressing these factors, you can ensure that the Outdoor Weatherproof FTTX Street Cabinet is equipped with an appropriate climate control system, allowing it to function efficiently in even the harshest conditions.
The installation and proper use of the Outdoor Weatherproof FTTX Street Cabinet are critical to maintaining its longevity and ensuring safe operation. Here are essential precautions to consider when setting up the Outdoor Weatherproof FTTX Street Cabinet:
Choosing the right site for installing the Outdoor Weatherproof FTTX Street Cabinet ensures its stability and security. Avoid areas prone to flooding or excessive foot traffic, which may cause damage or obstruct airflow. Accessibility for routine maintenance is also important to keep the Outdoor Weatherproof FTTX Street Cabinet running smoothly.
Install the Outdoor Weatherproof FTTX Street Cabinet on level ground to prevent any undue stress on the equipment and to ensure stable, secure mounting. Proper alignment of the cabinet ensures the cooling system and other components function efficiently.
Grounding is crucial for the safety of the Outdoor Weatherproof FTTX Street Cabinet, especially if it houses power equipment. Adhering to local electrical codes and using surge protectors will protect your equipment from electrical damage and power surges.
Proper ventilation ensures that the Outdoor Weatherproof FTTX Street Cabinet maintains an optimal operating temperature. Ensure airflow is not obstructed and, if necessary, integrate additional cooling systems to enhance performance in high-temperature environments.
The Outdoor Weatherproof FTTX Street Cabinet should be properly sealed to protect its contents from dust, moisture, and extreme weather. Periodic checks are essential to maintain seals and ensure the cabinet’s protection from environmental elements.
Install secure locking mechanisms to protect the Outdoor Weatherproof FTTX Street Cabinet from unauthorized access. This will safeguard valuable telecom equipment and prevent tampering.
Routine inspections and cleaning will ensure the Outdoor Weatherproof FTTX Street Cabinet remains in top condition. This helps prevent issues such as dirt buildup or equipment failure that could impact network reliability.
Make sure the installation site can support the weight of the Outdoor Weatherproof FTTX Street Cabinet, especially if it houses heavy or multiple pieces of equipment.
Proper cable management ensures that all cables within the Outdoor Weatherproof FTTX Street Cabinet are protected from damage and kept organized. This minimizes the risk of cable failure and enhances the cabinet’s operational efficiency.
The Outdoor Weatherproof FTTX Street Cabinet is a versatile and essential part of modern fiber-optic networks, supporting numerous telecom applications. The following are some key uses of the Outdoor Weatherproof FTTX Street Cabinet:
The Outdoor Weatherproof FTTX Street Cabinet is a critical component in Fiber to the Home (FTTH) and Fiber to the Building (FTTB) networks, enabling high-speed internet connections directly to homes and businesses.
The Outdoor Weatherproof FTTX Street Cabinet is used to connect mobile base stations to core networks, enabling high-speed mobile broadband and providing support for 5G networks.
The Outdoor Weatherproof FTTX Street Cabinet supports the infrastructure of smart cities, connecting systems like smart traffic lights and public Wi-Fi networks, and enabling urban monitoring.
In healthcare, the Outdoor Weatherproof FTTX Street Cabinet enables reliable telemedicine and centralized medical records systems, improving patient care and diagnostics.
The Outdoor Weatherproof FTTX Street Cabinet plays a crucial role in supporting modern telecom networks, offering unmatched flexibility and resilience in challenging outdoor environments. From enhancing residential internet access to facilitating 5G networks and smart city technologies, the Outdoor Weatherproof FTTX Street Cabinet ensures that telecom systems remain reliable and scalable in any situation.
