CYODF01
CYTECH
Product Description
Product introduction video
| Color | Grey White |
| Material | Cold Rolled Steel |
| Types of adaptor | SC/LC/E2000/FC |
| Use | FTTX |
| Installation Method | 19" Rack Mount |
| Network | Wired LAN, Wifi, 4G |
| Capacity | RAL7035 |
| Operating temperature | AC220V air conditioner and DC48V fan |
| Relative humidity | ≤90% (when the temperature is below 30°C) |
| Atmosphere pressure | 70Kpa - 106Kpa |
| Storage temperature | 40°C - +70°C |
| Insertion loss | ≤0.20dB |
| Return loss | PC≥45.0dB ,UPC≥50.0dB,APC≥60.0dB |
| Durability | >1000times |
| Insulating resistance | ≥1000 MΩ 500V |
The following accessories are available for optional ordering.
| Item | Technical parameter | Picture |
| EMS | 19 inch environment monitoring unit 1U; DC48V, support RS232,RS485, SNMP,TCP/IP communication protocol. 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor.
Environmental monitoring system is a comprehensive network of devices and technologies designed to track and assess various aspects of the environment. This system plays a crucial role in gathering data to understand environmental conditions, detect changes, and manage natural resources. |
|
| Fire Extinguisher | Hot aerosol fire extinguishing device is a new, efficient and environment-friendly fire fighting product with Vanguard International Semiconductor Corporation level, which is the first in China. It is a high-tech green fire protection product that benefits humanity, born under the background of the International Montreal Agreement and China's increased awareness of environmental protection. It is an ideal substitute for halon fire extinguishing devices and is suitable for relatively enclosed spaces such as distribution cabinets.
Electric or hot start: Hot start temperature ≥170℃; Electric start temperature ≥700mA. |
|
| Wiring type PDU | AC input：63A/2P*2 with interlock； AC/SPD：30-60KA/2P*1； AC output：63A/1P*1,32A/1P*1，16A/1P*3，3 holes Maintenance socket*1 |
|
| Integrated PDU | Can be customized according to customer requirements. |
|
| Rectifier | AC220V/110V transfer to DC48V, Connect the battery as a backup power,also can be customized according to customer requirements. |
|
ODF | Optic Distribution Frame (ODF) is a critical component in a fiber optic network infrastructure. It serves as a centralized point for the termination, organization, and distribution of fiber optic cables. The primary purpose of a distribution frame is to facilitate efficient and organized connectivity, making it easier to manage, troubleshoot, and expand the network.
Function: 1)Termination Point; 2)Organization and Management; 3)Splicing Trays; 4)Labeling and Documentation; 5)Security and Protection; 6)Scalability;
Can be customized according to customer requirements. |
|
| Backup battery | Can be lithium battery or lead acid battery. |
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
Optional Specification
Core Count | Height | H×W×D (mm) |

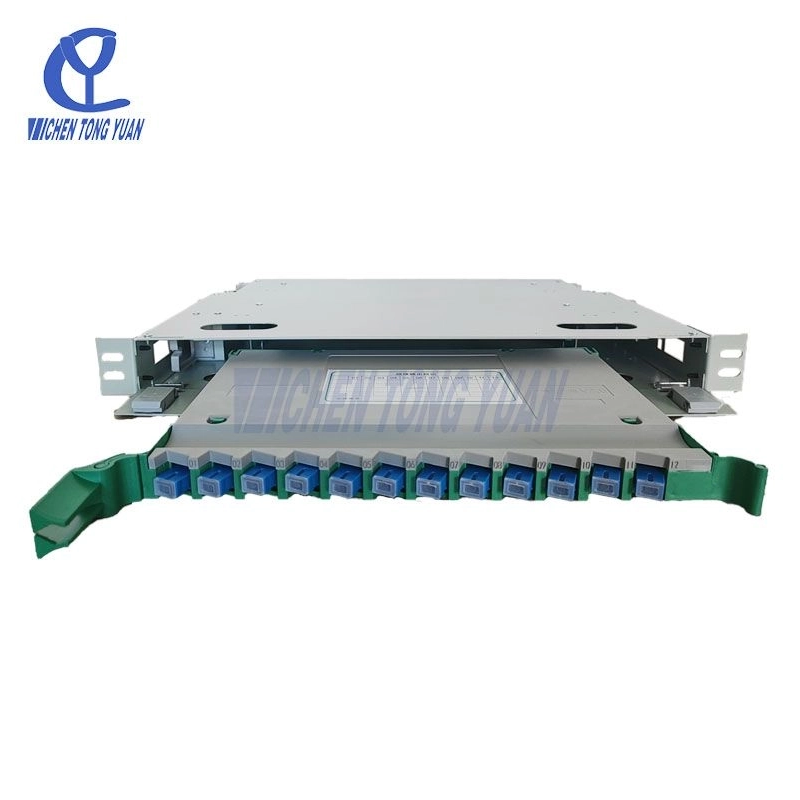

12 | 1U | 44x482x255 |
24 | 2U | 70x482x255 |

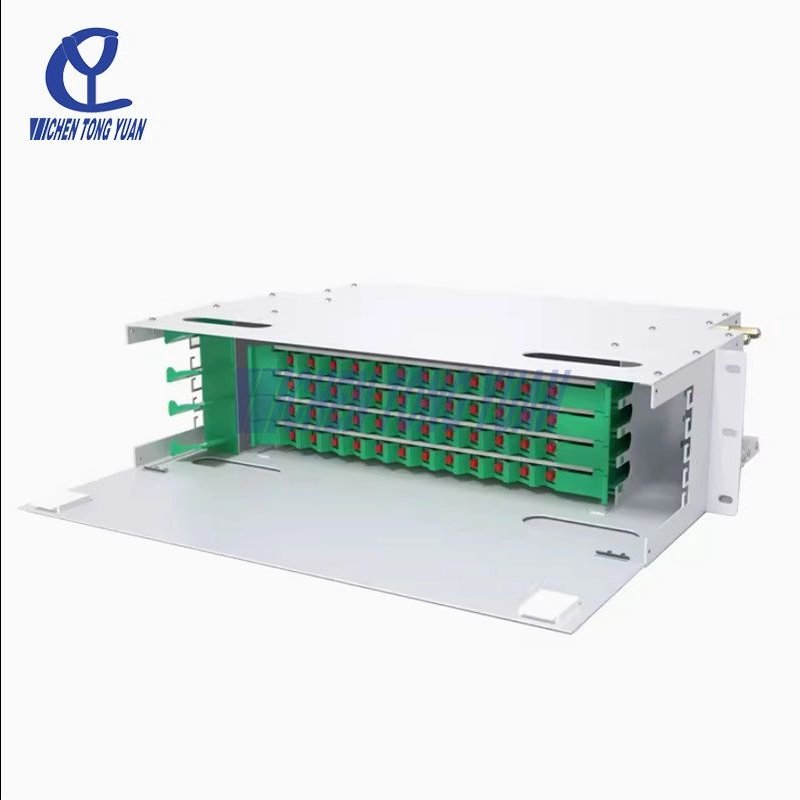

48 | 3U | 122x482x255 |

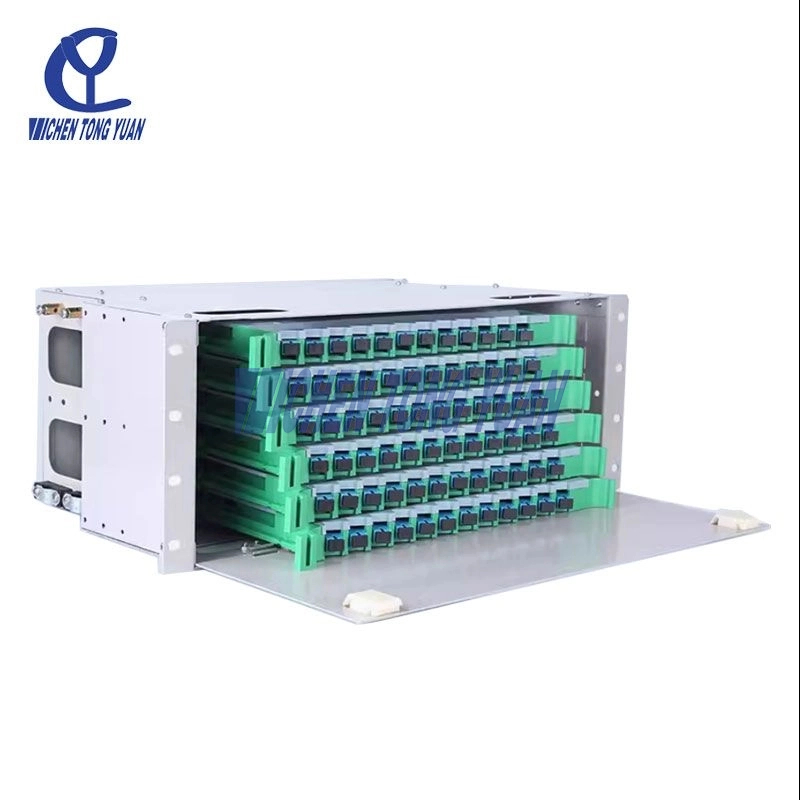

72 | 4U | 174x482x255 |

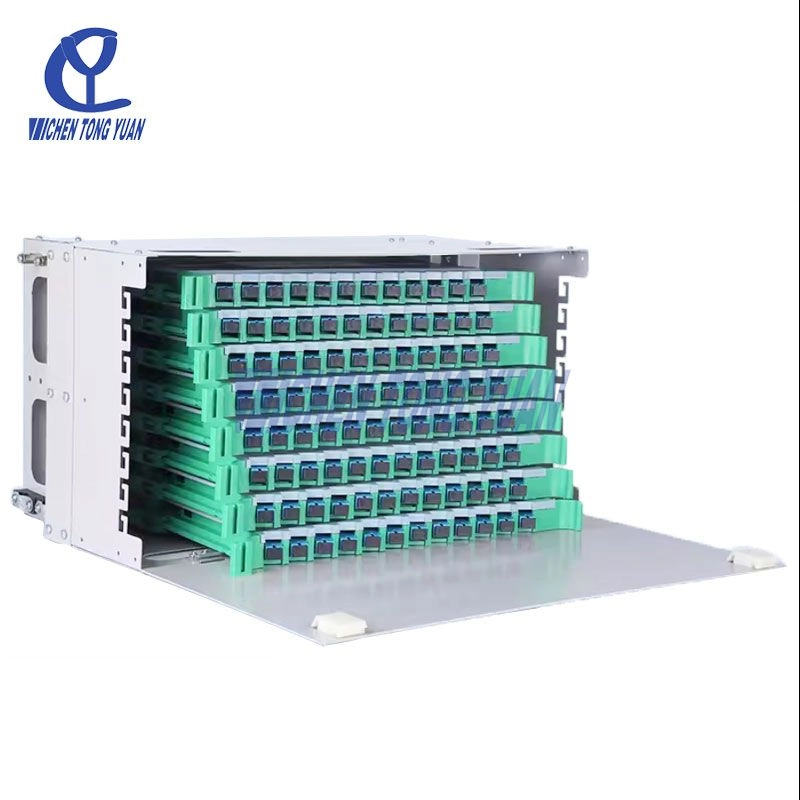

96 | 5U | 226x482x255 |

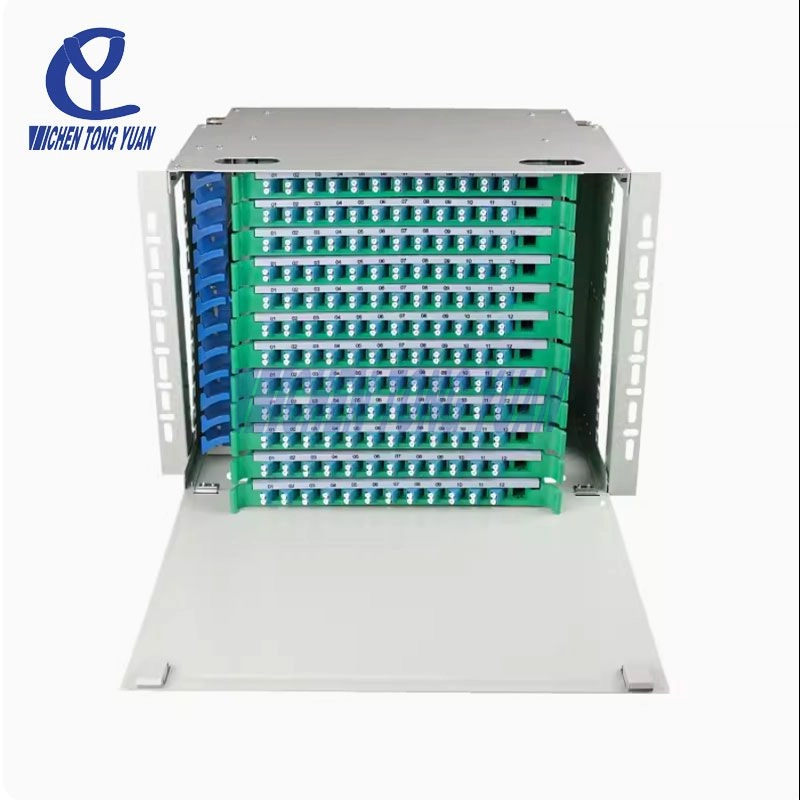

144 | 7U | 330x482x255 |
