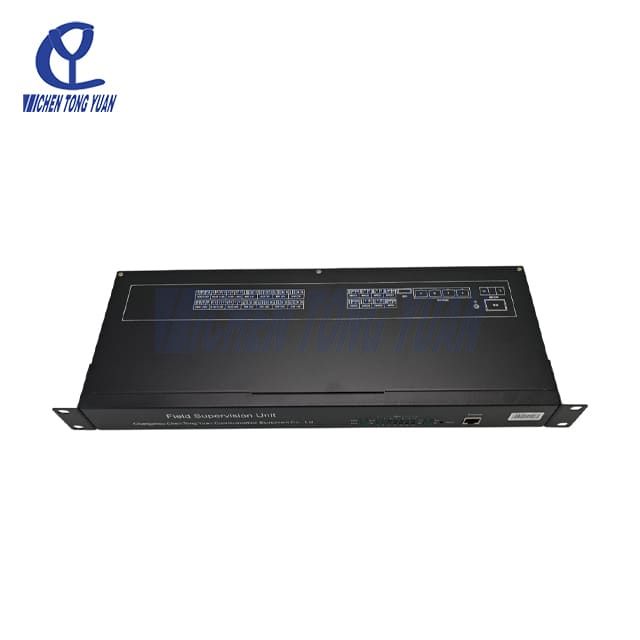

Rack Mount Enterprise Data Center Environmental Monitoring Systems​

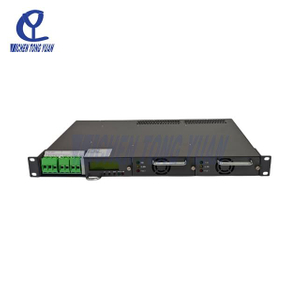

E4860 System configuration

  • Two 4830 rectifier modules
  • 1 monitoring module
  • E4860 output part

DC power distribution: 1 channel (battery) and 1 channel (load)
  • DTM2830

  • CYTECH

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description


Product introduction video




Certificate

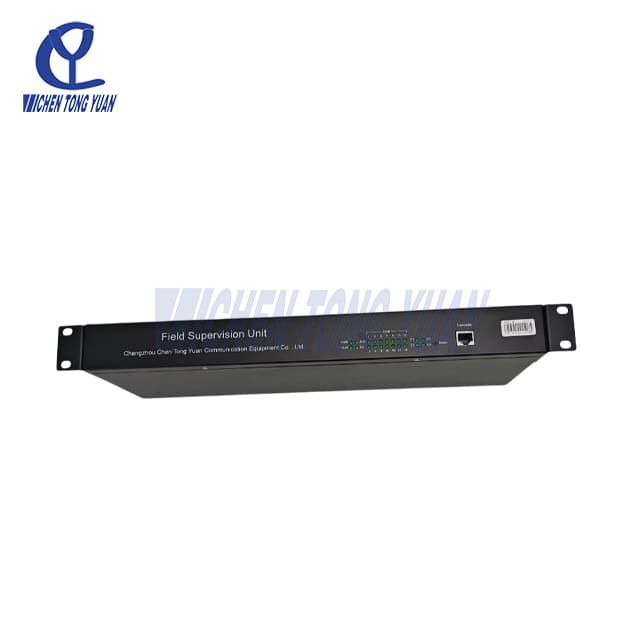

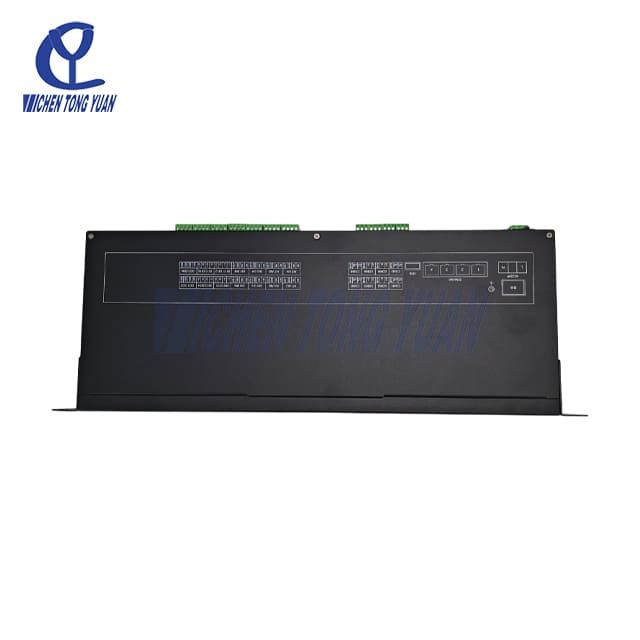

DTM2830 Brief overview


DTM2830 is a system for monitoring the base station/machine room. The equipment is equipped with 8-way 232/485 intelligent interface, 8-way AI (0-5V/4-20ma) interface, 16-way DI interface, and 4-way DO interface. Users can freely configure various intelligent devices and various environmental devices through the network management platform provided by the equipment. The DTM2830DTM2830 device can realize the intelligent analysis and intelligent analysis of each access device, and access the power source dynamic loop monitoring platform normally according to the configuration, so as to realize the real-time monitoring of the base station/machine room. At the same time, it can also access the camera to realize the linkage processing of alarms and pictures.



Equipment features


✦High-density single board design improves the reliability of the system, and has the characteristics of easy installation and debugging, maintenance-free and stable performance;

✦The panel has perfect intelligent status indication function, which can intuitively display the working conditions of Ethernet, RS232/RS485 and other interfaces of the device;

✦Each RS232/485 data parameter can be set independently, supporting a maximum baud rate of 115200bps, supporting multiple serial port data bit transmission protocols, and all RS232/485 interfaces of the device are completely isolated on the circuit;

✦Ethernet interface 10M/100M, IP interfaces*4;

✦AI interfaces*8, DI interfaces*16 and DO interfaces*4;

✦RS-485 interfaces*8 and 4 ports extensions;

✦1 port local debugging interface;

✦Support SNMP and TCP/IP protocols;

✦The program software of the device can be upgraded through the network to ensure that users get the latest and most complete functions;

✦The serial data interface conforms to RS232 and RS485 related standards. It transparently transmits the serial port data, can accept different bus modes, and can automatically detect whether the interface is physically connected and whether the data is normally communicated. The interface can be set with a maximum of 115200bps;

✦Regularly request and process equipment or sensor data;



Technical indicators


Work environment The whole machine can work normally and stably in harsh environment with wide temperature range.
Working temperature -10℃ ~ +70℃
Relative humidity 0 %~95 %
Atmospheric pressure 70-106KPa
Altitude ≤5000m
Power supply

Input voltage

-48VDC

Voltage range

-36VDC~-72VDC

Power consumption

<10W



Requirements for Environmental Conditions

Working temperature: E4860 embedded power supply system is powered on when the temperature is less than -40 ℃ (but does not supply to the load), and works normally at -40 ℃ ~ + 55 ℃; When the temperature is higher than 55 ℃, the power supply system is derated.

Relative humidity: 10 ~ 90%

Atmospheric pressure: 70 ~ 106KPa

Altitude: 0 ~ 3000m


Operating Instructions

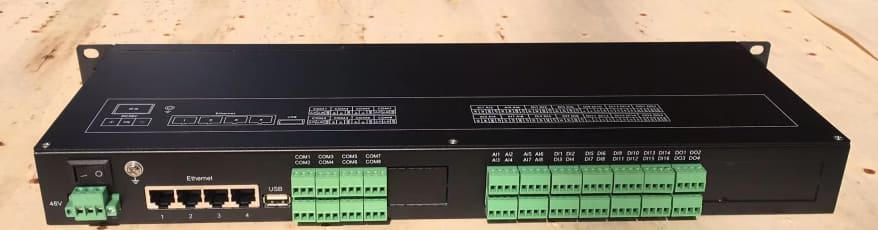

I/O and WEBS operating instructions

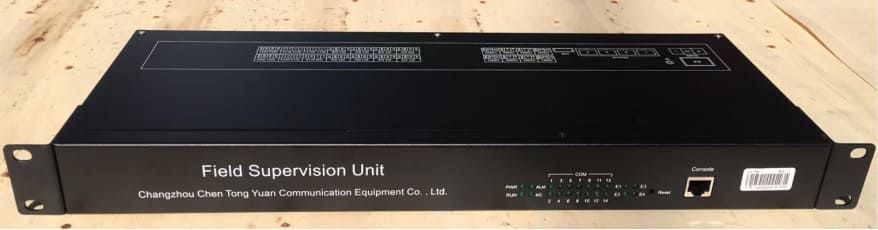

Front panel indicator and interface


Indicator name

Function

Description

PWR

Power indicator

On when the power is supplied; No power off

4G

 4G operation status

Flashes when 4G is running

RUN

Equipment operation status

Flashes when the device is running

ALM

Warning indicator

On when there is an alarm; Off when there is no alarm

COM1~COM12

 RS485 status light

RS485 indicator light flashes only when there is data; No connection indication function

E1

Network indicator 1

The light is on when there is a connection; The light is off when there is no connection; Flashes when there is data

E2

Network indicator 2

The light is on when there is a connection; The light is off when there is no connection; Flashes when there is data

E3

Network indicator 3

The light is on when there is a connection; The light is off when there is no connection; Flashes when there is data

E4

Network indicator 4

The light is on when there is a connection; The light is off when there is no connection; Flashes when there is data

Reset

Reset device

This button can reset the device operating system

Console

Commissioning interface

Fixed baud rate is 115200bps, 8, n, 1

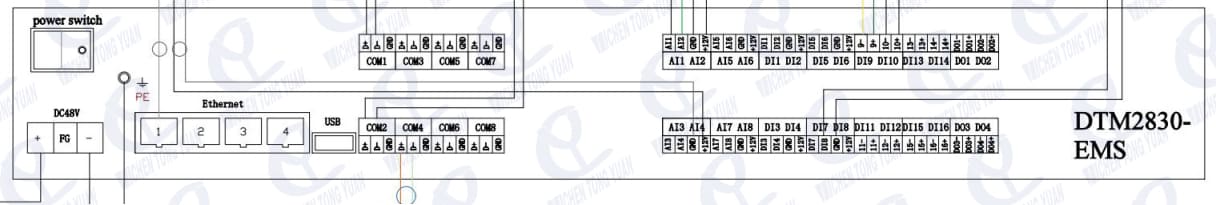

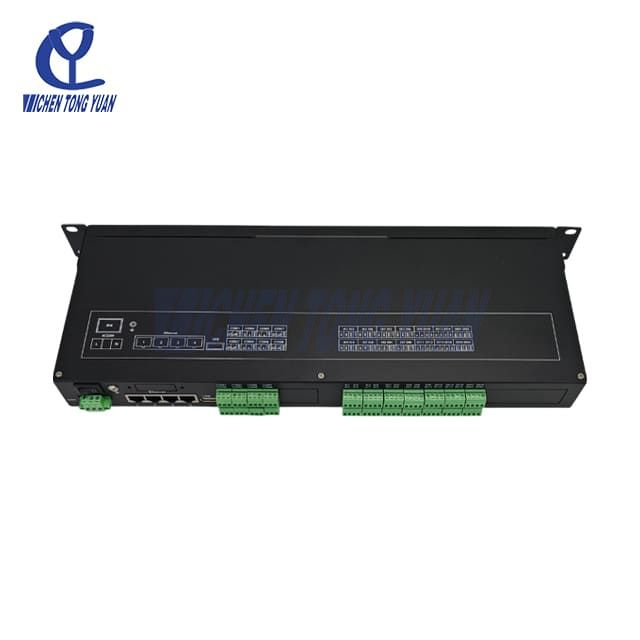

Rear panel interface
