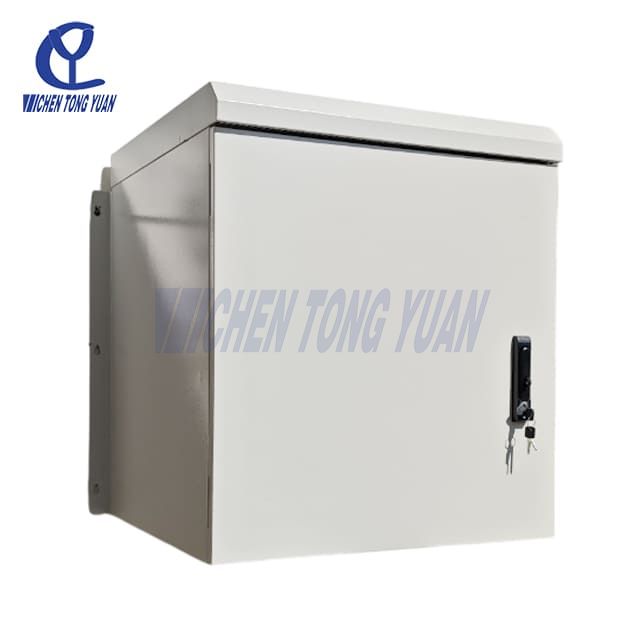

CY750650650
Cytech
Telecom
IP 55, NEMA 3R

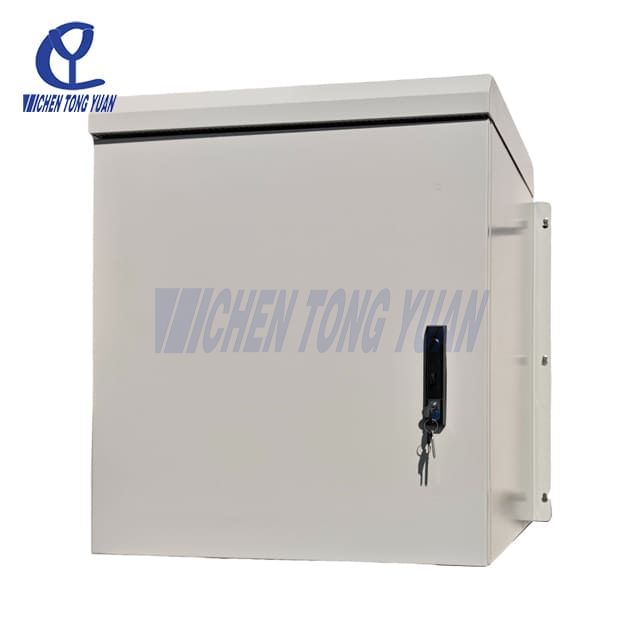

Wall Mount
2 Fans
19inch, 23inch
650mm/26inch
14U

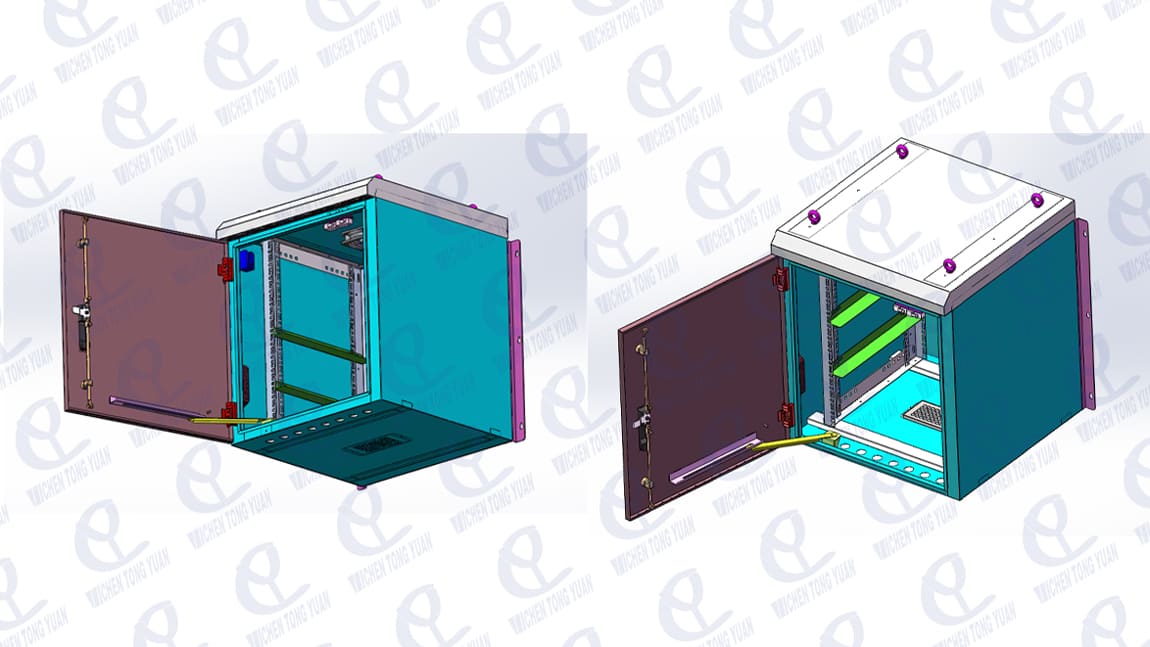

Product Description
| Name | Technical Parameter |

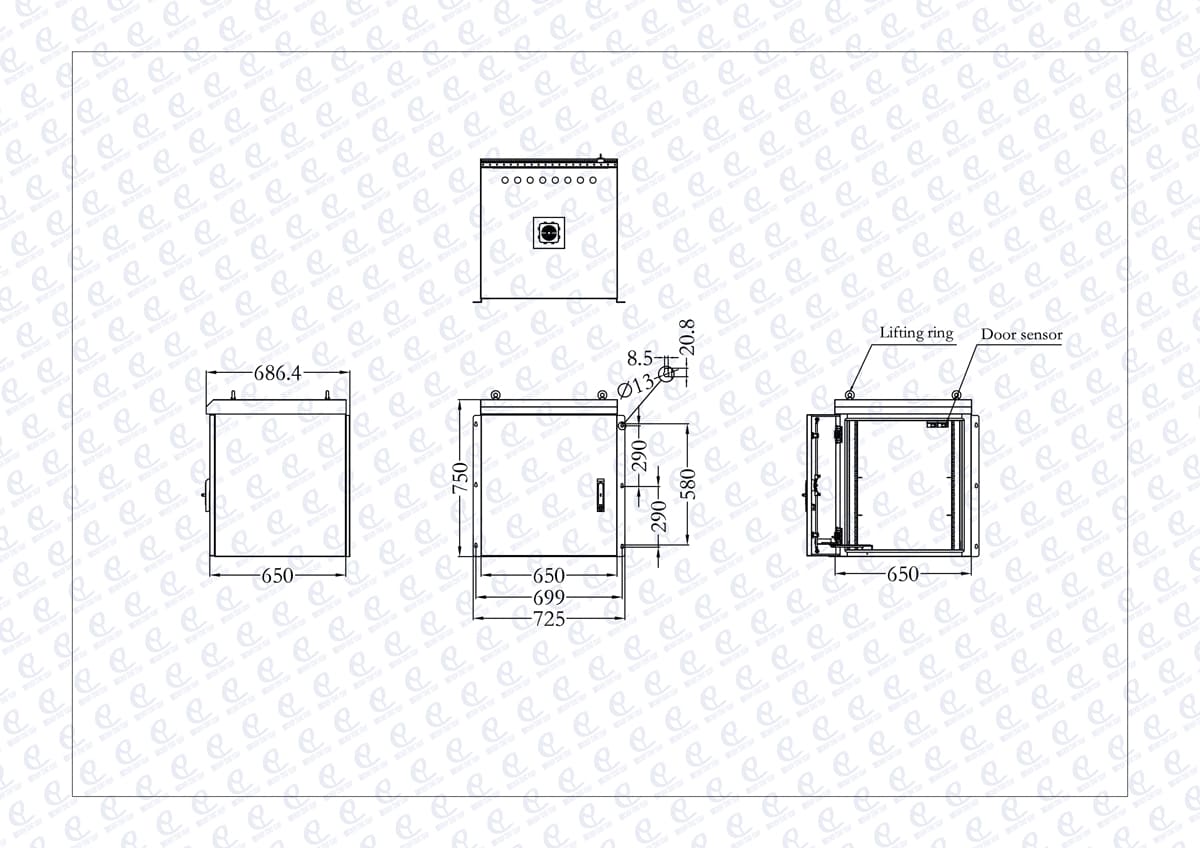

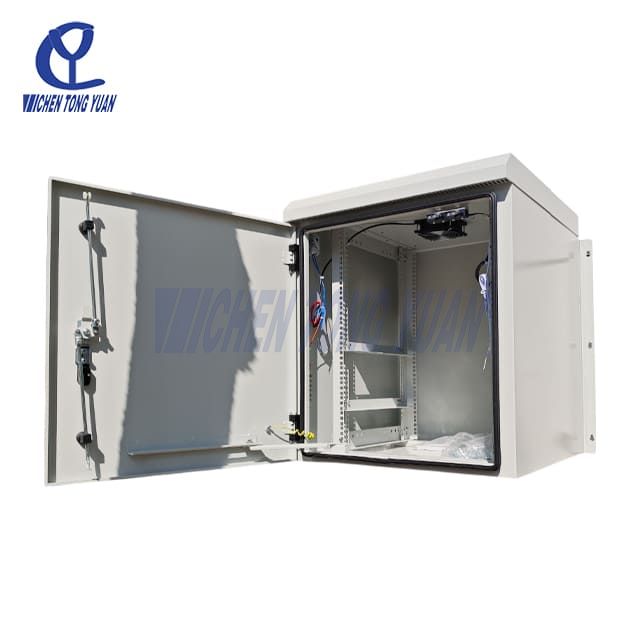

| External Size | H*W*D=750x650x650mm (29.5 x 25.6 x 25.6 inch) |
| Cabinet layout | One compartment, for installing 19inch equipment |
| Cabinet material | Single layer galvanized steel sheet |
| Security design | Embedded door, embedded hinges,2-point security lock |
| Protection level | IP55 / NEMA4 |
| Color | RAL7035 |
| Climate control | DC48V fan |
| Lighting system | Door sensor+48V LED light(door open, the LED will light on; door closed, the LED will go out.) |
| Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
| Working temperature | - 40 ℃ ~ + 55 ℃ |
| Working Humidity | ≤ 95% (+ 40 ℃) |
| Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Note：The air conditioner can also choose AC 110V 60HZ or DC 48V, and the fan can also choose AC 110V or 220V.
Includes: locking door with air conditioner,19inch rackmount rails,floormount plinth or hardwares.
| Name | Quantity | Unit | Technical parameter |
| Outdoor telecom cabinet | 1 | set | External Size:H*W*D=750x650x650mm (29.5 x 25.6 x 25.6 inch) |
| Fan | 1 | set | DC48V with temperature control |
| LED Lamp | 1 | set | DC48V,used for illumination in the cabinet |
| Grounding bus bar | 1 | set | 200A Copper bar(13 point M6 and 2 point M8) |
| Equipment supporting | 1 | set | |
| Package | 1 | set | Wooden box , wooden pallet+stretch film or wooden pallet +wooden box |
The following accessories are available for optional ordering.
| Item | Technical parameter | Picture |
| EMS | 19 inch environment monitoring unit 1U; DC48V, support RS232,RS485, SNMP,TCP/IP communication protocol. 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor.
Environmental monitoring system is a comprehensive network of devices and technologies designed to track and assess various aspects of the environment. This system plays a crucial role in gathering data to understand environmental conditions, detect changes, and manage natural resources. |
|
| Fire Extinguisher | Hot aerosol fire extinguishing device is a new, efficient and environment-friendly fire fighting product with Vanguard International Semiconductor Corporation level, which is the first in China. It is a high-tech green fire protection product that benefits humanity, born under the background of the International Montreal Agreement and China's increased awareness of environmental protection. It is an ideal substitute for halon fire extinguishing devices and is suitable for relatively enclosed spaces such as distribution cabinets.
Electric or hot start: Hot start temperature ≥170℃; Electric start temperature ≥700mA. |
|
| Wiring type PDU | AC input：63A/2P*2 with interlock； AC/SPD：30-60KA/2P*1； AC output：63A/1P*1,32A/1P*1，16A/1P*3，3 holes Maintenance socket*1 |
|
| Integrated PDU | Can be customized according to customer requirements. |
|
| Rectifier | AC220V/110V transfer to DC48V, Connect the battery as a backup power,also can be customized according to customer requirements. |
|
ODF | Optic Distribution Frame (ODF) is a critical component in a fiber optic network infrastructure. It serves as a centralized point for the termination, organization, and distribution of fiber optic cables. The primary purpose of a distribution frame is to facilitate efficient and organized connectivity, making it easier to manage, troubleshoot, and expand the network.
Function: 1)Termination Point; 2)Organization and Management; 3)Splicing Trays; 4)Labeling and Documentation; 5)Security and Protection; 6)Scalability; Can be customized according to customer requirements. |
|
| Backup battery | Can be lithium battery or lead acid battery. |
Flexibility
Outdoor wall-mounted telecom cabinets are designed to provide flexibility in deployment, installation, and maintenance while ensuring protection for sensitive telecom equipment.
Here are key aspects of their flexibility:
Adjustable Shelving/Racks: Allows customization for different equipment sizes (routers, switches, batteries, etc.).
Multi-Service Support: Can house fiber, copper, or hybrid networks.
Expandable Capacity: Some cabinets support add-on modules or extensions for future upgrades.

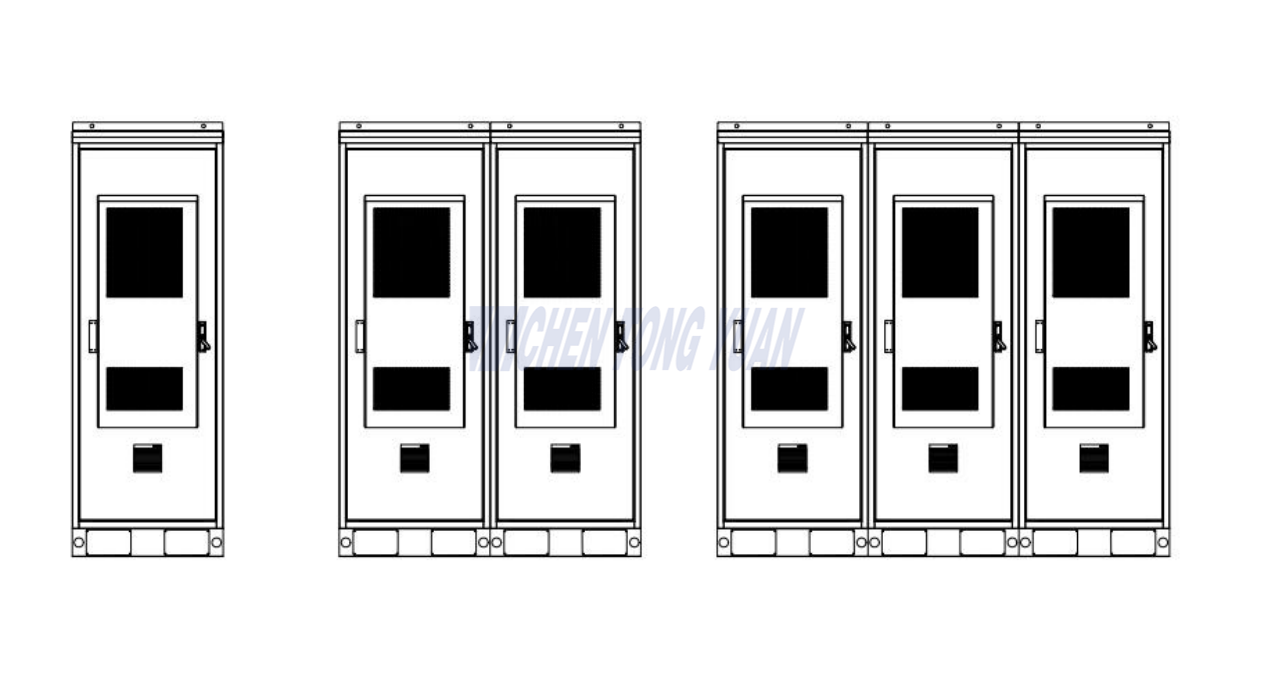

Example of Expandable Floor stand

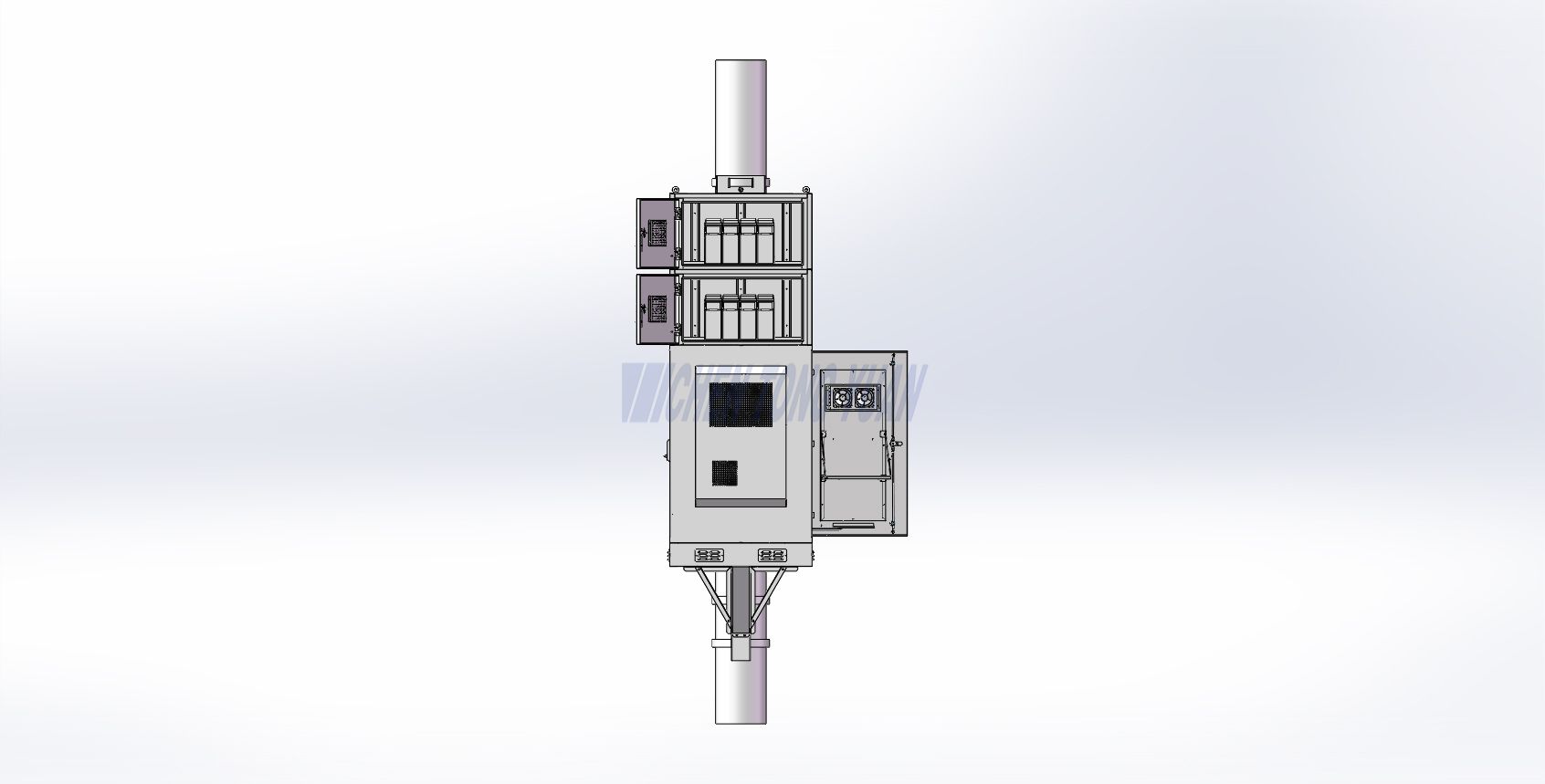

Example of Expandable Pole Mount
Wall-Mounted or Pole-Mounted: Can be installed on walls, poles, or other structures, saving ground space.
Lightweight & Compact: Easier to install in tight or hard-to-reach locations compared to ground cabinets.
Adjustable Mounting Brackets: Allows installation on uneven surfaces or varying wall types.

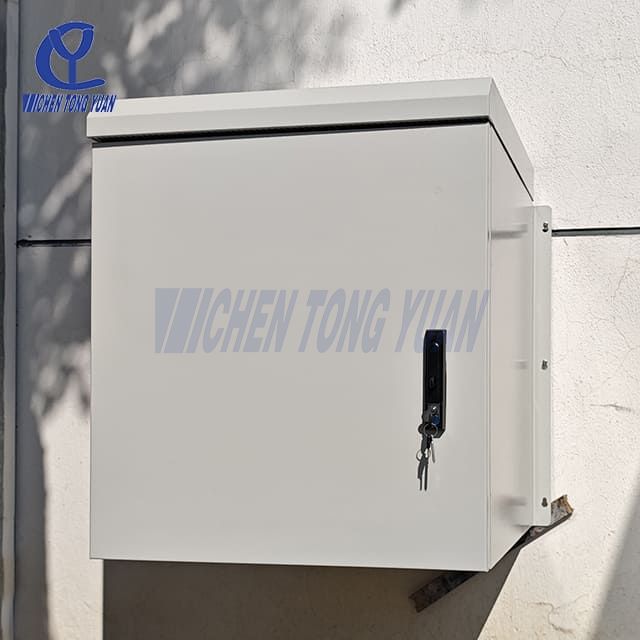

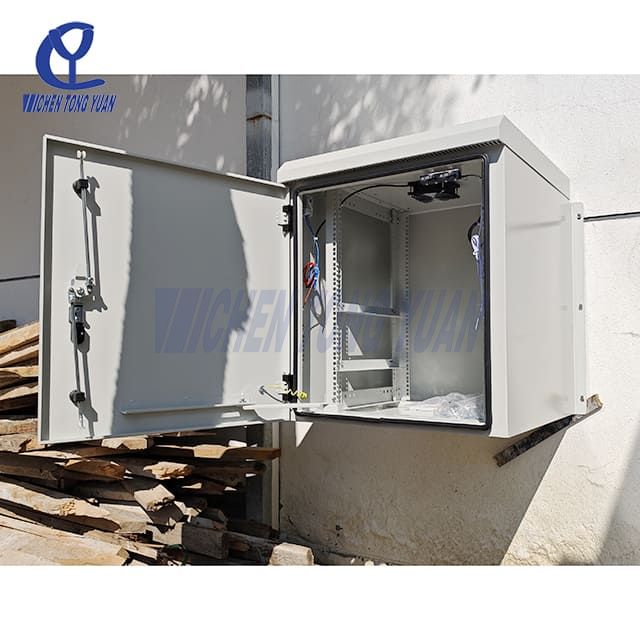

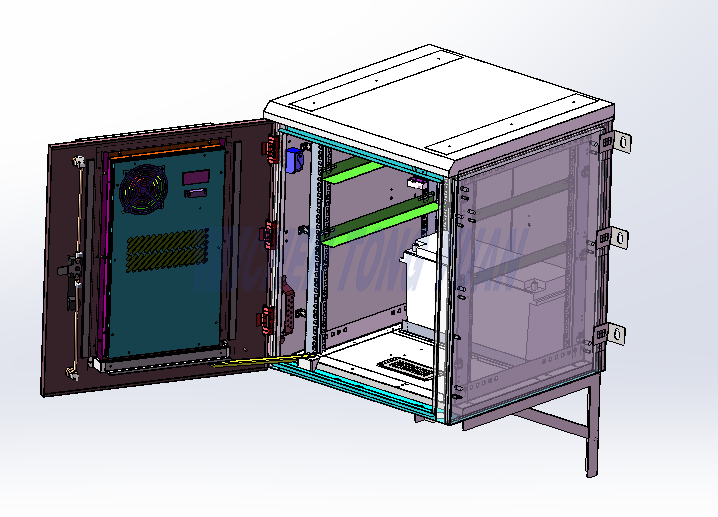

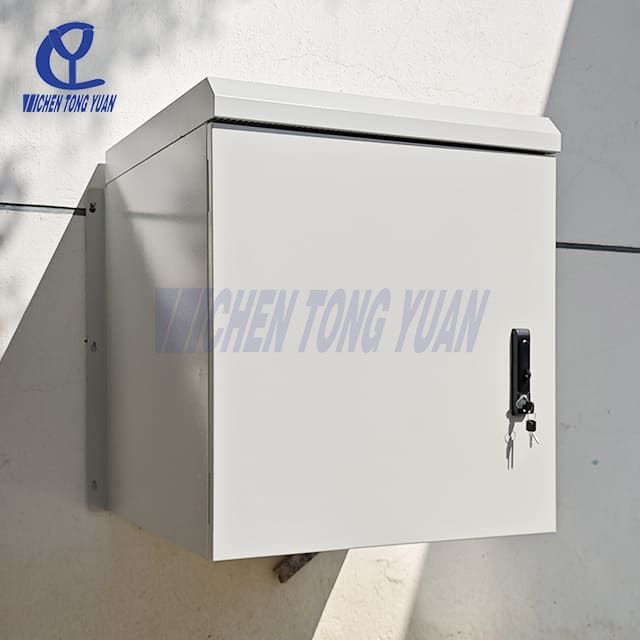

Example of Wall Mount Installation

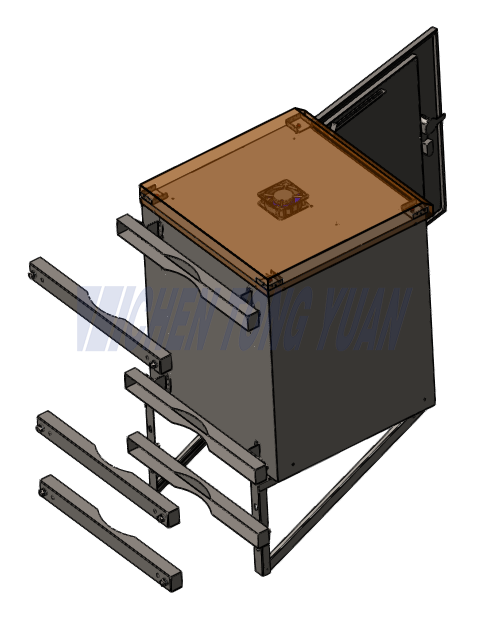

Example of Pole Mount Installation
Front or Rear Access: Some models allow access from both sides for easier cabling and maintenance.
Lockable Doors: Secure yet easy to open for authorized personnel.
Cable Management Systems: Built-in ducts, glands, and routing options for organized and flexible cable entry/exit.
-Multimeter, screwdrivers, cable testers, cleaning tools, torque wrenches.
-By following a proactive maintenance schedule, you can minimize failures and ensure optimal performance of wall-mounted telecom cabinets.
Visual Checks: Look for signs of damage, corrosion, loose fittings, or unauthorized access.
Environmental Monitoring: Ensure the cabinet is free from moisture, dust, pests, or extreme temperatures.
Ventilation & Cooling: Verify that fans, vents, or cooling systems are unobstructed and functional.
Exterior: Wipe down surfaces to remove dust, dirt, or grime.
Interior: Use compressed air or anti-static vacuums to clean components.
Cable Management: Organize and secure cables to prevent tangling or strain.
Power Supply: Test backup batteries (if any) and ensure stable power input.
Connections: Tighten loose terminals, check for corrosion on contacts.
Grounding: Verify proper grounding to prevent electrical hazards.
Active Equipment: Monitor LEDs, alarms, or indicators for faults
Lock Integrity: Ensure locks/hinges are functional to prevent tampering.
Seals & Gaskets: Replace worn-out seals to maintain weatherproofing.
Access Logs: Track who enters the cabinet (if managed remotely).
Update records of installed equipment, configurations, and maintenance history.
Label cables and ports clearly for easier troubleshooting.
Weatherproofing: Apply anti-corrosion coatings if in humid/coastal areas.
Surge Protection: Install or test surge suppressors to guard against power spikes.
Pest Control: Use rodent deterrents if needed.
Conduct periodic audits by certified technicians for firmware updates, performance tests, and compliance checks.
AC/DC Power Compatibility: Supports different power inputs for varied deployments.
Multiple Cable Entry Points: Glands or knockouts for fiber, copper, and power cables.
PoE & Remote Powering: Some cabinets support Power over Ethernet (PoE) for connected devices.
Low-Profile Design: Blends into urban or residential environments.
Color Customization: Can be painted or coated to match surroundings.
Minimal Footprint: Ideal for dense urban areas where space is limited.
5G & IoT Ready: Designed to support small cells, antennas, and IoT devices.
Easy Upgrades: Swappable panels or removable sections for tech evolution.
More Optionals
Model | Height | Type | Rate | Color | H*W*D | Climate control | Application |
| CY700650650 | 12U | Floor stand | IP55 | Grey | 700x650x650mm / 27.56 x 25.59 x 25.59inch | DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY800650650 | Floor stand | IP55 | Grey | 800x650x650mm / 31.50 x 25.59 x 25.59inch | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
CY1050650650 | Floor stand | IP55 | Grey | 1050x650x650mm / 41.34 x 25.59 x 25.59inch | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
CY1400800800 | Floor stand | IP55 | Grey | 1400x800x800mm / 55.12 x 31.50 x 31.50inch | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
CY1600800800 | Floor stand | IP55 | Grey | 1600x800x800mm / 63.00 x 31.50 x 31.50inch | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
CY1700750750 | Floor stand | IP55 | Grey | 1700x700x700mm / 66.93 x 27.56 x 27.56inch | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
| CY2100900900 | Floor stand | IP55 | Grey | 2100x900x900mm / 82.68 x 35.43 x 35.43inch | Air conditioner 1500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
Other size to be continued ,please send us inquiry for futher discussion
Name | Specification |
Air conditioner | AC220V 50HZ |
AC220V 60HZ | |
AC110V 60HZ / DC48V | |
Cooling capacity from 300W-5000W | |
DC48V | |
40W/K-200W/K | |
AC220V 50HZ & DC48V | |
1500W&80W/K | |
DC48V | |
200W-1200W | |
AC220V 50HZ | |
AC220V 60HZ | |
AC110V 60HZ / DC48V |
How to order
◆ Acceptable temperature range for your equipment;
◆ Heat load of equipment;
◆ The highest local ambient temperature；
◆ Noise Level；
◆ Future Expansion；
By carefully considering these factors, you can select a cabinet climate control system that meets the specific needs of your equipment and environmental conditions.
For any outdoor telecommunication cabinets or weatherproof rack enclosures, install the unit in a cool, well-ventilated area with a clean environment. This is especially important for cabinet in telecommunication applications where ambient conditions can impact equipment performance.
Once cable installation is complete, ensure that all gaps around the cables are sealed using the provided sealant. Proper sealing is critical to prevent moisture ingress and condensation, which could compromise the performance of sensitive equipment housed within telecom cabinets outdoor.
The grounding bar must be securely connected and properly grounded. For safety and optimal operation, maintain a grounding resistance of less than 10 Ω. This precaution protects both the equipment and personnel from electrical hazards.
Clean the ventilation openings and dust screens within the cabinet on a monthly basis. Depending on local conditions, adjust the cleaning frequency accordingly to prevent dust buildup, which could impede airflow and lead to overheating.
Outdoor wall mounted telecom cabinets—also known as outdoor telecommunication cabinets or weatherproof rack enclosures—are precision-engineered to withstand severe weather conditions while providing reliable protection for critical network infrastructure. These cabinet in telecommunication solutions play a pivotal role across multiple industries and applications:
Widely deployed as a cabinet in telecommunication, these enclosures safeguard essential network components such as switches, routers, and power supplies, ensuring continuous performance even in adverse environmental conditions.
In wireless, broadband, and CATV systems, these telecom cabinets outdoor deliver a robust platform for distributing cable television signals and high-speed internet connectivity, reinforcing network reliability.
Outdoor telecommunication cabinets are integral for housing base station equipment, thereby maintaining consistent and expansive wireless coverage in mobile networks.
Frequently utilized in solar power applications, these weatherproof rack enclosures protect and support the infrastructure involved in solar power generation and distribution.
In mobile communications, telecom cabinets outdoor are crucial for supporting wireless cell sites and network switches, ensuring seamless and uninterrupted connectivity.
These enclosures serve as secure housing at transmission terminals, facilitating efficient data exchange between network nodes while mitigating environmental risks.
As a core component of outdoor data center configurations, the wall mounted cabinet offer robust protection for critical servers and networking equipment, ensuring high reliability in variable climates.
Deployed in highways, railways, and airports, the weatherproof rack enclosure maintain operational communication systems under diverse weather conditions, contributing to safer and more efficient transportation networks.
