6U/wall mounted
cytech
Telecom, Battery, Integrated
IP 55, IP 65, NEMA 4
Wall Mount
6U
Video
An Exterior Cabinet is a weather-resistant outdoor enclosure designed to protect telecom and network equipment from dust, rain, and temperature changes. It is widely used as an outdoor telecom cabinet or weatherproof telecom enclosure for base stations, broadband access devices, and communication equipment that must operate reliably outdoors.
Built with durable materials and secure locking systems, the Exterior Cabinet also serves as an outdoor communication cabinet or outdoor equipment enclosure for power systems, routers, and monitoring devices. Its compact structure and flexible internal layout help ensure stable performance and long-term protection in various outdoor installations.
▼Watch the video of telecom cabinet▼
Product Description
IP55 / IP65 weatherproof exterior cabinets designed for outdoor telecom and network equipment
Anti-corrosion coating and rust-proof exterior cabinet construction for long service life
Vandal-proof locks and sealed doors ensure secure exterior telecom cabinet performance in public outdoor areas
Supports air conditioners, heat exchangers, or TEC systems for outdoor rack cabinet cooling solutions
Intelligent temperature control maintains stable operation in exterior network equipment cabinets
Energy-efficient cooling reduces power consumption and long-term operating costs
Available in standard sizes (10U, 14U, 18U, 32U, 42U) or customized outdoor cabinet configurations
Optional battery compartment, PDU, and monitoring modules for telecom exterior cabinet systems
Supports floor-mount, wall-mount, or pole-mount installation for diverse outdoor network deployments
Delivered as pre-assembled exterior telecom cabinet units for faster onsite setup
Removable panels and organized cable routing simplify maintenance in outdoor communication cabinets
Low-maintenance design suitable for remote sites and field operations
Item | Name | Technical parameter |
1 | Rack Size | 6U |

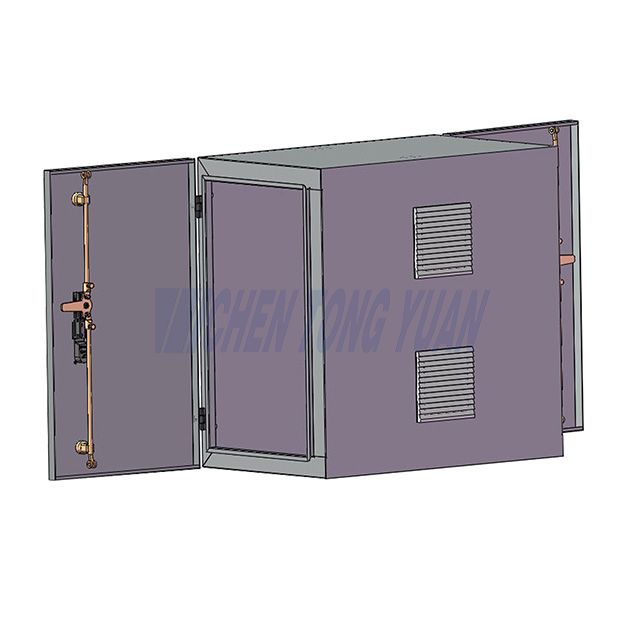

2 | Cabinet layout | One compartment+two door,Wall mount |
3 | Cabinet material | Single layer galvanized steel with air duct |

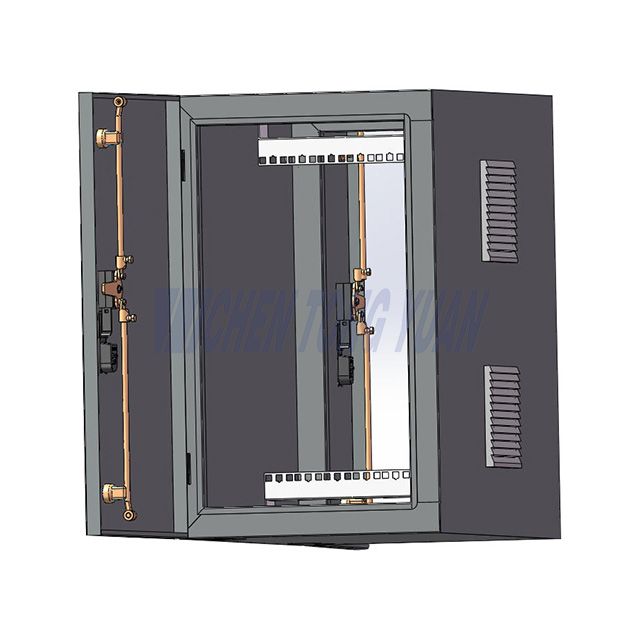

4 | Security design Mounting Type | 3-point security lock Wall |
5 | Protection level | IP55 |
6 | Color | RAL7035 Grey |
7 | Lighting system | Door sensor+48V LED light(when open the door, the LED will light on;When the door is closed, the LED will go out.) |
8 | Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
9 | Working temperature | - 40 ℃ ~ + 55 ℃ |
10 | Working Humidity | ≤ 95% (+ 40 ℃) |
11 | Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Includes: locking door with air conditioner,19inch rackmount rails,floormount plinth or hardwares.
No | Name | Quantity | Unit | Technical parameter |
1 | Outdoor telecom cabinet | 1 | set | 1)External Size:H*W*D=650*400*700mm |
2 | Fan | 1 | set | DC24V with temperature control ,dc48v available |
3 | LED Lamp | 1 | set | DC48V,used for illumination in the cabinet |
4 | Grounding bus bar | 1 | set | 200A Copper bar(13 point M6 and 2 point M8) |
5 | Equipment supporting | 3 | set | |
6 | Package | 1 | set | Wooden box , wooden pallet+stretch film or wooden pallet +wooden box |
The following accessories are available for optional ordering.
Item | Technical parameter | Picture |
EMS | 19 inch environment monitoring unit 1U; DC48V, support RS232,RS485, SNMP,TCP/IP communication protocol. 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor. Environmental monitoring system is a comprehensive network of devices and technologies designed to track and assess various aspects of the environment. This system plays a crucial role in gathering data to understand environmental conditions, detect changes, and manage natural resources. | |
Fire Extinguisher | Hot aerosol fire extinguishing device is a new, efficient and environment-friendly fire fighting product with Vanguard International Semiconductor Corporation level, which is the first in China. It is a high-tech green fire protection product that benefits humanity, born under the background of the International Montreal Agreement and China's increased awareness of environmental protection. It is an ideal substitute for halon fire extinguishing devices and is suitable for relatively enclosed spaces such as distribution cabinets.
Electric or hot start: Hot start temperature ≥170℃; Electric start temperature ≥700mA. | |
Wiring type PDU | AC input：63A/2P*2 with interlock； AC/SPD：30-60KA/2P*1； AC output：63A/1P*1,32A/1P*1，16A/1P*3，3 holes Maintenance socket*1 | |
Integrated PDU | Can be customized according to customer requirements. | |
Rectifier | AC220V/110V transfer to DC48V, Connect the battery as a backup power,also can be customized according to customer requirements. | |
ODF | Optic Distribution Frame (ODF) is a critical component in a fiber optic network infrastructure. It serves as a centralized point for the termination, organization, and distribution of fiber optic cables. The primary purpose of a distribution frame is to facilitate efficient and organized connectivity, making it easier to manage, troubleshoot, and expand the network.
Function: 1)Termination Point; 2)Organization and Management; 3)Splicing Trays; 4)Labeling and Documentation; 5)Security and Protection; 6)Scalability;
Can be customized according to customer requirements. | |
Backup battery | Can be lithium battery or lead acid battery. |
◆Acceptable temperature range for your equipment;
◆Heat load of equipment;
◆The highest local ambient temperature；
◆Noise Level；
◆Future Expansion；
By carefully considering these factors, you can select a cabinet climate control system that meets the specific needs of your equipment and environmental conditions.
(1)If conditions permit, try to install the outdoor telecom cabinet in a cool and ventilated place with clean surrounding environment .This helps maintain stable performance of weatherproof exterior cabinets in long-term outdoor use.
(2)After the cable construction is completed, please make sure to seal the gap around the cable with the sealant provided randomly in the cabinet, so as to avoid the condensation caused by moisture ingress, which may affect the performance of the equipment inside the exterior telecom cabinet.
(3)The grounding bar of the cabinet must be reliably grounded, and the grounding resistance to the ground shall be less than 10 Ω .Proper grounding is essential for the safe operation of outdoor network equipment cabinets
(4)Please clean the ventilation and dust screen in the cabinet regularly every month. According to the actual situation, the cleaning cycle can be adjusted as needed to maintain airflow in the outdoor communication cabinet.
Options
Model | Space | IP rate | Color | Dimension | Thermal Management |
| CY700650650 | 12U | IP55 | RAL7035 light grey | 700x650x650mm / 27.56 x 25.59 x 25.59inch | DC48V fan |
CY800650650 | IP55 | RAL7035 light grey | 800x650x650mm / 31.50 x 25.59 x 25.59inch | Air conditioner 500W DC48V fan | |
CY1050650650 | IP55 | RAL7035 light grey | 1050x650x650mm / 41.34 x 25.59 x 25.59inch | Air conditioner 500W DC48V fan | |
CY1400800800 | IP55 | RAL7035 light grey | 1400x800x800mm / 55.12 x 31.50 x 31.50inch | Air conditioner 500W DC48V fan | |
CY1600800800 | IP55 | RAL7035 light grey | 1600x800x800mm / 63.00 x 31.50 x 31.50inch | Air conditioner 1000W DC48V fan | |
CY1700750750 | IP55 | RAL7035 light grey | 1700x700x700mm / 66.93 x 27.56 x 27.56inch | Air conditioner 1000W DC48V fan | |
| CY2100900900 | IP55 | RAL7035 light grey | 2100x900x900mm / 82.68 x 35.43 x 35.43inch | Air conditioner 1500W DC48V fan |
To be continued
Name | Specification |
AC220V 50HZ | |
AC220V 60HZ | |
AC110V 60HZ / DC48V | |
Cooling capacity from 300W-5000W | |
DC48V | |
40W/K-200W/K | |
AC220V 50HZ & DC48V | |
1500W&80W/K | |
DC48V | |
200W-1200W | |
AC220V 50HZ | |
AC220V 60HZ | |
AC110V 60HZ / DC48V |
Application
CYTECH telecom enclosures are designed for a wide range of industrial and communication applications, including:
5G and 4G LTE base stations
Fiber optic network hubs (FTTH / FTTx)
Wireless and broadband systems
IoT and smart city infrastructure
Power and energy monitoring systems
Outdoor network access points
Each application benefits from CYTECH’s precision engineering, ensuring reliability and performance even under extreme weather conditions.
Advantages&Why?
All-Weather Reliability: Designed to operate in temperatures from -40°C to +55°C
Enhanced Security: Strong locking system and reinforced doors
Customizable Layouts: Tailored to your telecom network design
Energy Efficiency: Advanced cooling systems reduce power consumption
Global Compatibility: Certified for international telecom standards
CYTECH offers OEM & ODM services to match your project’s exact needs:
Custom sizes and rack layouts
Optional solar panel integration for hybrid sites
Dual cooling systems for critical operations
Integrated battery and power management units
(1)Material can be Constructed of durable, galvanized steel,sandwich panel ,stainless steel SS304,aluminium.
(2)Compartments can be configured to support between 1-4 bays,multi-compartments supported.
(3)Front and rear access doors allow technicians access to equipment storage areas and cable routing.
(4)Side doors design also ok.
(5)Customized color ,standard color RAL7035,other color acceptable based on appointed color code.
(6)Wide range of thermal management options for even the most demanding heat dissipation needs allows for optimization of thermal performance and reduced energy costs.The cooling solution adopted compressed air conditioner ,TEC (Thermoelectric Cooler),Hex (heat exchanger),Fans,Hybrid Air Conditioner with Heat Exchangers
(7)Offers a wide range of configuration options providing maximum flexibility including PDU, rectifier ,integrated AC-DC power systems.
(8)Silk screening Logo and environmental friendly painting artwork for outdoor telecom cabinet.
(9)Offers all kinds environment sensors,including doors,smoke,temperature sensors.
(10)Remote monitoring system supported, communication protocol is RS232/RS485/SNMP.
◆With decades years of experience in the telecom infrastructure industry, CYTECH has become a trusted supplier for outdoor enclosures used in communication, power, and energy sectors.
◆We supply global telecom operators, system integrators, and network solution providers with high-quality, customized cabinets designed for performance and reliability.
Looking for a reliable Wall Mounted Telecom Network Exterior Cabinet Manufacturer?
CYTECH provides full customization, fast delivery, and professional support for your telecom projects.
Contact us today to discuss your requirements or request a free quotation.
