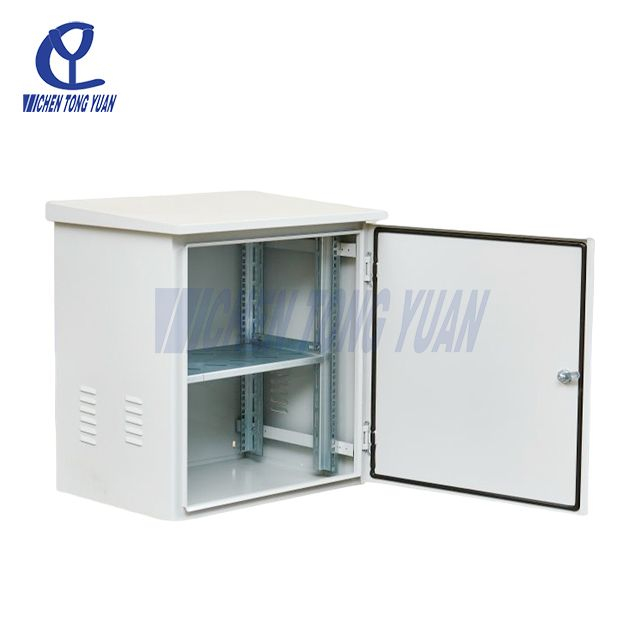

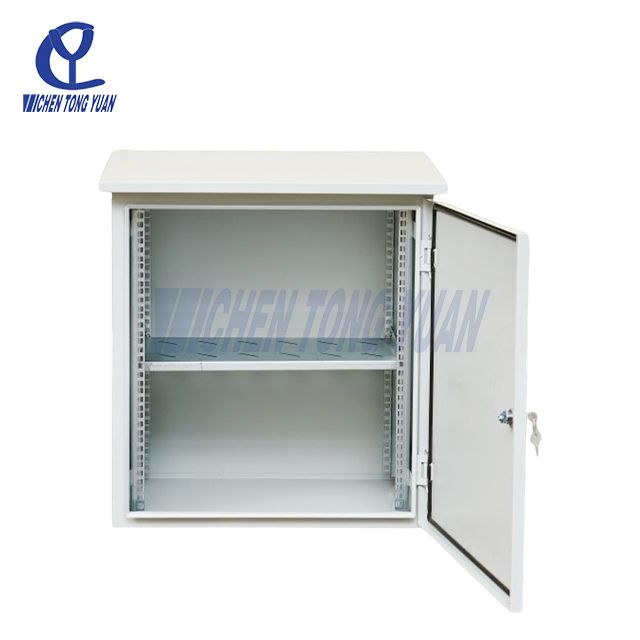

CY700650650
Cytech
Telecom
IP 65, NEMA 4
Floor Mount
4 Fans
19inch, 23inch
600mm/24inch
12U
Product Description

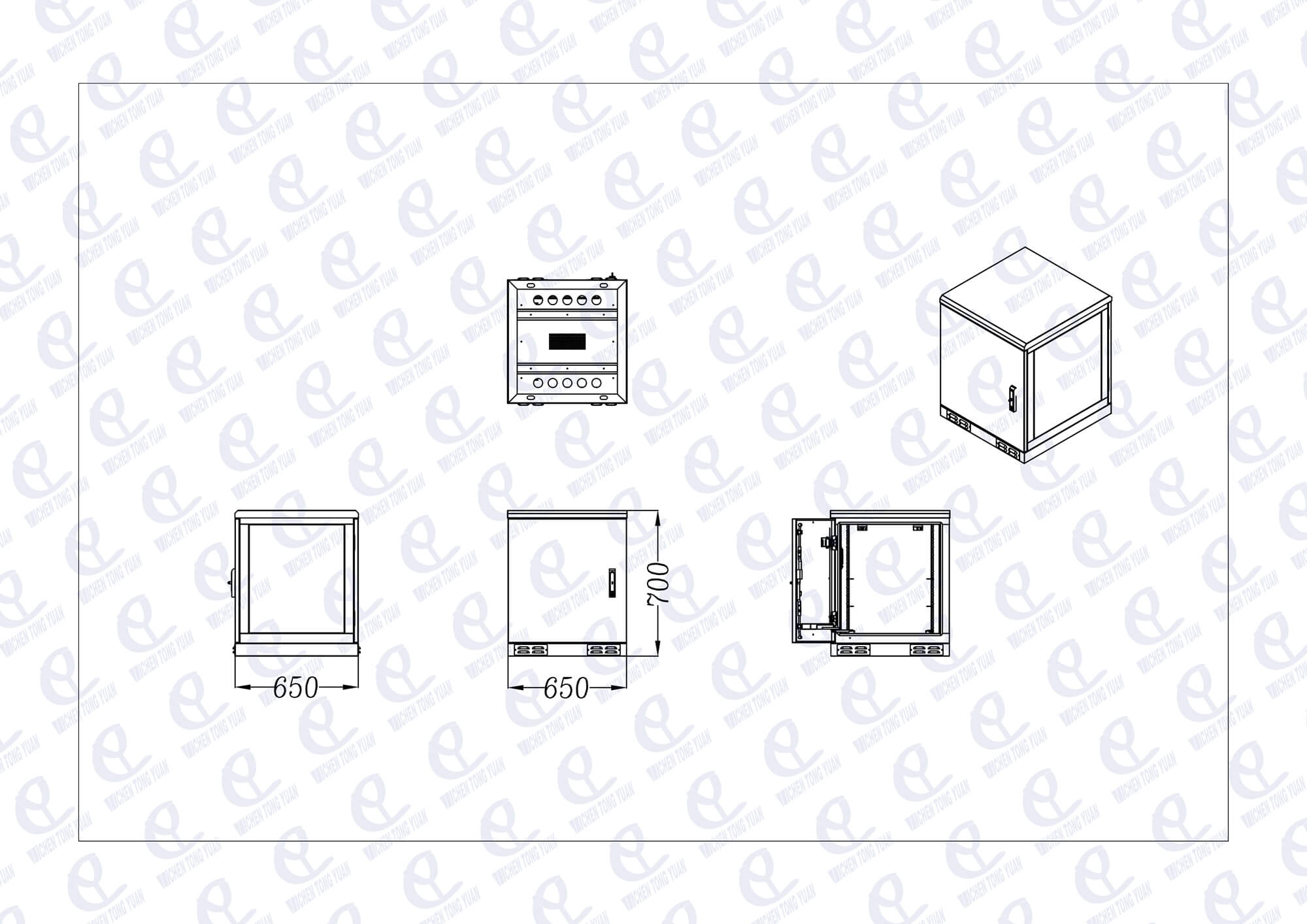

| Name | Technical Parameter |
| External Size | H*W*D=700x650x650mm (28"x 26"x 26") |
| Cabinet layout | One compartment, for installing 19inch equipment |
| Cabinet material | Single layer galvanized steel sheet |
| Security design | Embedded door, embedded hinges,2-point security lock |
| Protection level | IP65,NEMA 4,Nema 4X |
| Color | RAL7035 |
| Climate control | DC48V fan |
| Lighting system | Door sensor+48V LED light(door open, the LED will light on; door closed, the LED will go out.) |
| Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
| Working temperature | - 40 ℃ ~ + 55 ℃ |
| Working Humidity | ≤ 95% (+ 40 ℃) |
| Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Note：The air conditioner can also choose AC 110V 60HZ or DC 48V, and the fan can also choose AC 110V or 220V.
Includes: locking door with air conditioner,19inch rackmount rails,floormount plinth or hardwares.
| Name | Quantity | Unit | Technical parameter |
| Outdoor telecom cabinet | 1 | set | External Size:H*W*D=700x650x650mm (28"x 26"x 26") |
| Fan | 1 | set | DC48V with temperature control |
| LED Lamp | 1 | set | DC48V,used for illumination in the cabinet |
| Grounding bus bar | 1 | set | 200A Copper bar(13 point M6 and 2 point M8) |
| Equipment supporting | 1 | set | |
| Package | 1 | set | Wooden box , wooden pallet+stretch film or wooden pallet +wooden box |
The following accessories are available for optional ordering.
| Item | Technical parameter | Picture |
| EMS | 19 inch environment monitoring unit 1U; DC48V, support RS232,RS485, SNMP,TCP/IP communication protocol. 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor.
Environmental monitoring system is a comprehensive network of devices and technologies designed to track and assess various aspects of the environment. This system plays a crucial role in gathering data to understand environmental conditions, detect changes, and manage natural resources. |
|
| Fire Extinguisher | Hot aerosol fire extinguishing device is a new, efficient and environment-friendly fire fighting product with Vanguard International Semiconductor Corporation level, which is the first in China. It is a high-tech green fire protection product that benefits humanity, born under the background of the International Montreal Agreement and China's increased awareness of environmental protection. It is an ideal substitute for halon fire extinguishing devices and is suitable for relatively enclosed spaces such as distribution cabinets.
Electric or hot start: Hot start temperature ≥170℃; Electric start temperature ≥700mA. |
|
| Wiring type PDU | AC input：63A/2P*2 with interlock； AC/SPD：30-60KA/2P*1； AC output：63A/1P*1,32A/1P*1，16A/1P*3，3 holes Maintenance socket*1 |
|
| Integrated PDU | Can be customized according to customer requirements. |
|
| Rectifier | AC220V/110V transfer to DC48V, Connect the battery as a backup power,also can be customized according to customer requirements. |
|
ODF | Optic Distribution Frame (ODF) is a critical component in a fiber optic network infrastructure. It serves as a centralized point for the termination, organization, and distribution of fiber optic cables. The primary purpose of a distribution frame is to facilitate efficient and organized connectivity, making it easier to manage, troubleshoot, and expand the network.
Function: 1)Termination Point; 2)Organization and Management; 3)Splicing Trays; 4)Labeling and Documentation; 5)Security and Protection; 6)Scalability;
Can be customized according to customer requirements. |
|
| Backup battery | Can be lithium battery or lead acid battery. |
Flexibility
The Outdoor Server Rack Cabinet epitomizes engineering excellence, delivering unmatched flexibility and resilience for critical outdoor deployments. Constructed from premium materials such as galvanized steel, sandwich panels, stainless steel (SS304), and aluminum, this Outdoor Server Rack Cabinet is built to withstand the rigors of harsh environments while ensuring long-term reliability.
Below are its key features:
Material and Construction
The Outdoor Server Rack Cabinet is crafted from high-grade materials including galvanized steel, sandwich panels, stainless steel (SS304), and aluminum, ensuring durability and structural integrity in the most challenging outdoor conditions.
Modular Compartment Configurations
Designed for versatility, the Outdoor Server Rack Cabinet offers customizable compartment configurations supporting between 1 to 4 bays with multi-compartment options, enabling tailored organization to meet diverse equipment needs.
Optimized Access Design
Featuring front and rear access doors for efficient equipment servicing and cable management, with optional side door configurations, the Outdoor Server Rack Cabinet facilitates seamless maintenance and operational accessibility.
Customizable Aesthetics
Standard finishes such as RAL7035 are available for the Outdoor Server Rack Cabinet, while bespoke color options can be applied based on appointed color codes, ensuring the cabinet meets specific branding or environmental requirements.
Advanced Thermal Management
Equipped with a comprehensive range of thermal solutions—including compressed air conditioners, TEC (Thermoelectric Coolers), Hex heat exchangers, fans, and combined AC & HEX systems—the Outdoor Server Rack Cabinet optimizes heat dissipation to enhance performance and reduce energy costs.
Versatile Power Management
The Outdoor Server Rack Cabinet supports extensive configuration options that integrate PDUs, rectifiers, and complete AC-DC power systems, ensuring stable and efficient power distribution across all housed equipment.
Enhanced Branding and Finish
With silk-screened logos and environmentally friendly painting techniques, the Outdoor Server Rack Cabinet not only delivers robust performance but also meets high aesthetic standards for modern outdoor installations.
Comprehensive Environmental Sensing and Remote Monitoring
Integrated with a full suite of environmental sensors—covering door, smoke, and temperature detection—and supporting remote monitoring via RS232/RS485/SNMP protocols, the Outdoor Server Rack Cabinet ensures real-time oversight and enhanced operational safety.
This highly adaptable Outdoor Server Rack Cabinet is an indispensable asset for mission-critical outdoor applications, combining superior construction, versatile configuration, and advanced thermal and power management to meet the demands of today’s dynamic network environments.
More Optionals
Model | Height | Type | Rate | Color | H*W*D | Climate control | Application |
CY800650650 | 14U | Floor stand | IP55 | Grey | 800mm*650mm*650mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1050650650 | 18U | Floor stand | IP55 | Grey | 1050mm*650mm*650mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1400800800 | 26U | Floor stand | IP55 | Grey | 1400mm*800mm*800mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1600800800 | 30U | Floor stand | IP55 | Grey | 1600mm*800mm*800mm | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1700750750 | 32U | Floor stand | IP55 | Grey | 1700mm*700mm*700mm | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY2100900900 | 42U | Floor stand | IP55 | Grey | 2100mm*900mm*900mm | Air conditioner 1500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
Other size to be continued ,please send us inquiry for futher discussion
Name | Specification |
Air conditioner | AC220V 50HZ |
AC220V 60HZ | |
AC110V 60HZ / DC48V | |
Cooling capacity from 300W-5000W | |
Heat exchanger | DC48V |
40W/K-200W/K | |
Combined air conditioner & heat exchanger | AC220V 50HZ & DC48V |
1500W&80W/K | |
TEC | DC48V |
200W-1200W | |
Fan | AC220V 50HZ |
AC220V 60HZ | |
AC110V 60HZ / DC48V |
How to order
When choosing an Outdoor Server Rack Cabinet, outdoor data cabinet, or outdoor network enclosure climate control system, several critical factors should be considered to ensure optimal performance and protection for your equipment. Key factors to evaluate include:
Acceptable temperature range for your equipment;
Heat load of equipment;
The highest local ambient temperature;
Noise Level;
Future Expansion.
By carefully considering these factors, you can select a cabinet climate control system that meets the specific needs of your equipment and environmental conditions.
To ensure optimal performance and durability of your Outdoor Server Rack Cabinet, it is critical to adhere to the following professional guidelines. These precautions are designed to maximize the operational efficiency of your outdoor network rack cabinet while protecting sensitive IT equipment in challenging environments.
Install the Outdoor Server Rack Cabinet in a cool, well-ventilated area with minimal dust and pollutants. A controlled ambient environment is essential for maintaining the integrity of the outdoor network rack cabinet and ensuring that its advanced cooling systems operate efficiently.
After completing cable installations within the Outdoor Server Rack Cabinet, outdoor data cabinet, or outdoor network enclosure, seal all cable entry points using the recommended sealant. This precaution is crucial to prevent moisture ingress and condensation that could compromise the performance of the Outdoor Server Rack Cabinet and damage sensitive components.
The grounding bar of the Outdoor Server Rack Cabinet must be securely connected to an earth ground, ensuring a grounding resistance of less than 10 Ω. Proper grounding is indispensable for the safety of the Outdoor Server Rack Cabinet, protecting it from electrical surges and ensuring stable operation.
Clean the ventilation grids and dust screens of the Outdoor Server Rack Cabinet on a monthly basis, or more frequently as environmental conditions demand. Regular maintenance ensures optimal airflow and prevents the buildup of dust, which could impair cooling efficiency.
The Outdoor Server Rack Cabinet is engineered for versatility and reliability, making it an indispensable asset in a variety of sectors where robust protection of IT infrastructure is required. The following are key applications:
Remote Cell Towers and BTS Sites: The Outdoor Server Rack Cabinet is used to securely house networking and communication equipment, ensuring reliable connectivity even in remote locations.
Base Transceiver Stations: The Outdoor Server Rack Cabinet safeguards sensitive transceivers and power systems, maintaining consistent performance in adverse conditions.
Outdoor Surveillance Solutions: The Outdoor Server Rack Cabinet is ideal for housing DVRs, NVRs, and related security devices, providing robust protection against environmental challenges and ensuring uninterrupted monitoring.
Traffic Monitoring Systems: The Outdoor Network Rack Cabinet supports critical traffic management equipment, ensuring data integrity and operational continuity in outdoor installations.
Smart Grid and Renewable Energy Installations: The Outdoor Server Rack Cabinet plays a key role in protecting control systems and communication devices in smart grid operations and renewable energy plants, such as solar and wind farms.
Railway Networks and Roadside Equipment: The Outdoor Network Enclosure is deployed to secure control and networking systems in transportation sectors, ensuring reliable communication and efficient operations.
Field Operations and Remote Monitoring: The Outdoor Server Rack Cabinet provides a secure enclosure for critical communication and IT equipment used in military and emergency service applications, ensuring robust performance under extreme conditions.
By rigorously following these installation and maintenance precautions, you can ensure that your Outdoor Server Rack Cabinet remains a high-performing, secure, and reliable solution for protecting your IT infrastructure in even the most demanding environments.
