CY2100900900B
CY TECH
Battery
IP 55, IP 65
Floor Mount
Product Description
battery cabinet oudoor drawing.pdf

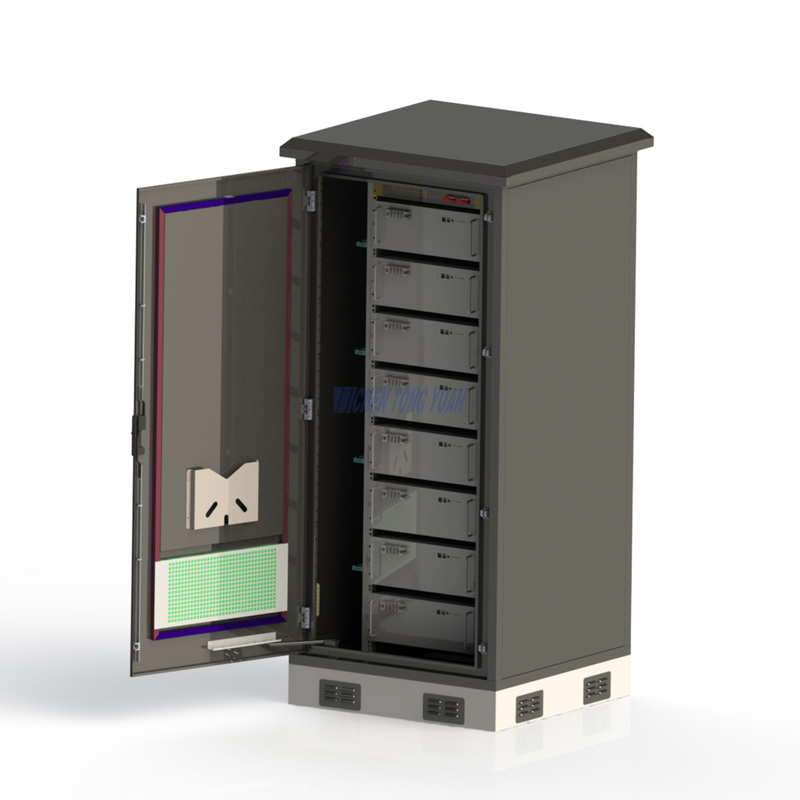

The Battery Cabinet Outdoor IP65 is a rugged, weatherproof enclosure designed to protect batteries and electrical components from harsh outdoor conditions. With its IP65-rated protection, it ensures resistance against dust, rain, and extreme temperatures, making it ideal for solar energy systems, telecom stations, and industrial applications.
✔ IP65 Protection – Dustproof and waterproof for outdoor durability
✔ Robust Construction – Heavy-duty steel
✔ Ventilation & Cooling – Optional fan kits for temperature control
✔ Secure Locking – Tamper-proof design for safety
✔ Easy Installation – Pre-drilled holes for hassle-free mounting
-Material: Powder-coated galvanized steel
-Size Options: 19", 23", 42U (custom sizes available)
-IP Rating: IP65 (fully protected against dust & water jets)
-Temperature Range: -30°C to +60°C (-22°F to +140°F).
Description | Technical Parameter |
Size | External Size :H*W*D=2100*900*900mm |
Cabinet Layout | 1 bay,Front door access ,floor stand |
Cabinet Material | Galvanized steel |
Security Design | Embedded door, embedded hinges, 3-point security lock |
Protection Level | IP65 |
Color | RAL7035 |
Cooling System | DC FANS |
Lighting System | Door sensor+48V LED light(when open the door, the LED will light on;When the door is closed, the LED will go out.) |
Grounding System | 200A Copper bar(13 point M6 and 2 point M8) |
Working Temperature | -30°C to +60°C |
Working Humidity | ≤ 95% (+ 40 ℃) |
Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Ideal for
Solar energy systems require durable, weatherproof enclosures to protect batteries from environmental damage. The Battery Cabinet Outdoor IP65 is engineered to meet these demands with:
-IP65 Rating: Blocks dust, rain, snow, and high-pressure water jets, preventing corrosion and electrical failures.
-UV & Extreme Temperature Resilience: Shields batteries from sun degradation and operates in -30°C to +60°C (-22°F to +140°F).
-Fire-Retardant Materials: Reduces risks of overheating (complies with UL94 standards).
-Ventilation Options: Passive vents or active cooling fans prevent heat buildup, extending battery life.
-Lockable Design: Deters theft and tampering in remote solar installations.
-Fits Major Battery Types: Compatible with lithium-ion, lead-acid, and gel batteries.
-Pre-Drilled Mounting Holes: Easy integration with solar inverters and wiring.
-Reduces Maintenance: Weatherproofing minimizes wear, lowering replacement costs.
-Scalable Storage: Modular designs support expanding solar arrays.
Telecom towers and 5G nodes require uninterrupted power in harsh environments. The Battery Cabinet Outdoor IP65 ensures reliable backup power storage with military-grade protection.
-IP65 Certification: Defends against monsoons, sandstorms, and ice buildup—common threats to outdoor telecom sites.
-Corrosion-Resistant Materials: Powder-coated steel or polycarbonate withstands coastal salt air and industrial pollution. Galvainzed steel,SS304,Aluminium as optional
-Supports High-Capacity Batteries: Houses 48V lithium-ion or VRLA batteries for extended uptime during grid failures.
-Thermal Management: Optional cooling fans prevent overheating in compact 5G small cell deployments.
-Anti-Vandal Locks: Protects expensive batteries from theft in remote/unmanned locations.
-Grounding Terminals: Meets lightning protection standards (IEC 62305).
-19"Rack-Compatible: Fits standard telecom racks for easy integration.
-Stackable Design: Scalable for macro towers or dense urban small cell networks.
EV charging infrastructure demands weatherproof, secure, and scalable power storage to ensure uninterrupted operation. The Battery Cabinet Outdoor IP65 is engineered to meet the unique challenges of EV charging stations with:
-IP65-Rated Enclosure: Protects against rain, snow, dust, and extreme temperatures (-30°C to +60°C).
-UV-Resistant & Corrosion-Proof: Ideal for coastal or high-pollution areas where metal degradation is a risk.
-Ventilation & Cooling Options: Prevents overheating in high-power fast-charging stations.
-Supports High-Capacity Batteries: Compatible with lithium-ion, lead-acid, and LiFePO4 batteries for extended power backup.
-Grid Independence: Ensures charging continuity during blackouts or peak demand surges.
-Scalable Energy Storage: Modular design allows expansion for high-traffic charging hubs.
-Fire-Retardant Construction: Meets UL94, CE, and RoHS safety standards.
-Tamper-Proof Locking System: Deters vandalism and unauthorized access in public locations.
-Grounding & Surge Protection: Shields against electrical surges from fast-charging loads.
-Compact & Wall-Mountable: Saves space in crowded charging stations.
-Pre-Drilled Cable Entry Points: Simplifies wiring for rapid deployment.
-Durable Mounting Options: Withstands vibrations from nearby vehicle traffic.
Industrial facilities require ultra-reliable, weatherproof battery storage to maintain operations during power failures. The Battery Cabinet Outdoor IP65 delivers military-grade protection for mission-critical backup power systems.
-IP65 & NEMA 4X Rated: Seals out dust, water, corrosive chemicals, and explosive atmospheres (Class I Div 2 compliant).
-Extreme Temperature Operation: Functions in -40°C to +75°C (-40°F to +167°F) for Arctic cold or foundry heat.
-Vibration & Impact Resistant: Reinforced steel construction withstands machinery shocks (meets IEC 60068-2-6).
-Supports High-Density Battery Banks: Designed for 100kWh+ lithium-ion or VRLA battery arrays.
-Fire Safety Compliance: UL 1778 & NFPA 855 certified for safe Li-ion storage in industrial settings.
-Modular Expansion: Add cabinets in parallel as power demands grow.
-Gas Ventilation System: Prevents hydrogen buildup from lead-acid batteries (per IEEE 1188).
-Integrated Sensor Ready: Pre-wired for temperature/humidity monitoring (4-20mA or Modbus outputs).
-Arc-Flash Protection: Grounding kits mitigate electrical hazards in petrochemical plants.
-20+ Year Lifespan: 3mm thick steel with triple-layer powder coating resists industrial corrosion.
-Crane-Liftable Design: Forklift pockets and lifting lugs for easy 2000kg+ battery installation.
-EMI/RFI Shielding: Protects sensitive battery management systems in high-noise environments.
✔ Data Centers – N+1 redundant power for Tier IV facilities
✔ Oil & Gas – Explosion-proof enclosures for offshore rigs (ATEX Zone 2)
✔ Manufacturing – Keeps assembly lines running during brownouts
✔ Hospitals – UL 891 compliant for life-support system backup
10-Year Warranty – Industry-leading reliability
Global Certifications – CE, RoHS, UL94 compliant
Customizable – Add shelves, cooling fans, or cable management
Various kinds of thermal management solutions
Answer :Yes, our powder-coated steel and polycarbonate models resist corrosion.
Answer:Absolutely! Designed for Li-ion, lead-acid, and gel batteries.
