CYP1200700700
Cytech
Battery
IP 55, NEMA 3R, NEMA 3S
Pole Mount
500W/1700BTU
19inch
650mm/26inch
22U
Product Description
| Name | Technical Parameter |
| External Size | H*W*D=1200*700*700mm ( 47 x 28 x 28 inch) |
| Enclosure layout | One compartment, for installing 19'equipment+Acid battery |
| Enclosure material | Double layer Galvanized steel with EPS thermal isolation |
| Security design | Embedded door, embedded hinges, 3-point security lock |
| Protection level | IP55 / NEMA 3R / NEMA 3S |
| Color | RAL7035 |
| Climate control | AC220V air conditioner and DC48V fan |
| Lighting system | Door sensor+48V LED light(door open, the LED will light on; door closed, the LED will go out.) |
| Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
| Working temperature | - 40 ℃ ~ + 55 ℃ |
| Working Humidity | ≤ 95% (+ 40 ℃) |
| Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Note：The air conditioner can also choose AC 110V 60HZ or DC 48V, and the fan can also choose AC 110V or 220V.
Includes: locking door with air conditioner,19inch rackmount rails,floormount plinth or hardwares.
| Name | Quantity | Unit | Technical parameter |
| Outdoor server rack enclosure | 1 | set | H*W*D=1200*700*700mm ( 47 x 28 x 28 inch) |
| Air conditioner | 1 | set | Power supply:AC 220V 50/60Hz Cooling capacity:300-600W |
| Fan | 1 | set | DC48V with temperature control |
| LED Lamp | 1 | set | DC48V,used for illumination in the enclosure |
| Grounding bus bar | 1 | set | 200A Copper bar(13 point M6 and 2 point M8) |
| Equipment supporting | 1 | set | |
| Package | 1 | set | Wooden box , wooden pallet+stretch film or wooden pallet +wooden box |
The following accessories are available for optional ordering.
| Item | Technical parameter | Picture |
| EMS | 19 inch environment monitoring unit 1U; DC48V, support RS232,RS485, SNMP,TCP/IP communication protocol. 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor.
Environmental monitoring system is a comprehensive network of devices and technologies designed to track and assess various aspects of the environment. This system plays a crucial role in gathering data to understand environmental conditions, detect changes, and manage natural resources. |
|
| Fire Extinguisher | Hot aerosol fire extinguishing device is a new, efficient and environment-friendly fire fighting product with Vanguard International Semiconductor Corporation level, which is the first in China. It is a high-tech green fire protection product that benefits humanity, born under the background of the International Montreal Agreement and China's increased awareness of environmental protection. It is an ideal substitute for halon fire extinguishing devices and is suitable for relatively enclosed spaces such as distribution cabinets.
Electric or hot start: Hot start temperature ≥170℃; Electric start temperature ≥700mA. |
|
| Wiring type PDU | AC input：63A/2P*2 with interlock； AC/SPD：30-60KA/2P*1； AC output：63A/1P*1,32A/1P*1，16A/1P*3，3 holes Maintenance socket*1 |
|
| Integrated PDU | Can be customized according to customer requirements. |
|
| Rectifier | AC220V/110V transfer to DC48V, Connect the battery as a backup power,also can be customized according to customer requirements. |
|
ODF | Optic Distribution Frame (ODF) is a critical component in a fiber optic network infrastructure. It serves as a centralized point for the termination, organization, and distribution of fiber optic cables. The primary purpose of a distribution frame is to facilitate efficient and organized connectivity, making it easier to manage, troubleshoot, and expand the network.
Function: 1)Termination Point; 2)Organization and Management; 3)Splicing Trays; 4)Labeling and Documentation; 5)Security and Protection; 6)Scalability;
Can be customized according to customer requirements. |
|
| Backup battery | Can be lithium battery or lead acid battery. |
Flexibility
(1) Material of pole mount solar battery box enclosure can be Constructed of durable, galvanized steel,sandwich panel ,stainless steel SS304,aluminium.
(2) Front and side access doors allow technicians access to equipment storage areas and cable routing.
(3) Customized color ,standard color RAL7035,other color acceptable based on appointed color code.
(4) Wide range of thermal management options for even the most demanding heat dissipation needs allows for optimization of thermal performance and reduced energy costs.
(5) The cooling solution adopted compressed air conditioner ,TEC (Thermoelectric Cooler),Hex (heat exchanger),Fans,Combined AC&HEX.
(6) Offers a wide range of configuration options providing maximum flexibility including PDU, rectifier ,integrated AC-DC power systems.
(7) Silk screening Logo and environmental friendly painting artwork for outdoor telecom cabinet.
(8) Offers all kinds environment sensors,including doors,smoke,temperature sensors.
(9) Remote monitoring system supported, communication protocol is RS232/RS485/SNMP.
Function

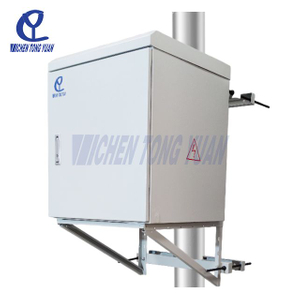

Pole mount solar battery box enclosure is essential components in renewable energy systems, designed to house and protect batteries that store solar energy. These enclosure is built to safeguard batteries from environmental factors such as extreme temperatures, moisture, and physical damage, ensuring the longevity and efficiency of the energy storage system. They often come with features like ventilation, cooling systems, and safety mechanisms to prevent overheating and ensure optimal performance.
Available in various sizes and configurations, pole mount solar battery box enclosure can be tailored to meet the specific needs of residential, commercial, or industrial applications. Their robust construction and secure locking mechanisms also provide protection against unauthorized access, making them a reliable choice for securing valuable energy assets. In addition to housing batteries, these cabinets can be designed to accommodate other components such as inverters and charge controllers, creating a compact and organized energy storage solution.
Overall, pole mount solar battery box enclosure is crucial for maintaining the performance and safety of solar energy systems, offering a flexible and scalable solution to meet the growing demand for renewable energy storage.
Key Features of Pole Mount Solar Battery Box Enclosure
1. Durable Construction: Made from robust materials like steel or aluminum, these enclosure is designed to withstand harsh environmental conditions, including UV exposure, moisture, and physical impact.
2. Weatherproofing: Enclosure is typically sealed to protect against dust, rain, and extreme temperatures, ensuring the longevity and reliability of the batteries inside.
3. Ventilation and Cooling: To prevent overheating, the enclosure often feature built-in ventilation systems, cooling fans, or even passive cooling designs that help maintain optimal battery temperatures.
4. Modular Design: Many enclosures are modular, allowing for easy expansion or reconfiguration to accommodate additional batteries or other system components as energy storage needs grow.
5. Safety Features: Enclosure includes safety mechanisms such as fire suppression systems, temperature sensors, and overload protection to prevent accidents and ensure safe operation.
6. Security: Secure locking mechanisms and tamper-proof designs protect the batteries from unauthorized access and potential theft, making them suitable for both residential and commercial installations.
7. Customizability: Enclosures can be customized to fit specific battery types (e.g., lithium-ion, lead-acid) and other system components, offering flexibility to meet various energy storage requirements.
8. Compatibility with Energy Systems: The enclosure is designed to integrate seamlessly with solar inverters, charge controllers, and other power management systems, providing a cohesive solution for solar energy storage.
9. Ease of Installation: Many enclosures are designed for straightforward installation, often featuring pre-drilled mounting holes, removable panels, and accessible wiring compartments for quick setup and maintenance.
10. Corrosion Resistance: For outdoor applications, the enclosure is often treated with anti-corrosion coatings to withstand prolonged exposure to the elements, particularly in coastal or industrial environments.
These key features make pole mount solar battery box enclosure a critical component in ensuring the safety, efficiency, and durability of solar energy storage systems.
Application
The Pole Mount Solar Battery Box Enclosure is a versatile solution used in various industries and applications where outdoor solar energy storage is essential. Here's a more detailed breakdown of its applications:
In areas without access to traditional power grids, off-grid solar systems rely on batteries to store energy. The Pole Mount Enclosure protects these batteries from extreme weather conditions, ensuring a continuous power supply for homes, businesses, or equipment in remote areas. This application is vital for isolated communities, vacation homes, and cabins.
Telecommunication towers, especially in remote or mountainous areas, require consistent power to operate. Solar power systems often serve as backups, and the batteries are stored in Pole Mount Enclosures. These enclosures ensure that the batteries are safe from weather, tampering, and environmental hazards, keeping communication lines stable even during outages.
Solar street lighting systems rely on battery storage to provide lighting during night hours. Pole Mount Enclosures house the batteries for these systems, protecting them from harsh weather and vandalism. These applications are common in urban areas, parks, highways, and rural settings, providing sustainable lighting solutions.
Security cameras and monitoring systems located in outdoor, remote, or high-exposure environments benefit from solar power. Batteries stored in these enclosures ensure uninterrupted power to critical security equipment. The Pole Mount Enclosure adds a layer of protection, making these systems more reliable in isolated areas such as farms, construction sites, or wildlife monitoring zones.
In agriculture, solar energy powers irrigation systems, monitoring sensors, and automated equipment in rural and remote fields. Pole Mount Enclosures safeguard the solar batteries that store energy to operate these systems. They prevent exposure to elements like dust, rain, and animals, ensuring smooth operation during the day and night.
Many emergency power systems, particularly in disaster-prone or remote locations, use solar energy with battery storage. These batteries are mounted in Pole Mount Enclosures to guarantee that they remain operational and protected in extreme weather conditions, ensuring critical infrastructure remains powered during emergencies or grid failures.
In developing regions, rural electrification projects use solar systems to bring electricity to homes, schools, and medical facilities. Pole Mount Enclosures are used to store and protect batteries that ensure a reliable energy supply, providing clean and sustainable power solutions to underserved communities.
Solar power is increasingly being used to power traffic signs, signals, and transportation infrastructure. The batteries needed for these systems are safely stored in Pole Mount Enclosures, ensuring the systems function reliably in both urban and rural areas. This application is critical for energy-efficient traffic management systems.
For businesses looking to reduce energy costs and reliance on the grid, commercial and industrial solar power systems can utilize Pole Mount Enclosures to house batteries in outdoor environments. These setups are often part of solar carports, outdoor energy storage facilities, or rooftop installations.
Enhanced Durability: Built to withstand environmental challenges such as heat, moisture, dust, and corrosion, prolonging battery life.
Space-Efficient Installation: Designed to be mounted on poles, freeing up ground space and allowing seamless integration with solar panels or equipment.
Security Features: Many enclosures come with locking mechanisms to prevent unauthorized access, ensuring the safety of stored batteries.
Flexibility: Suitable for various types of batteries and solar setups, making them highly adaptable across industries and sectors.
These detailed applications highlight the versatility and essential role of Pole Mount Solar Battery Box Enclosures in protecting and ensuring the smooth operation of solar power systems across diverse environments.
