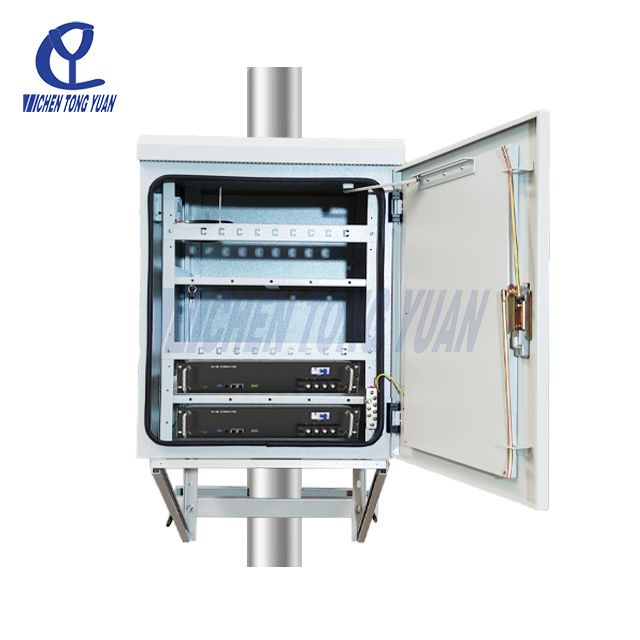

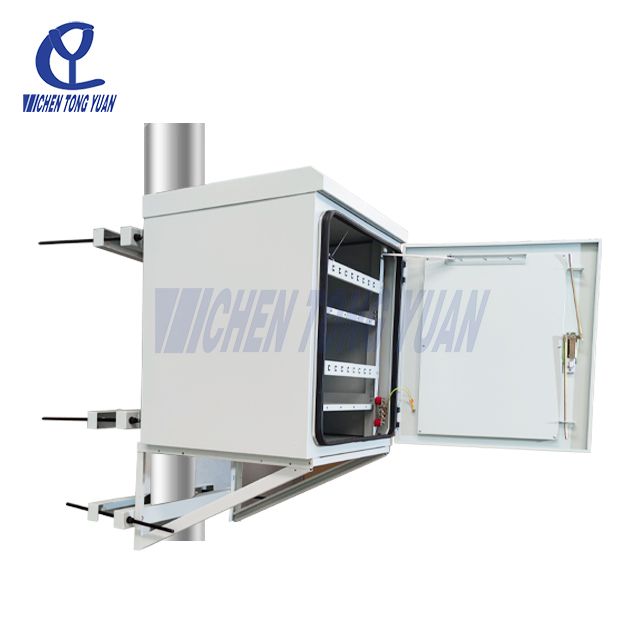

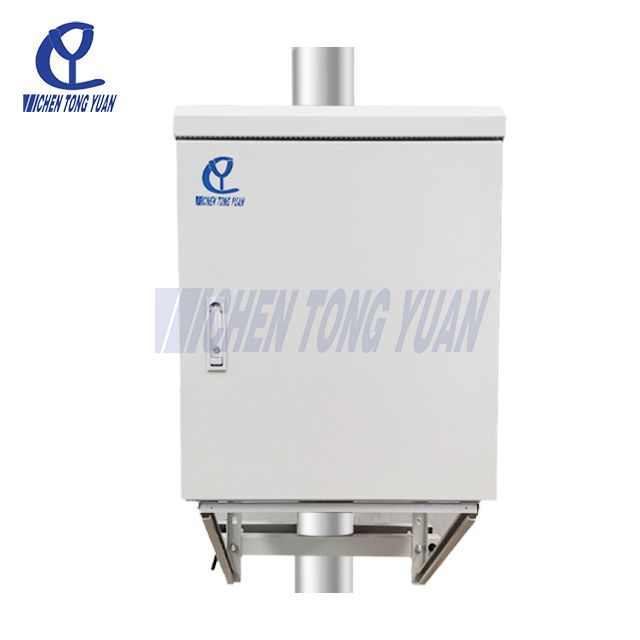

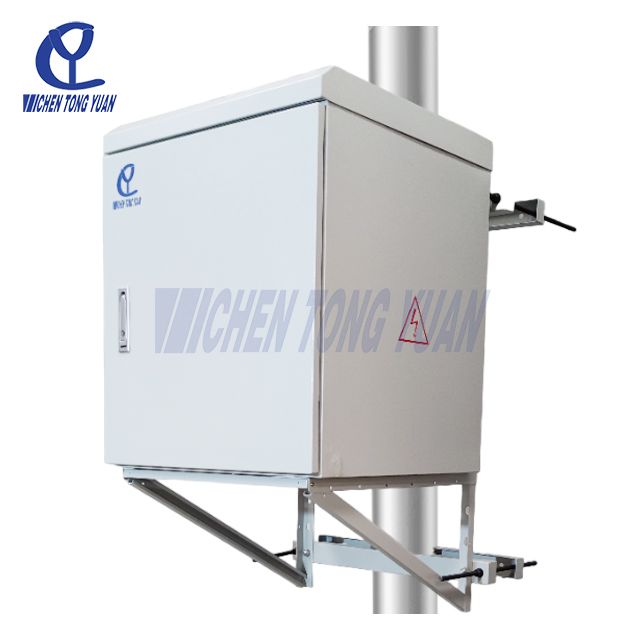

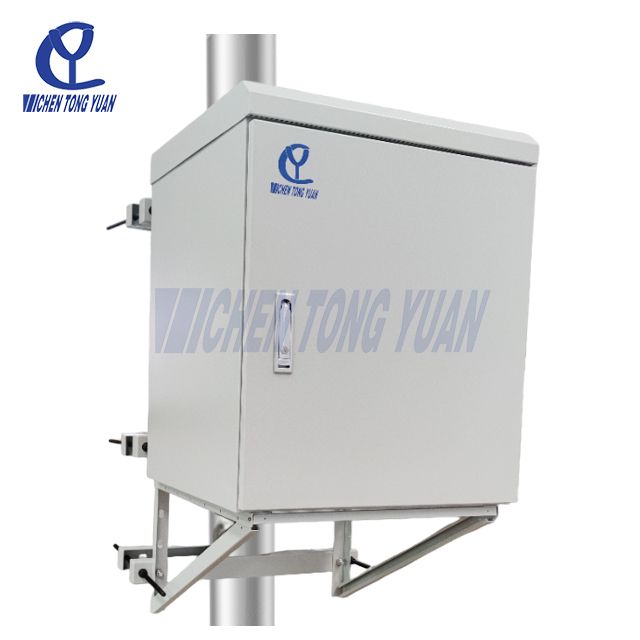

CYP1200700700
Cytech
Battery
IP 55
Pole Mount
500W/1700BTU
19inch
650mm/26inch
22U
Product Description
| Name |
Technical Parameter |
| External Size |
H*W*D=1200*700*700mm ( 47 x 28 x 28 inch) |
| Cabinet layout |
One compartment, for installing 19'equipment+Acid battery |
| Cabinet material |
Double layer Galvanized steel with EPS thermal isolation |
| Security design |
Embedded door, embedded hinges, 3-point security lock |
| Protection level |
IP55,NEMA 4 or 4X |
| Color | RAL7035 |
| Climate control | AC220V air conditioner and DC48V fan |
| Lighting system | Door sensor+48V LED light(door open, the LED will light on; door closed, the LED will go out.) |
| Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
| Working temperature | - 40 ℃ ~ + 55 ℃ |
| Working Humidity | ≤ 95% (+ 40 ℃) |
| Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Note：The air conditioner can also choose AC 110V 60HZ or DC 48V, and the fan can also choose AC 110V or 220V.
Includes: locking door with air conditioner,19inch rackmount rails,floormount plinth or hardwares.
| Name |
Quantity | Unit | Technical parameter |
| Outdoor server rack enclosure |
1 | set | H*W*D=1200*700*700mm ( 47 x 28 x 28 inch) |
| Air conditioner | 1 | set | Power supply:AC 220V 50/60Hz Cooling capacity:300-600W |
| Fan | 1 | set | DC48V with temperature control |
| LED Lamp | 1 | set | DC48V,used for illumination in the enclosure |
| Grounding bus bar |
1 | set | 200A Copper bar(13 point M6 and 2 point M8) |
| Equipment supporting | 1 | set | |
| Package | 1 | set | Wooden box , wooden pallet+stretch film or wooden pallet +wooden box |
The following accessories are available for optional ordering.
| Item | Technical parameter | Picture |
| EMS | 19 inch environment monitoring unit 1U; DC48V, support RS232,RS485, SNMP,TCP/IP communication protocol. 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor.
Environmental monitoring system is a comprehensive network of devices and technologies designed to track and assess various aspects of the environment. This system plays a crucial role in gathering data to understand environmental conditions, detect changes, and manage natural resources. |
|
| Fire Extinguisher | Hot aerosol fire extinguishing device is a new, efficient and environment-friendly fire fighting product with Vanguard International Semiconductor Corporation level, which is the first in China. It is a high-tech green fire protection product that benefits humanity, born under the background of the International Montreal Agreement and China's increased awareness of environmental protection. It is an ideal substitute for halon fire extinguishing devices and is suitable for relatively enclosed spaces such as distribution cabinets.
Electric or hot start: Hot start temperature ≥170℃; Electric start temperature ≥700mA. |
|
| Wiring type PDU | AC input：63A/2P*2 with interlock； AC/SPD：30-60KA/2P*1； AC output：63A/1P*1,32A/1P*1，16A/1P*3，3 holes Maintenance socket*1 |
|
| Integrated PDU | Can be customized according to customer requirements. |
|
| Rectifier | AC220V/110V transfer to DC48V, Connect the battery as a backup power,also can be customized according to customer requirements. |
|
ODF |
Optic Distribution Frame (ODF) is a critical component in a fiber optic network infrastructure. It serves as a centralized point for the termination, organization, and distribution of fiber optic cables. The primary purpose of a distribution frame is to facilitate efficient and organized connectivity, making it easier to manage, troubleshoot, and expand the network.
Function: 1)Termination Point; 2)Organization and Management; 3)Splicing Trays; 4)Labeling and Documentation; 5)Security and Protection; 6)Scalability;
Can be customized according to customer requirements. |
|
| Backup battery | Can be lithium battery or lead acid battery. |
Flexibility
(1)Material of pole mount outdoor telecom enclosure can be Constructed of durable, galvanized steel,sandwich panel ,stainless steel SS304,aluminium.
(2)Front and side access doors allow technicians access to equipment storage areas and cable routing.
(3)Customized color ,standard color RAL7035,other color acceptable based on appointed color code.
(4)Wide range of thermal management options for even the most demanding heat dissipation needs allows for optimization of thermal performance and reduced energy costs.
(5)The cooling solution adopted compressed air conditioner ,TEC (Thermoelectric Cooler),Hex (heat exchanger),Fans,Combined AC&HEX.
(6)Offers a wide range of configuration options providing maximum flexibility including PDU, rectifier ,integrated AC-DC power systems.
(7)Silk screening Logo and environmental friendly painting artwork for outdoor telecom cabinet.
(8)Offers all kinds environment sensors,including doors,smoke,temperature sensors.
(9)Remote monitoring system supported, communication protocol is RS232/RS485/SNMP.
Function
Solar battery storage enclosure cabinets are essential components in renewable energy systems, designed to house and protect batteries that store solar energy. These cabinets are built to safeguard batteries from environmental factors such as extreme temperatures, moisture, and physical damage, ensuring the longevity and efficiency of the energy storage system. They often come with features like ventilation, cooling systems, and safety mechanisms to prevent overheating and ensure optimal performance.
Available in various sizes and configurations, solar battery storage enclosure cabinets can be tailored to meet the specific needs of residential, commercial, or industrial applications. Their robust construction and secure locking mechanisms also provide protection against unauthorized access, making them a reliable choice for securing valuable energy assets. In addition to housing batteries, these cabinets can be designed to accommodate other components such as inverters and charge controllers, creating a compact and organized energy storage solution.
Overall, solar battery storage enclosure cabinets are crucial for maintaining the performance and safety of solar energy systems, offering a flexible and scalable solution to meet the growing demand for renewable energy storage.
Key features of solar battery storage enclosure cabinets
1. Durable Construction: Made from robust materials like steel or aluminum, these cabinets are designed to withstand harsh environmental conditions, including UV exposure, moisture, and physical impact.
2. Weatherproofing: Enclosures are typically sealed to protect against dust, rain, and extreme temperatures, ensuring the longevity and reliability of the batteries inside.
3. Ventilation and Cooling: To prevent overheating, these cabinets often feature built-in ventilation systems, cooling fans, or even passive cooling designs that help maintain optimal battery temperatures.
4. Modular Design: Many cabinets are modular, allowing for easy expansion or reconfiguration to accommodate additional batteries or other system components as energy storage needs grow.
5. Safety Features: Cabinets include safety mechanisms such as fire suppression systems, temperature sensors, and overload protection to prevent accidents and ensure safe operation.
6. Security: Secure locking mechanisms and tamper-proof designs protect the batteries from unauthorized access and potential theft, making them suitable for both residential and commercial installations.
7. Customizability: Cabinets can be customized to fit specific battery types (e.g., lithium-ion, lead-acid) and other system components, offering flexibility to meet various energy storage requirements.
8. Compatibility with Energy Systems: These enclosures are designed to integrate seamlessly with solar inverters, charge controllers, and other power management systems, providing a cohesive solution for solar energy storage.
9. Ease of Installation: Many enclosures are designed for straightforward installation, often featuring pre-drilled mounting holes, removable panels, and accessible wiring compartments for quick setup and maintenance.
10. Corrosion Resistance: For outdoor applications, cabinets are often treated with anti-corrosion coatings to withstand prolonged exposure to the elements, particularly in coastal or industrial environments.
These key features make solar battery storage enclosure cabinets a critical component in ensuring the safety, efficiency, and durability of solar energy storage systems.
Application
Solar battery storage enclosure cabinets are used in a variety of applications across residential, commercial, and industrial sectors. Here are some key applications:
1. Residential Solar Energy Systems:
Home Backup Power: In homes equipped with solar panels, these cabinets store energy for use during power outages, ensuring continuous power supply.
Off-Grid Living: For off-grid residences, solar battery enclosures are crucial for storing energy generated during the day for use at night or during cloudy periods.
2. Commercial Solar Installations:
Energy Cost Management: Businesses use these cabinets to store energy during off-peak hours when electricity rates are lower, then use the stored energy during peak hours, reducing operational costs.
Sustainable Energy Solutions: Companies seeking to reduce their carbon footprint use solar energy storage enclosures to ensure a steady supply of renewable energy, even when solar generation is low.
3. Industrial Applications:
Grid Stabilization: Large-scale solar farms and industrial facilities use these cabinets to store excess energy generated during peak solar production times, helping stabilize the grid and ensuring consistent power supply.
Remote Operations: In remote industrial sites where grid access is limited or unreliable, solar battery enclosures provide a reliable source of power for continuous operations.
4. Telecommunication and Infrastructure:
Telecom Towers: Solar battery storage enclosures are used to power telecom towers in remote or off-grid locations, ensuring uninterrupted communication services.
Critical Infrastructure: These cabinets are also deployed to power critical infrastructure like traffic lights, emergency systems, and surveillance equipment, particularly in areas prone to power outages.
5. Agricultural Applications:
Irrigation Systems: Farmers use solar energy storage cabinets to power irrigation systems, ensuring water supply even during off-peak solar hours.
Remote Monitoring: Enclosures power remote agricultural monitoring and control systems, such as sensors for soil moisture and weather conditions, enhancing farm management efficiency.
6. Emergency Power Supply:
Disaster Recovery: In disaster-prone areas, solar battery storage enclosures provide reliable backup power for emergency response operations, shelters, and critical services during grid outages.
Mobile Power Units: These cabinets are also used in mobile solar power units deployed during emergencies, providing power to remote areas or temporary setups.
7. Public and Community Projects:
Community Solar Programs: Enclosures are used in community solar projects to store energy that can be distributed among participating households or public facilities, enhancing energy access and sustainability.
Public Infrastructure: Solar battery enclosures help power public lighting, charging stations, and other community infrastructure, contributing to energy efficiency and sustainability goals.
These diverse applications highlight the versatility and importance of solar battery storage enclosure cabinets in supporting the reliable and efficient use of renewable energy across various sectors.
