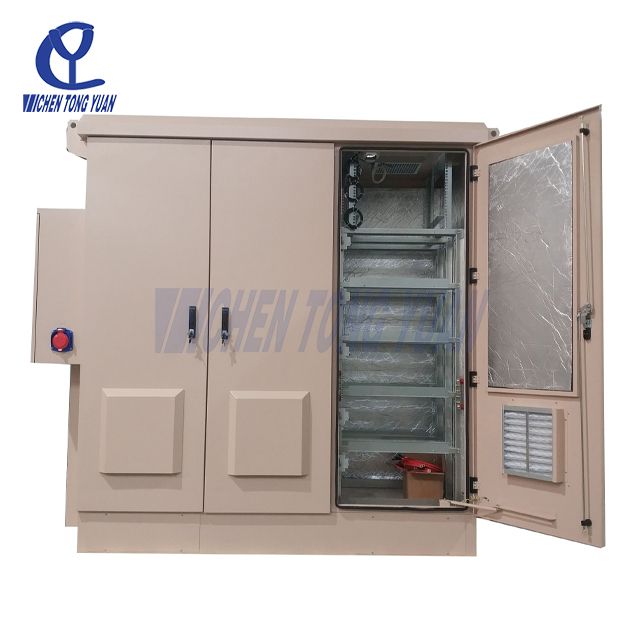

CY21251905750
CY TECH
Telecom
IP 55, IP 65, NEMA 4, NEMA 4X
Floor Mount
| Detail: | |
|---|---|
Description
| Name | Technical Parameter |

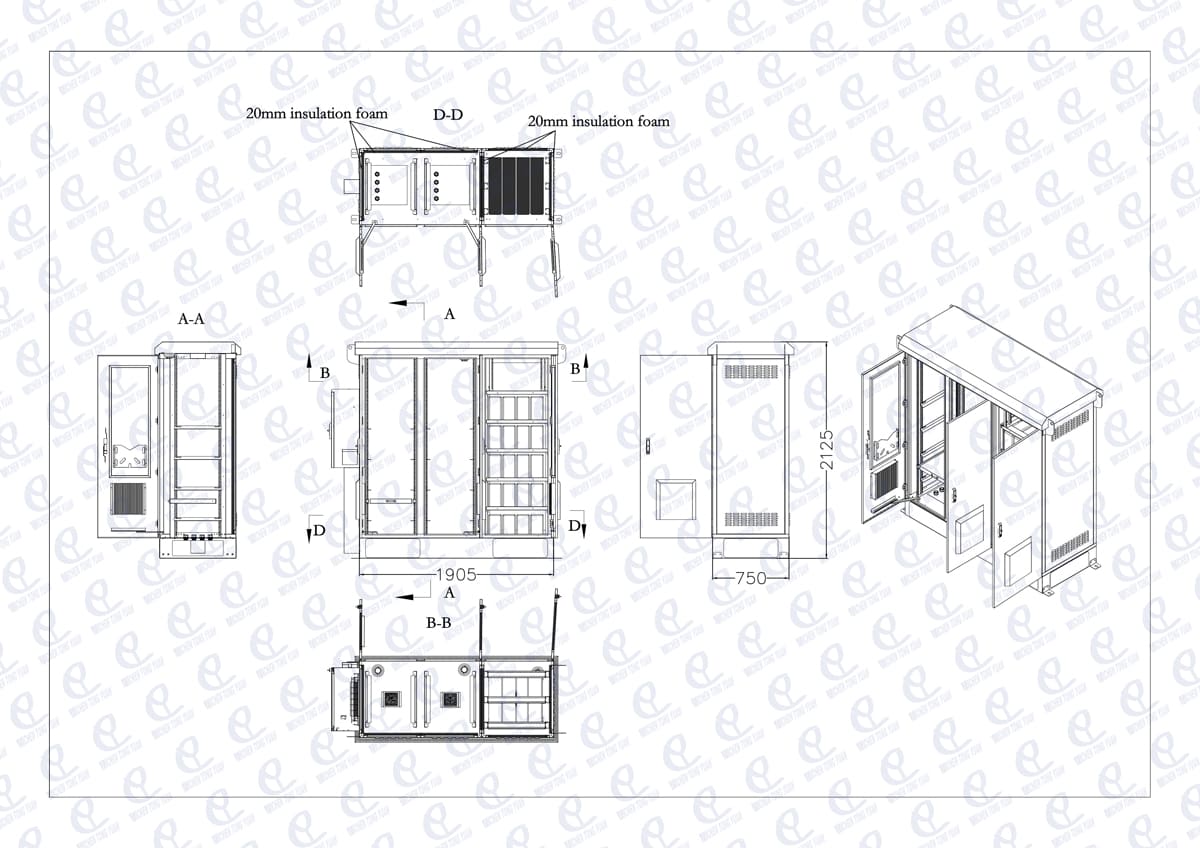

| External Size | H*W*D=2125*1905*750mm ( 84 x 75 x 30 inch) |
| Cabinet layout | One compartment, for installing 19inch/23inch equipment |
| Cabinet material | Double layer Galvanized steel with EPS thermal isolation |
| Security design | Embedded door, embedded hinges, 4-point security lock |
| Protection level | IP55 / IP65 / NEMA 4 / 4X |
| Color | RAL7035 |
| Climate control | DC48V fan |
| Lighting system | Door sensor+48V LED light(door open, the LED will light on; door closed, the LED will go out.) |
| Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
| Working temperature | - 40 ℃ ~ + 55 ℃ |
| Working Humidity | ≤ 95% (+ 40 ℃) |
| Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Note：The air conditioner can also choose AC 110V 60HZ or DC 48V, and the fan can also choose AC 110V or 220V.
Includes: locking door with air conditioner,19inch rackmount rails,floormount plinth or hardwares.
| Name | Quantity | Unit | Technical parameter |
| Outdoor telecom cabinet | 1 | set | H*W*D=2125*1905*750mm ( 84 x 75 x 30 inch) |
| Fan | 1 | set | DC48V with temperature control |
| LED Lamp | 1 | set | DC48V,used for illumination in the cabinet |
| Grounding bus bar | 1 | set | 200A Copper bar(13 point M6 and 2 point M8) |
| Equipment supporting | 1 | set | |
| Package | 1 | set | Wooden box , wooden pallet+stretch film or wooden pallet +wooden box |
The following accessories are available for optional ordering.
| Item | Technical parameter | Picture |
| EMS | 19 inch environment monitoring unit 1U; DC48V, support RS232,RS485, SNMP,TCP/IP communication protocol. 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor.
Environmental monitoring system is a comprehensive network of devices and technologies designed to track and assess various aspects of the environment. This system plays a crucial role in gathering data to understand environmental conditions, detect changes, and manage natural resources. |
|
| Fire Extinguisher | Hot aerosol fire extinguishing device is a new, efficient and environment-friendly fire fighting product with Vanguard International Semiconductor Corporation level, which is the first in China. It is a high-tech green fire protection product that benefits humanity, born under the background of the International Montreal Agreement and China's increased awareness of environmental protection. It is an ideal substitute for halon fire extinguishing devices and is suitable for relatively enclosed spaces such as distribution cabinets.
Electric or hot start: Hot start temperature ≥170℃; Electric start temperature ≥700mA. |
|
| Wiring type PDU | AC input：63A/2P*2 with interlock； AC/SPD：30-60KA/2P*1； AC output：63A/1P*1,32A/1P*1，16A/1P*3，3 holes Maintenance socket*1 |
|
| Integrated PDU | Can be customized according to customer requirements. |
|
| Rectifier | AC220V/110V transfer to DC48V, Connect the battery as a backup power,also can be customized according to customer requirements. |
|
ODF | Optic Distribution Frame (ODF) is a critical component in a fiber optic network infrastructure. It serves as a centralized point for the termination, organization, and distribution of fiber optic cables. The primary purpose of a distribution frame is to facilitate efficient and organized connectivity, making it easier to manage, troubleshoot, and expand the network.
Function: 1)Termination Point; 2)Organization and Management; 3)Splicing Trays; 4)Labeling and Documentation; 5)Security and Protection; 6)Scalability;
Can be customized according to customer requirements. |
|
| Backup battery | Can be lithium battery or lead acid battery. |

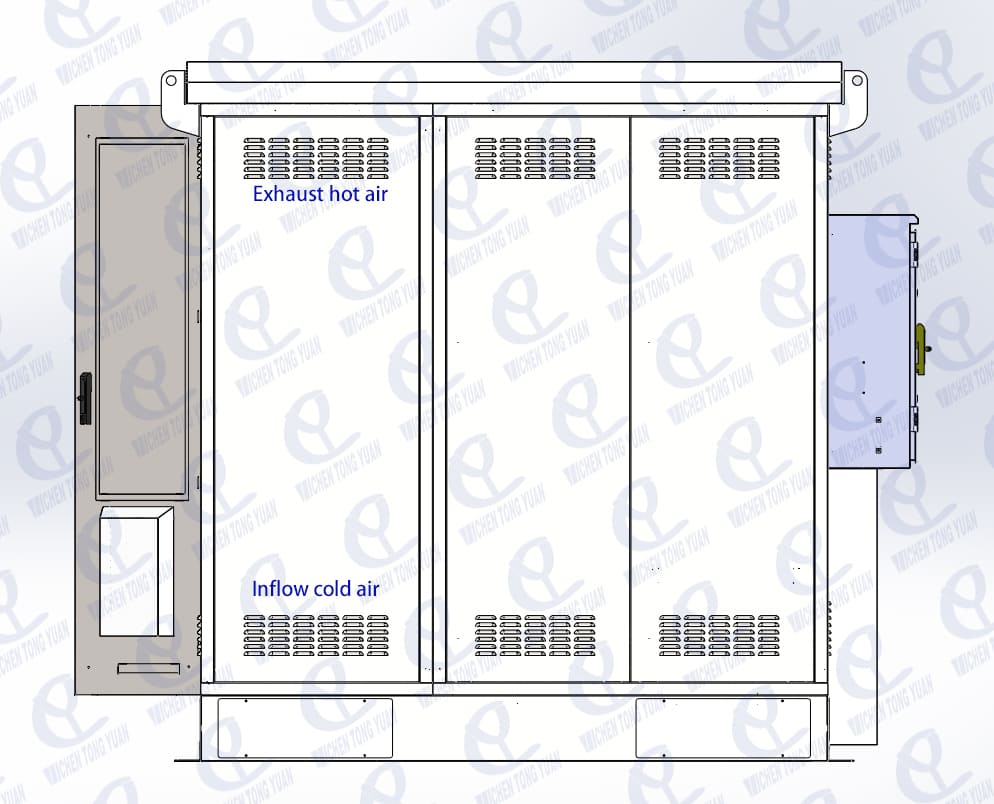

Chimney effect: The middle of the double-layer steel plate is empty. When exposed to sunlight, the air inside expands due to heat and flows out from the upper air outlet, while the lower air inlet replenishes cold air.
Flexibility
A Customized Outdoor Telecom Cabinet Enclosure offers unparalleled flexibility and durability, making it ideal for a wide range of outdoor telecom applications. Here's a breakdown of the features that make these enclosures stand out:
The Customized Outdoor Telecom Cabinet Enclosure can be constructed from a variety of durable materials, including galvanized steel, sandwich panels, stainless steel SS304, and aluminum. This ensures the enclosure remains resilient against harsh outdoor conditions and provides long-lasting protection for telecom equipment.

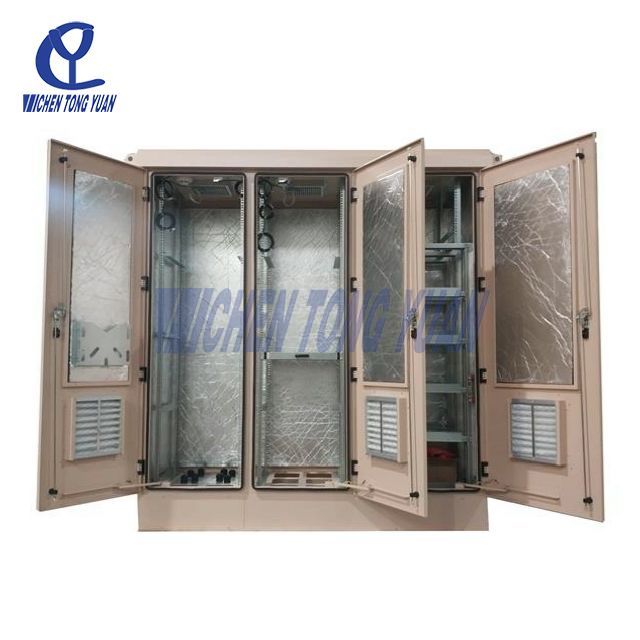

These enclosures offer flexible compartment configurations, supporting between 1-4 bays, with multi-compartment options available. This adaptability allows for customized storage and organization, making it easier for technicians to manage telecom equipment efficiently.
The Customized Outdoor Telecom Cabinet Enclosure features both front and rear access doors, providing easy access to the equipment storage areas and cable routing. Side doors are also available upon request, offering additional flexibility for maintenance and installation needs.
The enclosure comes with a standard color of RAL7035, but it can be customized to fit specific project requirements with any RAL color code. This ensures that the Customized Outdoor Telecom Cabinet Enclosure seamlessly integrates into any outdoor environment or branding specifications.
A major feature of the Customized Outdoor Telecom Cabinet Enclosure is its wide range of thermal management options, designed to meet the most demanding heat dissipation requirements. These solutions ensure optimal thermal performance while reducing energy consumption, making them ideal for environments with high temperature fluctuations.
Cooling options include:
Compressed air conditioners
Thermoelectric coolers (TEC)
Heat exchangers (HEX)
Fans
Combined AC & HEX cooling solutions
The Customized Outdoor Telecom Cabinet Enclosure offers a wide array of configuration options, including PDU (Power Distribution Units), rectifiers, and integrated AC-DC power systems. This flexibility allows the cabinet to meet the power demands of various telecom applications.
Silk-screened logos and environmentally friendly painting options are available for the Customized Outdoor Telecom Cabinet Enclosure, providing both aesthetic appeal and a commitment to sustainable practices.
To ensure the longevity and performance of telecom equipment, the Customized Outdoor Telecom Cabinet Enclosure supports a variety of environmental sensors, including door, smoke, and temperature sensors. These sensors help monitor the condition inside the enclosure and provide alerts in case of any issues.
The Customized Outdoor Telecom Cabinet Enclosure also supports remote monitoring systems. With communication protocols such as RS232, RS485, and SNMP, technicians can monitor the status of the equipment and receive real-time updates, improving operational efficiency and minimizing downtime.
Benefits
A Customized Outdoor Telecom Cabinet Enclosure provides unique advantages by tailoring its design to meet specific requirements and environmental challenges. This customization enhances functionality, security, and performance in various outdoor settings. Here are the key benefits:
Optimized Climate Control: A Customized Outdoor Telecom Cabinet Enclosure can be fitted with specific cooling or heating systems to maintain ideal temperatures, ensuring maximum equipment longevity.
Enhanced Sealing and Insulation: Tailored weatherproofing, dust filters, and insulation materials protect sensitive equipment from moisture, dust, and extreme temperatures, even in the harshest climates.
Custom Security Options: Custom enclosures allow for specialized locks, reinforced doors, and advanced monitoring systems like intrusion alarms and access control, tailored to meet security needs for sensitive or high-value equipment.
Tamper-Proof Design: Additional reinforcements can be added to resist vandalism or unauthorized access, providing peace of mind in public or remote areas.
Space Optimization: Interior shelving, rack configurations, and cable management systems in a Customized Outdoor Telecom Cabinet Enclosure can be customized to fit unique equipment layouts and provide organized, easy access.
Scalability: Custom racks allow for future expansion, meaning additional equipment can be accommodated without a complete enclosure overhaul.
Port and Cable Access: Custom positioning of ports, cable routes, and external connections simplifies setup and maintenance, ensuring a smooth installation process.
Corrosion-Resistant Materials: Depending on the environment, custom materials like stainless steel, powder-coated aluminum, or UV-resistant polymers can be selected to withstand specific challenges, such as coastal salt air or high humidity.
Impact Resistance: Reinforcements for impact protection are especially useful in high-traffic or industrial zones, extending the lifespan of the Customized Outdoor Telecom Cabinet Enclosure and protecting equipment from accidental damage.
Color and Logo Customization: The exterior of the Customized Outdoor Telecom Cabinet Enclosure can be customized with specific colors or branding elements to enhance aesthetic appeal and align with corporate branding or industrial safety color codes.
Enhanced Visibility or Discreet Design: Enclosures can be designed for high visibility for maintenance and safety, or alternatively, a discreet appearance to blend into surroundings in public areas.
Reduced Maintenance: Custom features like advanced filtering or high-grade materials can reduce wear and tear, leading to fewer repairs and lower maintenance costs over time.
Longevity: Tailoring the Customized Outdoor Telecom Cabinet Enclosure to exact environmental and equipment needs means the enclosure is less likely to require upgrades or replacements, saving on long-term expenses.
Several industries rely on secure, durable, and climate-controlled environments for their equipment in outdoor or remote locations. Here’s how these tailored enclosures benefit various sectors:
Application: Housing networking equipment like routers, switches, and cellular infrastructure in outdoor settings.
Benefits: Customized enclosures with robust climate control and security features protect equipment in harsh weather, ensuring reliable network service, especially in rural or isolated areas.
Application: Protecting equipment for power distribution, smart grids, renewable energy systems, and data monitoring.
Benefits: Enclosures provide environmental resilience, with features like dust and waterproofing essential for settings near power plants, wind farms, and solar arrays, ensuring uninterrupted service and reducing maintenance needs.
Application: Housing equipment for traffic management systems, surveillance, and IoT infrastructure in urban and highway environments.
Benefits: Customized Outdoor Telecom Cabinet Enclosure can withstand temperature extremes, vibrations, and impacts, offering easy access for maintenance. This is crucial for managing smart city technologies such as traffic lights, surveillance cameras, and sensors.
Application: Supporting networking and automation systems within production plants, warehouses, and mining sites.
Benefits: Custom cabinets with reinforced construction and impact resistance are essential for rugged environments, where machinery and dust may pose risks. They also help maintain consistent connectivity and data collection for automated processes.
Application: Protecting critical infrastructure in remote oil fields, gas pipelines, and refineries.
Benefits: These enclosures are tailored for extreme weather, corrosive environments, and potentially explosive atmospheres, ensuring compliance with safety standards and reliable equipment operation in hazardous locations.
Application: Securing equipment for ATMs, transaction kiosks, and banking infrastructure in outdoor settings.
Benefits: Customization for enhanced security and reliable climate control is critical to prevent downtime or tampering, ensuring continuous service for customers in all weather conditions.
Application: Housing critical equipment for emergency communication systems, weather monitoring, and public alert systems.
Benefits: Customized Outdoor Telecom Cabinet Enclosure includes rapid access for emergency personnel, secure locking, and reliable power sources, ensuring these systems remain operational when needed most, regardless of environmental conditions.
Application: Protecting sensitive equipment in remote research sites, weather stations, and environmental monitoring locations.
Benefits: These enclosures can include specialized insulation and power solutions, allowing scientific instruments to operate under extreme conditions without interference from environmental factors.
By choosing a Customized Outdoor Telecom Cabinet Enclosure, businesses across various industries can ensure their equipment is well-protected, efficiently organized, and optimized for long-term performance.
Customization
At Cytech, our commitment to innovation is evident in every Customized Outdoor Telecom Cabinet Enclosure we design. By blending cutting‐edge technology with customer-focused solutions, we ensure that each Customized Outdoor Telecom Cabinet Enclosure meets the highest standards for quality, durability, and functionality.
Cytech begins its process with an in-depth consultation to understand the unique requirements of every client seeking a Customized Outdoor Telecom Cabinet Enclosure. This phase is essential, as we gather detailed information to tailor our design and manufacturing processes specifically to the needs of your Customized Outdoor Telecom Cabinet Enclosure project.

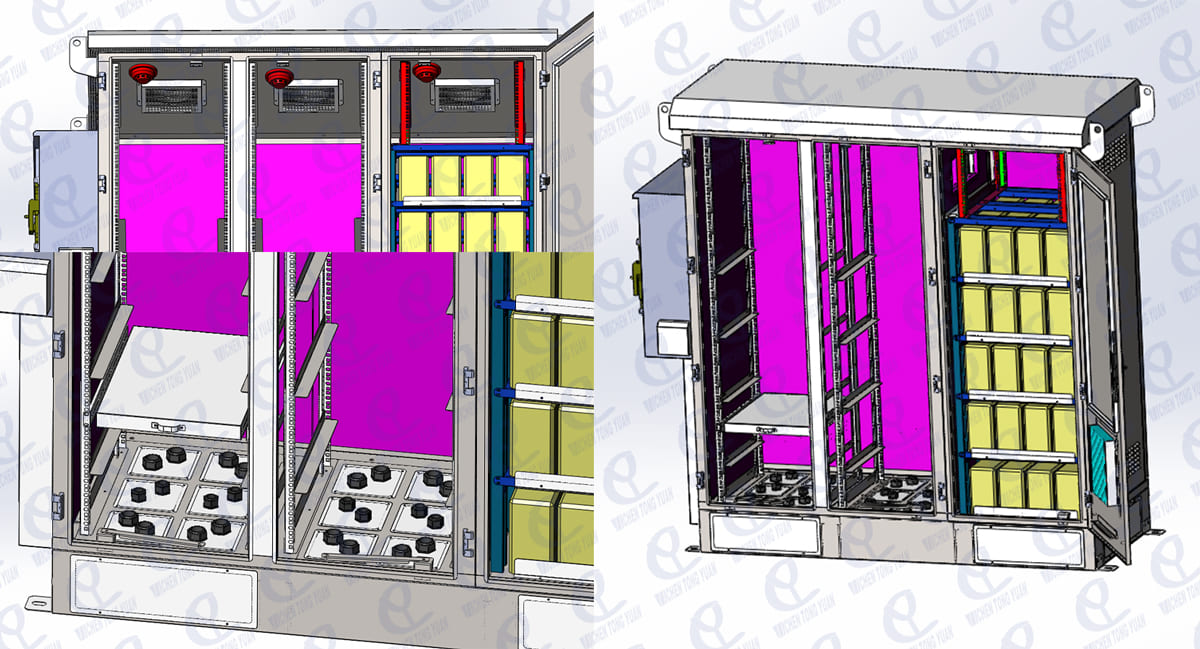

Using advanced CAD software, our engineering team designs every Customized Outdoor Telecom Cabinet Enclosure with precision. Early prototyping and rigorous testing validate the design, ensuring that the Customized Outdoor Telecom Cabinet Enclosure not only meets but exceeds performance expectations before moving into full-scale production.
With state-of-the-art machinery and expert craftsmanship, Cytech manufactures each Customized Outdoor Telecom Cabinet Enclosure to exact specifications. Our facility utilizes modern techniques to guarantee that every Customized Outdoor Telecom Cabinet Enclosure delivers superior structural integrity and performance.
Laser cutting allows us to achieve intricate designs and precise cuts for every Customized Outdoor Telecom Cabinet Enclosure, while CNC machining ensures detailed shaping and drilling. Both methods are critical for producing a Customized Outdoor Telecom Cabinet Enclosure that is as functional as it is visually appealing.
Expert welding and meticulous assembly processes further enhance the quality of our Customized Outdoor Telecom Cabinet Enclosures. Finally, powder coating and finishing provide a durable, attractive surface finish on every Customized Outdoor Telecom Cabinet Enclosure, available in a range of colors to align with your branding.
Every Customized Outdoor Telecom Cabinet Enclosure is designed with several key factors in mind:
Size and Dimensions: Precise measurements ensure that each Customized Outdoor Telecom Cabinet Enclosure fits perfectly in its designated environment.
Ventilation and Cooling: Proper airflow is integrated into every Customized Outdoor Telecom Cabinet Enclosure to prevent overheating and maintain optimal performance.
Mounting and Accessibility: Our designs guarantee that each Customized Outdoor Telecom Cabinet Enclosure is easy to mount and maintain.
Compliance: Every Customized Outdoor Telecom Cabinet Enclosure meets industry standards and regulatory requirements for safety and performance.
Cytech’s portfolio of Customized Outdoor Telecom Cabinet Enclosures speaks for itself. For example:
A leading tech company needed a high-performance Customized Outdoor Telecom Cabinet Enclosure to house new servers.
A medical device manufacturer required a robust Customized Outdoor Telecom Cabinet Enclosure that complied with stringent health and safety regulations.
An automotive client benefited from a lightweight yet durable Customized Outdoor Telecom Cabinet Enclosure, optimized for modern electric vehicles.
Each case demonstrates how our Customized Outdoor Telecom Cabinet Enclosure solutions enhance performance and extend the lifespan of critical equipment.
Every Customized Outdoor Telecom Cabinet Enclosure undergoes rigorous quality control, including detailed inspections, environmental testing, and performance trials. These measures ensure that each Customized Outdoor Telecom Cabinet Enclosure withstands real-world challenges.
Cost considerations are also an integral part of our process. By evaluating material choices, design complexity, and production volumes, we work closely with clients to deliver a Customized Outdoor Telecom Cabinet Enclosure that balances top-tier quality with budgetary requirements.
Cytech’s comprehensive, customer-focused approach means that every Customized Outdoor Telecom Cabinet Enclosure we produce is engineered to excel. From initial consultation to final testing, our dedication to excellence ensures that your Customized Outdoor Telecom Cabinet Enclosure is built to deliver reliable performance and durability in any environment.
How to order
Contact Cytech to schedule an initial consultation where your specific needs and requirements will be discussed.
Receive a detailed quotation and project timeline, outlining the steps from design to delivery.
Throughout the project, Cytech maintains open communication, ensuring that the final product meets your expectations.
Cytech’s customized sheet metal enclosures offer unparalleled protection, durability, and aesthetic appeal tailored to your specific needs. With a commitment to quality, innovation, and customer satisfaction, Cytech is the ideal partner for all your enclosure requirements. Don’t settle for off-the-shelf solutions; choose Cytech and experience the difference that customization can make.
The turnaround time varies depending on the projects complexity, but Cytech typically delivers custom enclosures within 4-6 weeks from the initial consultation.
Yes, Cytech is equipped to handle both small and large volume orders, ensuring consistent quality and timely delivery.
Cytech offers a wide range of customization options, including material choice, size, design features, finishes, and branding elements.
Cytech employs rigorous quality control measures, including thorough inspections, environmental testing, and performance testing to ensure top-notch quality.
Cytech's commitment to precision, customer satisfaction, and innovation, combined with advanced manufacturing techniques and sustainable practices, sets it apart from other manufacturers.
