CY1900800800
CY TECH
Telecom
IP 65, NEMA 4
Floor Mount
1500W/5100BTU
19inch, 23inch
800mm/32inch
36U
Product Description

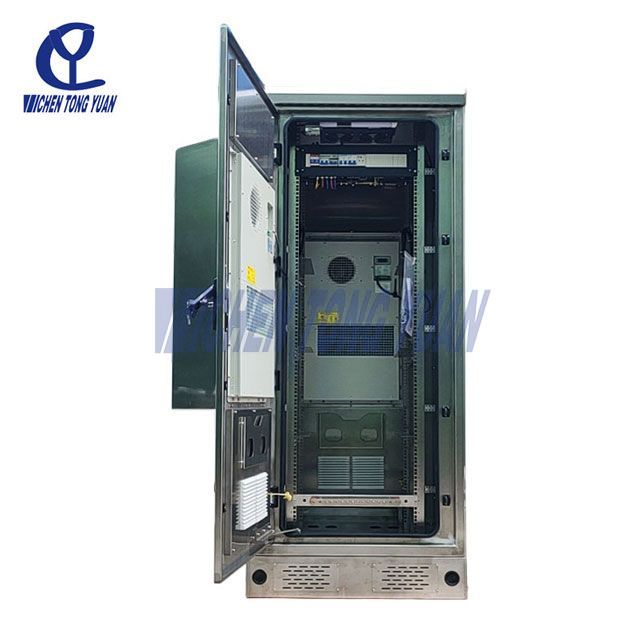

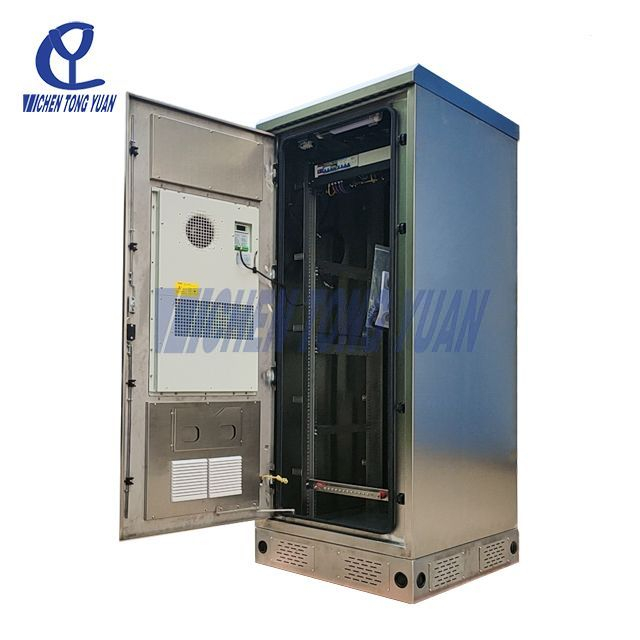

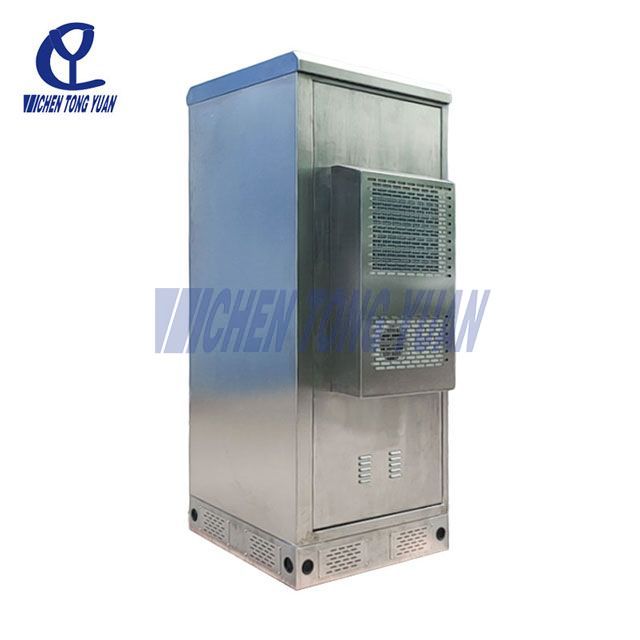

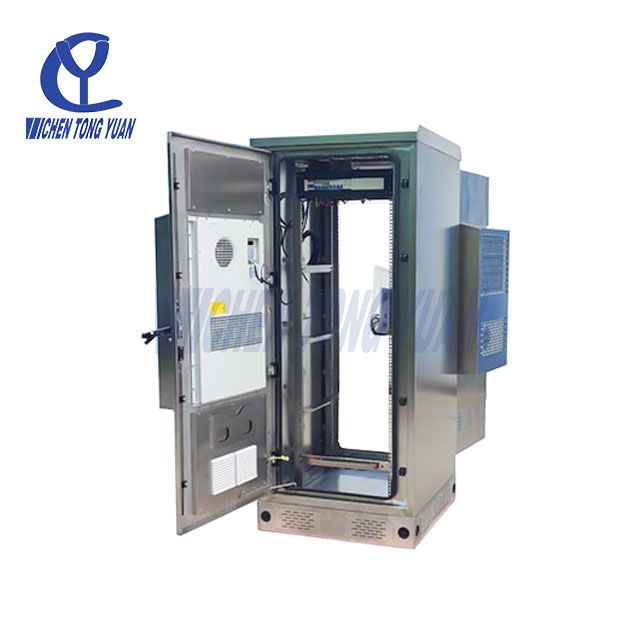

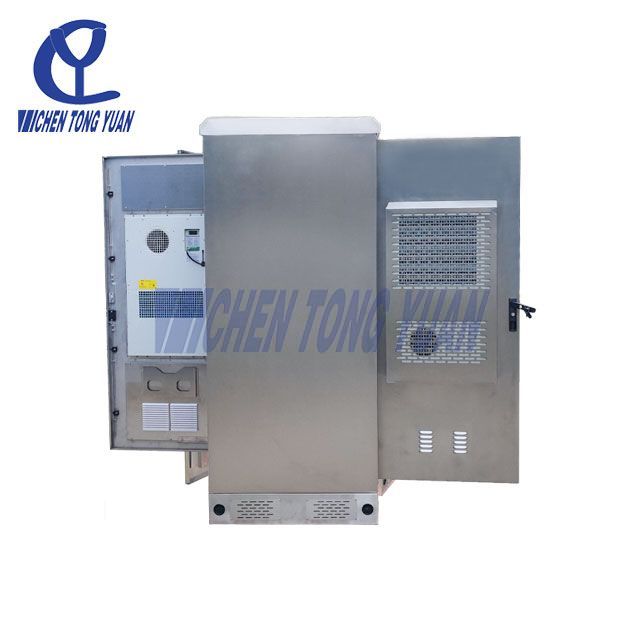

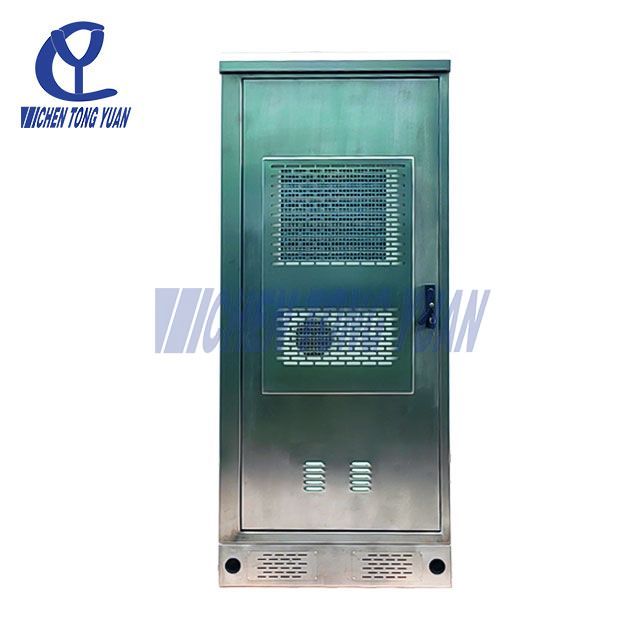

The Customized Stainless Steel Outdoor Server Rack Cabinet from CYTECH is a high-performance enclosure engineered to protect critical IT and telecom infrastructure in demanding outdoor environments. Made from premium stainless steel, this Customized Stainless Steel Outdoor Server Rack Cabinet delivers exceptional corrosion resistance, ensuring long-lasting durability even in extreme weather conditions.
Designed for precision climate control, the Customized Stainless Steel Outdoor Server Rack Cabinet features a powerful 1500W air conditioning system that maintains optimal internal temperatures, preventing equipment overheating and extending operational lifespan. This Customized Stainless Steel Outdoor Server Rack Cabinet provides an effective shield against rain, dust, and fluctuating temperatures, making it ideal for remote communication stations, outdoor data centers, and industrial applications.
Offering flexible installation, the Customized Stainless Steel Outdoor Server Rack Cabinet supports both 19-inch and 23-inch rack configurations, accommodating a variety of networking and power distribution equipment. Security is a top priority, and this Customized Stainless Steel Outdoor Server Rack Cabinet is equipped with a robust locking system to prevent unauthorized access, ensuring sensitive equipment remains protected in any outdoor setting.
With its rugged stainless steel construction, advanced HVAC system, and customizable rack options, the Customized Stainless Steel Outdoor Server Rack Cabinet is the ultimate solution for enterprises seeking a reliable, weatherproof, and climate-controlled enclosure for outdoor deployments.
| Name | Technical Parameter |

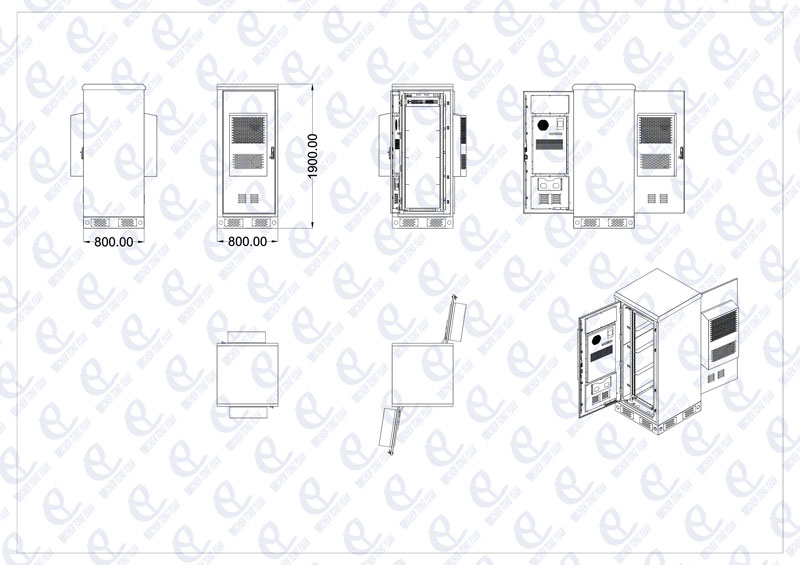

| External Size | H*W*D=1900x800*800mm (75"x 32"x 32") |
| Cabinet layout | One compartment, for installing 19inch/23inch equipment |
| Cabinet material | Double layer Stainless steel with EPS thermal isolation |
| Security design | Embedded door, embedded hinges, 4-point security lock |
| Protection level | IP65,NEMA 4 or 4X |
| Color | RAL7035 |
| Climate control | AC220V air conditioner and DC48V fan |
| Lighting system | Door sensor+48V LED light(door open, the LED will light on; door closed, the LED will go out.) |
| Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
| Working temperature | - 40 ℃ ~ + 55 ℃ |
| Working Humidity | ≤ 95% (+ 40 ℃) |
| Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Note：The air conditioner can also choose AC 110V 60HZ or DC 48V, and the fan can also choose AC 110V or 220V.
Includes: locking door with air conditioner,19inch rackmount rails,floormount plinth or hardwares.
| Name | Quantity | Unit | Technical parameter |
| Outdoor telecom cabinet | 1 | set | External Size:H*W*D=1900*800*800mm (75"x 32"x 32") |
| Air conditioner | 1 | set | Power supply:AC 220V 50/60Hz Cooling capacity:1500W |
| Fan | 1 | set | DC48V with temperature control |
| LED Lamp | 1 | set | DC48V,used for illumination in the cabinet |
| Grounding bus bar | 1 | set | 200A Copper bar(13 point M6 and 2 point M8) |
| Equipment supporting | 1 | set | |
| Package | 1 | set | Wooden box , wooden pallet+stretch film or wooden pallet +wooden box |
The following accessories are available for optional ordering.
| Item | Technical parameter | Picture |
| EMS | 19 inch environment monitoring unit 1U; DC48V, support RS232,RS485, SNMP,TCP/IP communication protocol. 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor.
Environmental monitoring system is a comprehensive network of devices and technologies designed to track and assess various aspects of the environment. This system plays a crucial role in gathering data to understand environmental conditions, detect changes, and manage natural resources. |
|
| Fire Extinguisher | Hot aerosol fire extinguishing device is a new, efficient and environment-friendly fire fighting product with Vanguard International Semiconductor Corporation level, which is the first in China. It is a high-tech green fire protection product that benefits humanity, born under the background of the International Montreal Agreement and China's increased awareness of environmental protection. It is an ideal substitute for halon fire extinguishing devices and is suitable for relatively enclosed spaces such as distribution cabinets.
Electric or hot start: Hot start temperature ≥170℃; Electric start temperature ≥700mA. |
|
| Wiring type PDU | AC input：63A/2P*2 with interlock； AC/SPD：30-60KA/2P*1； AC output：63A/1P*1,32A/1P*1，16A/1P*3，3 holes Maintenance socket*1 |
|
| Integrated PDU | Can be customized according to customer requirements. |
|
| Rectifier | AC220V/110V transfer to DC48V, Connect the battery as a backup power,also can be customized according to customer requirements. |
|
ODF | Optic Distribution Frame (ODF) is a critical component in a fiber optic network infrastructure. It serves as a centralized point for the termination, organization, and distribution of fiber optic cables. The primary purpose of a distribution frame is to facilitate efficient and organized connectivity, making it easier to manage, troubleshoot, and expand the network.
Function: 1)Termination Point; 2)Organization and Management; 3)Splicing Trays; 4)Labeling and Documentation; 5)Security and Protection; 6)Scalability;
Can be customized according to customer requirements. |
|
| Backup battery | Can be lithium battery or lead acid battery. |
Flexibility
The Customized Stainless Steel Outdoor Server Rack Cabinet is designed for versatility and built to withstand harsh environmental conditions. This robust solution is ideal for housing telecom and networking equipment, offering high performance, durability, and customizable features to meet diverse requirements.
The Customized Stainless Steel Outdoor Server Rack Cabinet can be constructed from various durable materials, including galvanized steel, sandwich panels, SS304 stainless steel, and aluminum. These materials provide superior strength, corrosion resistance, and longevity, ensuring the cabinet withstands outdoor conditions effectively.
The cabinet can be configured to support between 1 to 4 bays, with the option for multi-compartment setups. This customization allows for easy integration and organization of equipment within the Customized Stainless Steel Outdoor Server Rack Cabinet, optimizing space and functionality. Businesses that require high-density installations will benefit from the adaptable compartmental design of the Customized Stainless Steel Outdoor Server Rack Cabinet.
Equipped with both front and rear access doors, the Customized Stainless Steel Outdoor Server Rack Cabinet ensures technicians can easily reach the equipment storage areas and route cables efficiently. This design facilitates maintenance, upgrades, and troubleshooting with minimal downtime. Additionally, the Customized Stainless Steel Outdoor Server Rack Cabinet features a secure door locking mechanism to enhance equipment safety in outdoor environments.
In addition to the standard front and rear doors, side doors are also available for further customization. This feature provides greater flexibility in accessing the Customized Stainless Steel Outdoor Server Rack Cabinet, depending on the installation requirements.
The Customized Stainless Steel Outdoor Server Rack Cabinet offers a wide range of color options. The standard color is RAL7035, a popular light grey shade, but other colors are available upon request based on a specified color code. This customization ensures that the cabinet fits seamlessly into any environment, making the Customized Stainless Steel Outdoor Server Rack Cabinet an aesthetically adaptable solution for various industries.
The Customized Stainless Steel Outdoor Server Rack Cabinet includes various thermal management options to address even the most demanding heat dissipation needs. By optimizing thermal performance, the cabinet ensures efficient operation while reducing energy costs. Solutions such as air conditioning units, thermoelectric coolers (TEC), heat exchangers (HEX), and fans are available to suit specific cooling requirements.
For advanced cooling, the Customized Stainless Steel Outdoor Server Rack Cabinet supports options like compressed air conditioners, thermoelectric coolers, heat exchangers, and combined AC & HEX systems. These solutions help maintain an optimal internal temperature, safeguarding equipment from overheating and extending the lifespan of sensitive electronics. Whether deployed in hot or cold climates, the Customized Stainless Steel Outdoor Server Rack Cabinet provides reliable thermal control.
The cabinet offers maximum flexibility with a wide array of configuration options, including power distribution units (PDU), rectifiers, and integrated AC-DC power systems. These choices ensure that the Customized Stainless Steel Outdoor Server Rack Cabinet can accommodate various power needs, making it suitable for a broad spectrum of telecom and networking applications.
To enhance the appearance and reflect your brand identity, the Customized Stainless Steel Outdoor Server Rack Cabinet offers silk-screened logos and environmentally friendly painted artwork. This feature is perfect for businesses looking to personalize their cabinets while maintaining eco-conscious standards. The ability to brand the Customized Stainless Steel Outdoor Server Rack Cabinet also enhances company recognition and equipment traceability.
The Customized Stainless Steel Outdoor Server Rack Cabinet can be equipped with various environmental sensors, such as door sensors, smoke detectors, and temperature sensors. These sensors provide real-time monitoring, ensuring that the equipment is protected and operates within safe parameters. By integrating smart monitoring, the Customized Stainless Steel Outdoor Server Rack Cabinet enhances operational security and efficiency.
Supporting remote monitoring, the Customized Stainless Steel Outdoor Server Rack Cabinet is compatible with communication protocols like RS232, RS485, and SNMP. This feature allows for continuous monitoring of the equipment’s status, enabling proactive maintenance and minimizing potential downtime. With its intelligent connectivity, the Customized Stainless Steel Outdoor Server Rack Cabinet ensures real-time system oversight and improved reliability.
Options
Model | Height | Type | Rate | Color | H*W*D | Climate control | Application |
CY800650650 | 14U | Floor stand | IP55 | Grey | 800mm*650mm*650mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1050650650 | 18U | Floor stand | IP55 | Grey | 1050mm*650mm*650mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1400800800 | 26U | Floor stand | IP55 | Grey | 1400mm*800mm*800mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1600800800 | 30U | Floor stand | IP55 | Grey | 1600mm*800mm*800mm | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1700750750 | 32U | Floor stand | IP55 | Grey | 1700mm*700mm*700mm | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY2100900900 | 42U | Floor stand | IP55 | Grey | 2100mm*900mm*900mm | Air conditioner 1500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
Other size to be continued ,please send us inquiry for futher discussion
Name | Specification |
Air conditioner | AC220V 50HZ |
AC220V 60HZ | |
AC110V 60HZ / DC48V | |
Cooling capacity from 300W-5000W | |
Heat exchanger | DC48V |
40W/K-200W/K | |
Combined air conditioner & heat exchanger | AC220V 50HZ & DC48V |
1500W&80W/K | |
TEC | DC48V |
200W-1200W | |
Fan | AC220V 50HZ |
AC220V 60HZ | |
AC110V 60HZ / DC48V |
How to order
Selecting an appropriate control system for your Customized Stainless Steel Outdoor Server Rack Cabinet is crucial for ensuring the optimal performance and longevity of your equipment. The right climate control system will maintain a stable environment, protecting sensitive electronic components from extreme temperatures and humidity. Consider the following factors when making your decision:
Each piece of equipment in your Customized Stainless Steel Outdoor Server Rack Cabinet has a specific temperature range in which it operates most effectively. Choose a control system that ensures the internal temperature remains within this acceptable range, especially in environments with high external temperature fluctuations.
The heat load produced by your equipment is another key factor. A Customized Stainless Steel Outdoor Server Rack Cabinet can be equipped with cooling solutions like fans, heat exchangers, or air conditioners that address the heat load effectively. Make sure the control system is designed to handle the combined heat output from all installed components.
The local ambient temperature where your Customized Stainless Steel Outdoor Server Rack Cabinet will be installed plays a significant role in determining the climate control system. Cabinets installed in hot climates may need more advanced cooling technologies to counteract the impact of external temperature extremes.
When selecting a cooling system for your Customized Stainless Steel Outdoor Server Rack Cabinet, consider the noise level. In locations where noise pollution is a concern, low-noise cooling systems or soundproof enclosures might be necessary.
Anticipating future equipment upgrades is essential for selecting a control system. If you plan to expand the system or increase the heat load in the future, ensure that the climate control solution in your Customized Stainless Steel Outdoor Server Rack Cabinet is scalable and adaptable.
By carefully evaluating these factors, you can choose a control system that best meets the specific needs of your equipment and ensures optimal operational performance.
Proper installation and maintenance of your Customized Stainless Steel Outdoor Server Rack Cabinet are crucial for its longevity and efficient operation. Follow these best practices to ensure optimal performance:
Whenever possible, install your Customized Stainless Steel Outdoor Server Rack Cabinet in a cool, well-ventilated area with a clean environment. This helps reduce heat buildup and ensures your equipment remains safe from external elements.
After completing cable construction, seal any gaps around the cables with the provided sealant. This prevents moisture from entering the Customized Stainless Steel Outdoor Server Rack Cabinet and causing condensation, which could negatively affect the performance of your equipment.
Ensure that the grounding bar of the Customized Stainless Steel Outdoor Server Rack Cabinet is reliably grounded, with grounding resistance not exceeding 10 ohms. Proper grounding prevents electrical malfunctions and ensures safety for both the equipment and users.
Clean the ventilation and dust screens of the Customized Stainless Steel Outdoor Server Rack Cabinet at least once a month. Depending on environmental conditions, you may need to clean the screens more frequently to maintain optimal airflow and cooling efficiency.
Customized Stainless Steel Outdoor Server Rack Cabinets are designed to endure harsh weather conditions while protecting sensitive telecommunication equipment. These cabinets are critical for a variety of applications across different sectors:
Customized Stainless Steel Outdoor Server Rack Cabinets are essential in housing network components such as routers, switches, and power supplies, protecting these devices from environmental hazards.
These cabinets are used in wireless and broadband CATV networks to support the distribution of cable television signals and high-speed internet connectivity.
In solar-powered installations, Customized Stainless Steel Outdoor Server Rack Cabinets house solar power generation and distribution equipment, ensuring that sensitive components remain safe from the elements.
Customized Stainless Steel Outdoor Server Rack Cabinets are a cornerstone in supporting base stations for wireless communication networks, ensuring that connectivity and network coverage are maintained.
These cabinets are deployed in wireless cell sites and switches to support mobile communication networks, contributing to seamless service delivery.
In transmission terminals, Customized Stainless Steel Outdoor Server Rack Cabinets house equipment crucial for transmitting and receiving data, ensuring effective communication across networks.
Customized Stainless Steel Outdoor Server Rack Cabinets are also utilized in outdoor data centers, offering secure housing for networking equipment and servers in a controlled environment.
Customized Stainless Steel Outdoor Server Rack Cabinets are used in transportation infrastructures like highways, airports, and railways to support communication systems vital for operations.
These applications highlight the versatility and robustness of Customized Stainless Steel Outdoor Server Rack Cabinets. Their weatherproof design and durability make them indispensable for a wide range of industries, ensuring reliable and secure equipment storage in various environmental conditions.
By carefully considering these factors and understanding the diverse applications of Customized Stainless Steel Outdoor Server Rack Cabinets, you can ensure that you select the right solutions for your needs, providing reliable protection for your equipment in the harshest outdoor environments.
