CY80012001000
Cytech
Telecom, Battery, Integrated
IP32, NEMA3
Floor Mount
19inch
450mm/19inch
14U
Video
A custom metal sheet cabinet fabrication is the process of designing and manufacturing sheet metal enclosures tailored to a customer’s specific equipment, dimensions, and environment. These cabinets protect electronic components, industrial machinery, or energy storage systems from dust, moisture, corrosion, and impact.
Through custom metal sheet cabinet fabrication, cabinets can be customized with stainless steel, galvanized steel, or aluminum construction, IP-rated protection, cooling systems, and power distribution integration. They are widely used in telecom, energy storage, industrial control, and smart city applications, providing reliable, project-specific housing solutions.
▼Watch the video of custom metal sheet cabinet fabrication ▼
Product Description
IP32 / NEMA 3 rated indoor industrial sheet metal cabinet for dust and light splash resistance.

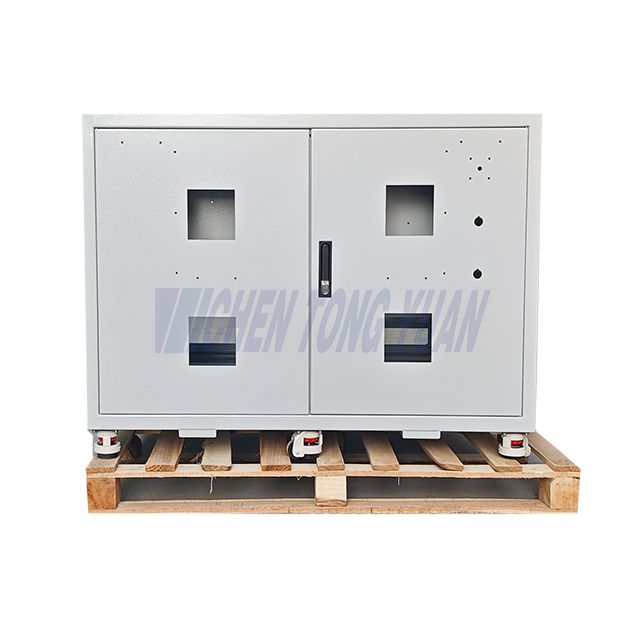

Welded structure ensures strength and durability in custom metal sheet cabinet fabrication.
Custom depth, width, and rack rails for various industrial rack enclosure needs.

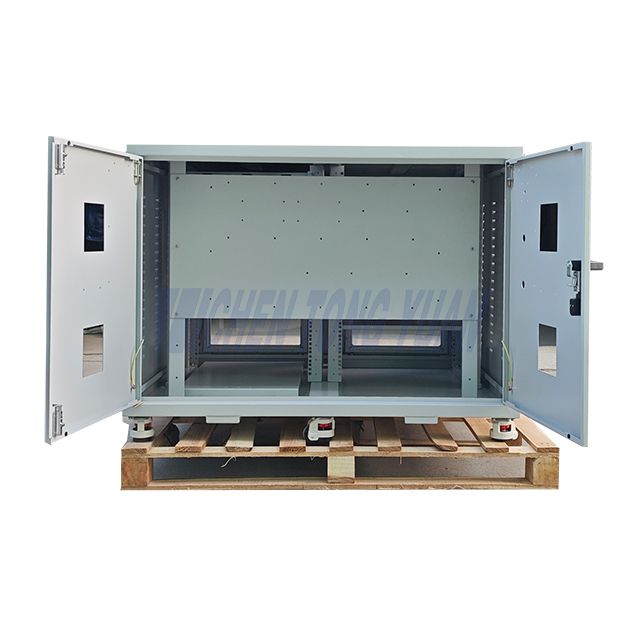

Pre-assembled design with removable panels for convenient indoor equipment cabinet servicing.

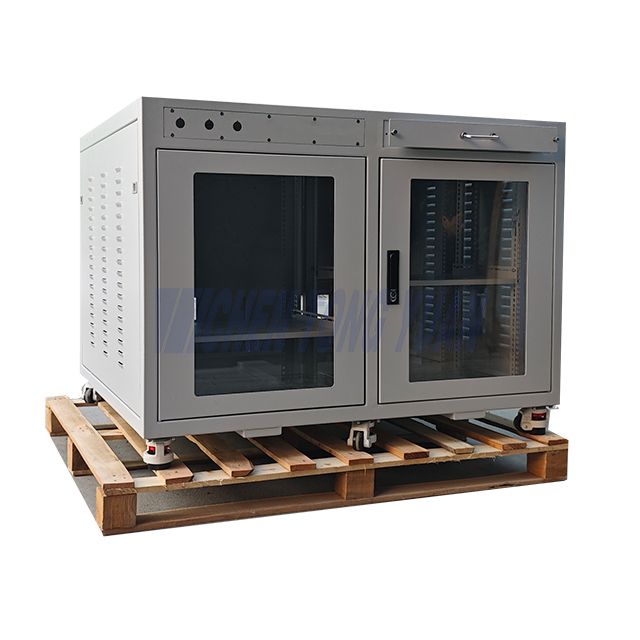

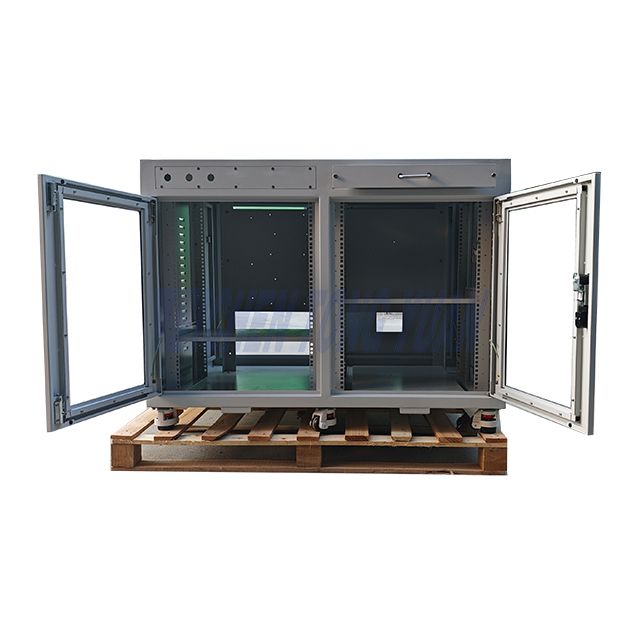

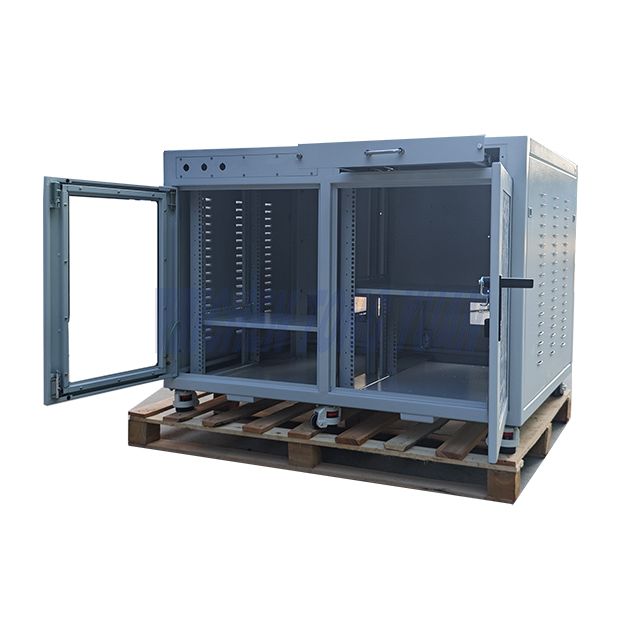

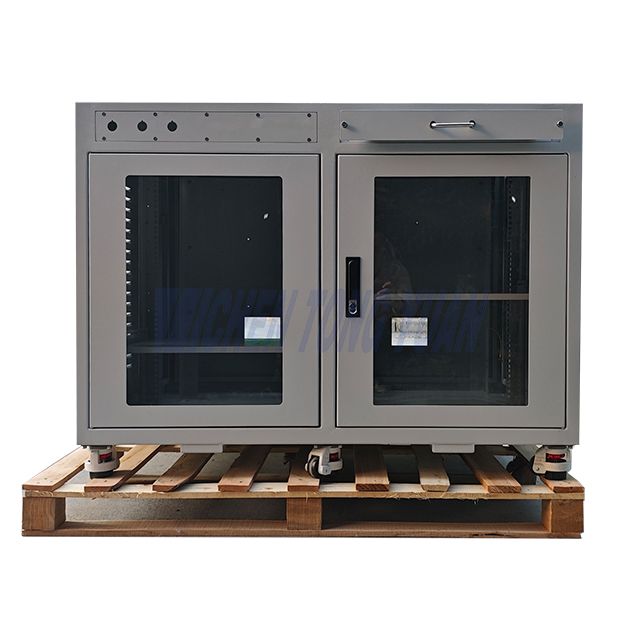

Front soft glass door allows clear monitoring inside the custom metal enclosure.
Built-in casters for metal cabinets enable easy movement indoors.
Integrated pull-out tray cabinet supports flexible equipment installation.
| Name | Technical Parameter |
| External Size | H*W*D=800*1200*1000mm (31"x 47"x 39") |
| Cabinet layout | 2 bay 19inch rack |
| Cabinet material | Single layer Galvanized steel plate |
| Security design | Embedded door, |
| Protection level | IP32/NEMA 3 |
| Color
| RAL7035 |
| Climate control | Fan cooling |
| Working temperature | - 40 ℃ ~ + 55 ℃ |
| Working Humidity | ≤ 95% (+ 40 ℃) |
| Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Includes: locking door with air conditioner,19inch rackmount rails,floormount plinth or hardwares.
Includes: locking door with air conditioner,19inch rackmount rails,floormount plinth or hardwares.
| No | Name | Quantity | Unit | Technical parameter |
| 1 | custom metal sheet cabinet | 1 | set | 1)External Size:H*W*D=800*1200*1000mm |
| 2 | Air conditioner | 1 | set | Power supply:AC 220V 50/60Hz Cooling capacity:1500W
|
| 3 | Fan | 1 | set | DC48V with temperature control |
| 4 | LED Lamp | 1 | set | DC48V,used for illumination in the cabinet |
| 5 | Grounding bus bar | 1 | set | 200A Copper bar(13 point M6 and 2 point M8) |
| 6 | Equipment supporting | 3 | set | |
| 7 | Package | 1 | set | Wooden box , wooden pallet+stretch film or wooden pallet +wooden box |
The following accessories are available for optional ordering.
| Item | Technical parameter | Picture |
| EMS | 19 inch environment monitoring unit 1U; DC48V, support RS232,RS485, SNMP,TCP/IP communication protocol. 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor. Environmental monitoring system is a comprehensive network of devices and technologies designed to track and assess various aspects of the environment. This system plays a crucial role in gathering data to understand environmental conditions, detect changes, and manage natural resources. | |
| Fire Extinguisher | Hot aerosol fire extinguishing device is a new, efficient and environment-friendly fire fighting product with Vanguard International Semiconductor Corporation level, which is the first in China. It is a high-tech green fire protection product that benefits humanity, born under the background of the International Montreal Agreement and China's increased awareness of environmental protection. It is an ideal substitute for halon fire extinguishing devices and is suitable for relatively enclosed spaces such as distribution cabinets. Electric or hot start: Hot start temperature ≥170℃; Electric start temperature ≥700mA. | |
| Wiring type PDU | AC input：63A/2P*2 with interlock； AC/SPD：30-60KA/2P*1； AC output：63A/1P*1,32A/1P*1，16A/1P*3，3 holes Maintenance socket*1 | |
| Integrated PDU | Can be customized according to customer requirements. | |
| Rectifier | AC220V/110V transfer to DC48V, Connect the battery as a backup power,also can be customized according to customer requirements. | |
| ODF | Optic Distribution Frame (ODF) is a critical component in a fiber optic network infrastructure. It serves as a centralized point for the termination, organization, and distribution of fiber optic cables. The primary purpose of a distribution frame is to facilitate efficient and organized connectivity, making it easier to manage, troubleshoot, and expand the network. Function: 1)Termination Point; 2)Organization and Management; 3)Splicing Trays; 4)Labeling and Documentation; 5)Security and Protection; 6)Scalability; Can be customized according to customer requirements. | |
| Backup battery | Can be lithium battery or lead acid battery. |
◆Acceptable temperature range for your equipment;
◆Heat load of equipment;
◆The highest local ambient temperature；
◆Noise Level；
◆Future Expansion；
By carefully considering these factors, you can select a cabinet climate control system that meets the specific needs of your equipment and environmental conditions.
Options
Model | Space | IP rate | Color | Dimension | Thermal Management |
| CY700650650 | 12U | IP55 | RAL7035 light grey | 700x650x650mm / 27.56 x 25.59 x 25.59inch | DC48V fan |
CY800650650 | IP55 | RAL7035 light grey | 800x650x650mm / 31.50 x 25.59 x 25.59inch | Air conditioner 500W DC48V fan | |
CY1050650650 | IP55 | RAL7035 light grey | 1050x650x650mm / 41.34 x 25.59 x 25.59inch | Air conditioner 500W DC48V fan | |
CY1400800800 | IP55 | RAL7035 light grey | 1400x800x800mm / 55.12 x 31.50 x 31.50inch | Air conditioner 500W DC48V fan | |
CY1600800800 | IP55 | RAL7035 light grey | 1600x800x800mm / 63.00 x 31.50 x 31.50inch | Air conditioner 1000W DC48V fan | |
CY1700750750 | IP55 | RAL7035 light grey | 1700x700x700mm / 66.93 x 27.56 x 27.56inch | Air conditioner 1000W DC48V fan | |
| CY2100900900 | IP55 | RAL7035 light grey | 2100x900x900mm / 82.68 x 35.43 x 35.43inch | Air conditioner 1500W DC48V fan |
To be continued
Name | Specification |
AC220V 50HZ | |
AC220V 60HZ | |
AC110V 60HZ / DC48V | |
Cooling capacity from 300W-5000W | |
DC48V | |
40W/K-200W/K | |
AC220V 50HZ & DC48V | |
1500W&80W/K | |
DC48V | |
200W-1200W | |
AC220V 50HZ | |
AC220V 60HZ | |
AC110V 60HZ / DC48V |
Customization
Option 1: Customer provides a real sample → Cytech creates 3D production drawings → Final product
Option 2: Customer provides 2D prototype drawings → Cytech converts to 3D drawings → Final product
Option 3: Customer provides simple 3D drawings → Cytech refines into 3D production drawings → Final product
Telecom & Communication – Outdoor base stations, fiber ODF cabinets, 5G/4G equipment enclosures
Energy Storage & Power Systems – Battery cabinets, solar inverter enclosures, power distribution units
Industrial Control & Automation – PLC cabinets, monitoring systems, factory control panels
Renewable Energy – Solar, wind, and hybrid energy control cabinets
Smart City & Infrastructure – Traffic control, street lighting, IoT device enclosures
Other Harsh Environment Applications – Coastal areas, high humidity, extreme temperature installations
Ensure all dimensions, cutouts, and internal layouts are correct to avoid production delays.
Choose between galvanized steel, stainless steel, or aluminum according to environmental conditions and corrosion requirements.
Specify air conditioning, heat exchangers, or fan systems based on equipment heat load.
Decide on top/bottom/side entries, gland types, and internal routing to ensure clean installation.
Specify IP rating (IP55/IP65), anti-corrosion treatment, and any safety or regulatory standards needed.
Advantages&Why?
Ideal for Indoor Equipment Protection
A reliable indoor industrial sheet metal cabinet for organized and secure equipment housing.
Built Exactly to Your Requirements
Professional custom metal sheet cabinet fabrication ensures a precise fit for your project.
Better Space Utilization
Flexible design makes this custom rack cabinet solution suitable for various equipment room layouts.
Easier Access & Maintenance
User-friendly indoor equipment cabinet design simplifies servicing and reduces downtime.
Long-Term Structural Reliability
A durable industrial sheet metal enclosure built for stable, long-term indoor use.
◆With decades years of experience in the telecom infrastructure industry, CYTECH has become a trusted supplier for outdoor enclosures used in communication, power, and energy sectors.
◆We supply global telecom operators, system integrators, and network solution providers with high-quality, customized cabinets designed for performance and reliability.
The turnaround time varies depending on the projects complexity, but Cytech typically delivers custom enclosures within 4-6 weeks from the initial consultation.
Yes, Cytech is equipped to handle both small and large volume orders, ensuring consistent quality and timely delivery.
Cytech offers a wide range of customization options, including material choice, size, design features, finishes, and branding elements.
Cytech employs rigorous quality control measures, including thorough inspections, environmental testing, and performance testing to ensure top-notch quality.
