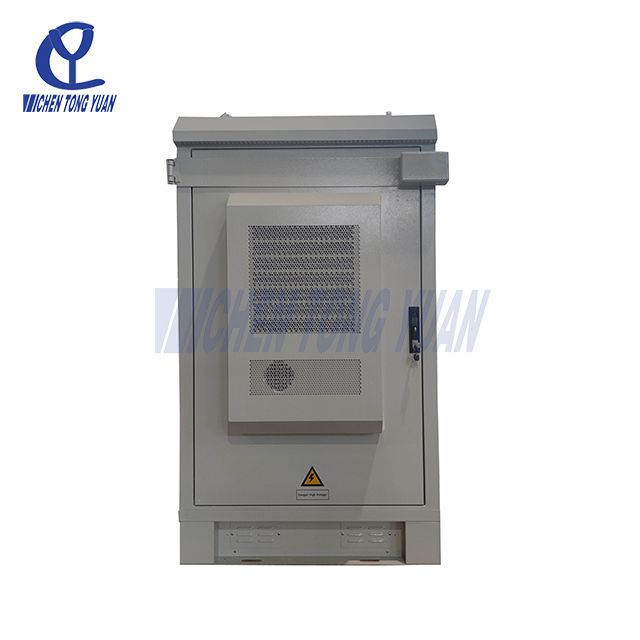

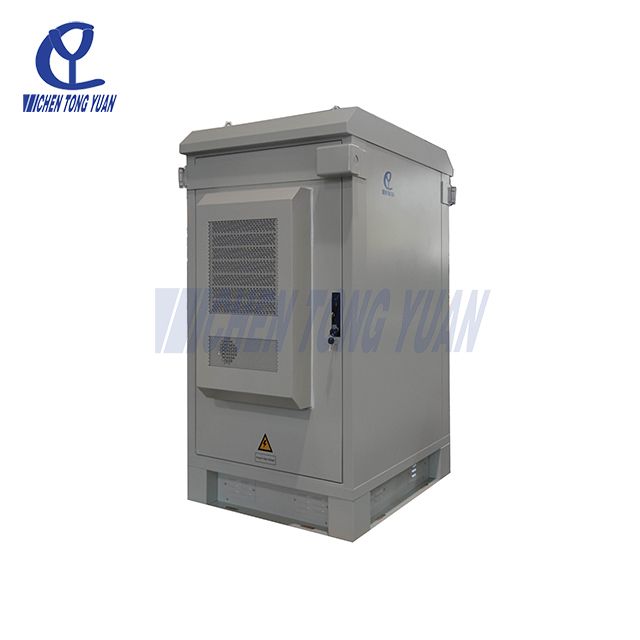

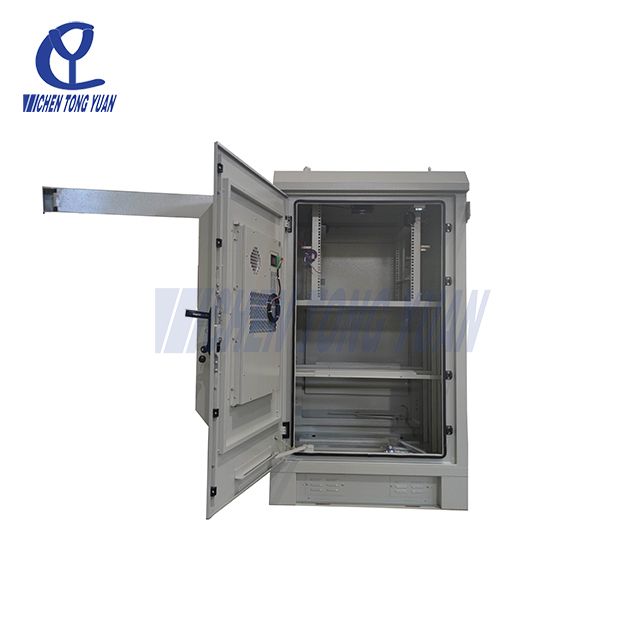

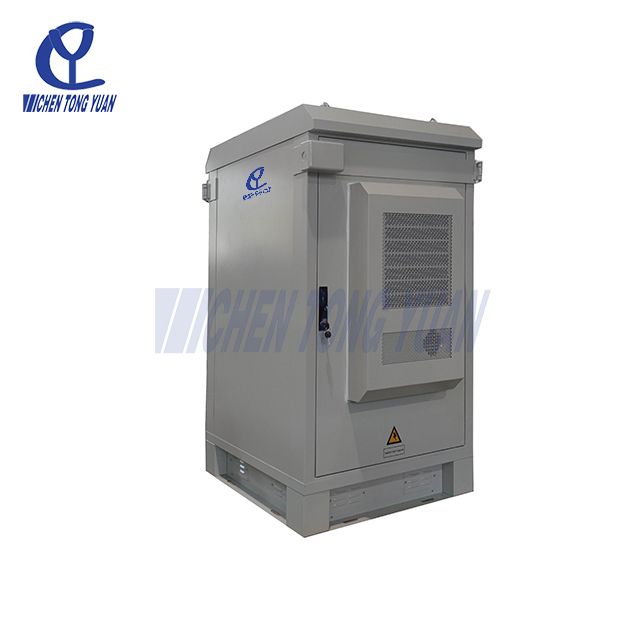

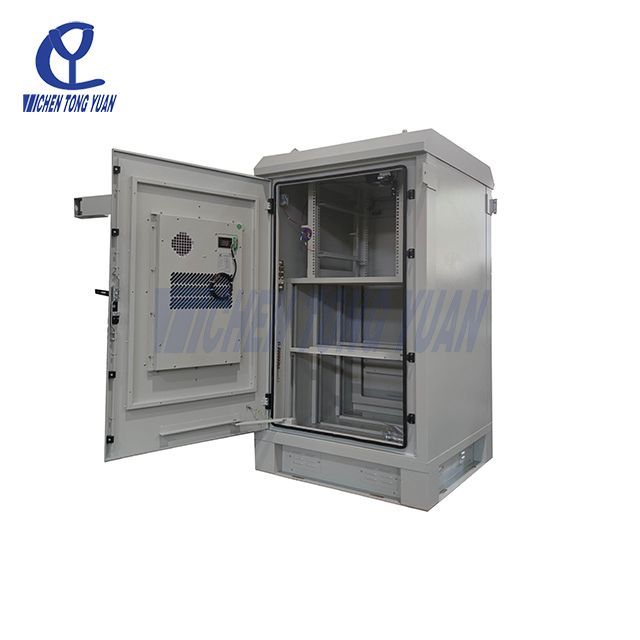

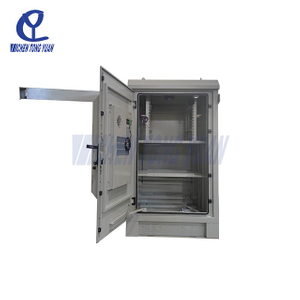

CY1550900900
CY TECH
Integrated
IP 55, NEMA 4
Floor Mount
1500W/5100BTU
19inch
800mm/32inch
Product Description

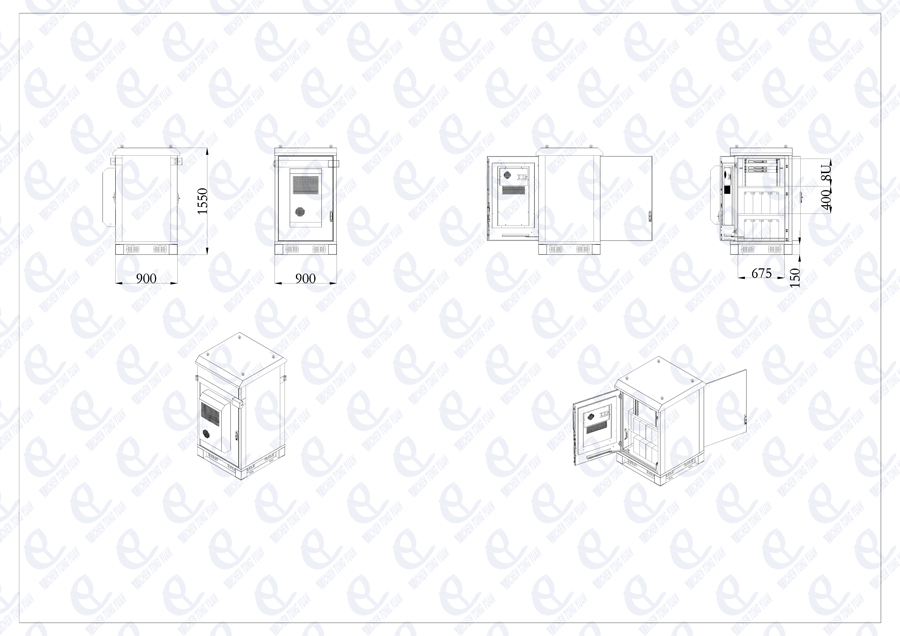

| Name | Technical Parameter |
| External Size | H*W*D=1500*900*900mm ( 61 x 35 x 35 inch) |
| Cabinet layout | One compartment, for installing 19'equipment+Acid battery |
| Cabinet material | Double layer Galvanized steel with EPS thermal isolation |
| Security design | Embedded door, embedded hinges, 4-point security lock |
| Protection level | IP55,NEMA 4 or 4X |
| Color | RAL7035 |
| Climate control | AC220V air conditioner and DC48V fan |
| Lighting system | Door sensor+48V LED light(door open, the LED will light on; door closed, the LED will go out.) |
| Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
| Working temperature | - 40 ℃ ~ + 55 ℃ |
| Working Humidity | ≤ 95% (+ 40 ℃) |
| Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Note：The air conditioner can also choose AC 110V 60HZ or DC 48V, and the fan can also choose AC 110V or 220V.
Includes: locking door with air conditioner,19inch rackmount rails,floormount plinth or hardwares.
| Name | Quantity | Unit | Technical parameter |
| Outdoor server rack enclosure | 1 | set | H*W*D=1500*900*900mm ( 61 x 35 x 35 inch) |
| Air conditioner | 1 | set | Power supply:AC 220V 50/60Hz Cooling capacity:1500W |
| Fan | 1 | set | DC48V with temperature control |
| LED Lamp | 1 | set | DC48V,used for illumination in the enclosure |
| Grounding bus bar | 1 | set | 200A Copper bar(13 point M6 and 2 point M8) |
| Equipment supporting | 1 | set | |
| Package | 1 | set | Wooden box , wooden pallet+stretch film or wooden pallet +wooden box |
The following accessories are available for optional ordering.
| Item | Technical parameter | Picture |
| EMS | 19 inch environment monitoring unit 1U; DC48V, support RS232,RS485, SNMP,TCP/IP communication protocol. 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor.
Environmental monitoring system is a comprehensive network of devices and technologies designed to track and assess various aspects of the environment. This system plays a crucial role in gathering data to understand environmental conditions, detect changes, and manage natural resources. |
|
| Fire Extinguisher | Hot aerosol fire extinguishing device is a new, efficient and environment-friendly fire fighting product with Vanguard International Semiconductor Corporation level, which is the first in China. It is a high-tech green fire protection product that benefits humanity, born under the background of the International Montreal Agreement and China's increased awareness of environmental protection. It is an ideal substitute for halon fire extinguishing devices and is suitable for relatively enclosed spaces such as distribution cabinets.
Electric or hot start: Hot start temperature ≥170℃; Electric start temperature ≥700mA. |
|
| Wiring type PDU | AC input：63A/2P*2 with interlock； AC/SPD：30-60KA/2P*1； AC output：63A/1P*1,32A/1P*1，16A/1P*3，3 holes Maintenance socket*1 |
|
| Integrated PDU | Can be customized according to customer requirements. |
|
| Rectifier | AC220V/110V transfer to DC48V, Connect the battery as a backup power,also can be customized according to customer requirements. |
|
ODF | Optic Distribution Frame (ODF) is a critical component in a fiber optic network infrastructure. It serves as a centralized point for the termination, organization, and distribution of fiber optic cables. The primary purpose of a distribution frame is to facilitate efficient and organized connectivity, making it easier to manage, troubleshoot, and expand the network.
Function: 1)Termination Point; 2)Organization and Management; 3)Splicing Trays; 4)Labeling and Documentation; 5)Security and Protection; 6)Scalability;
Can be customized according to customer requirements. |
|
| Backup battery | Can be lithium battery or lead acid battery. |
Flexibility
(1) Material can be Constructed of durable, galvanized steel,sandwich panel ,stainless steel SS304,aluminium.
(2) Compartments can be configured to support between 1-4 bays,multi-compartments supported.
(3) Front and rear access doors allow technicians access to equipment storage areas and cable routing.
(4) Side doors design also ok.
(5) Customized color ,standard color RAL7035,other color acceptable based on appointed color code.
(6) Wide range of thermal management options for even the most demanding heat dissipation needs allows for optimization of thermal performance and reduced energy costs.
(7) The cooling solution adopted compressed air conditioner ,TEC (Thermoelectric Cooler),Hex (heat exchanger),Fans,Combined AC&HEX.
(8) Offers a wide range of configuration options providing maximum flexibility including PDU, rectifier ,integrated AC-DC power systems.
(9) Silk screening Logo and environmental friendly painting artwork for outdoor server rack enclosure.
(10) Offers all kinds environment sensors,including doors,smoke,temperature sensors.
(11) Remote monitoring system supported, communication protocol is RS232/RS485/SNMP.
Options
Model | Height | Type | Rate | Color | H*W*D | Climate control | Application |
CY800650650 | 14U | Floor stand | IP55 | Grey | 800mm*650mm*650mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1050650650 | 18U | Floor stand | IP55 | Grey | 1050mm*650mm*650mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1400800800 | 26U | Floor stand | IP55 | Grey | 1400mm*800mm*800mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1600800800 | 30U | Floor stand | IP55 | Grey | 1600mm*800mm*800mm | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1700750750 | 32U | Floor stand | IP55 | Grey | 1700mm*700mm*700mm | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY2100900900 | 42U | Floor stand | IP55 | Grey | 2100mm*900mm*900mm | Air conditioner 1500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
Other size to be continued ,please send us inquiry for futher discussion
Name | Specification |
Air conditioner | AC220V 50HZ |
AC220V 60HZ | |
AC110V 60HZ / DC48V | |
Cooling capacity from 300W-5000W | |
Heat exchanger | DC48V |
40W/K-200W/K | |
Combined air conditioner & heat exchanger | AC220V 50HZ & DC48V |
1500W&80W/K | |
TEC | DC48V |
200W-1200W | |
Fan | AC220V 50HZ |
AC220V 60HZ | |
AC110V 60HZ / DC48V |
How to order
◆ acceptable temperature range for your equipment;
◆ Heat load of equipment;
◆ The highest local ambient temperature；
◆ Noise Level；
◆ Future Expansion；
By carefully considering these factors, you can select a cabinet climate control system that meets the specific needs of your equipment and environmental conditions.
◆ If conditions permit, try to install the outdoor server rack enclosure in a cool and ventilated place with clean surrounding environment .
◆ After the cable construction is completed, please make sure to seal the gap around the cable with the sealant provided randomly in the cabinet, so as to avoid the condensation caused by moisture entering and affecting the use performance of the equipment.
◆ The grounding bar of the enclosure must be reliably grounded, and the grounding resistance to the ground shall be less than 10 Ω .
◆ Please clean the ventilation and dust screen in the cabinet regularly every month. According to the actual situation, the period of cleaning dust screen can be shortened or extended properly.
Outdoor server rack enclosures are essential for protecting sensitive IT and networking equipment in various industries and environments. These robust enclosures are designed to withstand harsh weather conditions and physical threats while ensuring the reliable operation of critical infrastructure. Here is a detailed look at the applications of outdoor server rack enclosures:
Base Transceiver Stations (BTS): Outdoor server enclosures are used to house BTS equipment for mobile networks. These stations are crucial for cellular communication, and the enclosures protect against extreme temperatures, precipitation, dust, and vandalism, ensuring uninterrupted service.
Remote Radio Units (RRUs): RRUs are often mounted on towers and rooftops. Outdoor enclosures provide the necessary protection to maintain the performance and longevity of these units, which are vital for enhancing network coverage and capacity.
Edge Data Centers: With the rise of edge computing, data centers are moving closer to the end-users to reduce latency. Outdoor server enclosures enable the deployment of edge data centers in remote or urban locations, ensuring that servers and networking equipment are protected from environmental hazards.
Micro Data Centers: These compact data centers are designed for specific applications like IoT, smart cities, and industrial automation. Outdoor enclosures ensure these micro data centers remain operational in various environmental conditions.
Emergency Response Systems: Outdoor enclosures protect communication and data equipment used by emergency services, ensuring reliable operation during disasters and adverse weather conditions. This includes housing for radio transmitters, network switches, and backup power supplies.
Surveillance Systems: For public safety, outdoor server enclosures protect surveillance cameras and their associated networking equipment. This ensures continuous monitoring and security in public spaces, critical infrastructure, and remote locations.
Traffic Management Systems: Outdoor enclosures are used to protect equipment that controls traffic lights, electronic signage, and traffic monitoring cameras. These systems require robust protection to function reliably in all weather conditions.
Electronic Toll Collection Systems: Outdoor enclosures safeguard the servers, networking gear, and sensors involved in electronic toll collection, ensuring accurate and efficient operation.
SCADA Systems: Supervisory Control and Data Acquisition (SCADA) systems monitor and control utilities like electricity, water, and gas. Outdoor server enclosures protect SCADA components from environmental damage, ensuring uninterrupted service.
Renewable Energy Sites: Solar farms, wind turbines, and other renewable energy installations use outdoor enclosures to house control systems and communication equipment, protecting them from harsh environmental conditions.
Field Communications: Outdoor server enclosures are used in military applications to protect communication and data equipment in remote and hostile environments. These enclosures ensure equipment remains operational in extreme temperatures, humidity, and physical impacts.
Surveillance and Reconnaissance: Military surveillance and reconnaissance equipment housed in outdoor enclosures remain protected from environmental and physical threats, ensuring the integrity and functionality of critical systems.
Weather Stations: Outdoor server enclosures protect the sensors and data loggers used in weather stations from environmental damage, ensuring accurate data collection and transmission.
Pollution Monitoring: Enclosures protect the equipment used to monitor air and water quality, ensuring reliable operation in various environmental conditions.
Connected Infrastructure: Smart cities rely on connected infrastructure like intelligent traffic systems, public Wi-Fi, and smart lighting. Outdoor enclosures protect the servers and networking equipment that power these systems, ensuring reliable operation.
Public Safety: In addition to surveillance, outdoor enclosures protect sensors and communication equipment used for emergency response and public safety applications in smart cities.
Outdoor server rack enclosures are indispensable in protecting vital IT and communication equipment across numerous industries. Their ability to withstand harsh environmental conditions and physical threats makes them crucial for maintaining the reliability and security of modern infrastructure, from telecommunications and data centers to public safety, transportation, utilities, military, environmental monitoring, and smart cities.
