2 bay
cytech
Telecom, Battery, Integrated
IP 55, IP 65, NEMA 4
Floor Mount
1000W/3400BTU
19inch, 23inch
800mm/32inch
42U
Video

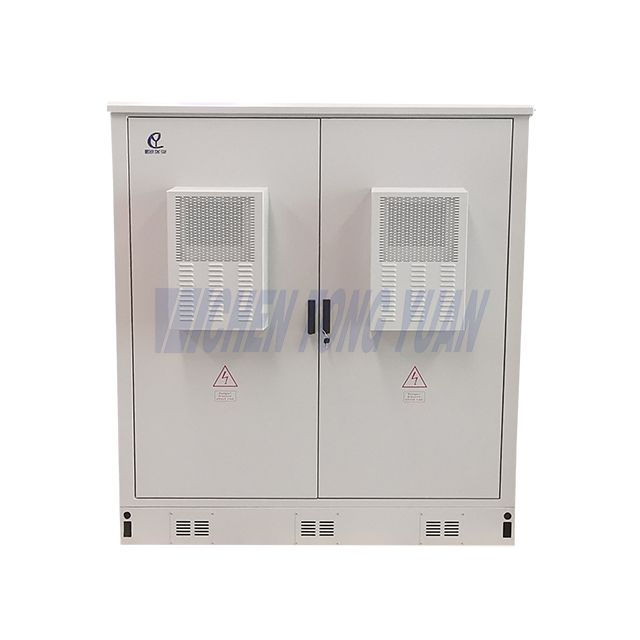

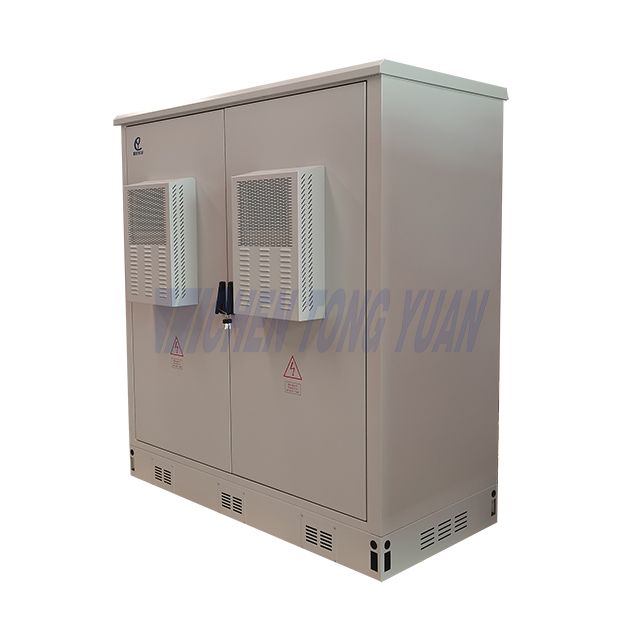

Air conditioned field cabinets are outdoor-ready equipment enclosures designed to protect sensitive telecom, energy, and industrial control systems in harsh environments. Integrated with a high-efficiency air conditioning unit, these cabinets maintain a stable internal temperature to ensure reliable operation of electronic equipment in extreme heat, dust, and humidity.
Built with corrosion-resistant materials and a weatherproof structure, air conditioned field cabinets provide superior protection against rain, dust, and vandalism. They are widely used for telecom base stations, battery energy storage systems, traffic control, and industrial automation applications where precise thermal management and long-term reliability are critical.
With flexible internal layouts, secure locking systems, and easy maintenance access, these cabinets offer a complete outdoor housing and cooling solution for mission-critical equipment.
Product Description
Integrated High-Efficiency Air Conditioner
Maintains stable internal temperature for sensitive electronics in extreme outdoor environments.
Weatherproof & Dustproof Enclosure
IP55-rated structure protects against rain, dust, sand, and moisture intrusion.
Corrosion-Resistant Construction
Galvanized steel or aluminum body with outdoor powder coating for long-term durability.
Flexible Internal Layout
Adjustable mounting rails, shelves, and cable management for easy equipment installation.
Secure Locking System
Anti-theft locks ensure equipment safety in unattended field locations.
Bottom Air Inlet with Filter
Multi-layer dust filter improves cooling efficiency and reduces maintenance.

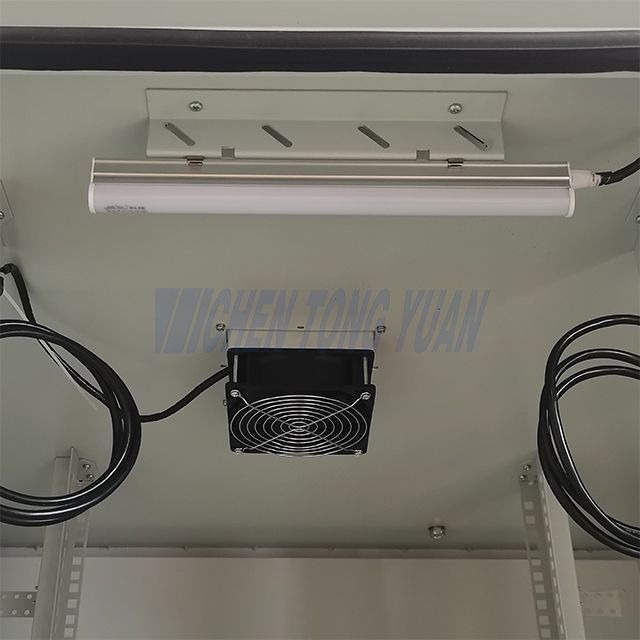

Internal Fan & LED Lighting
Enhances airflow and provides clear visibility during maintenance.

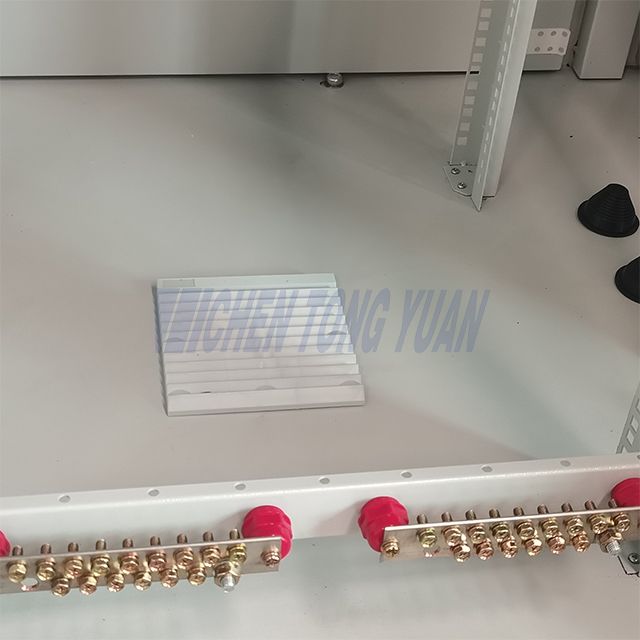

Grounding Bar Included
Ensures electrical safety and compliance with international standards.
Item | Name | Technical parameter |
1 | Rack Size | 42U |

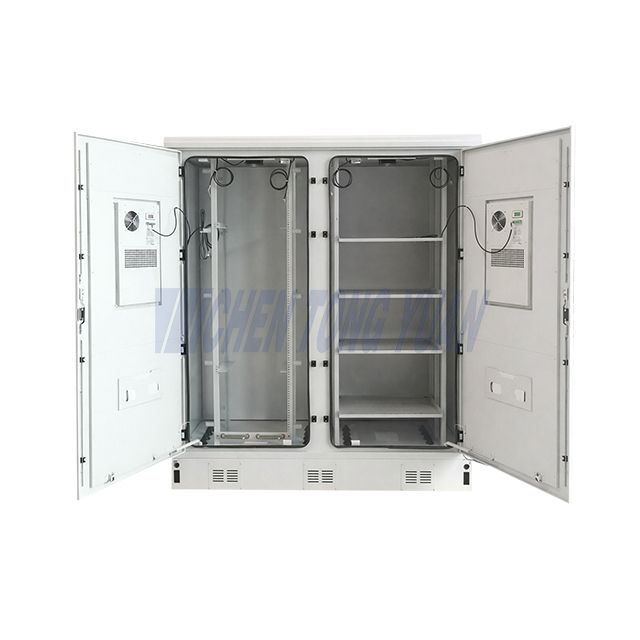

2 | Cabinet layout | 2 compartments, for installing 19inch/23inch equipment |
3 | Cabinet material | Galvanized steel/Aluminium /SS304 |
4 | Security design Mounting Type | Embedded door, embedded hinges, 4-point security lock Ground Mounting |
5 | Protection level | IP55/IP65/NEMA 4 or 4X |
6 | Color | RAL7035 light grey/custom |
7 | Cooling Options POWER Supply | Air conditioner or Heat Exchanger/ TEC AC220V OR DC48V |
8 | Lighting system | Door sensor+48V LED light |
9 | Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
10 | Working temperature | - 40 ℃ ~ + 55 ℃ |
11 | Working Humidity | ≤ 95% (+ 40 ℃) |
12 | Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Includes: locking door with air conditioner,19inch rackmount rails,floormount plinth or hardwares.
No | Name | Quantity | Unit | Technical parameter |
1 | Air Conditioned Field Cabinets | 1 | set | 1)External Size:H*W*D=2100*1900*900mm |
2 | Air conditioner | 1 | set | Power supply:AC 220V 50/60Hz Cooling capacity:2pcs 600W |
3 | Fan | 1 | set | DC48V with temperature control |
4 | LED Lamp | 1 | set | DC48V,used for illumination in the cabinet |
5 | Grounding bus bar | 1 | set | 200A Copper bar(13 point M6 and 2 point M8) |
6 | Equipment supporting | 3 | set | |
7 | Package | 1 | set | Wooden box , wooden pallet+stretch film or wooden pallet +wooden box |
The following accessories are available for optional ordering.
Item | Technical parameter | Picture |
EMS | 19 inch environment monitoring unit 1U; DC48V, support RS232,RS485, SNMP,TCP/IP communication protocol. 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor. Environmental monitoring system is a comprehensive network of devices and technologies designed to track and assess various aspects of the environment. This system plays a crucial role in gathering data to understand environmental conditions, detect changes, and manage natural resources. | |
Fire Extinguisher | Hot aerosol fire extinguishing device is a new, efficient and environment-friendly fire fighting product with Vanguard International Semiconductor Corporation level, which is the first in China. It is a high-tech green fire protection product that benefits humanity, born under the background of the International Montreal Agreement and China's increased awareness of environmental protection. It is an ideal substitute for halon fire extinguishing devices and is suitable for relatively enclosed spaces such as distribution cabinets.
Electric or hot start: Hot start temperature ≥170℃; Electric start temperature ≥700mA. | |
Wiring type PDU | AC input：63A/2P*2 with interlock； AC/SPD：30-60KA/2P*1； AC output：63A/1P*1,32A/1P*1，16A/1P*3，3 holes Maintenance socket*1 | |
Integrated PDU | Can be customized according to customer requirements. | |
Rectifier | AC220V/110V transfer to DC48V, Connect the battery as a backup power,also can be customized according to customer requirements. | |
ODF | Optic Distribution Frame (ODF) is a critical component in a fiber optic network infrastructure. It serves as a centralized point for the termination, organization, and distribution of fiber optic cables. The primary purpose of a distribution frame is to facilitate efficient and organized connectivity, making it easier to manage, troubleshoot, and expand the network.
Function: 1)Termination Point; 2)Organization and Management; 3)Splicing Trays; 4)Labeling and Documentation; 5)Security and Protection; 6)Scalability;
Can be customized according to customer requirements. | |
Backup battery | Can be lithium battery or lead acid battery. |
(1)If conditions permit, try to install the outdoor cabinet in a cool and ventilated place with clean surrounding environment .
(2)After the cable construction is completed, please make sure to seal the gap around the cable with the sealant provided randomly in the cabinet, so as to avoid the condensation caused by moisture entering and affecting the use performance of the equipment.
(3)The grounding bar of the cabinet must be reliably grounded, and the grounding resistance to the ground shall be less than 10 Ω .
(4)Please clean the ventilation and dust screen in the cabinet regularly every month. According to the actual situation, the period of cleaning dust screen can be shortened or extended properly.
Options
Model | Space | IP rate | Color | Dimension | Thermal Management |
| CY700650650 | 12U | IP55 | RAL7035 light grey | 700x650x650mm / 27.56 x 25.59 x 25.59inch | DC48V fan |
CY800650650 | IP55 | RAL7035 light grey | 800x650x650mm / 31.50 x 25.59 x 25.59inch | Air conditioner 500W DC48V fan | |
CY1050650650 | IP55 | RAL7035 light grey | 1050x650x650mm / 41.34 x 25.59 x 25.59inch | Air conditioner 500W DC48V fan | |
CY1400800800 | IP55 | RAL7035 light grey | 1400x800x800mm / 55.12 x 31.50 x 31.50inch | Air conditioner 500W DC48V fan | |
CY1600800800 | IP55 | RAL7035 light grey | 1600x800x800mm / 63.00 x 31.50 x 31.50inch | Air conditioner 1000W DC48V fan | |
CY1700750750 | IP55 | RAL7035 light grey | 1700x700x700mm / 66.93 x 27.56 x 27.56inch | Air conditioner 1000W DC48V fan | |
| CY2100900900 | IP55 | RAL7035 light grey | 2100x900x900mm / 82.68 x 35.43 x 35.43inch | Air conditioner 1500W DC48V fan |
To be continued
Name | Specification |
AC220V 50HZ | |
AC220V 60HZ | |
AC110V 60HZ / DC48V | |
Cooling capacity from 300W-5000W | |
DC48V | |
40W/K-200W/K | |
AC220V 50HZ & DC48V | |
1500W&80W/K | |
DC48V | |
200W-1200W | |
AC220V 50HZ | |
AC220V 60HZ | |
AC110V 60HZ / DC48V |
Application
Cytech field nema enclosures are designed for a wide range of industrial and communication applications, including:
5G and 4G LTE base stations
Fiber optic network hubs (FTTH / FTTx)
Wireless and broadband systems
IoT and smart city infrastructure
Power and energy monitoring systems
Outdoor network access points
Each application benefits from Cytech's precision engineering, ensuring reliability and performance even under extreme weather conditions.
How&Why?
Protects Critical Equipment
Prevents overheating, dust contamination, and moisture damage.
Improves System Reliability
Stable temperature extends equipment lifespan and reduces failure rates.
Reduces Maintenance Costs
Clean airflow and filtered intake minimize internal dust buildup.
Enables Outdoor Deployment
Allows sensitive equipment to operate safely in harsh environments.
Enhances Operational Safety
Integrated grounding and secure enclosure design protect both equipment and personnel.
Supports 24/7 Operation
Designed for continuous cooling in mission-critical applications.
CYTECH offers OEM & ODM services to match your project's exact needs:
Custom sizes and rack layouts
Dual cooling systems for critical operations
Integrated battery and power management units
When selecting an air conditioned field cabinet, consider the following key factors:
Choose a cabinet that fits your equipment dimensions and weight requirements, with room for future expansion.
Select an air conditioner with sufficient cooling power (W or BTU) based on your internal heat load and ambient temperature.
Look for IP55 or higher rating to ensure protection against dust, rain, and harsh outdoor conditions.
For coastal or high-corrosion environments, choose aluminum or stainless steel with anti-corrosion coating.
Confirm AC or DC power compatibility based on your site power availability.
Consider floor-mounted, pole-mounted, or wall-mounted designs based on site layout.
Choose a cabinet with front and rear access, removable filters, and service-friendly layout.
