CY1600800800
CY TECH
Telecom
IP 55, NEMA 4
Floor Mount
1000W/3400BTU
19inch, 23inch
750mm/30inch
30U
Product Description
| Name | Technical Parameter |

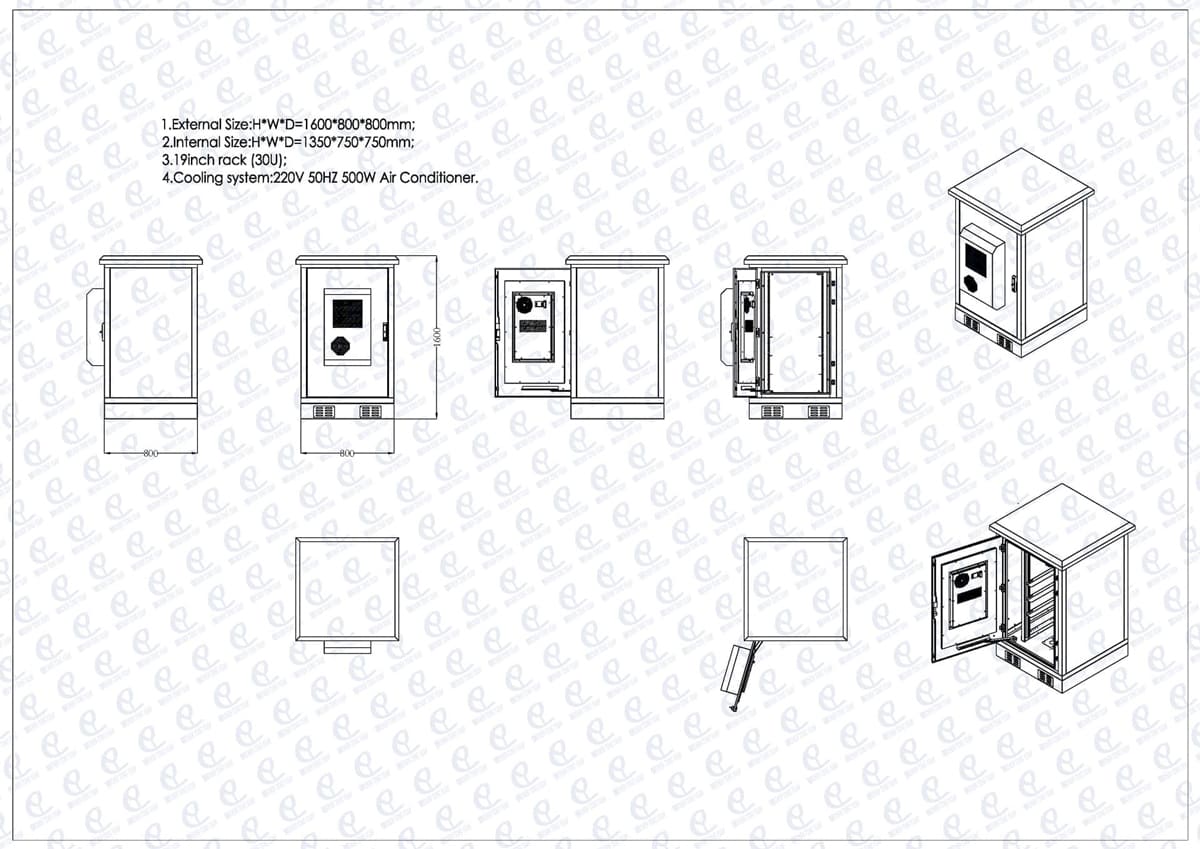

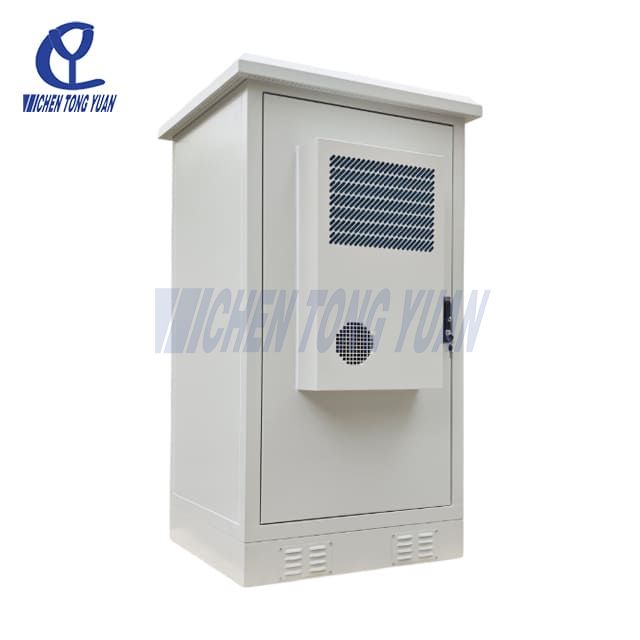

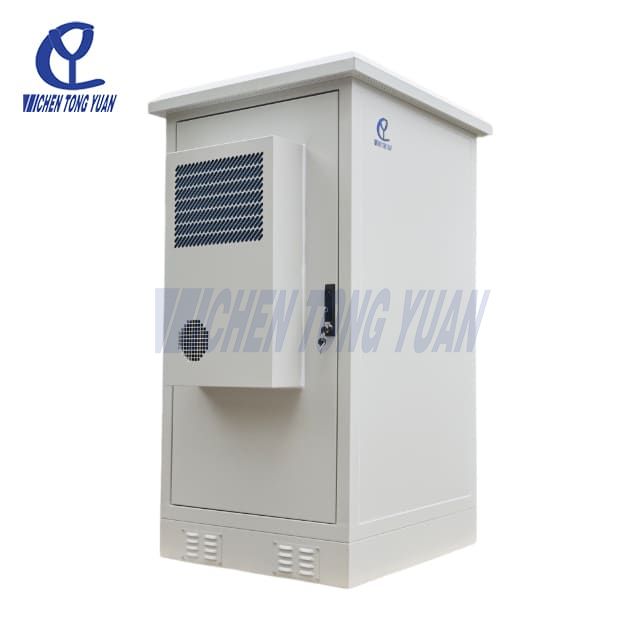

| External Size | H*W*D=1600*800*800 mm (63 x 32 x 32 inch) |

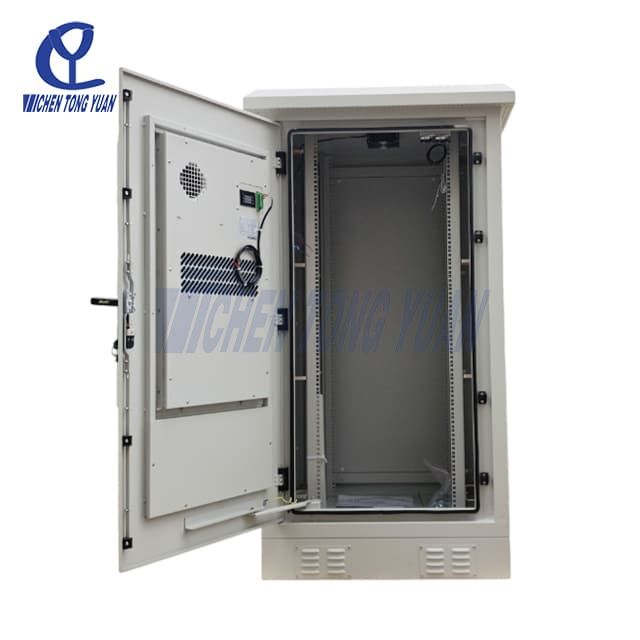

| Cabinet layout | One compartment, for installing 19inch/23inch equipment |
| Cabinet material | Double layer Galvanized steel with EPS thermal isolation |
| Security design | Embedded door, embedded hinges, 4-point security lock |
| Protection level | IP55 / IP65 / NEMA 4 / Nema 4X |
| Color | RAL7035 |

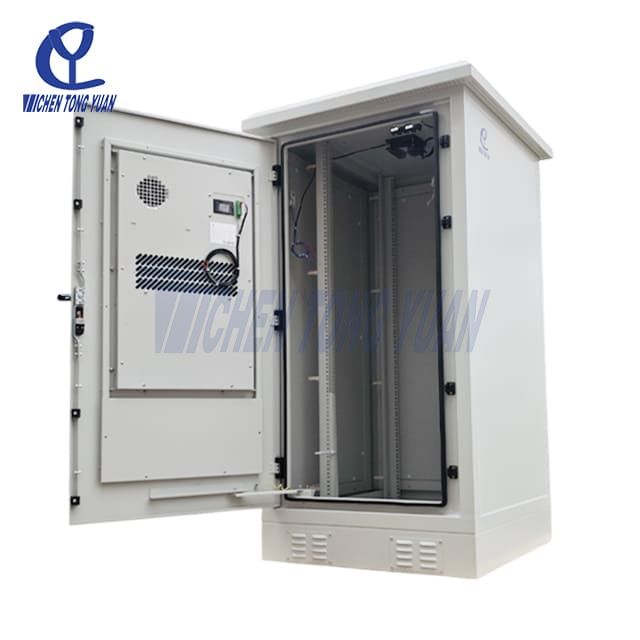

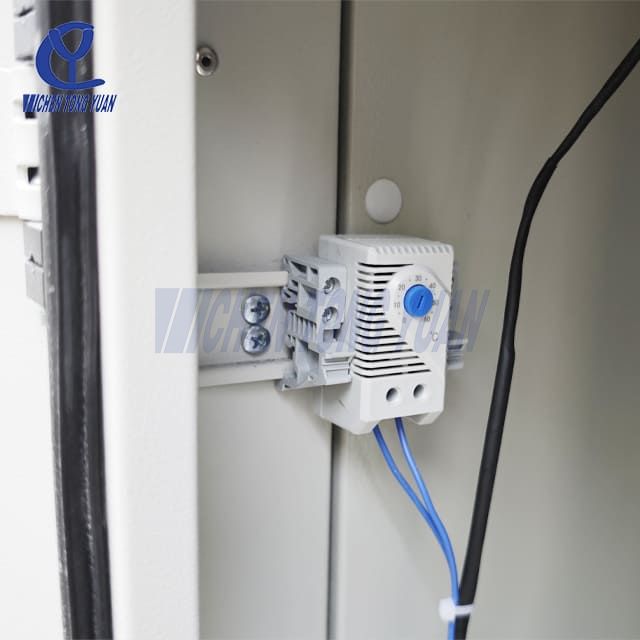

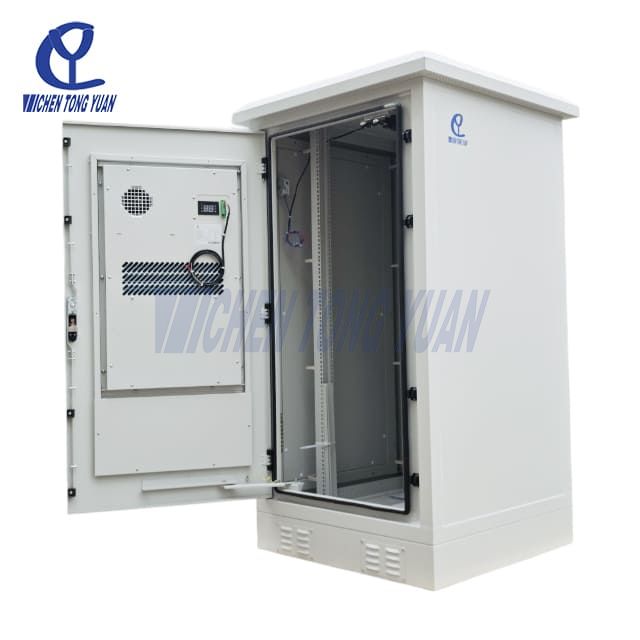

| Climate control | AC220V air conditioner and DC48V fan |
| Lighting system | Door sensor+48V LED light(door open, the LED will light on; door closed, the LED will go out.) |
| Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
| Working temperature | - 40 ℃ ~ + 55 ℃ |
| Working Humidity | ≤ 95% (+ 40 ℃) |
| Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Note：The air conditioner can also choose AC 110V 60HZ or DC 48V, and the fan can also choose AC 110V or 220V.
Includes: locking door with air conditioner,19inch rackmount rails,floormount plinth or hardwares.
| Name | Quantity | Unit | Technical parameter |
| Outdoor telecom cabinet | 1 | set | H*W*D=1600*800*800 mm (63 x 32 x 32 inch) |
| Air conditioner | 1 | set | Power supply: AC 220V 50/60Hz Cooling capacity:1500W |
| Fan | 1 | set | DC48V with temperature control |
| LED Lamp | 1 | set | DC48V,used for illumination in the cabinet |
| Grounding bus bar | 1 | set | 200A Copper bar(13 point M6 & 2 point M8) |
| Equipment supporting | 1 | set | |
| Package | 1 | set | Wooden box , wooden pallet+stretch film or wooden pallet +wooden box |
The following accessories are available for optional ordering.
| Item | Technical parameter | Picture |
| EMS | 19 inch environment monitoring unit 1U; DC48V, support RS232,RS485, SNMP,TCP/IP communication protocol. 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor.
Environmental monitoring system is a comprehensive network of devices and technologies designed to track and assess various aspects of the environment. This system plays a crucial role in gathering data to understand environmental conditions, detect changes, and manage natural resources. |
|
| Fire Extinguisher | Hot aerosol fire extinguishing device is a new, efficient and environment-friendly fire fighting product with Vanguard International Semiconductor Corporation level, which is the first in China. It is a high-tech green fire protection product that benefits humanity, born under the background of the International Montreal Agreement and China's increased awareness of environmental protection. It is an ideal substitute for halon fire extinguishing devices and is suitable for relatively enclosed spaces such as distribution cabinets.
Electric or hot start: Hot start temperature ≥170℃; Electric start temperature ≥700mA. |
|
| Wiring type PDU | AC input：63A/2P*2 with interlock； AC/SPD：30-60KA/2P*1； AC output：63A/1P*1,32A/1P*1，16A/1P*3，3 holes Maintenance socket*1 |
|
| Integrated PDU | Can be customized according to customer requirements. |
|
| Rectifier | AC220V/110V transfer to DC48V, Connect the battery as a backup power,also can be customized according to customer requirements. |
|
ODF | Optic Distribution Frame (ODF) is a critical component in a fiber optic network infrastructure. It serves as a centralized point for the termination, organization, and distribution of fiber optic cables. The primary purpose of a distribution frame is to facilitate efficient and organized connectivity, making it easier to manage, troubleshoot, and expand the network.
Function: 1)Termination Point; 2)Organization and Management; 3)Splicing Trays; 4)Labeling and Documentation; 5)Security and Protection; 6)Scalability;
Can be customized according to customer requirements. |
|
| Backup battery | Can be lithium battery or lead acid battery. |
Flexibility
(1) Material can be Constructed of durable, galvanized steel,sandwich panel ,stainless steel SS304,aluminium.
(2) Compartments can be configured to support between 1-4 bays,multi-compartments supported.
(3) Front and rear access doors allow technicians access to equipment storage areas and cable routing.
(4) Side doors design also ok.
(5) Customized color ,standard color RAL7035,other color acceptable based on appointed color code.
(6) Wide range of thermal management options for even the most demanding heat dissipation needs allows for optimization of thermal performance and reduced energy costs.
(7) The cooling solution adopted Compressed air conditioner ,TEC (Thermoelectric Cooler),Hex (heat exchanger),Fans,Combined AC&HEX.
(8) Offers a wide range of configuration options providing maximum flexibility including PDU, rectifier ,integrated AC-DC power systems.
(9)Silk screening Logo and environmental friendly painting artwork for outdoor telecom cabinet.
(10)Offers all kinds environment sensors,including doors,smoke,temperature sensors.
(11)Remote monitoring system supported, communication protocol is RS232/RS485/SNMP.
Options
| Model | Height | Type | Rate | Color | H*W*D | Climate Control | Application |
CY800650650 | Floor stand | IP55 | Grey | 800mm*650mm*650mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
CY1050650650 | Floor stand | IP55 | Grey | 1050mm*650mm*650mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
CY1400800800 | Floor stand | IP55 | Grey | 1400mm*800mm*800mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
CY1600800800 | 30U | Floor stand | IP55 | Grey | 1600mm*800mm*800mm | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1700750750 | Floor stand | IP55 | Grey | 1700mm*700mm*700mm | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
CY2100900900 | Floor stand | IP55 | Grey | 2100mm*900mm*900mm | Air conditioner 1500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
Other size to be continued ,please send us inquiry for futher discussion
Name | Specification |
AC220V 50HZ | |
AC220V 60HZ | |
AC110V 60HZ / DC48V | |
Cooling Capacity : 300W-5000W | |
DC48V | |
40W/K-200W/K | |
AC220V 50HZ & DC48V | |
1500W&80W/K | |
DC48V | |
200W-1200W | |
AC220V 50HZ | |
AC220V 60HZ | |
AC110V 60HZ / DC48V |
How to order
◆ Acceptable temperature range for your equipment;
◆ Heat load of equipment;
◆ The highest local ambient temperature；
◆ Noise Level；
◆ Future Expansion；
By carefully considering these factors, you can select a cabinet climate control system that meets the specific needs of your equipment and environmental conditions.
(1) If conditions permit, try to install the outdoor telecoms roadside cabinet in a cool and ventilated place with clean surrounding environment .
(2) After the cable construction is completed, please make sure to seal the gap around the cable with the sealant provided randomly in the cabinet, so as to avoid the condensation caused by moisture entering and affecting the use performance of the equipment.
(3) The grounding bar of the cabinet must be reliably grounded, and the grounding resistance to the ground shall be less than 10 Ω .
(4) Please clean the ventilation and dust screen in the cabinet regularly every month. According to the actual situation, the period of cleaning dust screen can be shortened or extended properly.
Outdoor network enclosures are engineered to ensure the secure, uninterrupted operation of mission-critical ICT and telecommunications infrastructure in harsh and demanding environments. These precision-manufactured, IP/NEMA rated cabinets are essential for safeguarding sensitive electronic equipment from ingress, thermal fluctuations, and physical tampering.
Mobile Telecommunications (4G/5G Base Stations):
Deployed at macro, micro, and small cell sites to protect RF modules, baseband units, and IP/NEMA transport gear. Enclosures maintain network uptime and regulatory compliance under extreme weather and electromagnetic conditions.
Fiber Access & Distribution (FTTx Networks):
Used to secure fiber optic splitters, cross-connect panels, and passive distribution frames in outdoor FTTx, GPON, and point-to-point deployments. Designed to prevent contamination, condensation, and mechanical disruption.
Smart City & Intelligent Transport Systems (ITS):
Enable robust housing for edge controllers, adaptive traffic signal processors, environmental sensing units, and urban IoT nodes. Support continuous data acquisition and low-latency communication in dense, urbanized ecosystems.
Video Surveillance & Security Systems:
Provide environmental protection for PoE switches, NVRs, and network gateways in perimeter security, ANPR, and public surveillance networks. Enclosures ensure operational integrity in unattended, high-risk zones.
Utility & Industrial SCADA (Oil, Gas, Power, Water):
Integrated into field substations and remote telemetry sites to shelter PLCs, RTUs, industrial gateways, and I/O terminals from vibration, corrosion, and thermal stress. Designed for compliance with IEC and IEEE standards.
Renewable Energy Infrastructure (Solar, Wind, Storage):
Enclose power conversion systems, battery controllers, data loggers, and EMS devices at generation sites. Engineered for resilience to solar loading, UV degradation, and particulate ingress over extended lifecycles.
Temporary, Tactical & Disaster Response Networks:
Deployed in mobile command centers, construction zones, or emergency communication hubs. Enclosures offer rapid integration, field servicing, and scalable power/networking options.
Defense & Mission-Critical Communications:
Support secure housing for SATCOM terminals, encryption modules, and tactical edge devices. Built to withstand shock, EMI, and intentional interference in military and homeland security scenarios.
Security features, such as locks and access controls, are important for Outdoor Network Enclosures to prevent unauthorized access and tampering with the network infrastructure.
Outdoor Network Enclosures accommodate both passive and active components, including splitters, connectors, and network termination equipment. Active components such as switches or routers may be included depending on the specific architecture.
Outdoor Network Enclosures often utilize rack-mounting systems to organize and install the various components in a standardized and efficient manner.
In summary, Outdoor Network Enclosures are integral to the deployment and maintenance of fiber optic networks, providing a centralized and protected location for the equipment that enables high-speed broadband connectivity to homes, businesses, and other end-users.
