AE15NA4E/AC-115-2&H80W/K
Cytech
Product Description
The Cabinet Combined Air Conditioner& Heat Exchanger or AC air conditioner Integrated with heat exchanger is especially designed for telecom cabinet, battery cabinet, industrial control cabinet, with functions of auto cooling system and auto heat exchange first for electronic equipments in reliable operation, which can make a good environment to reduce equipments failure rate
◇Double cooling system：cooling + heat exchange, more energy saving
◇Intelligent communication：RS485 port and dry contact alarm port
◇LED display：Parameters setting and status display
◇High protection level：Application in outdoors perfectly
◇Easy maintainability design：For convenient maintenance
◇Wide operating temperature range：Adapt to all conditions
◇Environment friendly refrigerant：More green for the earth
◇Other function：Heating(optional)
Cooling princple of Cabinet Combined Air Conditioner & Heat Exchanger: the high-pressure refrigerant liquid in the system enters the evaporator and evaporates to absorb heat of the air in the cabinet, the air is cooled, and the refrigerant that evaporates into gas in the evaporator is inhaled by the compressor and compressed into the high-pressure and high-temperature refrigerant gas, which enters the condenser and cooled to refrigerant liquid, and then re-enters the evaporator to cool the indoor air, and circulates accordingly.
HEX princple of Cabinet Combined Air Conditioner & Heat Exchanger: The waste heat generated from the internal equipment will be absorbed by the refrigerant through the evaporator and dissipate to the ambient by the condenser of external side.
| Name | Cabinet Combined Air Conditioner & Heat Exchanger |
Model | AE15NA4E |
Main power supply | 1~220VAC±15%/50Hz & 48VDC±20% |
Cooling capacity(rated) | 1500W@L35/L35 |
Hex exchange capacity(rated) | 80W/K |
Power consumption(rated) | AC500W & DC80W@L35/L35 |
Heating capacity(Optional) | 1000W |
Current (DC/ AC) | 2.3A/1.7A |
Work temp. range | -40℃~+55℃ |
Max noise | 65dB(A) |
IP level | IP55 |
Net weight | 36Kg |
Refrigerant | R134a |

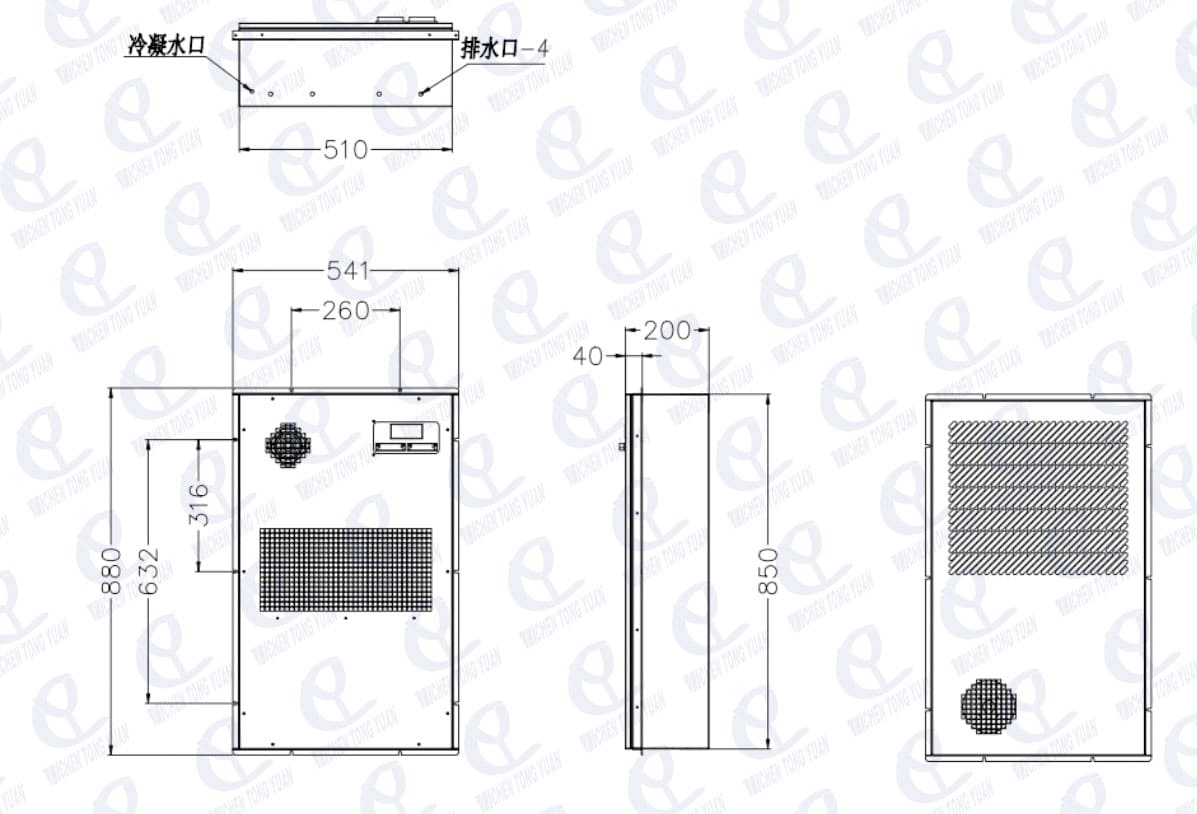

Dimension (H×W×D) | 880×541×200（mm） 34.65×21.30×7.87 inch |
Equipped with a display LED in internal side of product, can display running, alarm information and parameter
No. | Symbol | Definition | No. | Symbol | Definition |
1 | L | AC power-L line | 1 | * | * |
2 | N | AC power- N line | 2 | * | * |
3 | PE | Protective earthing wire | 3 | * | * |
4 | DC+ | 48V + | 4 | RS485+ | Communication port A+ |
5 | DC- | 48V - | 5 | RS485- | Communication port B- |
6 | ALR-NC | Alarm output-NC | |||
7 | ALR-COM | Alarm output-COM | |||
8 | ALR-NO | Alarm output-NO |
Attention：
▶It is strictly prohibited to turn the air conditioner upside down or lie flat during transportation or handling.

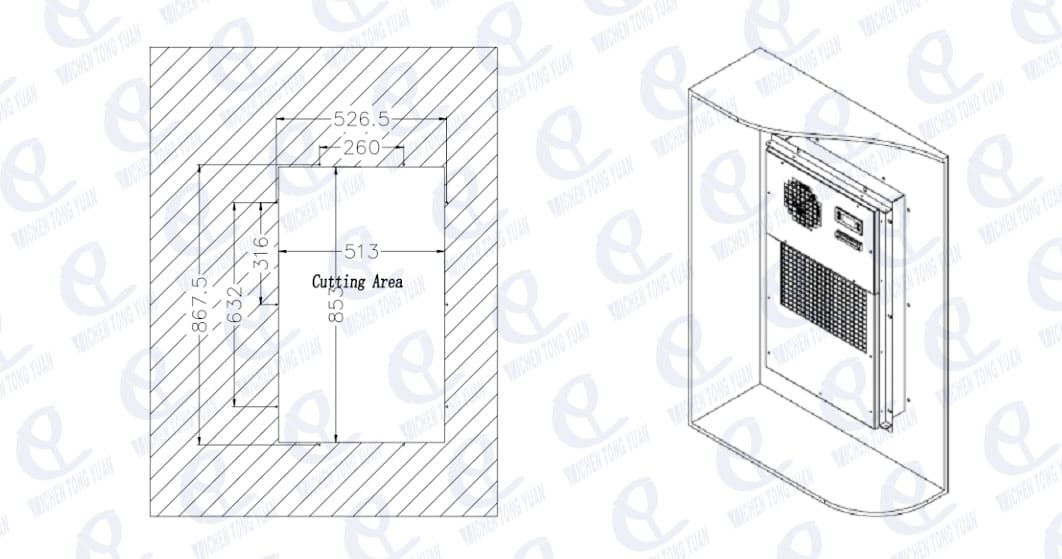

▶Install vertically and make sure the polarity of wiring is correct and firm.
▶To avoid objects blocking the air circulation at the inlet and outlet of internal and external circulation.
▶If the protective cover is added, the vent area of the cover shall not be less than that of the air conditioner.
| Name | Model | Dimension (H×W×D) | Voltage | Cooling Capacity(rated)(W&W/K) | Power Consumption (L35/L55)（Watts) | NEMA/IP Grade | Heater (W)(option) | Weight（KG) | Noise (dbA) |
| Cabinet Combined Air Conditioner& Heat Exchanger | 27.24×17.91×8.07inch / 692×455×205mm | 1~220VAC±15%/50Hz & 48VDC±20% | 800W&40W/K | 350W&80W | IP55,NEMA 4, NEMA 4X | 500W | 25 | 65 | |
| Cabinet Combined Air Conditioner& Heat Exchanger | 34.65×21.30×7.87inch / 880×541×200 mm | 1~220VAC±15%/50Hz & 48VDC±20% | 1000W&80W/K | 440W&145W | IP55,NEMA 4, NEMA 4X | 2000W | 35 | 65 | |
| Cabinet Combined Air Conditioner& Heat Exchanger | AE15HA4E | 34.65×21.30×7.87inch /880×541×200 mm | 1~220VAC±15%/50Hz & 48VDC±20% | 1500W&80W/K | 600W&70W | IP55,NEMA 4, NEMA 4X | 1000W | 26 | 65 |
| Cabinet Combined Air Conditioner& Heat Exchanger | 30.94×18.98×9.84inch / 786×482×250 mm | 1~220VAC±15%/50Hz & 48VDC±20% | 2500W&100W/K | 850W&200W | IP55,NEMA 4, NEMA 4X | 1000W | 45 | 65 | |
| Cabinet Combined Air Conditioner& Heat Exchanger | 47.72×21.77×10.63 inch /1212×553×270 mm | 1~220VAC±15%/50Hz & 48VDC±20% | 3000W&120W/K | 1150W&210W | IP55,NEMA 4, NEMA 4X | 2000W | 65 | 65 |
The Cabinet Combined Air Conditioner & Heat Exchanger offers several significant benefits by combining both air conditioning and heat exchange functions into a single unit. This integration leads to enhanced efficiency, cost savings, and simpler maintenance, making it a smart solution for various environments.
The Cabinet Combined Air Conditioner & Heat Exchanger maximizes space usage by integrating both air conditioning and heat exchange in one compact unit. Unlike traditional setups that require separate systems for each function, this integrated solution reduces space requirements, making it ideal for environments with limited space, such as small offices or rooms.
By combining air conditioning and heat exchange into a single unit, the Cabinet Combined Air Conditioner & Heat Exchanger helps reduce both initial investment and long-term operational costs. Purchasing and installing separate systems for each function can be costly, but this integrated approach lowers expenses, providing a more affordable solution for residential and commercial applications.
Maintaining the Cabinet Combined Air Conditioner & Heat Exchanger system is much easier compared to managing two separate units. Technicians only need to service one unit, reducing troubleshooting time and overall maintenance efforts. This streamlined process ensures faster repairs, less downtime, and better system performance over time.
The integration of air conditioning and heat exchange functions in one unit allows for better system control. The Cabinet Combined Air Conditioner & Heat Exchanger ensures more accurate temperature regulation, offering improved overall performance. The combined system provides enhanced efficiency by coordinating both functions, leading to better climate control and energy savings.
In conclusion, the Cabinet Combined Air Conditioner & Heat Exchanger offers numerous advantages, including space efficiency, cost savings, simplified maintenance, and enhanced system control. Its integrated design makes it a practical, cost-effective solution for a wide range of environments, providing optimal climate control while reducing operational complexity.
