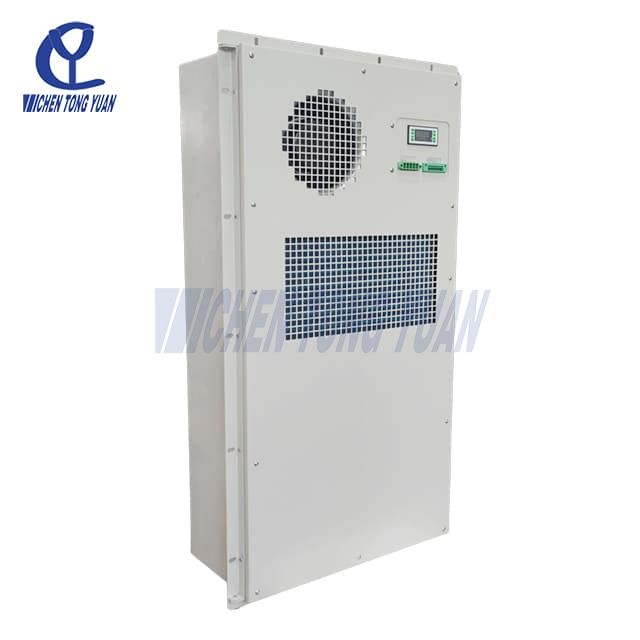

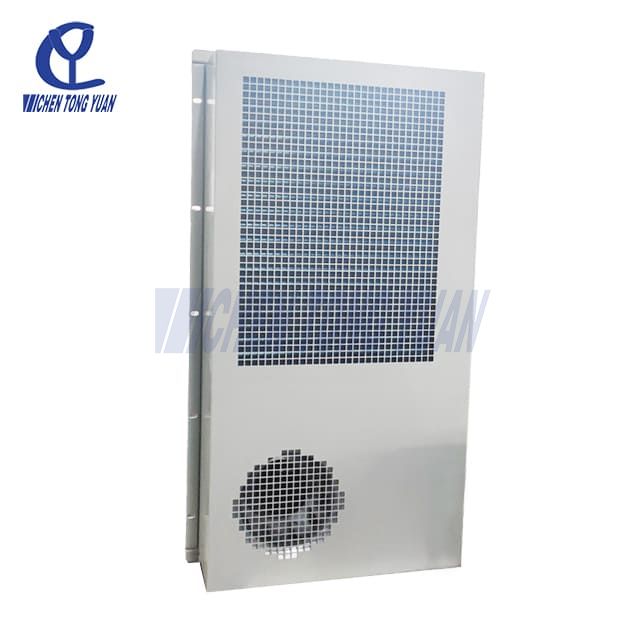

Hybrid Combined Unit of Air Conditioner 3000W with Heat Exchanger 120W/K

The AC/DC-Powered Air Conditioner with Heat Exchanger combines refrigeration and heat exchange functionalities in a single unit. This energy-efficient temperature control system is specifically designed to manage heat dissipation for data centers and communication base station equipment, ensuring optimal performance and reliability.
  • AE30HA4E

  • Cytech

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

Hybrid Combined Unit of Air Conditioner 3000W with Heat Exchanger 120 W/K Video



Hybrid Combined Unit of Air Conditioner 3000W with Heat Exchanger 120 W/K Certificate



Introduction to Hybrid Combined Unit of Air Conditioner 3000W with Heat Exchanger 120 W/K


The AC/DC-Powered Hybrid Combined Unit of Air Conditioner with Heat Exchanger is engineered specifically for electronic equipment in telecom, battery, and industrial control cabinets. It combines an automatic cooling system and a heat exchange mechanism to ensure the reliable operation of sensitive electronics by maintaining an optimal environment, which in turn helps reduce equipment failure rates.


Key features of this unit include:

  • Double Cooling System: Cooling combined with heat exchange, offering significant energy savings.

  • Intelligent Communication: Features RS485 port and dry contact alarm port for easy monitoring and control.

  • LED Display: Allows for parameter setting and status display, enhancing user convenience.

  • High Protection Level: Designed for perfect outdoor application, ensuring durability and reliability.

  • Easy Maintainability Design: Facilitates easy maintenance for extended operational life.

  • Wide Operating Temperature Range: Adaptable to various environmental conditions, ensuring reliable operation.

  • Environmentally Friendly Refrigerant: Uses eco-friendly refrigerants, reducing environmental impact.

  • Other Functions: Optional heating functionality for enhanced versatility.


Working Principle of Hybrid Combined Unit of Air Conditioner 3000W with Heat Exchanger 120 W/K


Cooling Principle


The Air Conditioner with Heat Exchanger uses high-pressure refrigerant liquid that enters the evaporator. The refrigerant absorbs heat from the air in the cabinet, cooling the environment. The refrigerant, now in gas form, is drawn into the compressor, where it's compressed into high-pressure gas. This gas enters the condenser, cools down, and condenses back into liquid. The process repeats, ensuring continuous and efficient cooling for the equipment inside the cabinet.



HEX (Heat Exchange) Principle


The Air Conditioner with Heat Exchanger also utilizes waste heat generated by internal equipment. This heat is absorbed by the refrigerant in the evaporator and transferred to the external condenser, where it's dissipated into the environment. This design optimizes energy use by recycling waste heat, improving energy efficiency.



Conclusion

The Air Conditioner with Heat Exchanger 3000W with 120 W/K is a highly efficient and eco-friendly solution that combines cooling and heat exchange. It reduces energy consumption, enhances reliability, and is easy to maintain. This system is ideal for managing the climate of sensitive electronic equipment in harsh environments. Its intelligent communication features and wide operating temperature range make it adaptable to various industrial applications. This dual-function system reduces equipment failure rates and extends the lifespan of electronics.



3000W 120W/K Hybrid Unit of Air Conditioner with Heat Exchanger Specification


Name

Air Conditioner with Heat Exchanger

Model

AE30HA4E

Main power supply

1~220VAC±15%/50Hz & 48VDC±20%

Mounting Method Semi-embedded Mounting
Cooling capacity(Rated)

3000W@L35/L35

Power consumption(Rated)

1150W@L35/35 & 210W

Hex exchange capacity(rated)

120W/K

Heating capacity(Optional)

2000W (Optional)

Work temp. range

-40℃~+55℃

Max Noise

65dB(A)

IP Grade

IP55, IP65, NEMA 4, NEMA 4X

Net Weight

65KG

Refrigerant

R134a

Dimensions 1212*553*270 mm (47.72" × 21.77" × 10.63")

Note:@L35/L35 is Internal temperature 35℃, ambient temperature 35℃

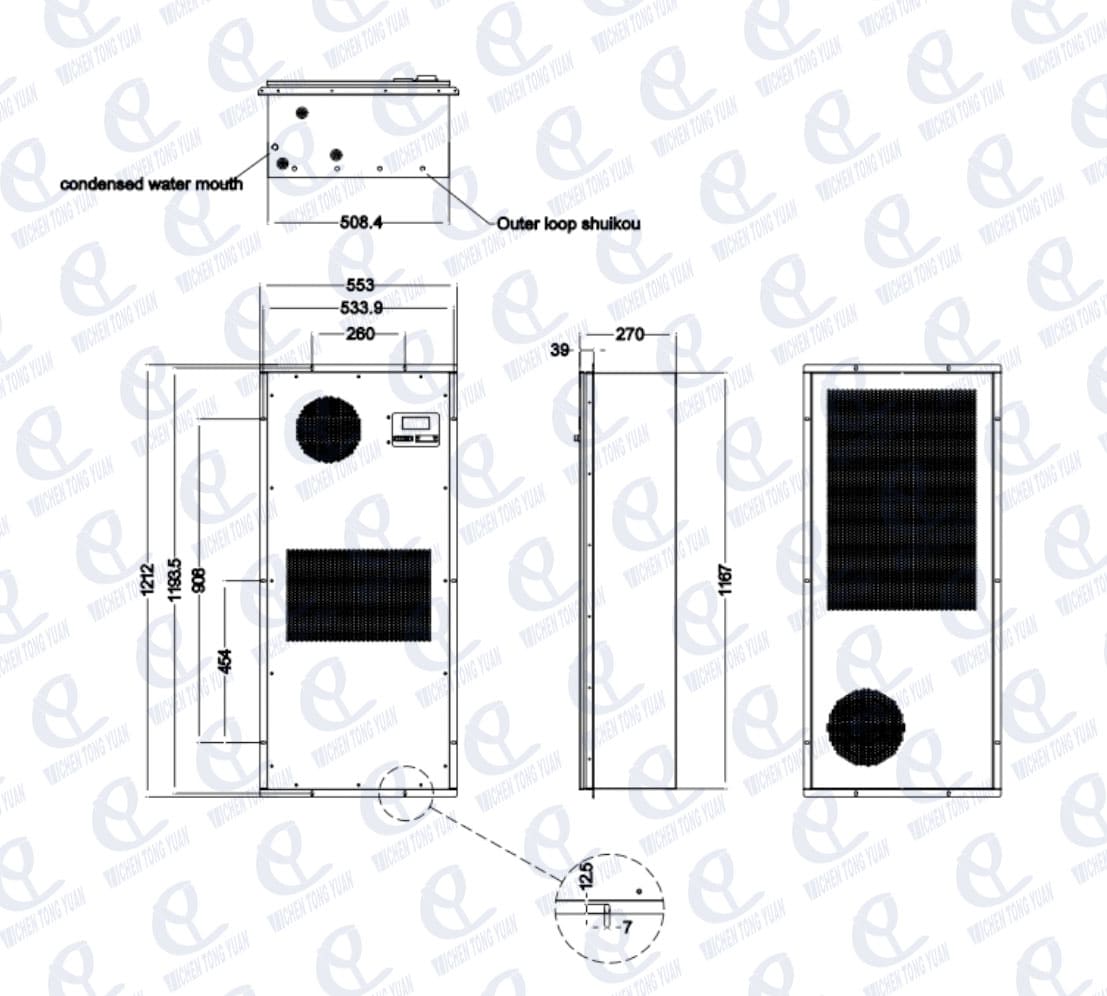

Outer Dimension






Installation and Wiring

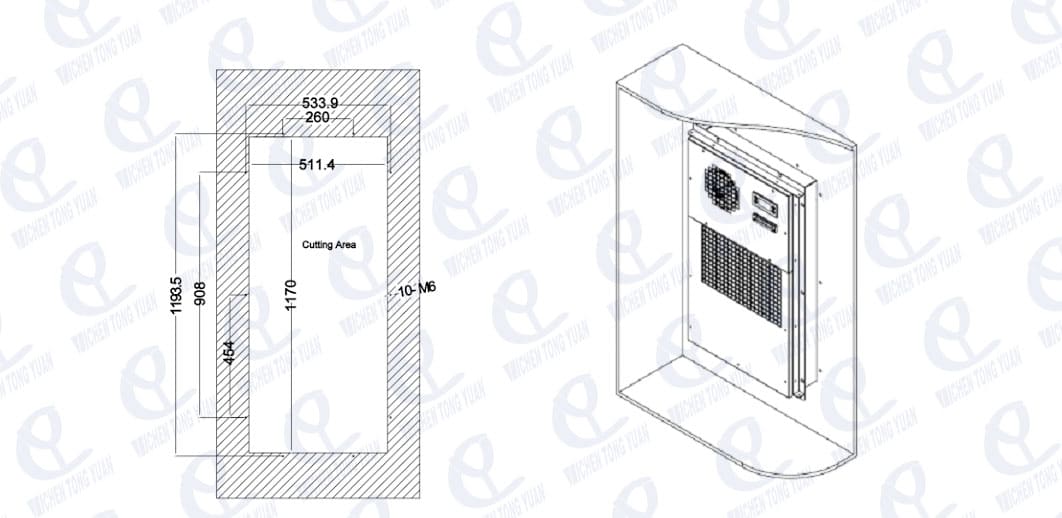

Please design and install the product according to the installation holes drawings below




Wiring


Equipped with a display LED in internal side of product, can display running, alarm information and parameter




Definition of Electrical Terminal



No.

Symbol

Definition

No.

Symbol

Definition

1

L

AC power-L line

1

*

*

2

N

AC power- N line

2

*

*

3

PE

Protective earthing wire

3

*

*

4

DC+

48V +

4

RS485+

Communication port A+

5

DC-

48V -

5

RS485-

Communication port B-




6

ALR-NC

Alarm output-NC




7

ALR-COM

Alarm output-COM




8

ALR-NO

Alarm output-NO



Attention:

▶It is strictly prohibited to turn the air conditioner upside down or lie flat during transportation or handling.

▶Install vertically and make sure the polarity of wiring is correct and firm.

▶To avoid objects blocking the air circulation at the inlet and outlet of internal and external circulation.

▶If the protective cover is added, the vent area of the cover shall not be less than that of the air conditioner.




Options

More Option for Hybrid Combined Unit of Air Conditioner with Heat Exchanger


Model

Dimension (H×W×D)

Voltage

Cooling Capacity(rated)(W&W/K)

Power Consumption (L35/L55)(Watts)

NEMA/IP Grade

Heater (W)(option)

Weight(KG)

Noise (dbA)

AE08HA4E

27.24×17.91×8.07inch /  692×455×205mm 1~220VAC±15%/50Hz & 48VDC±20%

800W&40W/K

350W&80W

IP55,NEMA 4, NEMA 4X

500W

25
65

AE10HA4E

34.65×21.30×7.87inch / 880×541×200mm 1~220VAC±15%/50Hz & 48VDC±20%   1000W&80W/K 440W&145W IP55,NEMA 4, NEMA 4X 2000W 35
65

AE15HA4E

34.65×21.30×7.87inch /880×541×200mm

1~220VAC±15%/50Hz & 48VDC±20%

1500W&80W/K

600W&70W

IP55,NEMA 4, NEMA 4X

1000W

26

65

AE25HA4E

30.94×18.98×9.84inch / 786×482×250mm

1~220VAC±15%/50Hz & 48VDC±20%

2500W&100W/K

850W&200W

IP55,NEMA 4, NEMA 4X

1000W

45

65

AE30HA4E

47.72×21.77×10.63inch /1212×553×270mm

1~220VAC±15%/50Hz & 48VDC±20%

3000W&120W/K

1150W&210W

IP55,NEMA 4, NEMA 4X

2000W

65

65




​Advantage

Advantage of Hybrid Combined Unit of Air Conditioner with Heat Exchanger


The Air Conditioner with Heat Exchanger combines cooling and heating in one unit, providing several key advantages:


1. Energy Efficiency

The Air Conditioner with Heat Exchanger utilizes a heat exchanger to recycle waste heat from cooling, significantly reducing energy consumption. This hybrid design integrates various energy sources like electricity, solar, or gas, optimizing energy use based on demand.


2. Cost Savings

By reducing reliance on electricity alone, the Air Conditioner with Heat Exchanger lowers operational costs. Over time, the energy savings help offset the initial investment, and eliminating the need for separate heating and cooling units further reduces costs.


3. Dual Functionality

The Air Conditioner with Heat Exchanger offers both cooling and heating capabilities, making it ideal for year-round use. This eliminates the need for multiple HVAC systems, saving both space and money.


4. Environmentally Friendly

The Air Conditioner with Heat Exchanger helps reduce carbon emissions by consuming less energy. Many units also use eco-friendly refrigerants, contributing to a more sustainable solution.


5. Improved Indoor Air Quality

The Air Conditioner with Heat Exchanger includes filters that trap dust, allergens, and contaminants, improving indoor air quality. It also helps maintain consistent humidity levels, ensuring comfort.


6. Flexible Installation

The Air Conditioner with Heat Exchanger is versatile, suitable for residential, commercial, or industrial applications. It can adapt to various energy sources and building configurations.


7. Durability and Low Maintenance

Built with high-quality components, the Air Conditioner with Heat Exchanger is durable and requires less maintenance than traditional systems, ensuring a longer lifespan.


Conclusion

The Air Conditioner with Heat Exchanger is an efficient, cost-effective, and eco-friendly solution for year-round climate control. Its versatility and long-term savings make it an excellent choice for a wide range of applications.


Application

Applications of Hybrid Combined Unit of Air Conditioner with Heat Exchanger


The Air Conditioner with Heat Exchanger is a versatile solution that provides both cooling and heating in one unit, making it ideal for various applications across industries. Its energy-efficient design reduces operational costs and meets the needs of diverse environments.


1. Residential Applications

In homes and apartments, the Air Conditioner with Heat Exchanger offers year-round climate control while lowering energy bills. Luxury villas benefit from efficient cooling in summer and heating in winter. In smart homes, it integrates with IoT systems for optimized energy usage.


2. Commercial Applications

For office spaces, the Air Conditioner with Heat Exchanger ensures a comfortable working environment with efficient energy use. Retail spaces, such as stores and malls, benefit from precise climate control that enhances customer comfort. In hotels, it provides reliable, quiet climate control for guest satisfaction.


3. Industrial Applications

In manufacturing, the Air Conditioner with Heat Exchanger helps regulate temperature, improving both equipment performance and worker comfort. In data centers, it protects sensitive IT infrastructure from overheating. Food processing facilities rely on the system for consistent temperature and humidity control.


4. Healthcare Facilities

Hospitals and clinics rely on the Air Conditioner with Heat Exchanger to maintain sterile and comfortable environments. It ensures precise temperature and air quality control. The unit also supports pharmaceutical production by maintaining optimal conditions for drug manufacturing and storage.


5. Educational Institutions

Schools and universities benefit from energy-efficient climate control in classrooms, libraries, and auditoriums, ensuring a comfortable learning environment throughout the year.


6. Public Spaces

Airports and train stations use the Air Conditioner with Heat Exchanger to provide comfort in high-traffic areas. Museums and art galleries rely on the system to preserve delicate artifacts by controlling temperature and humidity.


7. Specialized Environments

In greenhouses, the Air Conditioner with Heat Exchanger optimizes growing conditions by managing temperature and humidity. Laboratories rely on it for precise control of experimental environments, while sports facilities ensure optimal conditions for athletes and spectators.


Conclusion

The Air Conditioner with Heat Exchanger offers a flexible, energy-efficient solution for cooling and heating needs across various applications. Its dual functionality, eco-friendly design, and cost-saving benefits make it a top choice for residential, commercial, industrial, and specialized environments.
