AE10HA4E
Cytech

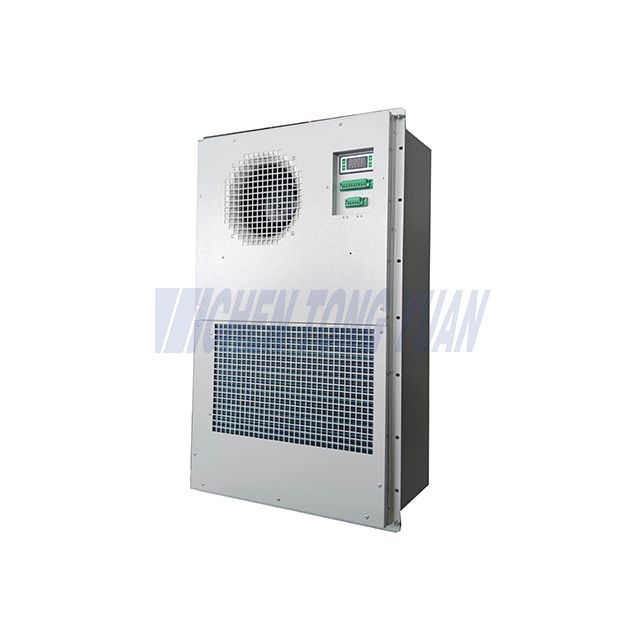

Product Description
The Closed-loop Enclosure Combined Aircon with Hex or AC air conditioner Integrated with heat exchanger is especially designed for telecom cabinet, battery cabinet, industrial control cabinet, with functions of auto cooling system and auto heat exchange first for electronic equipments in reliable operation, which can make a good environment to reduce equipments failure rate
◆This series of products can be widely used for outdoor telecom cabinets, battery cabinets,electric cabinets and industry control cabinets etc.
◆The protective level of internal and external circulation is IP55, which can protect cabinet to avoid moisture, dust, water. The air conditioner can also be indoor or outdoor installed.
◆This system is suitable for high/low temperature working conditions of 55 ℃/-40 ℃.
◆Digital temperature controller and high precision of temperature control.
Cooling princple of Closed-loop Enclosure Combined Aircon with Hex: the high-pressure refrigerant liquid in the system enters the evaporator and evaporates to absorb heat of the air in the cabinet, the air is cooled, and the refrigerant that evaporates into gas in the evaporator is inhaled by the compressor and compressed into the high-pressure and high-temperature refrigerant gas, which enters the condenser and cooled to refrigerant liquid, and then re-enters the evaporator to cool the indoor air, and circulates accordingly.
HEX princple of Closed-loop Enclosure Combined Aircon with Hex: The waste heat generated from the internal equipment will be absorbed by the refrigerant through the evaporator and dissipate to the ambient by the condenser of external side.
Name | CABINET AIR CONDITIONER WITH HEAT EXCHANGER |
Model | AE10HA4E |
Mounting Method | Semi-embedded Mounting |
Power Supply | 1~220VAC±15%/50Hz & 48VDC±20% |
Cooling capacity | 1000W@L35/L35 & 80W/K |
Power capacity | 440W@L35/35 & 145W |
Max Noise Level | 65dB（A） |
IP Grade | IP55 |
Heater | 2000W(Optional) |
Net Weight | 35kg |
Refrigerant | R134a |
Dimensions | 880*541*200（mm） 35"H*21"W*8"D |

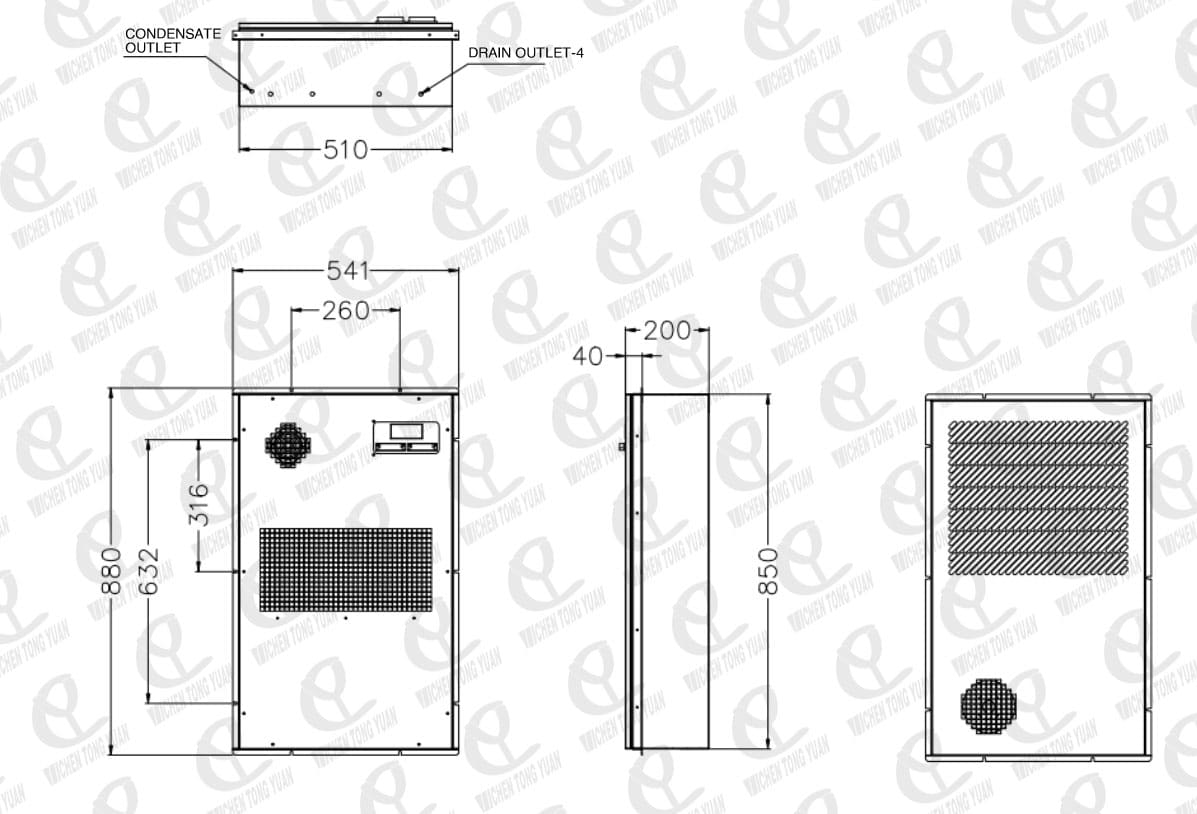

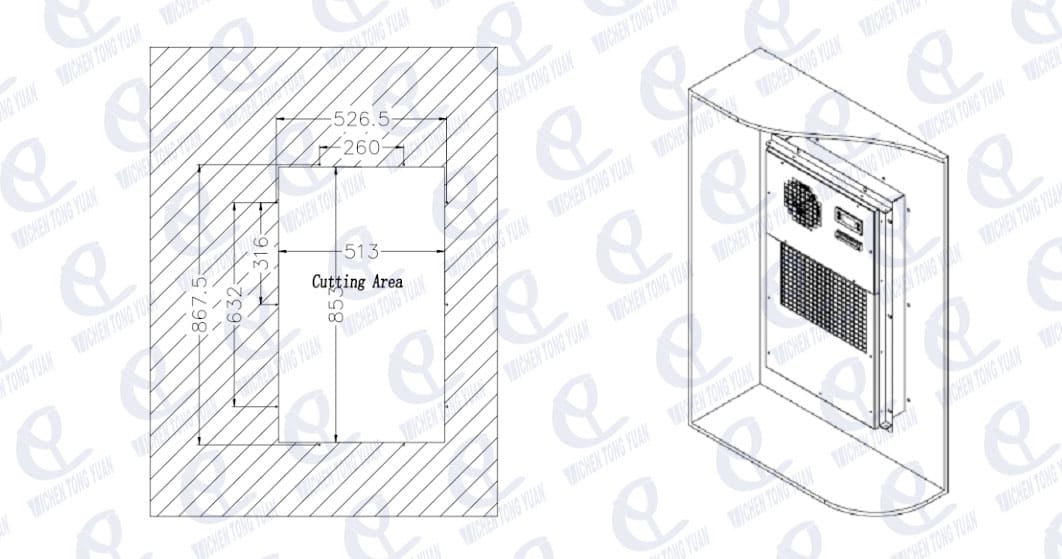

Please design and install the product according to the installation holes drawings below
Equipped with a display LED in internal side of product, can display running, alarm information and parameter
No. | Symbol | Definition | No. | Symbol | Definition |
1 | L | AC power-L line | 1 | * | * |
2 | N | AC power- N line | 2 | * | * |
3 | PE | Protective earthing wire | 3 | * | * |
4 | DC+ | 48V + | 4 | RS485+ | Communication port A+ |
5 | DC- | 48V - | 5 | RS485- | Communication port B- |
6 | ALR-NC | Alarm output-NC | |||
7 | ALR-COM | Alarm output-COM | |||
8 | ALR-NO | Alarm output-NO |
Attention：
▶It is strictly prohibited to turn the air conditioner upside down or lie flat during transportation or handling.
▶Install vertically and make sure the polarity of wiring is correct and firm.
▶To avoid objects blocking the air circulation at the inlet and outlet of internal and external circulation.
▶If the protective cover is added, the vent area of the cover shall not be less than that of the air conditioner.
Options
| Name | Model | Voltage | Cooling capacity(rated)(W&W/K) | Power consumption(W) | NEMA/IP Grade | Heater (W)(option) | Weight（KG) | Noise (dbA) |
| Closed-loop Enclosure Combined Aircon with Hex | 1~220VAC±15%/50Hz & 48VDC±20% | 800W&40W/K | 350W&80W | IP55,NEMA 4, NEMA 4X | 500W | 25 | 65 | |
| Closed-loop Enclosure Combined Aircon with Hex | AE10HA4E | 1~220VAC±15%/50Hz & 48VDC±20% | 1000W&80W/K | 440W&145W | IP55,NEMA 4, NEMA 4X | 2000W | 35 | 65 |
| Closed-loop Enclosure Combined Aircon with Hex | 1~220VAC±15%/50Hz & 48VDC±20% | 1500W&80W/K | 600W&70W | IP55,NEMA 4, NEMA 4X | 1000W | 26 | 65 | |
| Closed-loop Enclosure Combined Aircon with Hex | 1~220VAC±15%/50Hz & 48VDC±20% | 2500W&100W/K | 850W&200W | IP55,NEMA 4, NEMA 4X | 1000W | 45 | 65 | |
| Closed-loop Enclosure Combined Aircon with Hex | 1~220VAC±15%/50Hz & 48VDC±20% | 3000W&120W/K | 1150W&210W | IP55,NEMA 4, NEMA 4X | 2000W | 65 | 65 |
