AE08HA4E
Cytech
Product Description
The Industrial Control Panel Combo Aircon with Heat Exchanger or AC air conditioner Integrated with heat exchanger is especially designed for telecom cabinet, battery cabinet, industrial control cabinet, with functions of auto cooling system and auto heat exchange first for electronic equipments in reliable operation, which can make a good environment to reduce equipments failure rate
◆This series of products can be widely used for outdoor telecom cabinets, battery cabinets,electric cabinets and industry control cabinets etc.
◆The protective level of internal and external circulation is IP55, which can protect cabinet to avoid moisture, dust, water. The air conditioner can also be indoor or outdoor installed.
◆This system is suitable for high/low temperature working conditions of 55 ℃/-40 ℃.
◆Digital temperature controller and high precision of temperature control.
Cooling princple of Industrial Control Panel Combo Aircon with Heat Exchanger: the high-pressure refrigerant liquid in the system enters the evaporator and evaporates to absorb heat of the air in the cabinet, the air is cooled, and the refrigerant that evaporates into gas in the evaporator is inhaled by the compressor and compressed into the high-pressure and high-temperature refrigerant gas, which enters the condenser and cooled to refrigerant liquid, and then re-enters the evaporator to cool the indoor air, and circulates accordingly.
HEX princple of Industrial Control Panel Combo Aircon with Heat Exchanger: The waste heat generated from the internal equipment will be absorbed by the refrigerant through the evaporator and dissipate to the ambient by the condenser of external side.
Name | CABINET AIR CONDITIONER WITH HEAT EXCHANGER |
Model | AE08HA4E |
Mounting Method | Semi-embedded Mounting |
Power Supply | 1~220VAC±15%/50Hz & 48VDC±20% |
Cooling capacity | 800W@L35/L35 & 40W/K |
Power capacity | 350W@L35/35 & 80W |
Max Noise Level | 65dB（A） |
IP Grade | IP55 |
| NEMA Grade | NEMA4 |
Heater | 500W(Optional) |
Net Weight | 35kg |
Refrigerant | R134a |
Dimensions | 692*455*205（mm) 27"H*18"W*8"D |

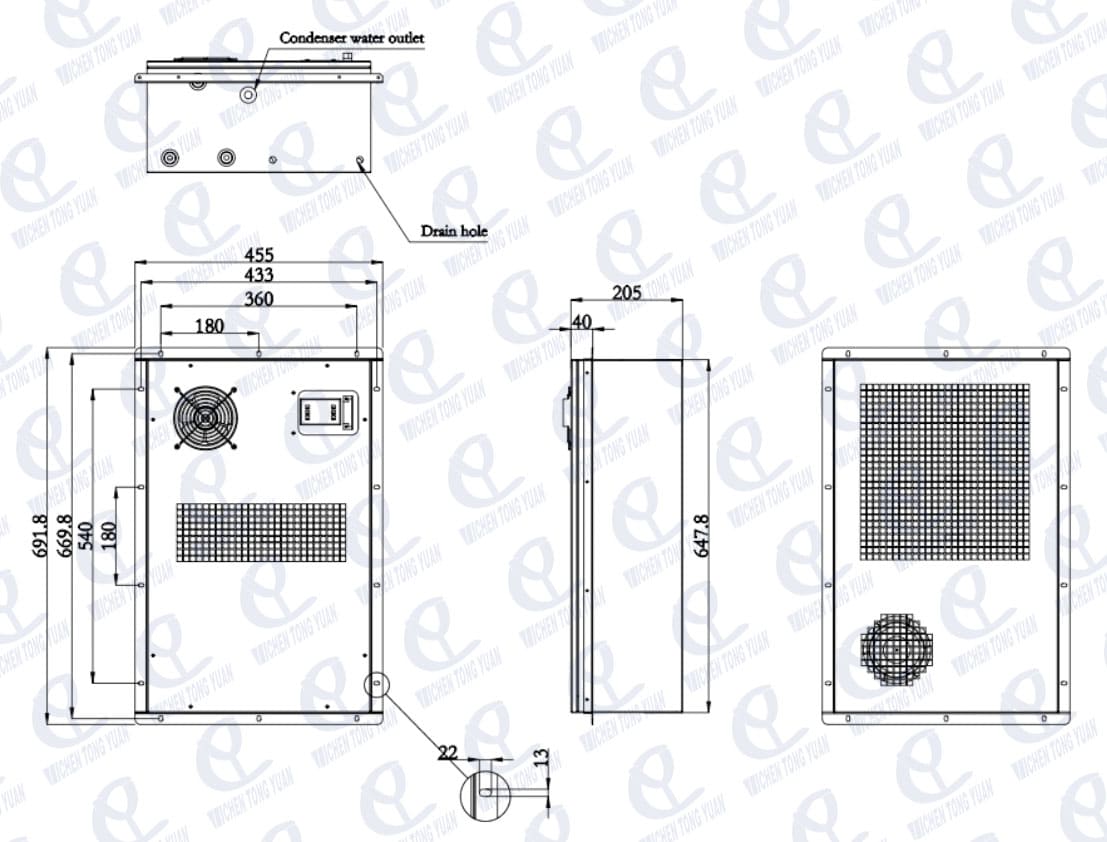

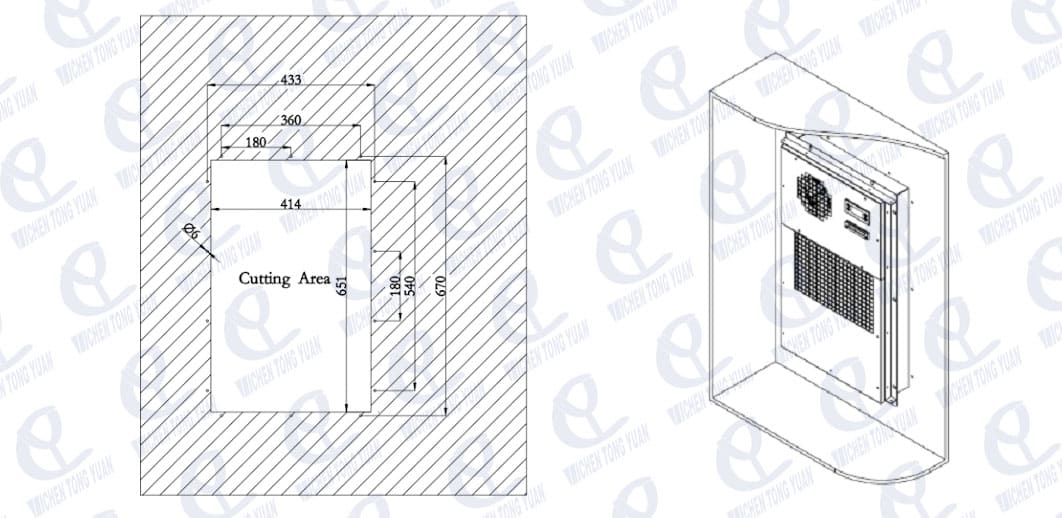

Please design and install the product according to the installation holes drawings below
Equipped with a display LED in internal side of product, can display running, alarm information and parameter
No. | Symbol | Definition | No. | Symbol | Definition |
1 | L | AC power-L line | 1 | * | * |
2 | N | AC power- N line | 2 | * | * |
3 | PE | Protective earthing wire | 3 | * | * |
4 | DC+ | 48V + | 4 | RS485+ | Communication port A+ |
5 | DC- | 48V - | 5 | RS485- | Communication port B- |
6 | ALR-NC | Alarm output-NC | |||
7 | ALR-COM | Alarm output-COM | |||
8 | ALR-NO | Alarm output-NO |
Attention：
▶It is strictly prohibited to turn the air conditioner upside down or lie flat during transportation or handling.
▶Install vertically and make sure the polarity of wiring is correct and firm.
▶To avoid objects blocking the air circulation at the inlet and outlet of internal and external circulation.
▶If the protective cover is added, the vent area of the cover shall not be less than that of the air conditioner.
Options
Model | Dimension (H×W×D) | Voltage | Cooling Capacity(rated)(W&W/K) | Power Consumption (L35/L55)（Watts) | NEMA/IP Grade | Heater (W)(option) | Weight（KG) | Noise (dbA) |
AE08HA4E | 27.24×17.91×8.07inch / 692×455×205mm | 1~220VAC±15%/50Hz & 48VDC±20% | 800W&40W/K | 350W&80W | IP55,NEMA 4, NEMA 4X | 500W | 25 | 65 |
| 34.65×21.30×7.87inch / 880×541×200mm | 1~220VAC±15%/50Hz & 48VDC±20% | 1000W&80W/K | 440W&145W | IP55,NEMA 4, NEMA 4X | 2000W | 35 | 65 | |
| 34.65×21.30×7.87inch /880×541×200mm | 1~220VAC±15%/50Hz & 48VDC±20% | 1500W&80W/K | 600W&70W | IP55,NEMA 4, NEMA 4X | 1000W | 26 | 65 | |
| 30.94×18.98×9.84inch / 786×482×250mm | 1~220VAC±15%/50Hz & 48VDC±20% | 2500W&100W/K | 850W&200W | IP55,NEMA 4, NEMA 4X | 1000W | 45 | 65 | |
47.72×21.77×10.63inch /1212×553×270mm | 1~220VAC±15%/50Hz & 48VDC±20% | 3000W&120W/K | 1150W&210W | IP55,NEMA 4, NEMA 4X | 2000W | 65 | 65 |
Advantages
The Combo Aircon with Heat Exchanger, also known as the Combined aircon with hex, offers a state-of-the-art solution that seamlessly integrates air conditioning and heat exchange into one efficient unit. This dual-function design is engineered to maximize performance while minimizing both installation space and operational costs.
Optimized Space Efficiency
By uniting cooling and heat exchange in a single device, this system minimizes the footprint typically required for separate units. This makes the Combo Aircon with Heat Exchanger an ideal choice for environments where space is at a premium, such as small offices, compact living spaces, or retrofitting older buildings.
Significant Cost Savings
Investing in a Combined aircon with hex system reduces upfront costs by eliminating the need to purchase and install two distinct systems. Over time, lower energy consumption and simplified maintenance translate into considerable savings, making it a financially savvy option for both residential and commercial applications.
Simplified Maintenance and Management
The integrated design of the Combo Aircon with Heat Exchanger streamlines service routines. Technicians benefit from having a single system to inspect and repair, which simplifies troubleshooting, reduces downtime, and ensures the system operates at peak performance with less effort.
Enhanced Performance and Control
The synergy between air conditioning and heat exchange functions enables precise temperature regulation and improved energy efficiency. The coordinated operation of the Combined aircon with hex system ensures that both cooling and heating demands are met effectively, providing a stable and comfortable indoor climate regardless of external conditions.
In summary, the Combo Aircon with Heat Exchanger or Combined aircon with hex is an innovative, cost-effective, and space-saving solution that delivers robust performance and simplified maintenance, making it an excellent choice for modern climate control needs.
Application
The Air Conditioner with Heat Exchanger is a versatile solution that provides both cooling and heating in one unit, making it ideal for various applications across industries. Its energy-efficient design reduces operational costs and meets the needs of diverse environments.
In residential settings, the Combo Aircon with Heat Exchanger provides year-round climate control that not only ensures comfort in every season but also contributes to lowering energy bills. Whether installed in apartments, luxury villas, or integrated into smart homes with IoT connectivity, its precise temperature regulation maximizes energy savings while delivering exceptional indoor comfort.
For commercial spaces, including office buildings, retail centers, and hotels, the Combined aircon with hex offers reliable and quiet climate control. This system enhances productivity and customer experience by maintaining an optimal indoor environment, ensuring that workspaces are comfortable and shopping or leisure areas remain inviting.
In industrial settings, such as manufacturing facilities and data centers, the Combo Aircon with Heat Exchanger plays a crucial role in temperature management. It not only improves equipment performance and worker comfort but also safeguards sensitive IT infrastructure from overheating. In food processing environments, its precise control of temperature and humidity is vital for product quality and safety.
Hospitals and clinics rely on the Combined aircon with hex to maintain sterile and controlled environments critical for patient care. The system's ability to deliver consistent temperature and air quality control also makes it indispensable in pharmaceutical production, where stringent environmental conditions are mandatory for drug manufacturing and storage.
Educational facilities, including schools, universities, and libraries, benefit significantly from the energy-efficient performance of the Combo Aircon with Heat Exchanger. Its capacity to regulate classroom and auditorial climates supports an optimal learning environment year-round, contributing to both energy conservation and enhanced comfort.
In high-traffic public areas like airports, train stations, museums, and art galleries, the Combined aircon with hex ensures consistent comfort and preserves valuable assets. Its reliable climate control helps manage large volumes of people while maintaining the integrity of sensitive exhibits and artworks.
Specialized applications, such as greenhouses and laboratories, demand precise control over temperature and humidity. The Combo Aircon with Heat Exchanger excels in these settings, optimizing growing conditions in agricultural environments and ensuring controlled experimental conditions in research facilities. Additionally, sports facilities use this system to maintain an environment conducive to peak performance and spectator comfort.
The Combo Aircon with Heat Exchanger—or Combined aircon with hex—stands out as a flexible, eco-friendly solution that addresses both cooling and heating needs across residential, commercial, industrial, healthcare, educational, public, and specialized environments. Its dual functionality and cost-saving benefits make it a top choice for modern air conditioning requirements, providing reliable performance and superior energy efficiency.
