AE25HA4E
Cytech

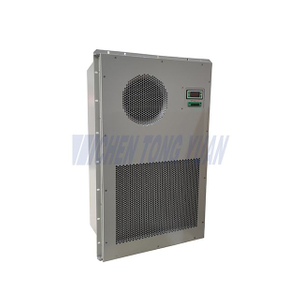

Product Description

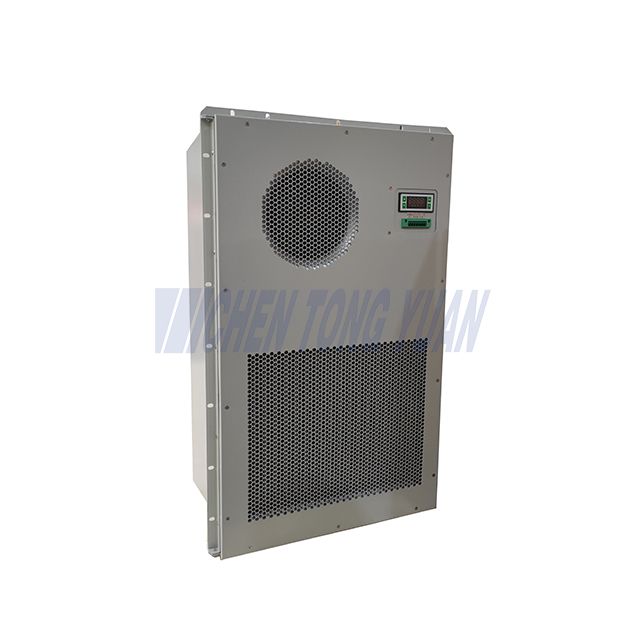

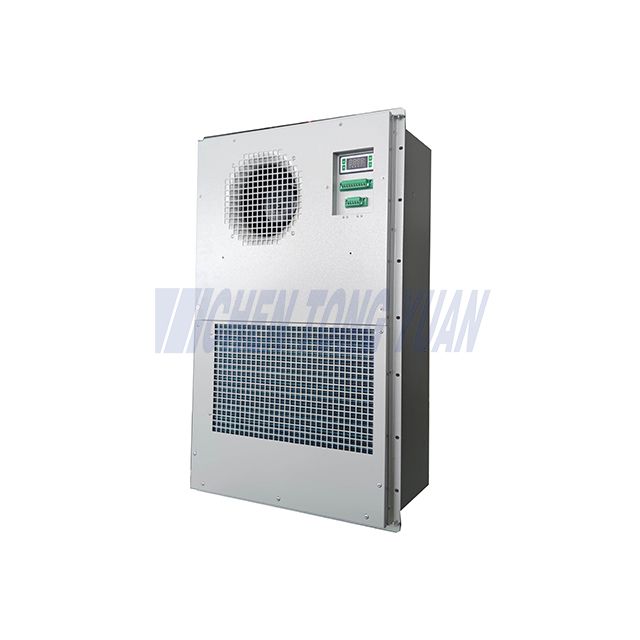

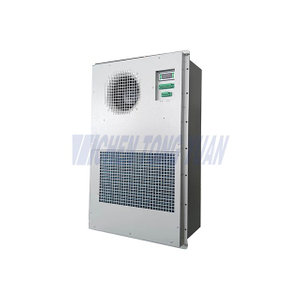

The Enclosure Combined Air Conditioner& Heat Exchanger or AC air conditioner Integrated with heat exchanger is especially designed for telecom cabinet, battery cabinet, industrial control cabinet, with functions of auto cooling system and auto heat exchange first for electronic equipments in reliable operation, which can make a good environment to reduce equipments failure rate
◇ Double cooling system：cooling + heat exchange, more energy saving
◇ Intelligent communication：RS485 port and dry contact alarm port
◇ LED display：Parameters setting and status display
◇ High protection level：Application in outdoors perfectly
◇ Easy maintainability design：For convenient maintenance
◇ Wide operating temperature range：Adapt to all conditions
◇ Environment friendly refrigerant：More green for the earth
◇ Other function：Heating(optional)

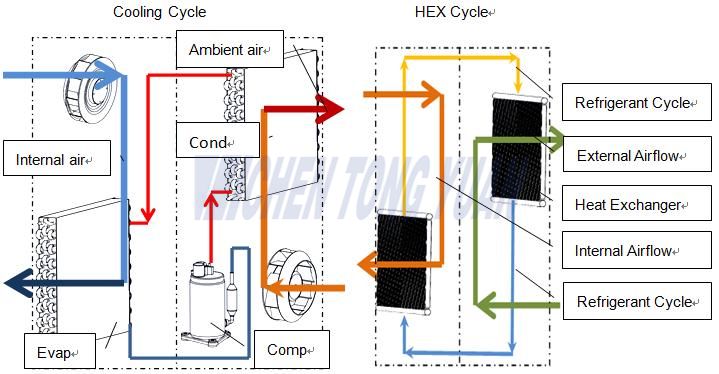

Cooling principle of Enclosure Combined Air Conditioner& Heat Exchanger: the high-pressure refrigerant liquid in the system enters the evaporator and evaporates to absorb heat of the air in the cabinet, the air is cooled, and the refrigerant that evaporates into gas in the evaporator is inhaled by the compressor and compressed into the high-pressure and high-temperature refrigerant gas, which enters the condenser and cooled to refrigerant liquid, and then re-enters the evaporator to cool the indoor air, and circulates accordingly.
HEX principle of Enclosure Combined Air Conditioner& Heat Exchanger: The waste heat generated from the internal equipment will be absorbed by the refrigerant through the evaporator and dissipate to the ambient by the condenser of external side.
Name | Enclosure Combined Air Conditioner & Heat Exchanger |
Model | AE25NA4E |
Main power supply | 1~220VAC±15%/50Hz & 48VDC±20% |
Cooling capacity(Rated) | 2500W@L35/L35 |
Power consumption(Rated) | AC850W & DC200W@L35/L35 |
Hex exchange capacity(rated) | 100W/K |
Heating capacity(Optional) | 1000W |
Work temp. range | -40℃~+55℃ |
Max Noise | 65dB(A) |
IP Grade | IP55, NEMA 4 |
Net Weight | 45KG |
Refrigerant | R134a |

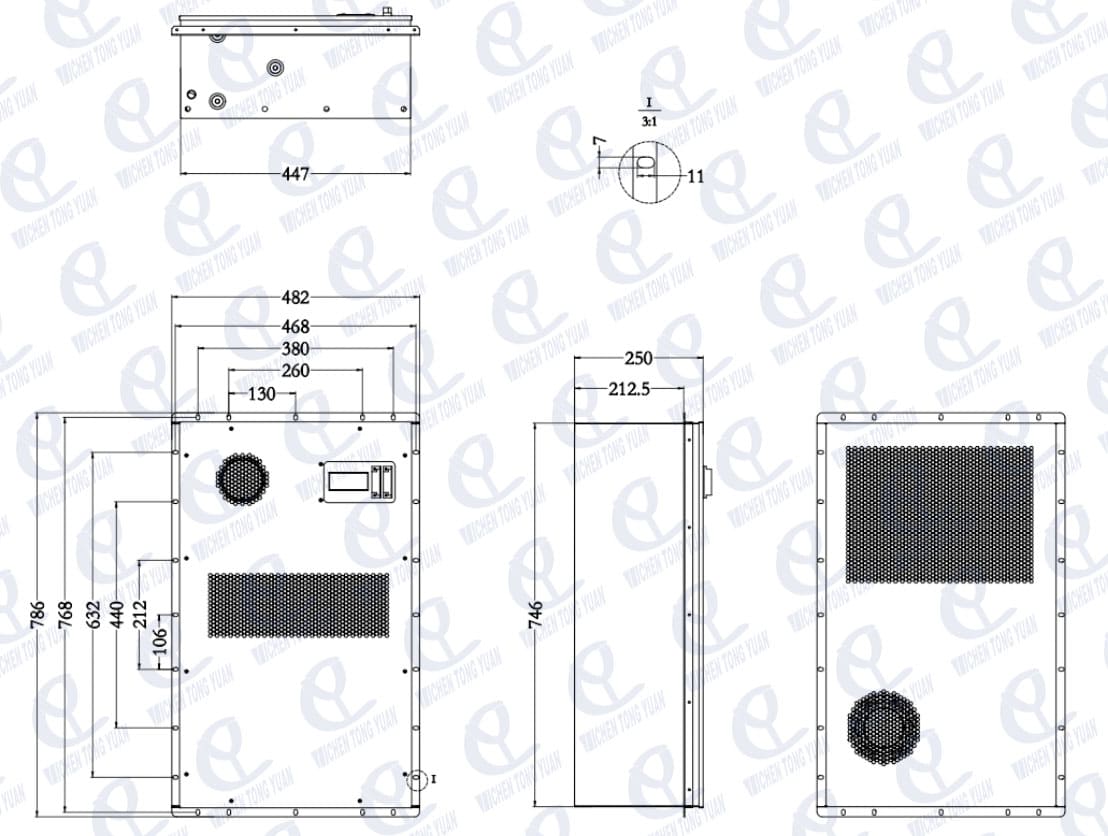

Dimensions | 786×482×250 mm 30.94×18.98×9.84 inch |
Note：@L35/L35 is Internal temperature 35℃, ambient temperature 35℃

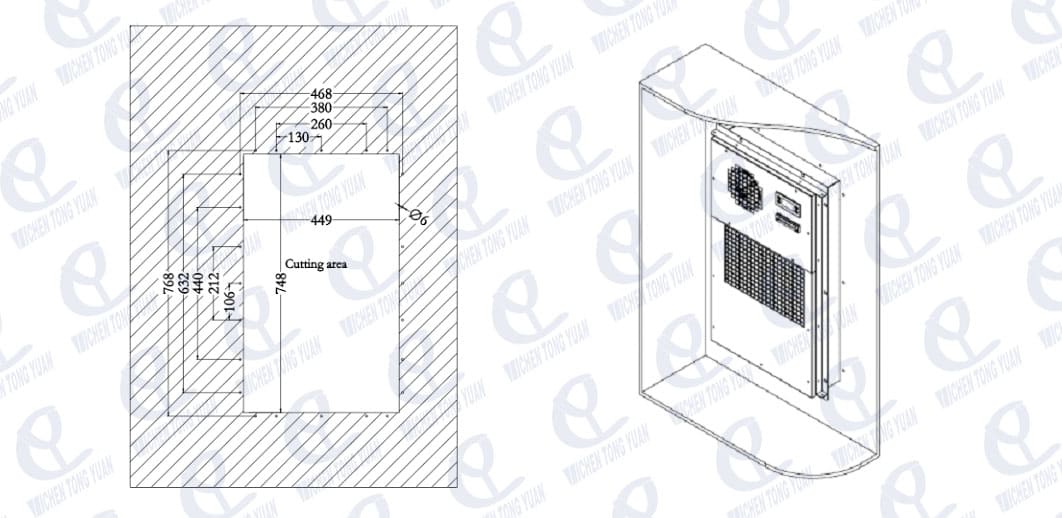

Please design and install the product according to the installation holes drawings below

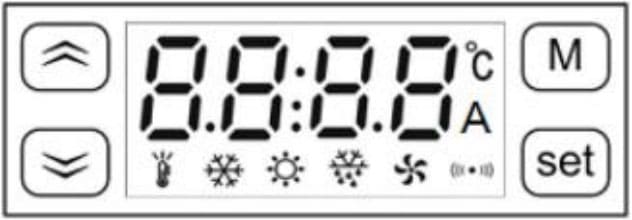

Equipped with a display LED in internal side of product, can display running, alarm information and parameter

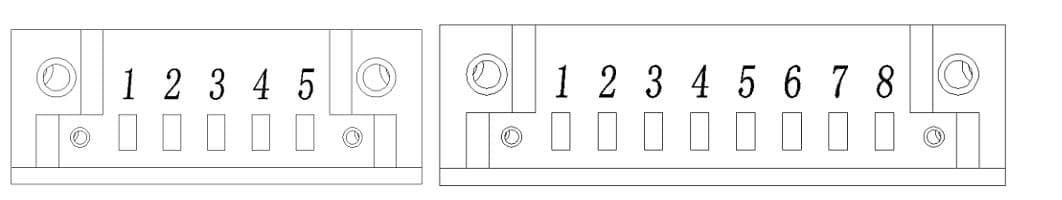

No. | Symbol | Definition | No. | Symbol | Definition |
1 | L | AC power-L line | 1 | * | * |
2 | N | AC power- N line | 2 | * | * |
3 | PE | Protective earthing wire | 3 | * | * |
4 | DC+ | 48V + | 4 | RS485+ | Communication port A+ |
5 | DC- | 48V - | 5 | RS485- | Communication port B- |
6 | ALR-NC | Alarm output-NC | |||
7 | ALR-COM | Alarm output-COM | |||
8 | ALR-NO | Alarm output-NO |
Attention：
▶It is strictly prohibited to turn the air conditioner upside down or lie flat during transportation or handling.
▶Install vertically and make sure the polarity of wiring is correct and firm.
▶To avoid objects blocking the air circulation at the inlet and outlet of internal and external circulation.
▶If the protective cover is added, the vent area of the cover shall not be less than that of the air conditioner.
Options
Model | Dimension (H×W×D) | Voltage | Cooling Capacity(rated)(W&W/K) | Power Consumption (L35/L55)（Watts) | NEMA/IP Grade | Heater (W)(option) | Weight（KG) | Noise (dbA) |
| 27.24×17.91×8.07inch / 692×455×205mm | 1~220VAC±15%/50Hz & 48VDC±20% | 800W&40W/K | 350W&80W | IP55,NEMA 4, NEMA 4X | 500W | 25 | 65 | |
| 34.65×21.30×7.87inch / 880×541×200mm | 1~220VAC±15%/50Hz & 48VDC±20% | 1000W&80W/K | 440W&145W | IP55,NEMA 4, NEMA 4X | 2000W | 35 | 65 | |
| 34.65×21.30×7.87inch /880×541×200mm | 1~220VAC±15%/50Hz & 48VDC±20% | 1500W&80W/K | 600W&70W | IP55,NEMA 4, NEMA 4X | 1000W | 26 | 65 | |
AE25HA4E | 30.94×18.98×9.84inch / 786×482×250mm | 1~220VAC±15%/50Hz & 48VDC±20% | 2500W&100W/K | 850W&200W | IP55,NEMA 4, NEMA 4X | 1000W | 45 | 65 |

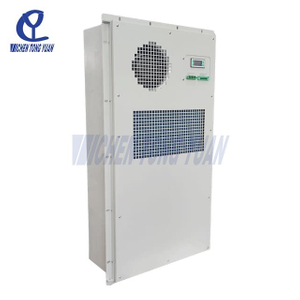

47.72×21.77×10.63inch /1212×553×270mm | 1~220VAC±15%/50Hz & 48VDC±20% | 3000W&120W/K | 1150W&210W | IP55,NEMA 4, NEMA 4X | 2000W | 65 | 65 |
Advantage
As an expert in the air conditioning industry, the Enclosure Combined Air Conditioner & Heat Exchanger is a game-changing solution that integrates two essential functions—cooling and heat exchange—into one compact unit. This system offers numerous advantages, making it a highly efficient and practical choice for various environments. Below are the key advantages of Enclosure Combined Air Conditioner & Heat Exchanger:
The Enclosure Combined Air Conditioner & Heat Exchanger is designed to be compact and housed in a single cabinet, optimizing space. In environments where space is limited, such as telecom cabinets, industrial control rooms, or data centers, this integrated unit saves valuable space compared to using separate systems for air conditioning and heat exchange.
By combining both air conditioning and heat exchange functions into one unit, the Enclosure Combined Air Conditioner & Heat Exchanger helps reduce costs. The initial investment is lower because there’s no need for separate systems, and long-term operational costs are minimized due to the energy-efficient nature of the integrated design. This makes the system especially advantageous for both short-term budgets and long-term savings.
The integration of air conditioning and heat exchange into a single unit simplifies maintenance. Technicians only need to service one system instead of managing multiple systems, which streamlines troubleshooting and upkeep. This reduces downtime and maintenance costs, enhancing overall operational efficiency.
The integration of both functions allows for better control and coordination between air conditioning and heat exchange. This results in more precise temperature management, improving the overall performance of the system. The seamless interaction between the two functions leads to optimized energy use and more consistent climate control.
In summary, the Enclosure Combined Air Conditioner & Heat Exchanger offers a space-saving, cost-effective, and energy-efficient solution. Its versatility, ease of maintenance, and enhanced control make it an ideal choice for a wide range of applications. This integrated system not only reduces operational complexity but also improves system performance, providing a more sustainable solution for maintaining optimal indoor climates.
Application
The Enclosure Combined Air Conditioner & Heat Exchanger is a compact and efficient solution designed to regulate temperatures within enclosures housing sensitive equipment. This advanced unit integrates both cooling and heat exchange functions, making it ideal for various industries and applications.
The Enclosure Combined Air Conditioner & Heat Exchanger provides precise climate control for telecom equipment, preventing overheating and ensuring continuous communication services.
The Enclosure Combined Air Conditioner & Heat Exchanger maintains stable temperatures for servers and IT equipment, preventing downtime due to thermal fluctuations and overheating.
The Enclosure Combined Air Conditioner & Heat Exchanger keeps PLCs and automation equipment cool, protecting them from heat and environmental contaminants like dust, oil mist, and moisture.
The Enclosure Combined Air Conditioner & Heat Exchanger ensures safe operation of batteries and inverters by maintaining optimal temperatures and preventing thermal runaway, which is essential for renewable energy systems like solar and wind power setups.
The Enclosure Combined Air Conditioner & Heat Exchanger protects power conversion equipment like solar inverters and wind turbine controllers. It ensures consistent performance in extreme climates and reduces maintenance needs by providing efficient cooling and heat dissipation.
The Enclosure Combined Air Conditioner & Heat Exchanger is used in railway signal enclosures, traffic control systems, and airport equipment. It helps protect electronics from extreme weather conditions, ensuring reliable operations in harsh environments.
The Enclosure Combined Air Conditioner & Heat Exchanger supports communication and surveillance equipment in rugged and extreme field conditions, ensuring consistent and reliable performance.
The Enclosure Combined Air Conditioner & Heat Exchanger maintains the proper temperature for sensitive diagnostic devices like MRIs and CT scanners, ensuring their precise functionality and sterility.
Energy Efficiency: The Enclosure Combined Air Conditioner & Heat Exchanger reduces energy consumption by utilizing ambient air when conditions permit, optimizing cooling performance.
Compact Design: The compact design of the Enclosure Combined Air Conditioner & Heat Exchanger is ideal for space-constrained enclosures, providing high performance without taking up excessive space.
Enhanced Reliability: The Enclosure Combined Air Conditioner & Heat Exchanger protects sensitive equipment from environmental damage, significantly extending its operational lifespan.
Flexible Operation: The Enclosure Combined Air Conditioner & Heat Exchanger is suitable for both hot and cold climates, offering versatility in a wide range of conditions.
Low Maintenance: The Enclosure Combined Air Conditioner & Heat Exchanger reduces downtime and simplifies maintenance, ensuring continuous and uninterrupted operation.
The Enclosure Combined Air Conditioner & Heat Exchanger is a highly efficient, energy-saving, and versatile solution for precise thermal management. Its ability to integrate cooling and heat exchange into one compact unit makes it ideal for industries requiring reliable equipment protection and optimal climate control. The Enclosure Combined Air Conditioner & Heat Exchanger ensures improved operational efficiency, reduced maintenance costs, and enhanced system reliability across various applications.
