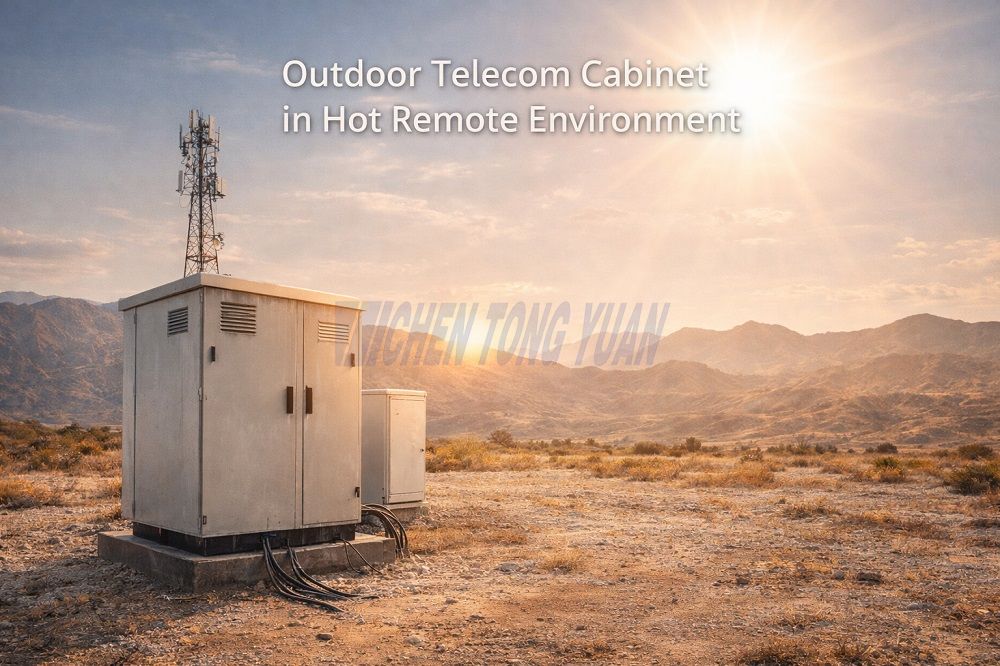

Outdoor telecom cabinets are widely used to house communication equipment in base stations, roadside installations, and remote sites. These cabinets must operate reliably under challenging environmental conditions, including high ambient temperatures, solar radiation, and continuous internal heat generation.
Excessive internal temperature rise can negatively affect equipment stability, shorten component lifespan, and even lead to system failure. Therefore, understanding how to estimate temperature rise inside outdoor telecom cabinets is a critical step during early-stage system design.
This article is intended for preliminary evaluation and technical awareness, helping users quickly assess temperature rise risks in outdoor telecom cabinets without complex thermal simulations.

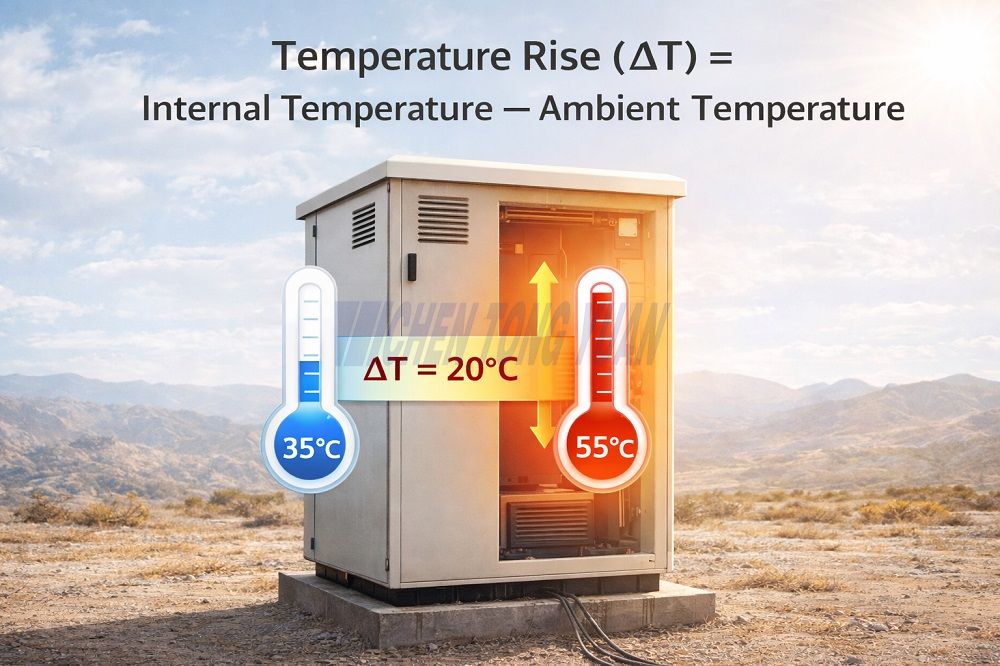

Temperature rise refers to the difference between the air temperature inside the cabinet and the ambient outdoor temperature.
Temperature Rise (ΔT) = Internal Cabinet Temperature − Ambient Temperature
For example, if the outdoor ambient temperature is 35 °C and the internal cabinet temperature reaches 55 °C, the temperature rise is 20 °C.
This value is commonly used to evaluate whether passive cooling is sufficient or if active thermal management solutions are required.

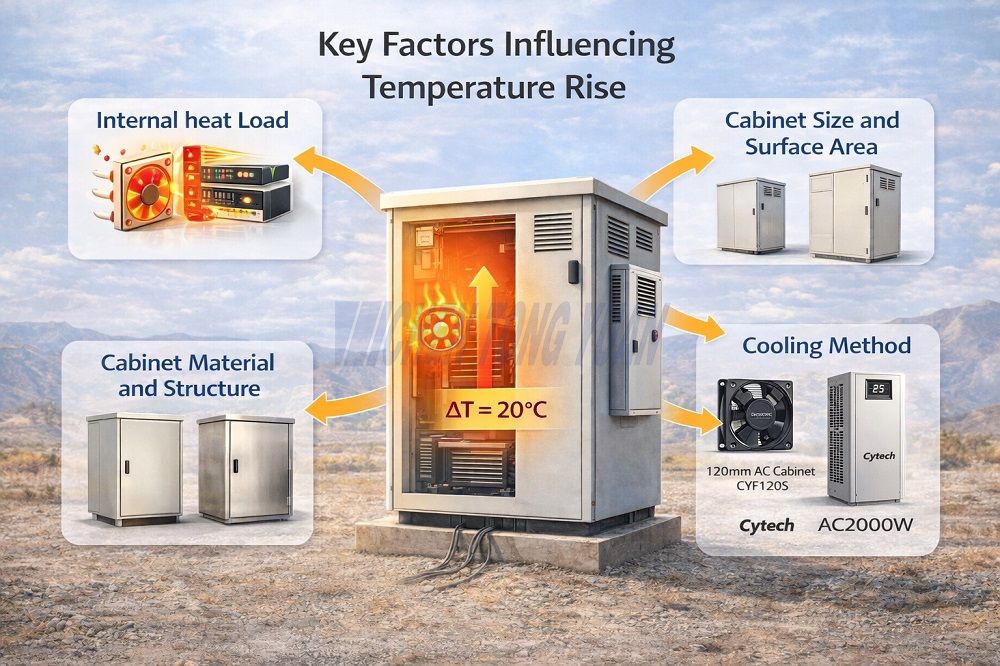

Temperature rise inside an outdoor telecom cabinet is not determined by a single variable. It is the result of several interacting factors.
All electrical equipment generates heat during operation. In outdoor telecom cabinets, most of the electrical power consumed by devices is converted into heat. The higher the total power consumption, the greater the thermal load inside the enclosure.
Cabinet dimensions play an important role in heat dissipation. Larger cabinets provide more surface area for heat transfer to the surrounding environment, while compact cabinets tend to trap heat more easily.
The material of the cabinet affects how efficiently heat is transferred outward. Metal cabinets generally dissipate heat more effectively than insulated or double-wall structures. Surface coatings and wall thickness can also influence thermal performance.
The cooling strategy used inside the cabinet significantly impacts temperature rise. Natural convection, forced ventilation, heat exchangers, and cabinet air conditioners all offer different levels of heat removal capability.
The following method provides a practical and easy-to-understand approach for estimating temperature rise during the planning stage.
First, determine the total power consumption of all equipment installed inside the cabinet. This includes communication devices, power modules, rectifiers, and battery-related components.
The sum of these values represents the total internal heat load, expressed in watts (W).
To simplify the estimation process, the total heat load is divided by the cabinet’s external surface area.
Heat Density = Total Power (W) ÷ Cabinet Surface Area (m²)
Heat density provides a normalized way to compare thermal conditions across cabinets of different sizes.
In practical engineering applications, temperature rise tends to increase as heat density increases. Under natural or limited cooling conditions, this relationship is often close to linear within typical operating ranges.
By referencing a temperature rise trend curve, designers can estimate the expected internal temperature rise based on calculated heat density. This approach is widely used for preliminary assessment before detailed thermal analysis is conducted.
The following table provides a simplified reference for evaluating temperature rise risk levels in outdoor telecom cabinets.
| Heat Density (W/m²) | Estimated Temperature Rise | Evaluation Guidance |
| ≤ 150 | ≤ 10 °C | Natural cooling may be acceptable |
| 150–300 | 10–20 °C | Enhanced ventilation or heat exchange recommended |
| 300–500 | 20–30 °C | Active cooling strongly recommended |
| ≥ 500 | ≥ 30 °C | Cabinet air conditioner required |
This table allows system designers to quickly determine whether additional thermal management solutions should be considered.
While this estimation method is practical and widely used, it does not account for all real-world variables. Factors such as solar radiation, airflow patterns, installation location, and local climate conditions can significantly influence actual cabinet temperatures.
For critical applications, detailed thermal simulations or on-site testing may still be required. However, preliminary estimation remains a valuable tool for early decision-making.
Based on the estimated temperature rise, suitable cooling strategies can be identified:
Low temperature rise: Passive or natural ventilation
Moderate temperature rise: Heat exchanger or forced ventilation
High temperature rise: Cabinet air conditioner
Accurate early estimation helps avoid both over-design and under-performance, ensuring reliable operation and optimized system cost.
Estimating temperature rise inside outdoor telecom cabinets does not require complex calculations or advanced simulation tools at the early design stage.
By understanding internal heat load, cabinet characteristics, and heat density behavior, designers can quickly assess overheating risks and select appropriate thermal management solutions. This approach forms the foundation for stable and long-lasting outdoor telecom systems.
