Australia and New Zealand are home to some of the world's most remote communities, farms, mining operations, and telecommunications sites. Extending the utility grid to these locations is often expensive or simply impossible. As a result, off-grid solar battery systems have become a practical and sustainable solution for providing reliable electricity.
Whether you are powering a rural telecommunications tower, an agricultural irrigation system, a mining monitoring station, or a remote CCTV installation, selecting the right outdoor cabinet is just as important as choosing the solar panels and batteries. This guide explains how to design a complete off-grid solar battery system and why an integrated outdoor cabinet can simplify installation while improving long-term reliability.
An off-grid solar battery system generates, stores, and supplies electricity without relying on the utility grid. During the day, solar panels produce electricity to power connected equipment while charging the battery bank. At night or during cloudy weather, the batteries provide stored energy to keep the system running.
Unlike grid-connected systems, off-grid installations must be carefully designed to ensure continuous operation throughout the year.
Typical applications include:
Remote telecom base stations
Mining camps and monitoring equipment
Agricultural irrigation pumps
Rural CCTV and security systems
Environmental monitoring stations
Bushfire detection systems
Island and coastal infrastructure
Emergency communication systems
A complete system typically includes the following components:
Solar panels convert sunlight into DC electricity. The required capacity depends on daily energy consumption, available roof or ground space, and the average solar irradiance at the installation site.
One of the largest and most trusted PV manufacturers globally.
Popular for:
Farms
Commercial rooftops
Telecom sites
Utility-scale solar farms
One of the world's highest-volume solar panel manufacturers.
Widely used in:
Off-grid systems
Mining
Agriculture
Commercial ESS
Known for high-efficiency monocrystalline modules.
Suitable for:
Residential
Commercial
Battery storage projects
A long-established global brand with a strong presence in Australia and New Zealand.
Common applications:
Homes
Commercial buildings
Remote power systems
Frequently selected for commercial and utility-scale installations.
Ideal for:
Industrial projects
Microgrids
Large battery energy storage systems
The Maximum Power Point Tracking (MPPT) controller optimizes energy harvesting from the solar array and safely charges the batteries under varying weather conditions.
Here are the most recognized MPPT brands in the ANZ market:
Brand | Country | Popularity in Australia & NZ | Typical Applications |
|---|---|---|---|
Victron Energy | Netherlands | ⭐⭐⭐⭐⭐ | Off-grid homes, telecom, marine, RV, agriculture |
OutBack Power | USA | ⭐⭐⭐⭐☆ | Remote power, mining, telecom |
Morningstar | USA | ⭐⭐⭐⭐⭐ | Telecom, industrial, remote monitoring |
Schneider Electric | France | ⭐⭐⭐⭐☆ | Commercial and industrial microgrids |
SMA Solar Technology | Germany | ⭐⭐⭐⭐☆ | Large solar and commercial systems |
EPEVER (EPSolar) | China | ⭐⭐⭐⭐☆ | Cost-effective residential and small commercial projects |
Phocos | Germany | ⭐⭐⭐⭐☆ | Telecom, rural electrification |
MidNite Solar | USA | ⭐⭐⭐⭐☆ | Off-grid residential and industrial |
Renogy | USA | ⭐⭐⭐☆☆ | Small off-grid and DIY systems |
SRNE | China | ⭐⭐⭐⭐☆ | Growing presence in commercial ESS |
Probably the best-known brand for off-grid systems in Australia.
Common products include:
SmartSolar MPPT 150/70
SmartSolar MPPT 250/100
SmartSolar MPPT RS
Typical applications:
Farms
Remote homes
Caravan & RV
Marine
Microgrids
Excellent choice if your cabinet is designed for premium off-grid projects.
A favorite in industrial and telecom applications because of its reliability.
Popular models:
ProStar MPPT
TriStar MPPT 600V
Used in:
Telecom towers
Oil & Gas
Environmental monitoring
Government projects
If your cabinet targets telecom customers, this is one of the best brands to mention.
Very popular for remote power installations.
Often found in:
Mining camps
Rural communities
Agriculture
Off-grid homes
Frequently used in commercial and industrial microgrids.
Suitable for:
Large battery storage systems
Industrial control
Infrastructure projects
One of the most widely used budget-friendly MPPT brands.
Ideal for:
Small off-grid systems
CCTV
Remote monitoring
Water pumping
Lithium iron phosphate (LiFePO₄) batteries are widely used due to their long cycle life, high efficiency, and low maintenance requirements. Battery capacity should be sized to provide sufficient backup power during periods of limited sunlight.
BYD Battery-Box, Pylontech, Dyness, Freedom Won, Deye BOS-G, CATL-based battery systems,SHOTO
If AC loads are required, a pure sine wave inverter converts the battery's DC power into stable AC electricity for equipment such as networking devices, pumps, lighting, or communication systems.
Victron Energy, SMA, Sungrow, Deye, Selectronic (Australia), Schneider Electric
The BMS monitors battery voltage, temperature, charging, and discharging to ensure safe operation and maximize battery lifespan.
The outdoor cabinet houses and protects all electrical equipment from rain, dust, UV radiation, insects, vandalism, and extreme temperatures. An integrated cabinet also simplifies cable management and future maintenance.
Cytech ,specially works for outdoor battery enclosure,outdoor telecom cabinets,Ess cabinet ,and all thermal managment products.Their website : www.cytechorg.com
A typical off-grid power flow follows these steps:
Solar Panels → MPPT Controller → Lithium Battery → Inverter → Electrical Loads
During daylight hours:
Solar panels generate electricity.
The MPPT controller charges the battery.
Excess energy powers connected loads.
During the evening or cloudy conditions:
The battery supplies stored energy.
The inverter provides stable AC output.
Critical equipment continues operating without interruption.
Many traditional installations mount batteries, inverters, and controllers separately. While functional, this approach often increases installation time and creates additional maintenance challenges.
An integrated outdoor cabinet offers several advantages:
Factory-integrated mounting rails, cable routing, and electrical compartments reduce on-site labor and commissioning time.
Outdoor cabinets protect sensitive electrical equipment from:
Heavy rain
Dust and sand
UV exposure
Rodents and insects
Accidental impact
Unauthorized access
Pre-designed cable routing minimizes wiring errors and makes future maintenance easier.
A fully integrated cabinet can be transported as a single unit, reducing installation complexity for remote projects.

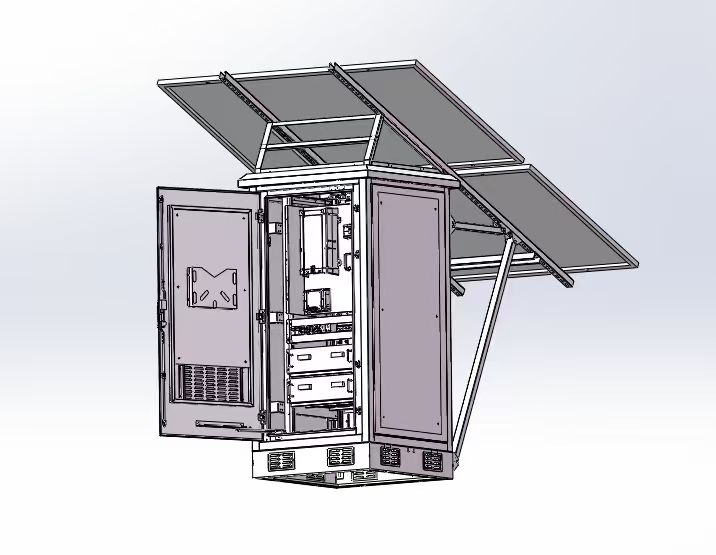

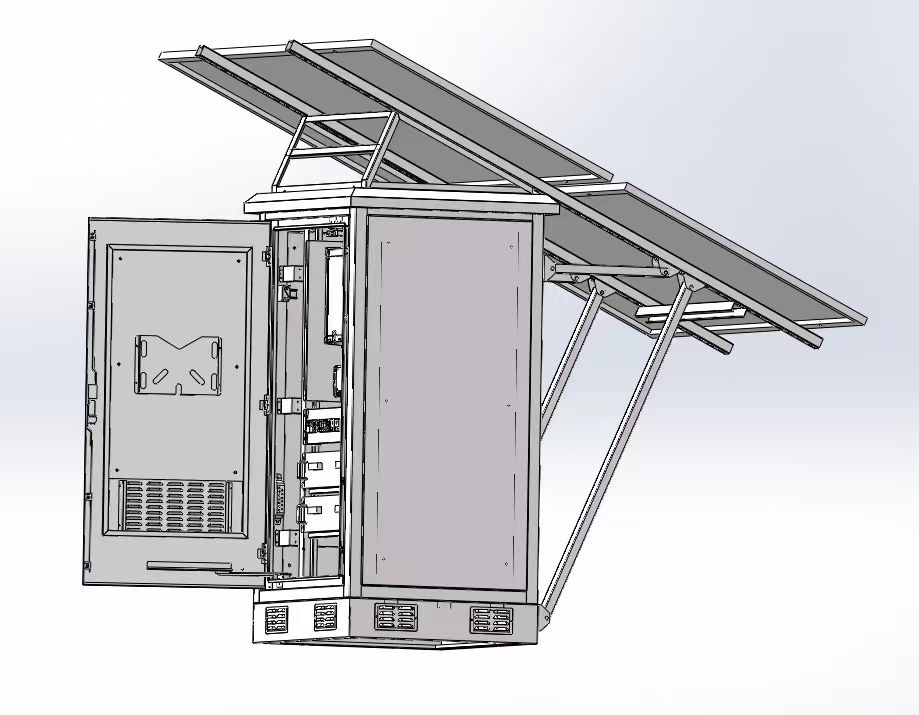

One of the most innovative features of an integrated outdoor cabinet is the roof-mounted solar panel support structure.
Compared with separate ground-mounted arrays, this design offers several benefits:
Saves valuable installation space
Reduces cable length and voltage loss
Speeds up deployment
Improves physical security
Provides partial shading to the cabinet roof, helping reduce internal temperatures
For remote sites where land is limited or installation time is critical, integrating the PV structure with the cabinet can significantly reduce total project costs.
Australia's Outback and many regions of New Zealand experience demanding environmental conditions. High temperatures can reduce battery life and inverter efficiency, while excessive humidity may affect sensitive electronics.
Depending on the installation environment, outdoor cabinets may use:
Filtered fan ventilation
Air-to-air heat exchangers
Thermosyphon cooling systems
Enclosure air conditioners
Smart temperature monitoring and automatic fan control
Selecting the appropriate cooling method helps maintain stable operating temperatures and extends equipment lifespan.
Integrated outdoor solar battery cabinets are widely used in:
Powering remote 4G/5G base stations and microwave communication sites.
Supporting irrigation controllers, electric fencing, weather stations, and livestock monitoring systems.
Providing reliable power for environmental monitoring, communications, and safety equipment.
Serving as distributed battery storage for solar microgrids and community energy projects.
Supplying continuous power to remote CCTV cameras, access control systems, and emergency communication equipment.
When selecting an outdoor cabinet for an off-grid project, consider the following:
Feature | Recommendation |
|---|---|
Protection Rating | IP55, IP65, or IP66 depending on the environment |
Material | Powder-coated galvanized steel or aluminum or stainless steel |
Battery Capacity | Based on daily energy demand and backup time |
Cooling | Fan, heat exchanger, or air conditioner |
Solar Mount | Integrated roof structure or external frame |
Monitoring | Remote monitoring via Ethernet, 4G, or SNMP |
Expandability | Additional battery modules for future growth |
As labor costs continue to rise and renewable energy adoption accelerates, integrated outdoor battery cabinets are becoming the preferred solution for EPC contractors, telecom operators, and renewable energy developers.
Rather than assembling multiple enclosures on-site, complete factory-integrated systems reduce installation time, improve quality control, and simplify maintenance over the life of the project.
A well-designed off-grid solar battery system is more than just solar panels and batteries—it is a complete, integrated power solution. By combining energy storage, power conversion, thermal management, and environmental protection into a single outdoor cabinet, project developers can deploy reliable systems more quickly while reducing long-term operating costs.
Whether your project is located in the Australian Outback, a remote New Zealand farm, or an isolated telecommunications site, an integrated outdoor cabinet provides a dependable foundation for sustainable, off-grid power.
