MPPT for Outdoor Battery Cabinets: The Complete Guide To Efficient Solar Energy Storage

Introduction

Australia is one of the best places in the world to harness solar energy. With abundant sunshine, rising electricity prices, and increasing demand for energy independence, more homeowners, farms, telecom operators, and industrial facilities are investing in off-grid and hybrid solar systems.

However, solar panels alone don't guarantee maximum performance. The real efficiency of a solar power system depends on how effectively the generated energy is captured, managed, and stored. That's where Maximum Power Point Tracking (MPPT) technology comes into play.

When paired with a durable outdoor battery cabinet, an MPPT solar charge controller becomes the heart of a reliable energy storage system. It optimizes charging performance, protects expensive lithium batteries, and ensures dependable operation even in Australia's harsh climate.

In this comprehensive guide, you'll learn how MPPT works, why it matters for outdoor battery cabinets, and how to design a high-performance solar battery storage solution.

What Is MPPT?

MPPT stands for Maximum Power Point Tracking, a technology used in advanced solar charge controllers to extract the highest possible power from photovoltaic (PV) panels.

Every solar panel has a unique operating point where it produces its maximum power output. This point constantly changes throughout the day due to variations in sunlight intensity, temperature, and weather conditions.

An MPPT controller continuously tracks this optimal operating point and adjusts the electrical characteristics of the solar array accordingly. Instead of wasting excess voltage, it converts that energy into additional charging current, allowing batteries to charge faster and more efficiently.

Think of MPPT as a smart transmission in a vehicle. Just as a transmission keeps the engine operating in its most efficient range, an MPPT controller keeps solar panels operating at their maximum power point.

Why Outdoor Battery Cabinets Need MPPT

Outdoor battery cabinets are designed to house lithium batteries, inverters, communication devices, and protection equipment in demanding environments.

Unlike indoor systems, outdoor installations experience:

• High ambient temperatures

• Dust and sand

• Heavy rainfall

• Coastal humidity

• UV radiation

• Seasonal temperature fluctuations

These environmental factors directly affect solar panel performance and battery charging efficiency.

An MPPT controller compensates for changing environmental conditions by continuously optimizing charging parameters, ensuring that batteries receive the maximum available energy throughout the day.

Without MPPT, a significant portion of valuable solar energy may simply be lost.

How MPPT Works

1.The Maximum Power Point Explained

Every solar panel has a voltage-current curve.

Somewhere on this curve lies the Maximum Power Point (MPP)—the point where voltage multiplied by current produces the highest wattage.

For example:

• Solar Panel Voltage: 42V

• Solar Panel Current: 11A

Power Output:

42 × 11 = 462 Watts

If connected directly to a 24V battery without MPPT, much of the available voltage would be wasted.

Instead, the MPPT controller converts the excess voltage into additional charging current while maintaining nearly the same power output.

2.Example Calculation

Without MPPT:

• Battery Voltage: 24V

• Current: 11A

Power Delivered:

24 × 11 = 264W

With MPPT:

• Battery Voltage: 24V

• Current: 18.5A

Power Delivered:

24 × 18.5 = 444W

That's approximately 68% more usable charging power in this simplified example.

MPPT vs PWM: Which Is Better?

Understanding PWM Controllers

PWM (Pulse Width Modulation) controllers are simpler and less expensive.

Instead of optimizing voltage, PWM controllers simply match the solar panel voltage to the battery voltage.

While suitable for small systems, they waste considerable energy in larger installations.

Comparison Table

For most outdoor battery cabinets, MPPT is the preferred choice because the efficiency gains quickly outweigh the higher upfront cost.

Benefits of MPPT for Outdoor Battery Cabinets

✅Higher Solar Energy Harvest

MPPT controllers maximize the energy collected from solar panels throughout the day.

This means:

• Faster battery charging

• Longer backup time

• Better system utilization

✅Improved Battery Life

Lithium batteries perform best when charged using accurate voltage and current profiles.

MPPT controllers provide stable charging, helping reduce battery stress and extending service life.

✅Better Performance in Australia's Climate

Australia experiences:

• Intense sunlight

• High summer temperatures

• Variable weather

MPPT automatically adjusts charging conditions to compensate for these changes.

✅Reduced System Losses

Higher panel voltages allow installers to reduce cable current.

Lower current means:

• Smaller cable sizes

• Reduced voltage drop

• Lower installation costs

Outdoor Battery Cabinets: More Than Just a Box

✅Protection Against the Elements

A quality outdoor battery cabinet protects valuable equipment from:

• Rain

• Dust

• UV exposure

• Salt spray

• Rodents

• Insects

For Australian installations, an IP65-rated cabinet is commonly recommended.

✅Integrated Thermal Management

High temperatures can significantly reduce battery lifespan.

Modern outdoor battery cabinets often include:

• Cooling fans

• Air-to-air heat exchangers

• Cabinet air conditioners

• Smart temperature monitoring

Combined with MPPT charging, thermal management helps maintain optimal battery performance year-round.

Applications of MPPT Outdoor Battery Cabinets

✅Remote Homes

Off-grid homes rely entirely on solar energy.

MPPT maximizes available power while outdoor cabinets protect batteries from harsh weather.

✅Agricultural Properties

Australian farms often require reliable electricity for:

• Water pumps

• Irrigation systems

• Electric fencing

• Remote monitoring

Outdoor battery cabinets with MPPT controllers provide dependable power in isolated locations.

✅Telecommunications

Remote telecom towers depend on continuous operation.

MPPT ensures maximum charging efficiency while outdoor enclosures protect sensitive electronics.

✅Mining Operations

Mining sites frequently operate in extremely hot and dusty environments.

Outdoor battery cabinets equipped with advanced cooling and MPPT technology improve reliability and reduce maintenance.

✅Commercial Battery Storage

Businesses increasingly use battery storage to reduce peak electricity costs.

MPPT maximizes solar generation, helping improve overall return on investment.

How to Choose the Right MPPT Controller

1.Match Battery Voltage

Choose a controller compatible with:

• 12V

• 24V

• 48V

• High-voltage lithium systems

2.Check Solar Input Voltage

Always ensure the controller's maximum PV input voltage exceeds the combined voltage of the solar array.

3.Consider Future Expansion

Select an MPPT controller with sufficient capacity for future solar panel additions.

4.Remote Monitoring Features

Modern controllers offer:

• Bluetooth

• Wi-Fi

• RS485

• CAN Bus

• Ethernet

These features simplify maintenance and system diagnostics.

Design Tips for Outdoor Battery Cabinet Systems

✅Use High-Quality Lithium Batteries

LiFePO₄ batteries provide:

• Longer lifespan

• Improved safety

• Better temperature tolerance

✅Provide Adequate Ventilation

Even efficient systems generate heat.

Proper airflow improves battery longevity.

✅Install Surge Protection

Outdoor installations should include surge protection against lightning and electrical disturbances.

✅Choose Corrosion-Resistant Cabinets

For coastal Australia, aluminum or galvanized steel cabinets with durable powder coating offer excellent corrosion resistance.

Common Mistakes to Avoid

❌Choosing PWM for Large Systems

The initial savings often result in lower long-term efficiency.

❌Ignoring Temperature Control

Heat is one of the biggest enemies of lithium batteries.

❌Undersized MPPT Controllers

Controllers should always be sized for expected solar array expansion.

❌Poor Cable Design

Voltage drop can reduce charging efficiency.

Always follow recommended cable sizing guidelines.

Future Trends

The next generation of MPPT technology includes:

• AI-based charging algorithms

• Cloud monitoring

• Predictive maintenance

• Smart battery integration

• Grid-interactive energy management

Outdoor battery cabinets are also becoming increasingly intelligent, integrating cooling systems, fire protection, battery management systems (BMS), and remote diagnostics into a single enclosure.

Conclusion

As solar adoption continues to grow across Australia, system efficiency has become just as important as system capacity. An MPPT solar charge controller ensures that every ray of sunlight is converted into the maximum possible charging power, while a robust outdoor battery cabinet safeguards valuable batteries and electrical equipment against heat, dust, moisture, and other environmental challenges.

Together, these two components form the foundation of a reliable, high-performance solar energy storage system. Whether you're powering a remote farm, a telecommunications site, a mining operation, or a residential off-grid home, investing in MPPT technology and a well-designed outdoor battery cabinet can significantly improve energy efficiency, extend battery life, and reduce long-term operating costs.

By choosing quality components and following best installation practices, you'll build a solar storage solution that's ready to perform reliably for years—even in Australia's toughest conditions.

Frequently Asked Questions

1.Can MPPT work with lithium batteries?

Yes. MPPT controllers are ideal for LiFePO₄ batteries and support precise charging profiles.

2.Is MPPT worth the extra cost?

Absolutely. Higher charging efficiency often delivers a rapid return on investment, especially in medium and large solar systems.

3.Do outdoor battery cabinets require cooling?

In hot climates such as Australia, active cooling or heat exchange is strongly recommended to maintain battery performance and extend lifespan.

4.Can MPPT improve solar performance on cloudy days?

Yes. While solar output naturally decreases under cloud cover, MPPT controllers continuously track the maximum available power, allowing them to harvest more energy than conventional PWM controllers.

5.Can you Recommded well known MPPT?

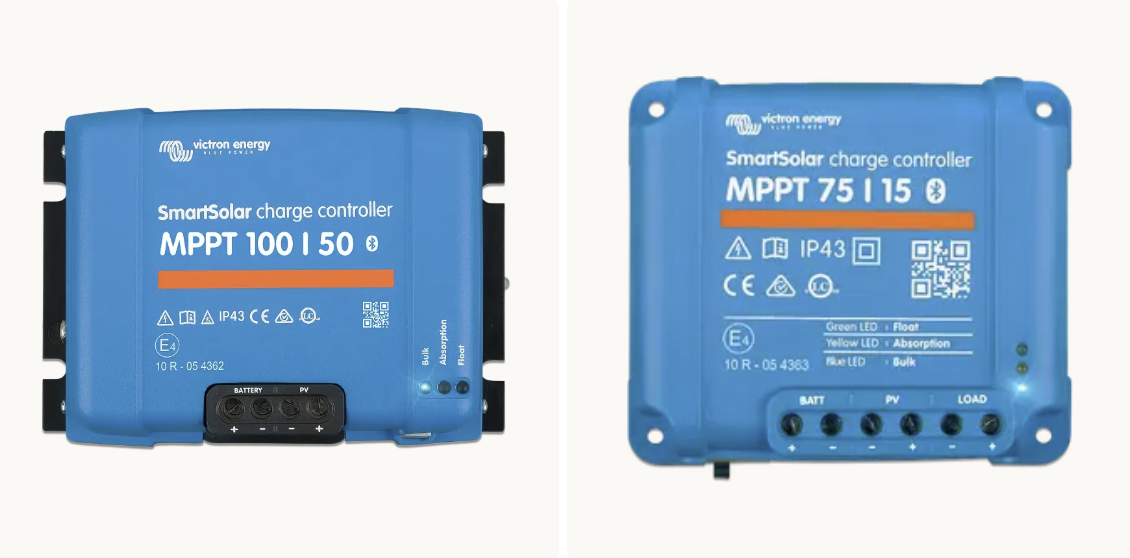

Yes.Victron Energy is a world-leading premium brand for off-grid energy and energy storage systems, with exceptionally high industry recognition in the fields of inverters, MPPT, energy management, and system integration.Their Website https://www.victronenergy.com/

6.Can you Recommend reliable outdoor battery cabinet manufacturer?

Yes.Cytech is professional factory for outdoor battery cabinet and have own thermal management product .Their Website https://www.cytechorg.com/
