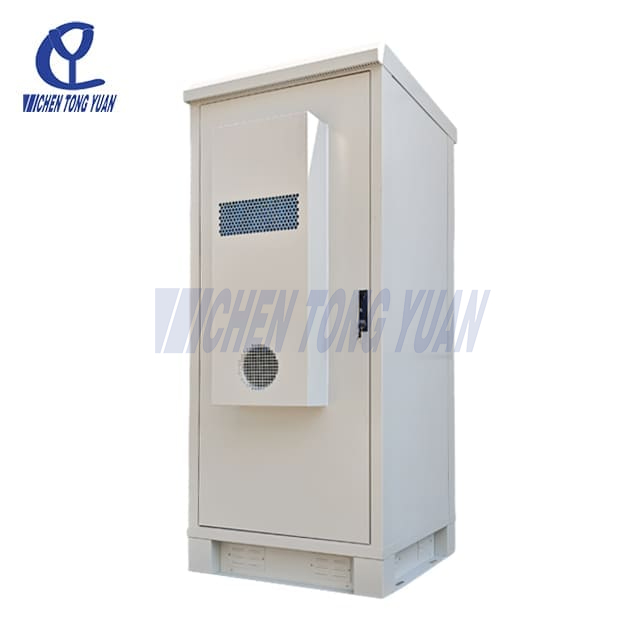

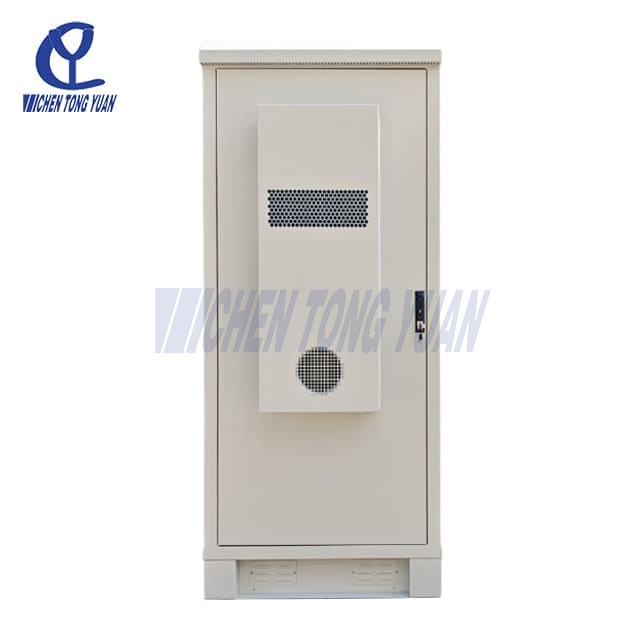

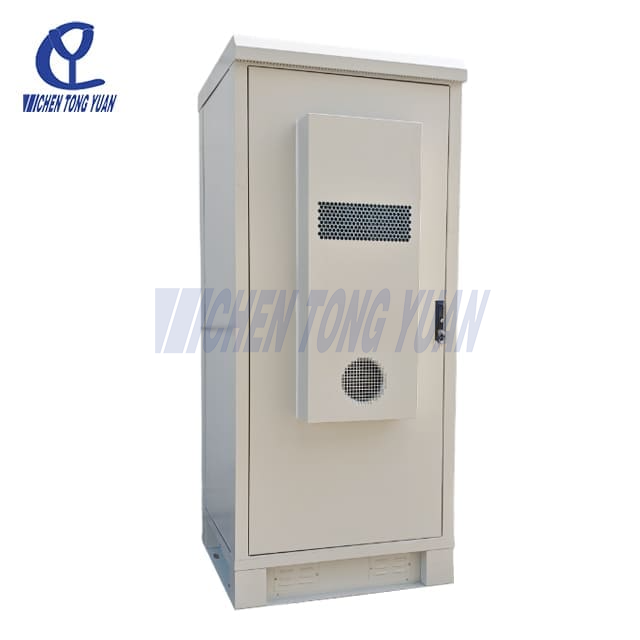

CY2100900900 42U
CY TECH
Telecom
IP 65, NEMA 4X
Floor Mount
1500W/5100BTU
19inch, 23inch
800mm/32inch
42U
Product Description
| Name | Technical Parameter |

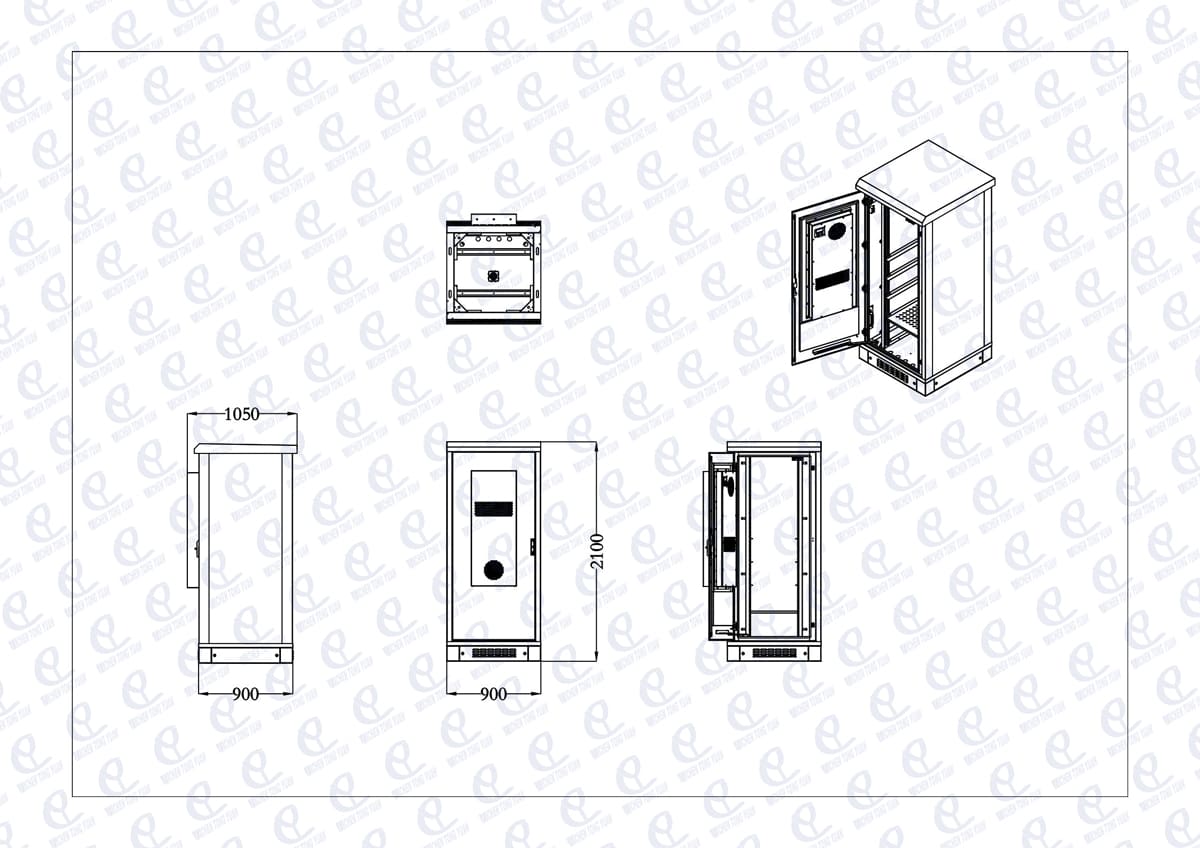

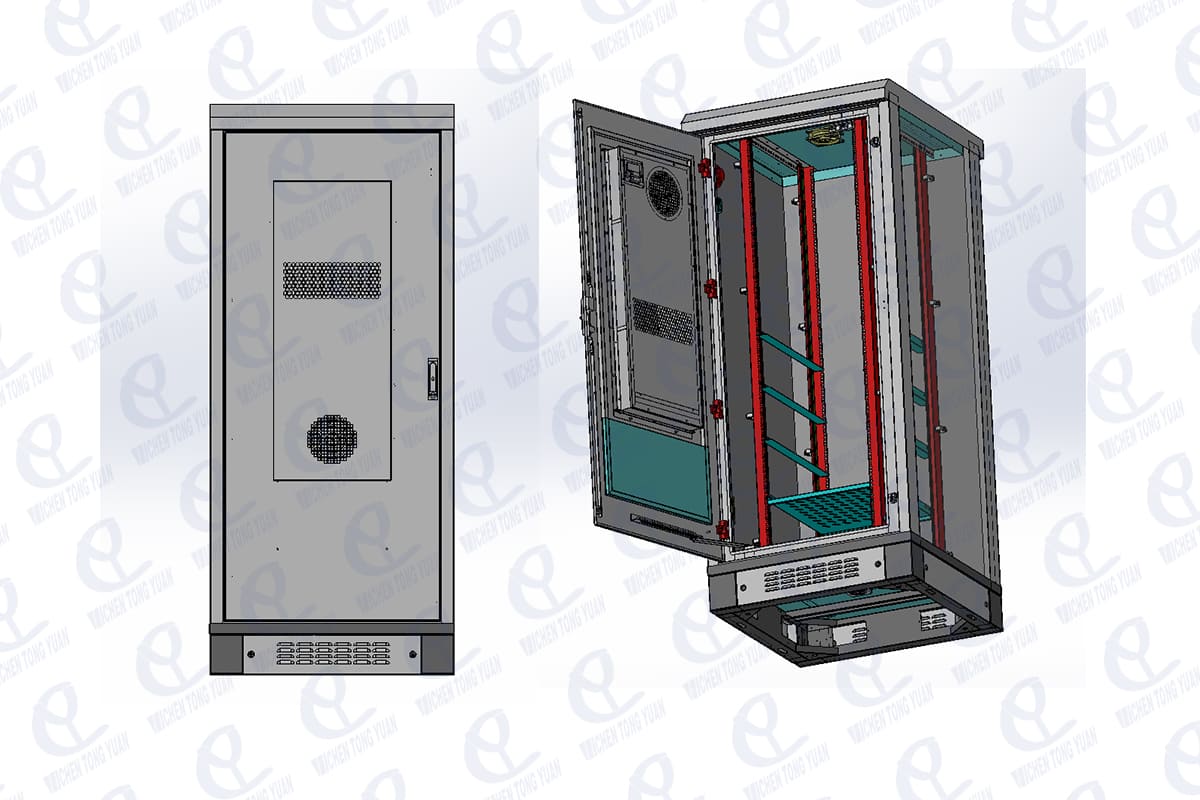

| External Size | H*W*D=2100*900*900mm ( 82.68 × 35.43 × 35.43 inch) , 42U space |
| Cabinet layout | One compartment, for installing 19inch/23inch equipment |
| Cabinet material | Double layer Galvanized steel with EPS thermal isolation |
| Security design | Embedded door, embedded hinges, 4-point security lock |
| Protection level | IP55 / IP65 / NEMA 4 / NEMA 4X |
| Color | RAL7035 |
| Climate control | AC220V air conditioner and DC48V fan |
| Lighting system | Door sensor+48V LED light(door open, the LED will light on; door closed, the LED will go out.) |
| Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
| Working temperature | - 40 ℃ ~ + 55 ℃ |
| Working Humidity | ≤ 95% (+ 40 ℃) |
| Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Note：The air conditioner can also choose AC 110V 60HZ or DC 48V, and the fan can also choose AC 110V or 220V.
Includes: locking door with air conditioner,19inch rackmount rails,floormount plinth or hardwares.
| Name | Quantity | Unit | Technical parameter |
| Outdoor Cabinet Telecom 42U | 1 | set | H*W*D=2100*900*900mm ( 82.68 × 35.43 × 35.43 inch) |
| Heat Exchanger | 1 | set | Power supply:DC48V Cooling capacity:150W/K |
| Fan | 1 | set | DC48V with temperature control |
| LED Lamp | 1 | set | DC48V,used for illumination in the cabinet |
| Grounding bus bar | 1 | set | 200A Copper bar(13 point M6 and 2 point M8) |
| Equipment supporting | 1 | set | |
| Package | 1 | set | Wooden box , wooden pallet+stretch film or wooden pallet +wooden box |
The following accessories are available for optional ordering.
| Item | Technical parameter | Picture |
| EMS | 19 inch environment monitoring unit 1U; DC48V, support RS232,RS485, SNMP,TCP/IP communication protocol. 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor.
Environmental monitoring system is a comprehensive network of devices and technologies designed to track and assess various aspects of the environment. This system plays a crucial role in gathering data to understand environmental conditions, detect changes, and manage natural resources. |
|
| Fire Extinguisher | Hot aerosol fire extinguishing device is a new, efficient and environment-friendly fire fighting product with Vanguard International Semiconductor Corporation level, which is the first in China. It is a high-tech green fire protection product that benefits humanity, born under the background of the International Montreal Agreement and China's increased awareness of environmental protection. It is an ideal substitute for halon fire extinguishing devices and is suitable for relatively enclosed spaces such as distribution cabinets.
Electric or hot start: Hot start temperature ≥170℃; Electric start temperature ≥700mA. |
|
| Wiring type PDU | AC input：63A/2P*2 with interlock； AC/SPD：30-60KA/2P*1； AC output：63A/1P*1,32A/1P*1，16A/1P*3，3 holes Maintenance socket*1 |
|
| Integrated PDU | Can be customized according to customer requirements. |
|
| Rectifier | AC220V/110V transfer to DC48V, Connect the battery as a backup power,also can be customized according to customer requirements. |
|
ODF | Optic Distribution Frame (ODF) is a critical component in a fiber optic network infrastructure. It serves as a centralized point for the termination, organization, and distribution of fiber optic cables. The primary purpose of a distribution frame is to facilitate efficient and organized connectivity, making it easier to manage, troubleshoot, and expand the network.
Function: 1)Termination Point; 2)Organization and Management; 3)Splicing Trays; 4)Labeling and Documentation; 5)Security and Protection; 6)Scalability;
Can be customized according to customer requirements. |
|
| Backup battery | Can be lithium battery or lead acid battery. |
Flexibility
◆ Material can be Constructed of durable, galvanized steel,sandwich panel ,stainless steel SS304,aluminium.
◆ Compartments can be configured to support between 1-4 bays,multi-compartments supported.

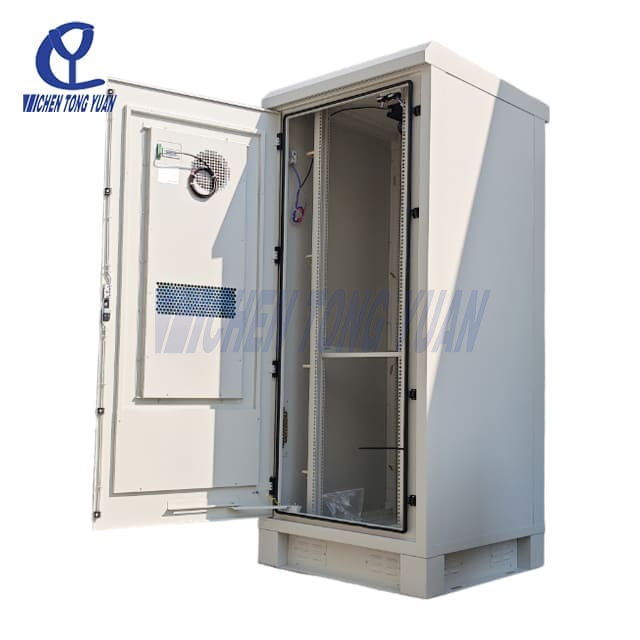

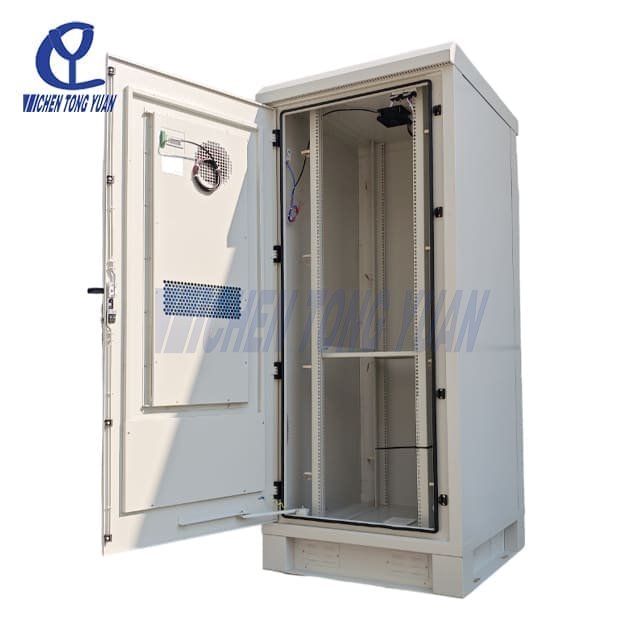

◆ Front and rear access doors allow technicians access to equipment storage areas and cable routing.
◆ Side doors design also ok.
◆ Customized color ,standard color RAL7035,other color acceptable based on appointed color code.
◆ Wide range of thermal management options for even the most demanding heat dissipation needs allows for optimization of thermal performance and reduced energy costs.
◆ The cooling solution adopted compressed air conditioner ,TEC (Thermoelectric Cooler),Hex (heat exchanger),Fans,Combined AC&HEX.
◆ Offers a wide range of configuration options providing maximum flexibility including PDU, rectifier ,integrated AC-DC power systems.
◆ Silk screening Logo and environmental friendly painting artwork for outdoor telecom cabinet.
◆ Offers all kinds environment sensors,including doors,smoke,temperature sensors.
◆ Remote monitoring system supported, communication protocol is RS232/RS485/SNMP.
Options
CYTECH's More Options Telecommunication Cabinet offers versatile and secure connectivity solutions. Engineered with modular design, advanced cooling and new integration for optimal network performance.
Model | Height | Type | Rate | Color | H*W*D | Climate control | Application |
| CY700650650 | 12U | Floor stand | IP55 | Grey | 700x650x650mm / 27.56 x 25.59 x 25.59inch | DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY800650650 | Floor stand | IP55 | Grey | 800x650x650mm / 31.50 x 25.59 x 25.59inch | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
CY1050650650 | Floor stand | IP55 | Grey | 1050x650x650mm / 41.34 x 25.59 x 25.59inch | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
CY1400800800 | Floor stand | IP55 | Grey | 1400x800x800mm / 55.12 x 31.50 x 31.50inch | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
CY1600800800 | Floor stand | IP55 | Grey | 1600x800x800mm / 63.00 x 31.50 x 31.50inch | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
CY1700750750 | Floor stand | IP55 | Grey | 1700x700x700mm / 66.93 x 27.56 x 27.56inch | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
| CY2100900900 | Floor stand | IP55 | Grey | 2100x900x900mm / 82.68 x 35.43 x 35.43inch | Air conditioner 1500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
Other size to be continued ,please send us inquiry for futher discussion
Name | Specification |
Air conditioner | AC220V 50HZ |
AC220V 60HZ | |
AC110V 60HZ / DC48V | |
Cooling capacity from 300W-5000W | |
DC48V | |
40W/K-200W/K | |
AC220V 50HZ & DC48V | |
1500W&80W/K | |
DC48V | |
200W-1200W | |
AC220V 50HZ | |
AC220V 60HZ | |
AC110V 60HZ / DC48V |
How to order
◆ Acceptable temperature range for your equipment;
◆ Heat load of equipment;
◆ The highest local ambient temperature；
◆ Noise Level；
◆ Future Expansion；
By carefully considering these factors, you can select a cabinet climate control system that meets the specific needs of your equipment and environmental conditions.
- When possible, install the telecommunications cabinet (telecom enclosure) in a cool, well-ventilated area with minimal dust and contaminants. This clean environment helps maintain equipment performance and longevity.
- After cable routing is complete, seal all gaps around the cables using the provided sealant. This prevents moisture ingress and condensation that could adversely affect the performance of your outdoor 19 rack cabinet equipment.
- Ensure the grounding bar of the cabinet is connected to a reliable earth ground. The grounding resistance should be maintained below 10 Ω to protect the equipment from electrical faults and surges.
- Clean the ventilation grilles and dust screens on a monthly basis. Adjust the cleaning frequency based on environmental conditions to ensure optimal airflow and cooling efficiency for your outdoor cabinet telecom systems.
Outdoor cabinet telecom solutions, including models like the Outdoor Cabinet Telecom 42U and outdoor 19 rack cabinet, are designed to withstand harsh weather conditions while protecting sensitive telecommunications equipment. These durable telecom enclosures are essential in various industries:
- These cabinets house critical network components such as switches, routers, and power supplies, ensuring reliable operation in challenging outdoor settings.
- They support wireless networks and broadband CATV systems by securely distributing cable television signals and high-speed internet connectivity.
- Outdoor telecommunication cabinets are crucial for base station infrastructure, providing continuous and stable connectivity for mobile networks.
- Often used in solar power projects, these cabinets protect equipment related to solar energy generation and distribution, making them ideal for remote or off-grid locations.
- By housing critical equipment at wireless cell sites, these telecom enclosures ensure robust mobile communication networks and seamless data transmission.
- These cabinets securely house equipment responsible for data transmission between network nodes, ensuring efficient communication.
- Employed in outdoor data centers, these cabinets offer a weatherproof solution for protecting networking equipment and servers.
- Deployed along highways, railways, and airports, outdoor telecom cabinets support essential communication systems that enhance operational safety and efficiency.
