42u -2 bay
cytech
Telecom, Battery, Integrated
IP 55, IP 65, NEMA 4
Floor Mount
2000W/6800BTU
19inch, 23inch
800mm/32inch
42U
Video

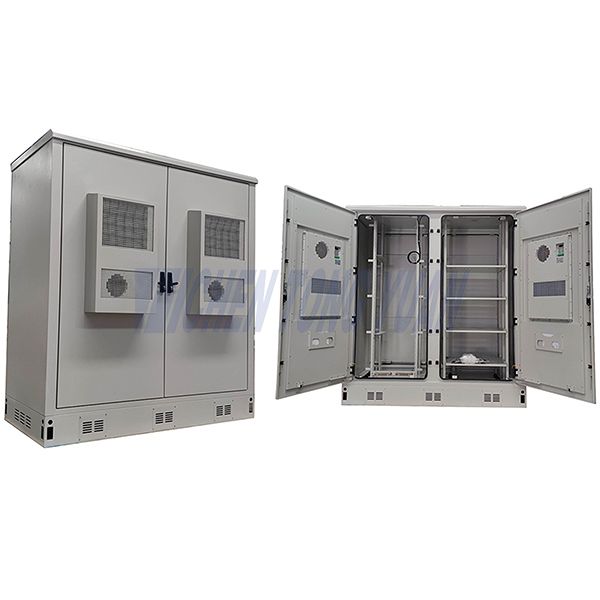

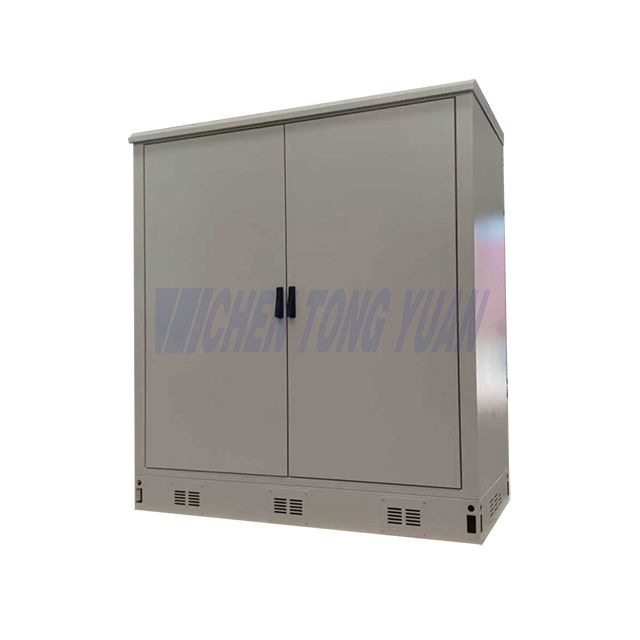

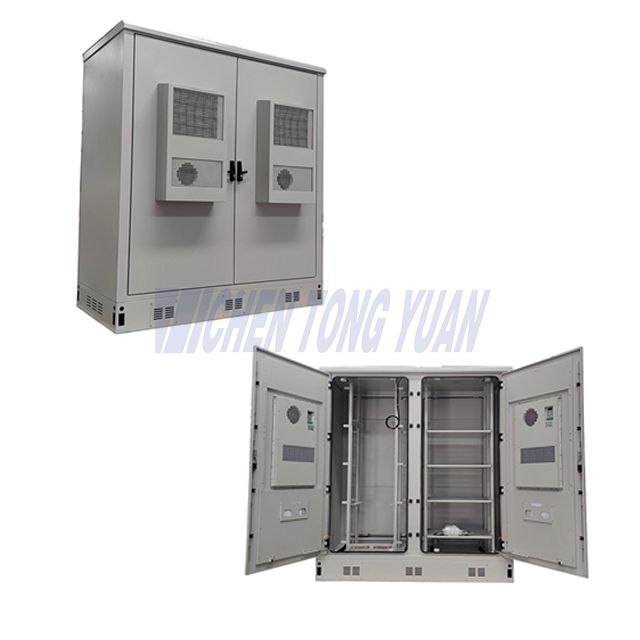

Outdoor Telecom Cabinet 42U 2 Bay refers to a weatherproof enclosure designed for outdoor telecommunications equipment.
An outdoor telecom cabinet 42U 2 bay is a robust, weather-resistant enclosure designed to house telecom and network equipment in outdoor environments. “42U” indicates the standard rack height, providing space for up to 42 rack units of equipment, while “2 bay” means the cabinet is divided into two separate compartments for flexible equipment layout, power segregation, or thermal management. It is commonly used for base stations, fiber networks, and outdoor communication infrastructure.
▼Watch the video of multiple bays telecom cabinet (expandable version) ▼
Product Description
42U Standard Rack Capacity
Supports up to 42U of 19-inch rack-mounted telecom equipment.
2 Bay Compartment Design
Dual-bay structure allows separation of equipment, power systems, or batteries for better organization and safety.
Outdoor Weatherproof Construction
Designed for harsh environments with protection against rain, dust, and corrosion (typically IP55 or higher).
High-Strength Cabinet Material
Made from galvanized steel or aluminum with anti-corrosion powder coating for long service life.
Flexible Cooling Options
Compatible with air conditioners, heat exchangers, fans, or passive ventilation to ensure stable internal temperature.
Secure Access Control
Multi-point locking system with optional electronic locks to protect critical equipment.
Efficient Cable Management
Bottom or rear cable entry with sealing grommets for clean and safe cable routing.
Easy Installation & Maintenance

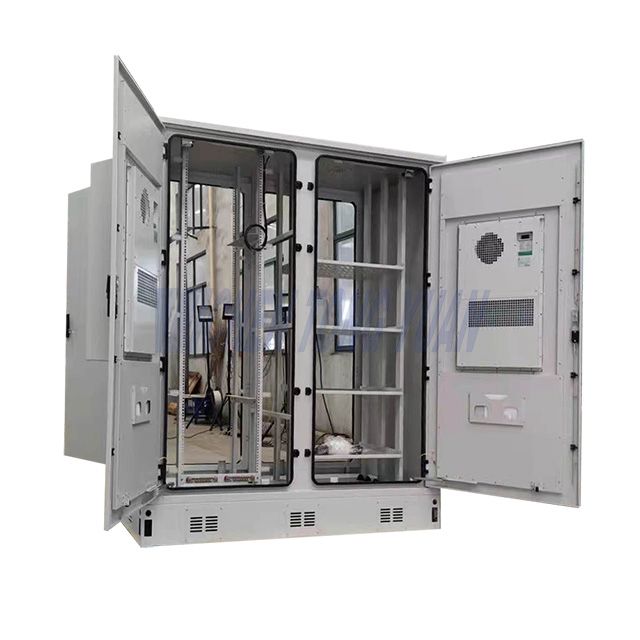

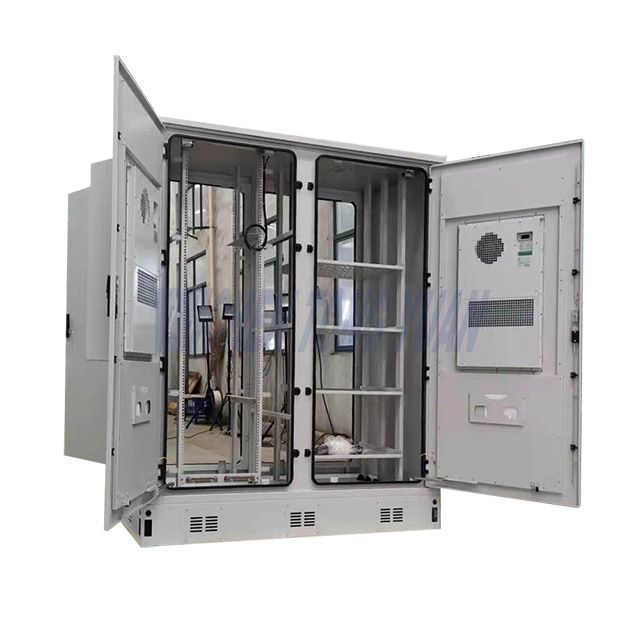

Front and rear access doors (4 doors) with modular internal design for convenient installation and servicing.
Support for Power & Monitoring Systems
Space reserved for power distribution units, batteries, and intelligent monitoring devices.
Item | Name | Technical parameter |
1 | Rack Size | 42U Standard Rack Capacity |
2 | Cabinet layout | 2 Bay Compartment Design |
3 | Cabinet material | Galvanized steel/Aluminium /SS304 |
4 | Security design Mounting Type | Embedded door, embedded hinges, 4-point security lock Floor |
5 | Protection level | IP55 |
6 | Color | RAL7035 light grey/custom |
7 | Cooling Options POWER Supply | 2000w Air conditioner *1pcs each bay AC220V OR DC48V |
8 | Lighting system | Door sensor+48V LED light |
9 | Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
10 | Working temperature | - 40 ℃ ~ + 55 ℃ |
11 | Working Humidity | ≤ 95% (+ 40 ℃) |
12 | Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Includes: locking door with air conditioner,19inch rackmount rails,floormount plinth or hardwares.
No | Name | Quantity | Unit | Technical parameter |
1 | Outdoor telecom cabinet | 1 | set | 1)External Size:H*W*D=2100*900*900mm |
2 | Air conditioner | 2 | set | Power supply:AC 220V 50/60Hz Cooling capacity:2000W |
3 | Fan | 2 | set | DC48V with temperature control |
4 | LED Lamp | 2 | set | DC48V,used for illumination in the cabinet |
5 | Grounding bus bar | 2 | set | 200A Copper bar(13 point M6 and 2 point M8) |
6 | Equipment supporting | 3 | set | |
7 | Package | 1 | set | Wooden box , wooden pallet+stretch film or wooden pallet +wooden box |
The following accessories are available for optional ordering.
Item | Technical parameter | Picture |
EMS | 19 inch environment monitoring unit 1U; DC48V, support RS232,RS485, SNMP,TCP/IP communication protocol. 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor. Environmental monitoring system is a comprehensive network of devices and technologies designed to track and assess various aspects of the environment. This system plays a crucial role in gathering data to understand environmental conditions, detect changes, and manage natural resources. | |
Fire Extinguisher | Hot aerosol fire extinguishing device is a new, efficient and environment-friendly fire fighting product with Vanguard International Semiconductor Corporation level, which is the first in China. It is a high-tech green fire protection product that benefits humanity, born under the background of the International Montreal Agreement and China's increased awareness of environmental protection. It is an ideal substitute for halon fire extinguishing devices and is suitable for relatively enclosed spaces such as distribution cabinets.
Electric or hot start: Hot start temperature ≥170℃; Electric start temperature ≥700mA. | |
Wiring type PDU | AC input：63A/2P*2 with interlock； AC/SPD：30-60KA/2P*1； AC output：63A/1P*1,32A/1P*1，16A/1P*3，3 holes Maintenance socket*1 | |
Integrated PDU | Can be customized according to customer requirements. | |
Rectifier | AC220V/110V transfer to DC48V, Connect the battery as a backup power,also can be customized according to customer requirements. | |
ODF | Optic Distribution Frame (ODF) is a critical component in a fiber optic network infrastructure. It serves as a centralized point for the termination, organization, and distribution of fiber optic cables. The primary purpose of a distribution frame is to facilitate efficient and organized connectivity, making it easier to manage, troubleshoot, and expand the network.
Function: 1)Termination Point; 2)Organization and Management; 3)Splicing Trays; 4)Labeling and Documentation; 5)Security and Protection; 6)Scalability;
Can be customized according to customer requirements. | |
Backup battery | Can be lithium battery or lead acid battery. |
◆Acceptable temperature range for your equipment;
◆Heat load of equipment;
◆The highest local ambient temperature；
◆Noise Level；
◆Future Expansion；
By carefully considering these factors, you can select a cabinet climate control system that meets the specific needs of your equipment and environmental conditions.
(1)If conditions permit, try to install the outdoor telecom cabinet in a cool and ventilated place with clean surrounding environment .
(2)After the cable construction is completed, please make sure to seal the gap around the cable with the sealant provided randomly in the cabinet, so as to avoid the condensation caused by moisture entering and affecting the use performance of the equipment.
(3)The grounding bar of the cabinet must be reliably grounded, and the grounding resistance to the ground shall be less than 10 Ω .
(4)Please clean the ventilation and dust screen in the cabinet regularly every month. According to the actual situation, the period of cleaning dust screen can be shortened or extended properly.
Options
Model | Space | IP rate | Color | Dimension | Thermal Management |
| CY700650650 | 12U | IP55 | RAL7035 light grey | 700x650x650mm / 27.56 x 25.59 x 25.59inch | DC48V fan |
CY800650650 | IP55 | RAL7035 light grey | 800x650x650mm / 31.50 x 25.59 x 25.59inch | Air conditioner 500W DC48V fan | |
CY1050650650 | IP55 | RAL7035 light grey | 1050x650x650mm / 41.34 x 25.59 x 25.59inch | Air conditioner 500W DC48V fan | |
CY1400800800 | IP55 | RAL7035 light grey | 1400x800x800mm / 55.12 x 31.50 x 31.50inch | Air conditioner 500W DC48V fan | |
CY1600800800 | IP55 | RAL7035 light grey | 1600x800x800mm / 63.00 x 31.50 x 31.50inch | Air conditioner 1000W DC48V fan | |
CY1700750750 | IP55 | RAL7035 light grey | 1700x700x700mm / 66.93 x 27.56 x 27.56inch | Air conditioner 1000W DC48V fan | |
| CY2100900900 | IP55 | RAL7035 light grey | 2100x900x900mm / 82.68 x 35.43 x 35.43inch | Air conditioner 1500W DC48V fan |
To be continued
Name | Specification |
AC220V 50HZ | |
AC220V 60HZ | |
AC110V 60HZ / DC48V | |
Cooling capacity from 300W-5000W | |
DC48V | |
40W/K-200W/K | |
AC220V 50HZ & DC48V | |
1500W&80W/K | |
DC48V | |
200W-1200W | |
AC220V 50HZ | |
AC220V 60HZ | |
AC110V 60HZ / DC48V |
Application
CYTECH telecom enclosures are designed for a wide range of industrial and communication applications, including:
5G and 4G LTE base stations
Fiber optic network hubs (FTTH / FTTx)
Wireless and broadband systems
IoT and smart city infrastructure
Power and energy monitoring systems
Outdoor network access points
Each application benefits from CYTECH’s precision engineering, ensuring reliability and performance even under extreme weather conditions.
Advantages&Why?
All-Weather Reliability: Designed to operate in temperatures from -40°C to +55°C
Enhanced Security: Strong locking system and reinforced doors
Customizable Layouts: Tailored to your telecom network design
Energy Efficiency: Advanced cooling systems reduce power consumption
Global Compatibility: Certified for international telecom standards
CYTECH offers OEM & ODM services to match your project’s exact needs:
Custom sizes and rack layouts
Optional solar panel integration for hybrid sites
Dual cooling systems for critical operations
Integrated battery and power management units
(1)Material can be Constructed of durable, galvanized steel,sandwich panel ,stainless steel SS304,aluminium.
(2)Compartments can be configured to support between 1-4 bays,multi-compartments supported.
(3)Front and rear access doors allow technicians access to equipment storage areas and cable routing.
(4)Side doors design also ok.
(5)Customized color ,standard color RAL7035,other color acceptable based on appointed color code.
(6)Wide range of thermal management options for even the most demanding heat dissipation needs allows for optimization of thermal performance and reduced energy costs.The cooling solution adopted compressed air conditioner ,TEC (Thermoelectric Cooler),Hex (heat exchanger),Fans,Hybrid Air Conditioner with Heat Exchangers
(7)Offers a wide range of configuration options providing maximum flexibility including PDU, rectifier ,integrated AC-DC power systems.
(8)Silk screening Logo and environmental friendly painting artwork for outdoor telecom cabinet.
(9)Offers all kinds environment sensors,including doors,smoke,temperature sensors.
(10)Remote monitoring system supported, communication protocol is RS232/RS485/SNMP.
◆With decades years of experience in the telecom infrastructure industry, CYTECH has become a trusted supplier for outdoor enclosures used in communication, power, and energy sectors.
◆We supply global telecom operators, system integrators, and network solution providers with high-quality, customized cabinets designed for performance and reliability.
Looking for a reliable china telecom enclosure manufacturer?
CYTECH provides full customization, fast delivery, and professional support for your telecom projects.
Contact us today to discuss your requirements or request a free quotation.
