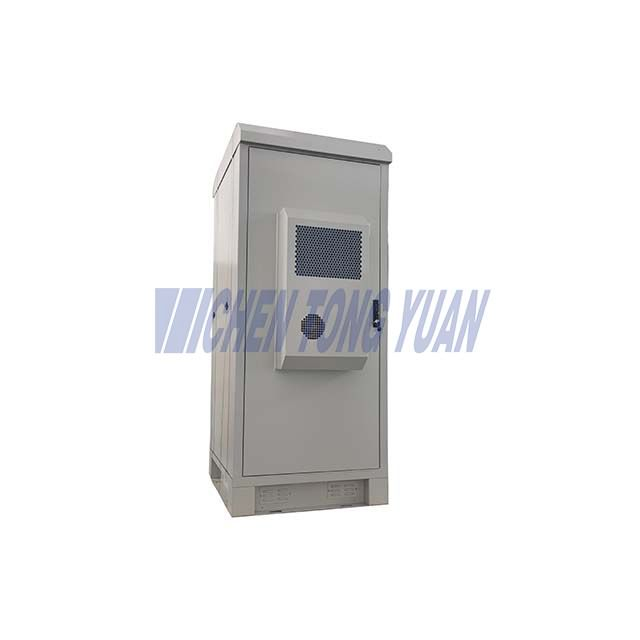

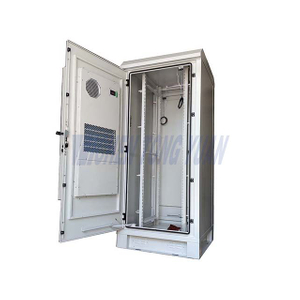

CY2100900900
cytech
Telecom
IP 55, NEMA 4
Floor Mount
1500W/5100BTU
19inch, 23inch
800mm/32inch
42U
Product Description
| Name | Technical Parameter |
| External Size | H*W*D=2100*900*900mm ( 83 x 35 x 35 inch) |
| Cabinet layout | One compartment, for installing 19inch/23inch equipment |
| Cabinet material | Double layer Galvanized steel with EPS thermal isolation |
| Security design | Embedded door, embedded hinges, 4-point security lock |
| Protection level | IP55,NEMA 4 or 4X |
| Color | RAL7035 |
| Climate control | AC220V air conditioner and DC48V fan |
| Lighting system | Door sensor+48V LED light(door open, the LED will light on; door closed, the LED will go out.) |
| Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
| Working temperature | - 40 ℃ ~ + 55 ℃ |
| Working Humidity | ≤ 95% (+ 40 ℃) |
| Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Note：The air conditioner can also choose AC 110V 60HZ or DC 48V, and the fan can also choose AC 110V or 220V.
Includes: locking door with air conditioner,19inch rackmount rails,floormount plinth or hardwares.
| Name | Quantity | Unit | Technical parameter |
| Outdoor telecom cabinet | 1 | set | External Size:H*W*D=2100*900*900mm ( 83 x 35 x 35 inch) |
| Air conditioner | 1 | set | Power supply:AC 220V 50/60Hz Cooling capacity:1500W |
| Fan | 1 | set | DC48V with temperature control |
| LED Lamp | 1 | set | DC48V,used for illumination in the cabinet |
| Grounding bus bar | 1 | set | 200A Copper bar(13 point M6 and 2 point M8) |
| Equipment supporting | 1 | set | |
| Package | 1 | set | Wooden box , wooden pallet+stretch film or wooden pallet +wooden box |
The following accessories are available for optional ordering.
| Item | Technical parameter | Picture |
| EMS | 19 inch environment monitoring unit 1U; DC48V, support RS232,RS485, SNMP,TCP/IP communication protocol. 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor.
Environmental monitoring system is a comprehensive network of devices and technologies designed to track and assess various aspects of the environment. This system plays a crucial role in gathering data to understand environmental conditions, detect changes, and manage natural resources. |
|
| Fire Extinguisher | Hot aerosol fire extinguishing device is a new, efficient and environment-friendly fire fighting product with Vanguard International Semiconductor Corporation level, which is the first in China. It is a high-tech green fire protection product that benefits humanity, born under the background of the International Montreal Agreement and China's increased awareness of environmental protection. It is an ideal substitute for halon fire extinguishing devices and is suitable for relatively enclosed spaces such as distribution cabinets.
Electric or hot start: Hot start temperature ≥170℃; Electric start temperature ≥700mA. |
|
| Wiring type PDU | AC input：63A/2P*2 with interlock； AC/SPD：30-60KA/2P*1； AC output：63A/1P*1,32A/1P*1，16A/1P*3，3 holes Maintenance socket*1 |
|
| Integrated PDU | Can be customized according to customer requirements. |
|
| Rectifier | AC220V/110V transfer to DC48V, Connect the battery as a backup power,also can be customized according to customer requirements. |
|
ODF | Optic Distribution Frame (ODF) is a critical component in a fiber optic network infrastructure. It serves as a centralized point for the termination, organization, and distribution of fiber optic cables. The primary purpose of a distribution frame is to facilitate efficient and organized connectivity, making it easier to manage, troubleshoot, and expand the network.
Function: 1)Termination Point; 2)Organization and Management; 3)Splicing Trays; 4)Labeling and Documentation; 5)Security and Protection; 6)Scalability;
Can be customized according to customer requirements. |
|
| Backup battery | Can be lithium battery or lead acid battery. |
Flexibility
(1)Material can be Constructed of durable, galvanized steel,sandwich panel ,stainless steel SS304,aluminium.
(2)Compartments can be configured to support between 1-4 bays,multi-compartments supported.
(3)Front and rear access doors allow technicians access to equipment storage areas and cable routing.
(4)Side doors design also ok.
(5)Customized color ,standard color RAL7035,other color acceptable based on appointed color code.
(6)Wide range of thermal management options for even the most demanding heat dissipation needs allows for optimization of thermal performance and reduced energy costs.
(7)The cooling solution adopted compressed air conditioner ,TEC (Thermoelectric Cooler),Hex (heat exchanger),Fans,Combined AC&HEX.
(8)Offers a wide range of configuration options providing maximum flexibility including PDU, rectifier ,integrated AC-DC power systems.
(9)Silk screening Logo and environmental friendly painting artwork for outdoor telecom cabinet.
(10)Offers all kinds environment sensors,including doors,smoke,temperature sensors.
(11)Remote monitoring system supported, communication protocol is RS232/RS485/SNMP.
Options
Model | Height | Type | Rate | Color | H*W*D | Climate control | Application |
CY800650650 | 14U | Floor stand | IP55 | Grey | 800mm*650mm*650mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1050650650 | 18U | Floor stand | IP55 | Grey | 1050mm*650mm*650mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1400800800 | 26U | Floor stand | IP55 | Grey | 1400mm*800mm*800mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1600800800 | 30U | Floor stand | IP55 | Grey | 1600mm*800mm*800mm | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1700750750 | 32U | Floor stand | IP55 | Grey | 1700mm*700mm*700mm | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY2100900900 | 42U | Floor stand | IP55 | Grey | 2100mm*900mm*900mm | Air conditioner 1500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
Other size to be continued ,please send us inquiry for futher discussion
Name | Specification |
Air conditioner | AC220V 50HZ |
AC220V 60HZ | |
AC110V 60HZ / DC48V | |
Cooling capacity from 300W-5000W | |
Heat exchanger | DC48V |
40W/K-200W/K | |
Combined air conditioner & heat exchanger | AC220V 50HZ & DC48V |
1500W&80W/K | |
TEC | DC48V |
200W-1200W | |
Fan | AC220V 50HZ |
AC220V 60HZ | |
AC110V 60HZ / DC48V |
How to order
◆acceptable temperature range for your equipment;
◆Heat load of equipment;
◆The highest local ambient temperature；
◆Noise Level；
◆Future Expansion；
By carefully considering these factors, you can select a cabinet climate control system that meets the specific needs of your equipment and environmental conditions.
(1)If conditions permit, try to install the outdoor telecom cabinet in a cool and ventilated place with clean surrounding environment .
(2)After the cable construction is completed, please make sure to seal the gap around the cable with the sealant provided randomly in the cabinet, so as to avoid the condensation caused by moisture entering and affecting the use performance of the equipment.
(3)The grounding bar of the cabinet must be reliably grounded, and the grounding resistance to the ground shall be less than 10 Ω .
(4)Please clean the ventilation and dust screen in the cabinet regularly every month. According to the actual situation, the period of cleaning dust screen can be shortened or extended properly.
Outdoor telecom cabinets are designed to withstand harsh weather conditions and provide protection for telecommunication equipment and infrastructure in outdoor environments. These cabinets are essential for various applications, including:
(1)Telecommunication: Outdoor telecom cabinets are widely used in the telecommunications industry to house and protect network components such as switches, routers, power supplies, and other sensitive electronics.
(2)Wireless/Broadband CATV: These cabinets are used in wireless and broadband CATV networks to support the distribution of cable television signals and high-speed internet connectivity. Base Station: Outdoor telecom cabinets play a crucial role in supporting base stations for wireless communication networks, ensuring reliable connectivity and coverage.
(3)Solar-based Installations: Outdoor telecom cabinets are often deployed in solar-based installations to house and protect equipment related to solar power generation and distribution.
(4)Wireless Cell Sites and Switches: These cabinets are used in wireless cell sites and switches to support mobile communication networks and ensure seamless connectivity.
(5)Transmission Terminals: Outdoor telecom cabinets are utilized in transmission terminals to house equipment for transmitting and receiving data, ensuring efficient communication between different network nodes.
(6)Data center: These cabinets can be found in outdoor data centers, providing protection and housing for critical networking equipment and servers.
(7)Transportation: Outdoor telecom cabinets are used in transportation infrastructure, such as highways, railways, and airports, to support communication systems and ensure smooth operations.
These are just a few examples of the diverse applications of outdoor telecom cabinets. Their versatility, durability, and weatherproof design make them an essential component in various industries and sectors.
