A cabinet air conditioner is an essential thermal management solution for outdoor telecom cabinets, electrical enclosures, industrial control cabinets, and energy storage systems. By removing excess heat and maintaining a stable internal temperature, it helps protect sensitive electronic and electrical equipment from overheating.
However, even a high-quality cabinet air conditioner requires regular inspection and cleaning. Dust, dirt, moisture, salt, insects, and other contaminants can accumulate on heat exchangers, filters, fans, and drainage components. Without proper maintenance, cooling performance may gradually decrease, energy consumption may increase, and unexpected equipment failures may occur.
In this guide, we explain how to maintain and clean a cabinet air conditioner and provide a practical preventive maintenance checklist for long-term reliable operation.
Outdoor enclosure air conditioners often operate continuously in demanding environments. Unlike conventional indoor air conditioners, they may be exposed to dust, rain, high humidity, salt spray, insects, and large temperature variations.
Over time, contamination can reduce the efficiency of the cooling system.
Regular cabinet air conditioner maintenance can help:
Maintain stable cooling performance
Improve heat dissipation
Reduce unnecessary energy consumption
Prevent airflow restrictions
Reduce compressor and fan operating stress
Identify potential faults at an early stage
Prevent water leakage and drainage problems
Reduce unexpected downtime
Extend the service life of the cooling system
Protect equipment inside the cabinet
For telecom and energy storage applications, reliable thermal management is particularly important because excessive internal temperature can negatively affect the performance and service life of batteries, power supplies, rectifiers, communication equipment, and other electronic components.
The required maintenance frequency depends on the installation environment and operating conditions.
A general recommendation is:
Operating Environment | Recommended Inspection & Cleaning |
|---|---|
Clean indoor environment | Every 6–12 months |
Normal outdoor environment | Every 3–6 months |
Dusty industrial environment | Every 1–3 months |
Coastal or high-humidity environment | Every 1–3 months |
Desert, mining, or construction environment | Monthly or as required |
These intervals are general guidelines. The actual maintenance schedule should be determined according to the manufacturer's recommendations, operating hours, ambient conditions, and the amount of dust or contamination present.
For critical telecom infrastructure and energy storage installations, regular visual inspection is recommended even when the air conditioner appears to be operating normally.
Safety should always be the first priority.
Before performing any cleaning or maintenance, disconnect and isolate the power supply according to the manufacturer's service instructions.
For a DC cabinet air conditioner, isolate the DC power source. For an AC-powered unit, disconnect the corresponding AC power supply.
Make sure the equipment is de-energized before opening the service area or cleaning electrical components.
Never use water or cleaning solutions directly on energized electrical components.

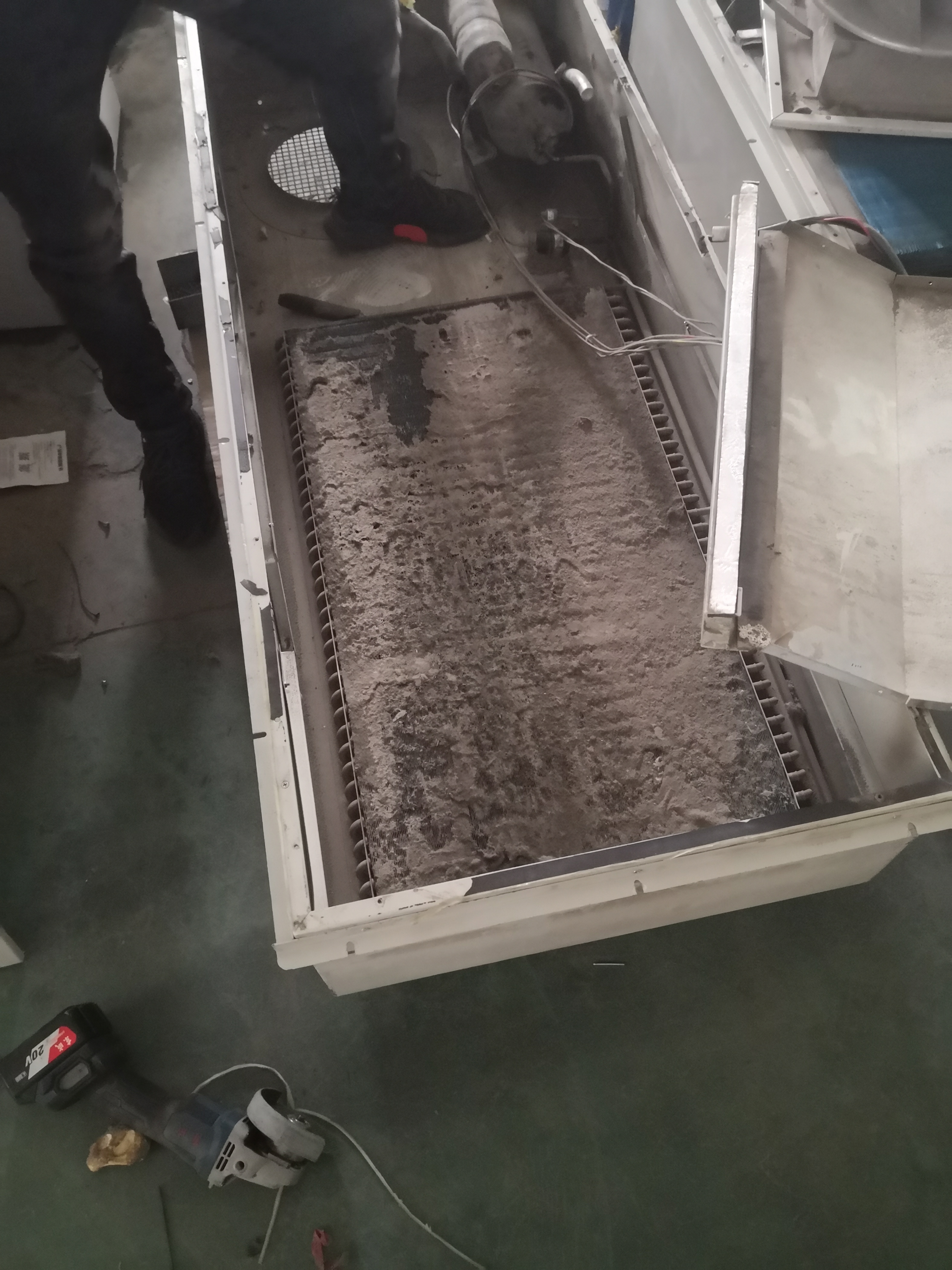

The condenser is one of the most important components to inspect during cabinet air conditioner cleaning.
The condenser releases heat from the refrigeration system into the surrounding environment. When dust or debris accumulates on the condenser coil, airflow and heat transfer can be restricted.
A dirty condenser may result in:
Reduced cooling capacity
Higher condensing temperature
Increased compressor load
Longer compressor operating time
Higher energy consumption
High-pressure protection or shutdown in severe cases

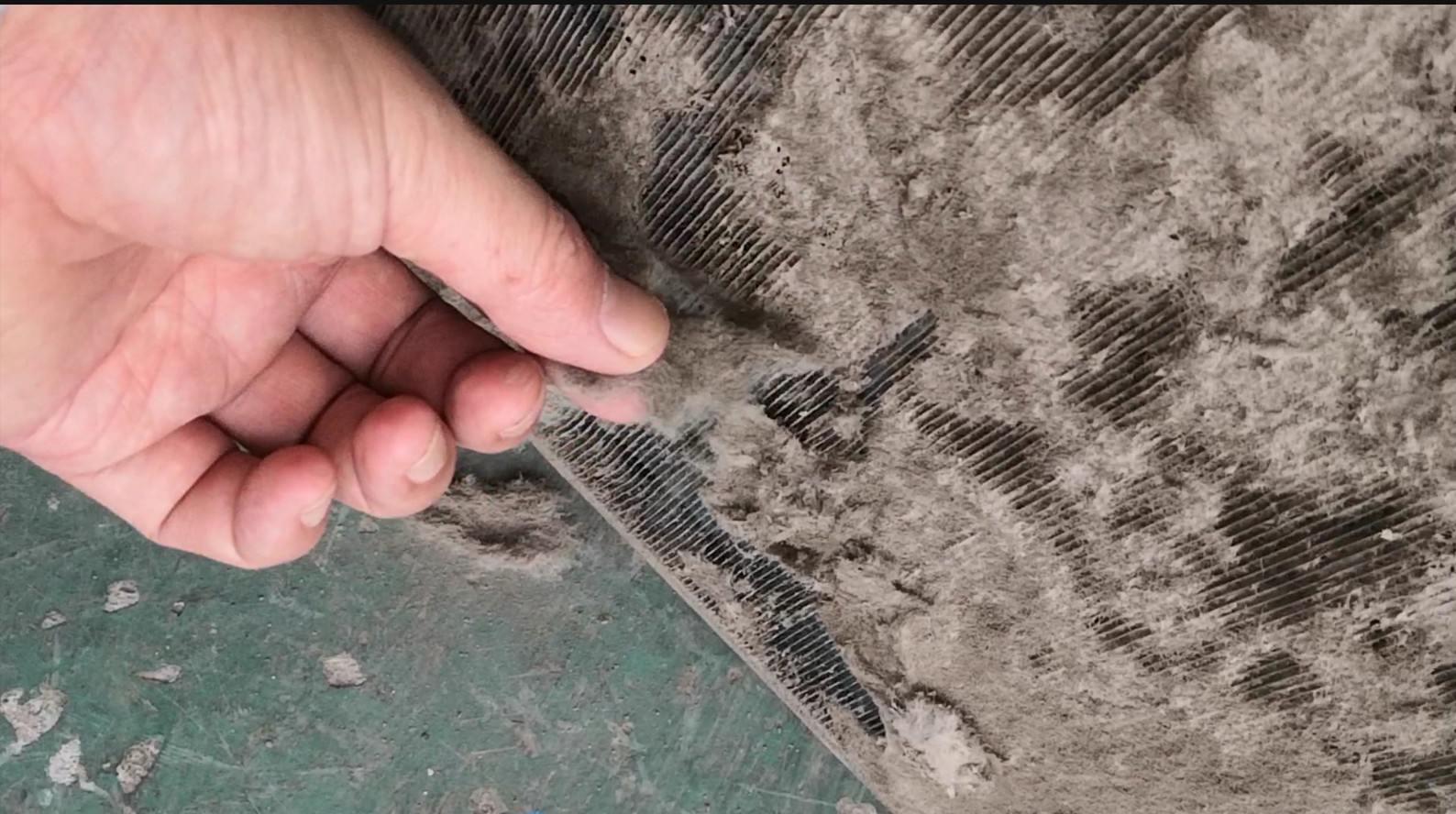

First, visually inspect the condenser for dust, leaves, insects, dirt, and other debris.
For light contamination, use a soft brush or suitable low-pressure compressed air to remove accumulated dust.
For heavier contamination, follow the air conditioner manufacturer's recommended coil-cleaning procedure.
Take care not to bend or damage the aluminum fins. Deformed fins can restrict airflow and reduce heat transfer performance.

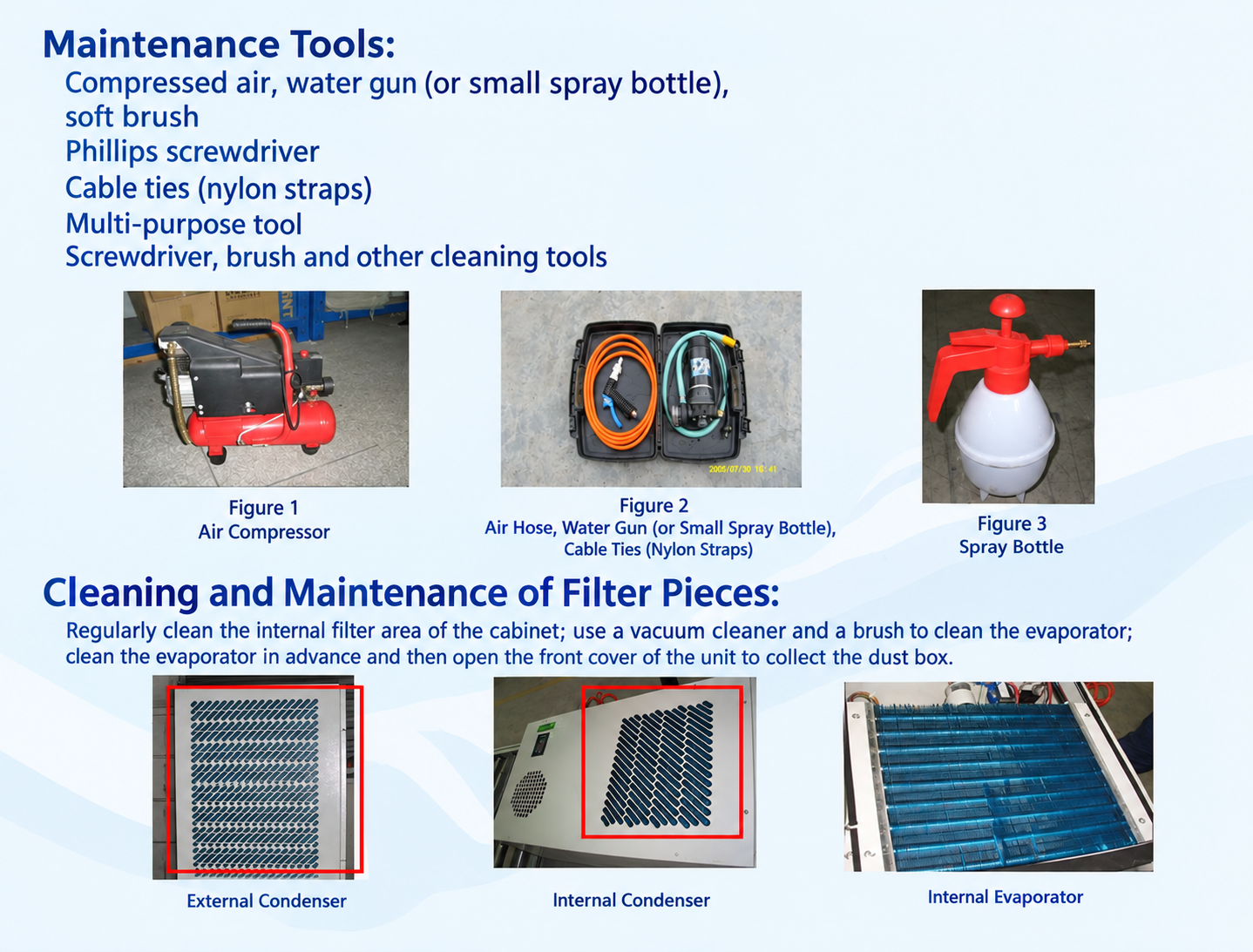

Some enclosure air conditioners use an air filter or dust filter to prevent contaminants from entering the heat exchange path.
A blocked filter can reduce airflow and negatively affect cooling performance.
During maintenance:
Remove the filter according to the manufacturer's instructions.
Inspect it for dust and contamination.
Clean or replace the filter if necessary.
Make sure the filter is completely dry before reinstalling it.
Confirm that the filter is correctly installed.
If the cabinet is installed in a dusty industrial or outdoor environment, the filter may need to be cleaned more frequently.
The evaporator transfers heat from the inside of the cabinet to the refrigeration system.
During routine enclosure air conditioner maintenance, inspect the evaporator for:
Dust accumulation
Dirt
Ice formation
Foreign objects
Restricted airflow
Abnormal moisture
The internal airflow path should also remain unobstructed.
Cables, batteries, power supplies, and other equipment inside the enclosure should not block the air inlet or outlet of the air conditioner.
Good air circulation helps prevent hot spots and improves temperature uniformity inside the cabinet.

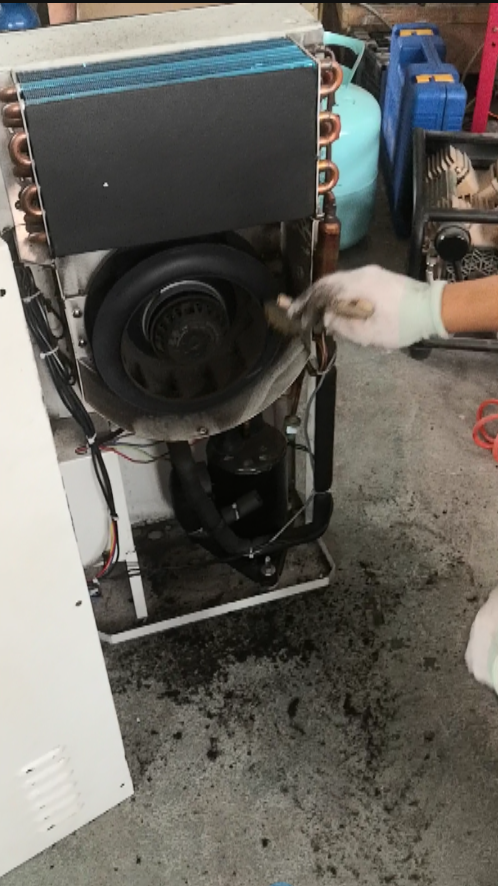

Fans are essential for both internal air circulation and external heat dissipation.
During inspection, check whether the fans:
Start normally
Rotate smoothly
Produce abnormal noise
Have excessive vibration
Have accumulated dust
Show signs of mechanical or bearing wear
A noisy or unstable fan may indicate dust contamination, bearing wear, mechanical damage, or an electrical problem.
If a fan fails, the cabinet air conditioner may continue operating but its cooling capacity can be significantly reduced.

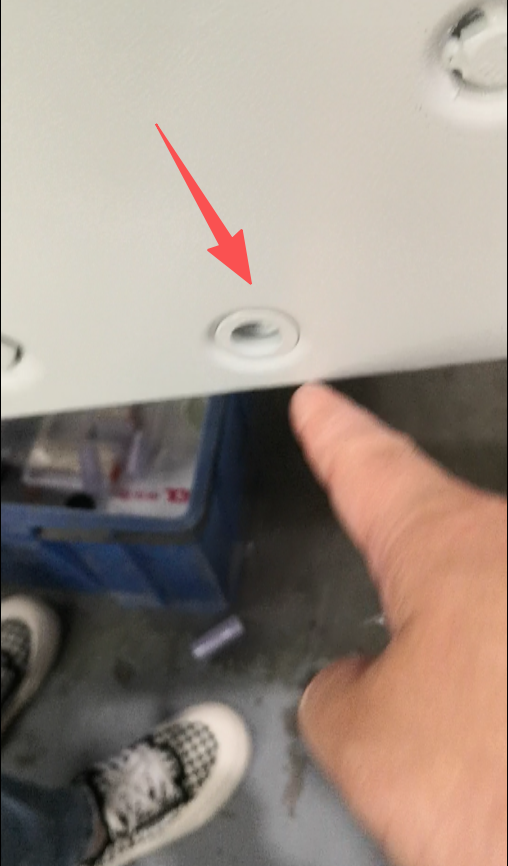

Depending on the operating temperature and humidity, condensation may occur on the evaporator.
The condensate drainage system should therefore be inspected regularly.
Check the drain pipe, drain outlet, and drainage path for blockage.
A blocked drainage system may cause:
Water accumulation
Water leakage
Excessive condensation
Corrosion of nearby components
For outdoor telecom cabinets and electrical enclosures, proper drainage is particularly important because water should not be allowed to enter the protected equipment compartment.
The cooling system works together with the cabinet enclosure. Maintaining proper cabinet sealing is therefore an important part of cabinet cooling system maintenance.
Inspect:
Door gaskets
Cabinet panels
Cable entry points
Air conditioner mounting areas
Mounting seals
Screws and fasteners
Damaged or improperly installed seals can allow hot air, dust, moisture, or water to enter the enclosure.
For cabinets requiring IP55, IP65, or other environmental protection levels, maintaining the integrity of the enclosure and air conditioner mounting interface is particularly important.
Electrical connections should be inspected as part of scheduled preventive maintenance.
Check for:
Loose terminals
Damaged cables
Discoloration
Signs of overheating
Corrosion
Damaged insulation
Abnormal connectors
For DC-powered cabinet air conditioners, check the DC input connections and polarity according to the product specifications.
If the unit has a controller, temperature sensor, alarm output, or communication interface, verify that these functions are operating correctly.
Modern cabinet air conditioners may include electronic controllers for monitoring cabinet temperature and controlling compressor and fan operation.
During maintenance, check:
Temperature setpoint
Actual cabinet temperature
Alarm status
Compressor status
Fan status
Temperature sensor readings
High-temperature alarms
Communication status, if applicable
The temperature setpoint should be selected according to the requirements of the equipment installed inside the cabinet.
A very low temperature setting does not necessarily provide better equipment protection. It may simply increase compressor operating time and energy consumption.
An appropriate temperature setpoint can help balance equipment protection, cooling performance, and energy efficiency.

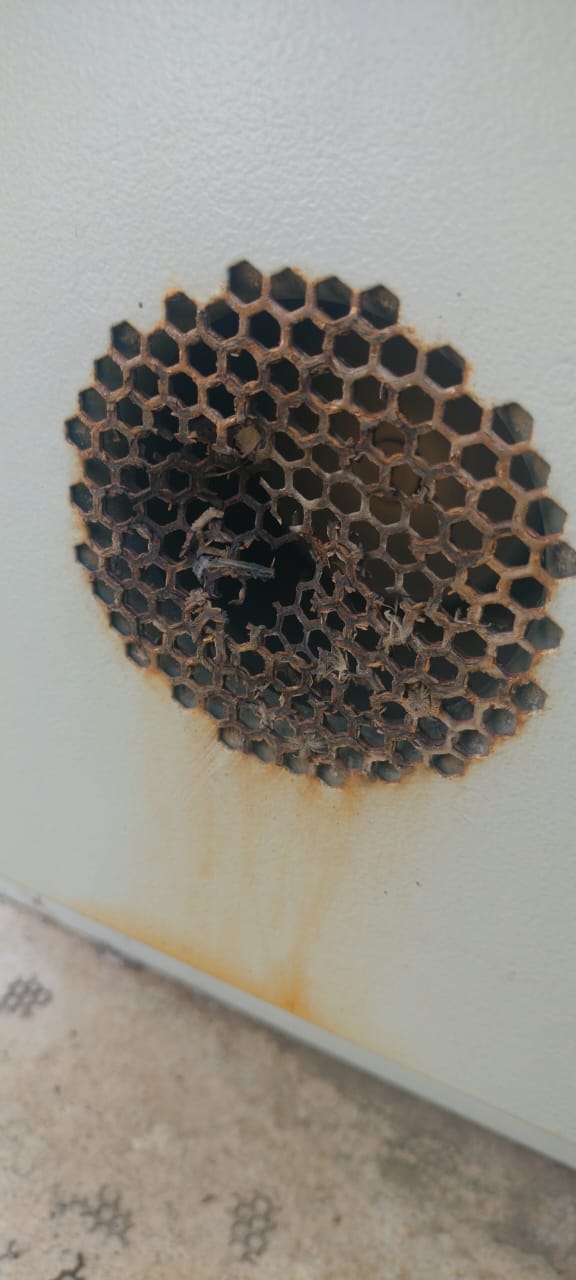

Corrosion is an important consideration for outdoor cabinet cooling systems.
Telecom cabinets, battery cabinets, and electrical enclosures installed near the coast may be exposed to salt spray, high humidity, condensation, rainwater, and industrial pollutants.
Inspect exposed components such as:
Air conditioner housing
Condenser coil
Mounting brackets
Fasteners
Electrical connectors
Metal panels
For coastal or other harsh environments, selecting an enclosure air conditioner with appropriate corrosion protection during the initial design stage can reduce long-term maintenance requirements.
Regular maintenance also makes it easier to identify potential problems before they become serious.
Problem | Possible Cause |
|---|---|
Insufficient cooling | Dirty condenser, blocked filter, restricted airflow, excessive heat load |
High cabinet temperature | Insufficient cooling capacity, blocked airflow, high ambient temperature |
Air conditioner runs continuously | High heat load, high ambient temperature, dirty heat exchanger |
Abnormal fan noise | Dust, bearing wear, mechanical damage |
Water leakage | Blocked condensate drain or improper drainage |
Frequent compressor start/stop | Incorrect temperature setting, sensor issue, operating conditions |
High power consumption | Dirty heat exchanger, poor airflow, excessive heat load |
Corrosion | Salt spray, humidity, condensation, insufficient protection |
Alarm or shutdown | Fan fault, sensor fault, high/low temperature or system protection |
These symptoms do not always mean that the entire air conditioner needs to be replaced.
Before replacing major components, check the heat exchangers, airflow, filters, fans, power supply, sensors, cabinet sealing, and operating environment.
A simple maintenance checklist can help operators establish a consistent preventive maintenance program.
Check cabinet internal temperature
Check air conditioner operating status
Check for abnormal noise or vibration
Check for visible dust accumulation
Check for water leakage
Check controller alarms
Check cabinet doors and sealing
Clean the condenser
Clean or replace the air filter
Inspect the evaporator
Inspect the fans
Check condensate drainage
Check electrical connections
Check cabinet sealing
Inspect for corrosion
Perform a comprehensive cooling system inspection
Check cooling performance
Inspect temperature sensors
Inspect electrical components
Check fan and compressor operation
Inspect heat exchanger condition
Review alarm records
Replace damaged or worn components when necessary
For harsh environments, the maintenance interval should be shortened based on actual operating conditions.
Proper maintenance is important, but good system design also has a major influence on long-term reliability.
The air conditioner should be selected according to the cabinet's actual heat load, maximum ambient temperature, enclosure size, and required internal temperature.
An undersized unit may operate continuously under high ambient conditions, while an unnecessarily oversized unit may increase the initial system cost and affect temperature control.
Keep the air inlet and outlet of the air conditioner clear.
The cabinet layout should also provide sufficient airflow around heat-generating equipment.
Good internal airflow helps the cooling system remove heat more effectively.
Outdoor telecom and energy storage cabinets can operate in very different environments.
For desert, coastal, humid, dusty, or industrial applications, consider:
Dust protection
Humidity resistance
Corrosion protection
IP protection
Ambient temperature range
Solar radiation
Installation location
Selecting the appropriate cabinet air conditioner for the actual environment is essential for reliable long-term operation.
For telecom, power, and energy storage applications, temperature monitoring can provide an early warning when cooling performance begins to deteriorate.
Remote monitoring can help operators identify problems such as fan failure, high cabinet temperature, sensor faults, or abnormal operating conditions before they result in equipment shutdown.
Record important maintenance information, including:
Inspection date
Cleaning date
Cabinet temperature
Alarm records
Fan condition
Heat exchanger condition
Component replacement
Abnormal operating conditions
Maintenance records can help identify recurring problems and determine the most appropriate maintenance interval for a particular installation.
A cabinet air conditioner should generally be inspected every 3–6 months. Units operating in dusty, coastal, industrial, or high-humidity environments may require more frequent cleaning.
Disconnect the power first. Then inspect and clean the condenser, air filter, evaporator, fans, and drainage system. Electrical connections, cabinet sealing, and corrosion should also be checked during routine maintenance.
Possible causes include a dirty condenser, blocked filter, restricted airflow, excessive cabinet heat load, high ambient temperature, fan problems, sensor faults, or refrigeration-system problems.
Keep the condenser and filter clean, maintain good airflow, ensure proper cabinet sealing, select the correct cooling capacity, and use an appropriate temperature setpoint.
Yes. Outdoor-rated cabinet air conditioners are specifically designed for applications such as telecom cabinets, electrical enclosures, industrial control cabinets, and energy storage systems. The appropriate IP protection, temperature range, corrosion protection, and cooling capacity should be selected according to the installation environment.
Routine maintenance focuses on cleaning, inspection, and preventive service to keep the existing unit operating reliably. Replacement may be necessary when major components have reached the end of their service life or when the existing cooling capacity is no longer suitable for the application.
Reliable cooling starts with the right equipment and continues with proper maintenance.
For telecom cabinets, electrical enclosures, industrial control systems, and energy storage applications, Cytech provides cabinet air conditioning and thermal management solutions designed for demanding operating environments.
Depending on the application, cooling solutions can be selected according to cabinet size, heat load, power supply, ambient temperature, IP protection requirements, and installation environment.
Whether you need a DC cabinet air conditioner for a telecom cabinet, an outdoor enclosure air conditioner for an electrical cabinet, or a thermal management solution for an energy storage system, proper cooling selection and preventive maintenance can help improve system reliability and equipment service life.
Contact the Cytech sales team to discuss your cabinet cooling requirements and find the right thermal management solution for your application.
