Outdoor telecom cabinets used in 5G base stations, energy storage systems, and industrial communication networks are continuously exposed to harsh environmental conditions. Unlike indoor installations, these systems must operate under direct sunlight, high ambient temperatures, dust exposure, and fully sealed protection structures such as IP55 or IP65 enclosures.
At the same time, internal electronic components continuously generate heat during operation. Without an effective thermal management system, heat accumulation becomes inevitable, leading to performance degradation and system instability.
Poor cooling design can result in serious operational risks, including reduced equipment lifespan, unexpected system shutdowns, and increased maintenance costs. This makes thermal management not just a design consideration, but a critical factor in system reliability and total lifecycle cost.
If thermal management is not properly designed, several operational issues may occur:
Overheating of sensitive electronic components
Reduced system reliability and signal instability
Shortened equipment service life
Increased operational and maintenance costs
Therefore, selecting an appropriate cooling system is essential for ensuring long-term performance and system stability.
Outdoor cabinet thermal management solutions are generally divided into three categories: passive cooling, semi-active cooling, and active cooling systems.
Type | Technology | Cooling Capacity | Protection Level | Energy Consumption | Cost | Application Suitability |
|---|---|---|---|---|---|---|
Passive | Structural Cooling | Low | Very High | None | Low | Auxiliary support |
Passive | PCM | Low-Medium | Very High | None | Low | Thermal buffering |
Semi | Medium | Medium | Low | Low | Low load systems | |
Semi | Medium-High | Very High | Low | Medium | Telecom cabinets | |
Active | High | Very High | Medium-High | Medium | Mainstream solution | |
Active | Medium | Very High | Medium | Medium | Small cabinets | |
Active | Very High | Very High | Medium | High | High power systems |
Relies on natural heat dissipation through structural design and material properties
No external power required
Double-wall cabinet structure
High-reflectivity coating
Phase Change Material (PCM)
Zero energy consumption
High reliability with no moving parts
High enclosure protection performance
Limited cooling capacity
Cannot handle continuous or high heat loads

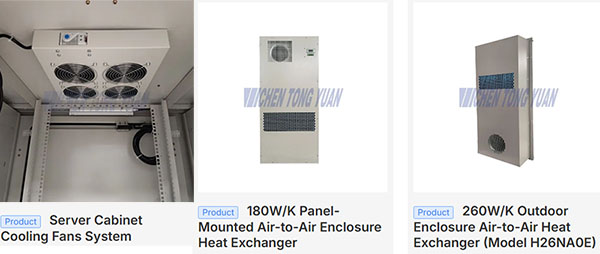

Uses low energy input to enhance airflow or heat exchange efficiency
Assists natural cooling rather than fully replacing it
Low energy consumption
Better cooling performance than passive systems
Maintains enclosure sealing (especially heat exchangers)
Limited performance under high heat loads
Fan systems may reduce protection level in harsh environments

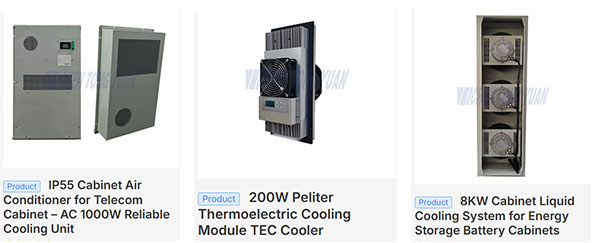

Uses powered systems to actively remove heat from the enclosure
Provides continuous and controlled temperature regulation
High cooling capacity
Precise temperature control
Suitable for high-density heat environments
Higher energy consumption
Higher system cost compared to passive and semi-active solutions
Selecting an appropriate thermal management solution requires evaluating multiple engineering factors:
Total heat load of the system
Environmental conditions such as temperature and solar exposure
Required protection level (IP rating)
Available power supply (AC or DC systems)
Cabinet size and structural limitations
A proper selection process ensures system stability while optimizing energy efficiency and long-term operational cost.
Application Scenario | Heat Load | Recommended Cooling Solution |
|---|---|---|
Small telecom cabinet | Low | TEC cooling system |
Standard outdoor cabinet | Medium | Air-to-air heat exchanger |
5G base station | Medium-High | Cabinet air conditioner |
Energy storage system | High | Liquid cooling system |
Remote or off-grid site | Low | Passive + hybrid cooling |
The industry is shifting toward hybrid and intelligent thermal management systems.
Hybrid cooling systems combine passive and active technologies to improve efficiency and reduce energy consumption. Liquid cooling is increasingly adopted in high-power energy storage applications. Additionally, intelligent temperature control systems with remote monitoring capabilities are becoming standard in modern infrastructure design.
Selection depends on heat load, environmental conditions, IP protection level, and system architecture. Engineering evaluation is recommended.
Air conditioners provide active cooling and precise temperature control, while heat exchangers rely on passive thermal transfer with lower energy consumption.
Yes, but it is only suitable for small or low-power applications.
Not always, but it is highly recommended for high-density or high-temperature environments.
No, PCM is only used for temporary thermal buffering and cannot provide continuous cooling.
A hybrid approach combining efficient active cooling with optimized system design typically provides the best lifecycle cost performance.
Yes, engineering-based customized thermal solutions can be provided according to project requirements.
Outdoor telecom cabinet cooling systems must be selected based on real application conditions rather than a single standardized solution. Different environments and power levels require different thermal management strategies.
We provide a full range of thermal management technologies, including cabinet air conditioners, heat exchangers, TEC cooling systems, and liquid cooling solutions.
If you are planning or upgrading an outdoor telecom or energy storage cooling system, our engineering team can support you with professional selection guidance and customized thermal system design.
