When you look at a cabinet air conditioner, you may see fans, copper tubes, aluminum fins, a compressor, and various electrical components. But which parts actually make the cooling happen?
Two components are at the heart of the refrigeration process: the evaporator and the condenser.
Although they perform opposite functions, they work together as part of the same refrigeration cycle. The evaporator absorbs heat from inside the cabinet, while the condenser releases that heat into the surrounding environment.
This simple relationship is what allows a cabinet air conditioner to protect sensitive electronics from overheating.
In this article, we'll explain what an evaporator and condenser are, how they work, how they differ, and why their design is especially important for outdoor telecom cabinets, electrical enclosures, industrial control cabinets, and battery storage systems.
A cabinet air conditioner is a cooling system specifically designed to control the temperature inside an electrical or equipment enclosure.
Unlike a conventional room air conditioner, a cabinet AC is not designed primarily for human comfort. Its main purpose is to protect equipment.
Inside an outdoor telecom or electrical cabinet, you may find:
Power supplies
Rectifiers
Network switches
Routers
Fiber-optic equipment
Controllers
Inverters
Batteries
Industrial electronics
All of these devices generate heat during operation.
If the heat accumulates inside the enclosure, the internal temperature can rise rapidly. Excessive heat can shorten component life, reduce equipment performance, trigger alarms, or even cause unexpected shutdowns.
A cabinet air conditioner solves this problem by continuously transferring heat from inside the enclosure to the outside environment.
You might ask: why not simply install ventilation fans?
Fans can be useful when the outdoor temperature is lower than the desired internal temperature. But what happens when the cabinet needs to stay at 25°C while the outdoor temperature reaches 40°C, 50°C, or even 55°C?
A fan cannot cool the cabinet below the ambient temperature.
A refrigeration-based cabinet air conditioner can.
It uses a closed-loop refrigeration system to move heat from the cabinet to the outdoor environment. The cabinet's internal air can therefore be cooled without directly mixing it with potentially dusty, humid, or contaminated outdoor air.
This is particularly useful for outdoor telecom and industrial applications where maintaining environmental protection is just as important as maintaining temperature.

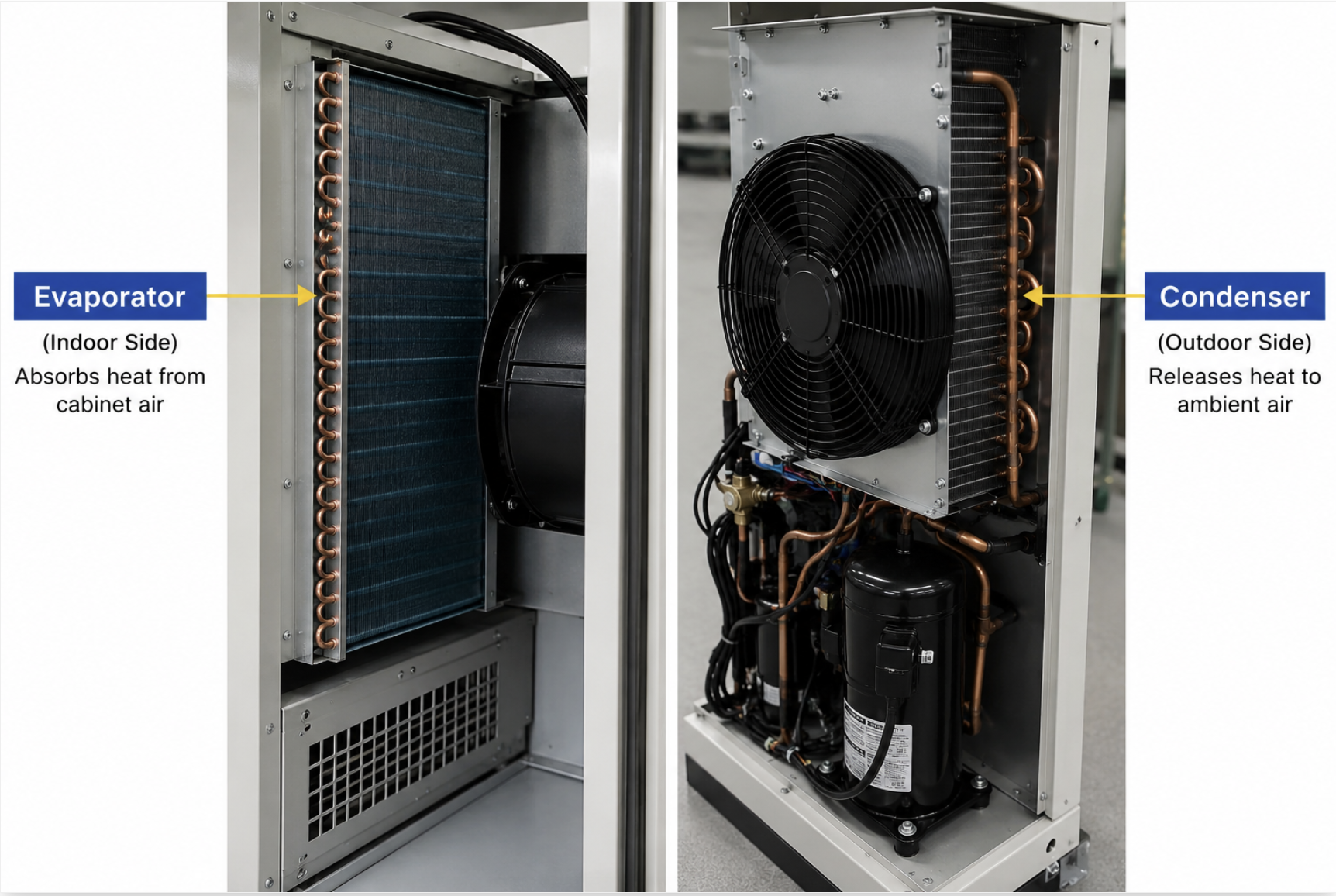

The evaporator is the cold-side heat exchanger in a cabinet air conditioner.
Its main job is straight forward:The evaporator absorbs heat from the air inside the cabinet.
Warm air from the cabinet passes over the evaporator coil. Inside the coil, low-pressure refrigerant absorbs heat from the air.
As the refrigerant absorbs this heat, it changes from a liquid or liquid-vapor mixture into a vapor.
At the same time, the cabinet air becomes cooler.
The cooled air is then circulated back into the enclosure, where it absorbs heat from the electronic equipment again.
This creates a continuous cooling loop.
Think of the evaporator as a heat collector.
Imagine that the equipment inside your cabinet generates 2,000 W of heat. That heat doesn't simply disappear. It must go somewhere.
The evaporator provides the pathway.
The process looks roughly like this:
Electronic equipment → hot cabinet air → evaporator → refrigerant
The heat moves from the warmer cabinet air into the colder refrigerant.

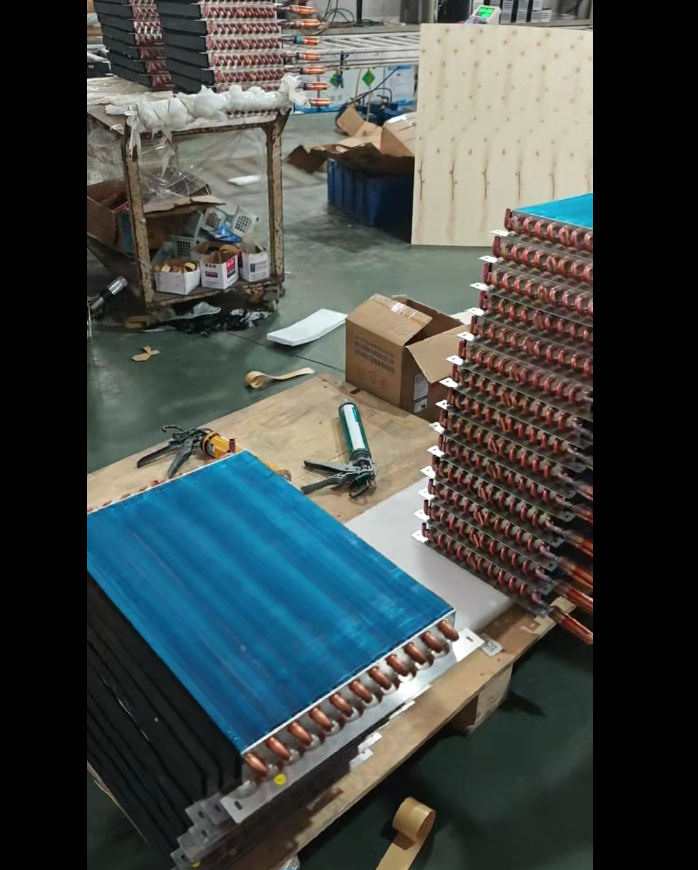

The evaporator usually consists of a finned heat exchanger made from materials such as aluminum and copper. The fins increase the available heat-transfer area, while a fan forces cabinet air across the coil.
The better the airflow and heat transfer, the more effectively the evaporator can remove heat.
The word "evaporator" comes from the refrigerant's phase change.
Inside the evaporator, the refrigerant absorbs heat and evaporates.
In simplified terms:
Low-pressure refrigerant + heat → refrigerant vapor
This phase change is extremely important because refrigerants can absorb a large amount of thermal energy during evaporation.
After leaving the evaporator, the refrigerant carries the cabinet's unwanted heat toward the compressor.
But the heat still needs somewhere to go.
That's where the condenser takes over.
If the evaporator is the heat collector, the condenser is the heat rejection device.
Its main job is: The condenser releases heat from the refrigerant into the outdoor environment.
After leaving the evaporator, the refrigerant enters the compressor.
The compressor increases the refrigerant's pressure and temperature. The hot, high-pressure refrigerant then enters the condenser.
Outdoor air flows across the condenser coil.
Heat moves from the hot refrigerant to the condenser coil and then into the outdoor air.
The refrigerant loses heat and changes from vapor back into liquid.
So, while the evaporator absorbs heat, the condenser rejects it.

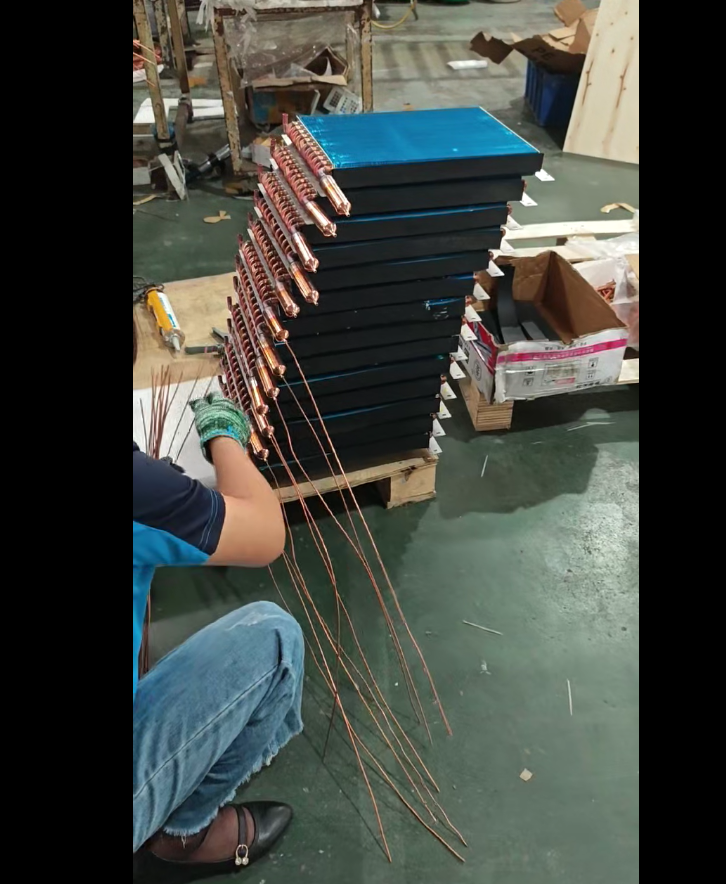

A typical cabinet air conditioner uses an air-cooled condenser.
The condenser generally contains:
Copper tubes
Aluminum fins
An outdoor fan
Refrigerant flowing through the tubing
The fan pulls or pushes outdoor air across the condenser.
The heat-transfer process is:
Hot refrigerant → copper tubing → aluminum fins → outdoor air
The refrigerant then leaves the condenser as a high-pressure liquid and moves toward the expansion device.
This is a critical part of the cooling process.
Without effective heat rejection, the refrigeration system cannot operate properly.
The answer is simple: the heat has to leave the cabinet.
The evaporator handles the internal cabinet air, while the condenser handles the outdoor air.
This separation allows the cabinet air conditioner to maintain a closed cooling loop.
For outdoor telecom cabinets, this design offers an important advantage: the air inside the cabinet can be cooled without continuously exchanging air with the outside.
That helps protect the equipment from:
Dust
Humidity
Rain
Salt air
Insects
Industrial contaminants
The easiest way to remember the difference is:
Evaporator = absorbs heat
Condenser = releases heat
But there are several other differences.
Feature | Evaporator | Condenser |
|---|---|---|
Main function | Absorbs heat | Rejects heat |
Side of AC | Cabinet/internal side | Outdoor/ambient side |
Refrigerant | Low-pressure | High-pressure |
Phase change | Liquid → vapor | Vapor → liquid |
Air source | Cabinet air | Outdoor air |
Main purpose | Cool equipment | Release accumulated heat |
Typical airflow | Internal circulation | Ambient airflow |
Neither component is "more important."
The refrigeration system needs both.
A high-performance evaporator cannot compensate for a poorly designed condenser. Likewise, an excellent condenser cannot solve an evaporator airflow problem.
They are two halves of the same thermal system.
Feature | Evaporator | Condenser |
|---|---|---|
Main function | Absorbs heat | Rejects heat |
Side of AC | Cabinet/internal side | Outdoor/ambient side |
Refrigerant | Low-pressure | High-pressure |
Phase change | Liquid → vapor | Vapor → liquid |
Air source | Cabinet air | Outdoor air |
Main purpose | Cool equipment | Release accumulated heat |
Typical airflow | Internal circulation | Ambient airflow |
Neither component is "more important."
The refrigeration system needs both.
A high-performance evaporator cannot compensate for a poorly designed condenser. Likewise, an excellent condenser cannot solve an evaporator airflow problem.
They are two halves of the same thermal system.
Now let's connect everything together.
A cabinet air conditioner typically uses a vapor-compression refrigeration cycle.
The basic cycle has four major stages:
Evaporation
Compression
Condensation
Expansion
The refrigerant continuously travels through these stages.
Let's look at each step.
The refrigeration cycle starts with the evaporator.
Low-pressure refrigerant enters the evaporator.
At the same time, warm air from inside the cabinet passes across the evaporator coil.
Heat transfers from the cabinet air into the refrigerant.
The refrigerant absorbs this heat and evaporates.
The cabinet air becomes cooler and returns to the enclosure.
The refrigeration system has now successfully removed heat from the electronic equipment.
The refrigerant leaves the evaporator as a low-pressure vapor.
It then enters the compressor.
The compressor performs an important job: it compresses the refrigerant and increases its pressure and temperature.
Why is this necessary?
Because the refrigerant must become hotter than the outdoor environment before it can effectively release heat through the condenser.
You can think of the compressor as the engine that keeps the refrigeration cycle moving.
The hot, high-pressure refrigerant enters the condenser.
The condenser is exposed to outdoor ambient air.
The outdoor fan moves air across the condenser coil, allowing the refrigerant to transfer heat into the environment.
The refrigerant cools and condenses back into a liquid.
Notice an important point:
The condenser doesn't only remove the heat originally generated by the cabinet equipment.
It also needs to reject the heat generated by the compressor.
The high-pressure liquid refrigerant then passes through an expansion device.
Depending on the design, this may be:
A capillary tube
Thermostatic expansion valve
Electronic expansion valve
The expansion device reduces the refrigerant pressure.
As the pressure drops, the refrigerant temperature also decreases.
The refrigerant is now ready to return to the evaporator.
And the cycle starts again.
Therefore:
Condenser heat rejection = cabinet heat + compressor input energy
This is one reason why the condenser needs sufficient capacity.
This is particularly important for outdoor cabinet air conditioners.
Imagine a telecom cabinet installed in a desert environment.
The outdoor temperature reaches 55°C.
The condenser now has to release heat into air that is already extremely hot.
That's not an easy job.
As ambient temperature increases, the temperature difference available for heat transfer becomes smaller. The refrigeration system may therefore operate at higher condensing temperatures and pressures.
This can lead to:
Reduced cooling capacity
Higher compressor power consumption
Higher condensing pressure
Increased system stress
High-pressure protection
Reduced energy efficiency
This is why a cabinet air conditioner designed for a normal indoor environment may not be suitable for outdoor telecom or energy-storage applications.
When selecting a cabinet AC, always check its maximum ambient operating temperature.
A problem with the evaporator can directly affect cabinet temperature.
For example, if the evaporator becomes dirty, airflow may decrease.
If the evaporator fan fails, cold air may not circulate properly.
If the coil freezes, airflow can become restricted.
Possible symptoms include:
Insufficient cooling
Uneven cabinet temperature
Reduced airflow
Frost or ice on the evaporator
Longer compressor running time
Higher internal temperature
The important thing is not to assume that every cooling problem is caused by the compressor.
The evaporator, fan, refrigerant circuit, sensors, and airflow system all need to work together.
Condenser problems can be equally serious.
A dirty condenser cannot transfer heat efficiently.
A failed condenser fan reduces airflow.
An obstructed air outlet can trap hot air around the unit.
The result may be:
High condensing pressure
Reduced cooling capacity
Higher power consumption
Compressor overload
High-pressure protection
Frequent system shutdown
For this reason, the condenser should receive particular attention in dusty, hot, or industrial environments.
The performance of a cabinet air conditioner depends on more than simply choosing a large compressor.
The evaporator and condenser need to be properly matched to the refrigeration circuit.
Several factors matter.
A larger heat-transfer surface can provide more opportunity for heat exchange.
Fins are commonly used because they increase the surface area without making the heat exchanger excessively large.
However, more fins are not automatically better.
If fin spacing becomes too small, dust can accumulate more easily and airflow resistance can increase.
For outdoor applications, designers must balance thermal performance with environmental conditions.
Airflow is critical to both heat exchangers.
The evaporator fan needs to distribute air effectively throughout the cabinet.
The condenser fan needs to move enough outdoor air across the condenser to remove heat.
Fan selection involves more than airflow volume.
Engineers also need to consider:
Static pressure
Fan efficiency
Power consumption
Noise
Reliability
Operating temperature
Expected service life
For telecom infrastructure and energy-storage systems, reliable fan operation is particularly important because these systems may operate continuously.
The refrigeration system must also be properly balanced.
Important factors include:
Compressor capacity
Refrigerant type
Refrigerant charge
Expansion device
Evaporator capacity
Condenser capacity
Piping design
Operating pressure
Temperature range
Changing one component can affect the performance of the entire system.
That's why a cabinet AC should be evaluated as a complete refrigeration system rather than as a collection of individual components.
Before choosing a cabinet AC, start with the application.
Ask yourself:
How much heat does the equipment generate?
What is the maximum outdoor temperature?
Where will the cabinet be installed?
What power supply is available?
What level of environmental protection is required?
These questions will help determine the appropriate cooling solution.
The first step is determining the cabinet's heat load.
Electronic equipment essentially converts electrical energy into heat during operation.
If the equipment generates 1,500 W of heat, the cabinet air conditioner needs enough cooling capacity to remove that heat under the actual operating conditions.
However, the calculation may also need to consider:
Solar radiation
Cabinet wall heat transfer
Battery heat
Outdoor temperature
Internal airflow
Equipment operating patterns
Selecting an AC based only on a nominal cooling number can therefore be misleading.
For outdoor applications, this is one of the most important specifications.
A cabinet AC may need to operate at temperatures such as:
-40°C to +55°C
depending on the project.
High ambient operation places significant demands on the condenser, compressor, fan, and control system.
If the cabinet is installed in a hot climate, make sure the selected model has been designed and tested for the required ambient conditions.
Outdoor cabinets may need protection against dust and water.
Depending on the application, customers may specify ratings such as:
IP54
IP55
IP65
IP66
However, remember that the final protection of the complete cabinet depends on more than the AC itself.
The cabinet door seals, cable entries, mounting interface, ventilation openings, and other components also affect the final enclosure protection.
Cabinet air conditioners are available with different power configurations.
Common options include:
Telecom applications frequently use DC power, while industrial electrical cabinets may use AC power.
Choosing a cooling system that matches the available power supply simplifies installation and system integration.
Even a well-designed cabinet air conditioner requires proper maintenance.
For the condenser side, check:
Dust accumulation
Fan operation
Air inlet blockage
Air outlet blockage
Heat exchanger cleanliness
For the evaporator side, check:
Internal airflow
Fan operation
Coil cleanliness
Frost formation
Unusual temperature differences
In dusty or harsh environments, maintenance may need to be performed more frequently.
A clean heat exchanger can transfer heat much more effectively than one covered with dust.
The evaporator is the cold-side heat exchanger. It absorbs heat from the air inside the cabinet, so its operating temperature is normally lower than the cabinet air being cooled.
The condenser is the hot-side heat exchanger. It releases heat to the outdoor environment, so its refrigerant and coil operate at considerably higher temperatures than the evaporator.
A typical air-cooled cabinet AC requires adequate condenser airflow. Without it, heat rejection can become insufficient, causing high condensing pressure, reduced cooling capacity, or protective shutdown.
When outdoor temperature rises, it becomes harder for the condenser to release heat. The system may therefore operate at higher condensing temperatures and pressures, reducing efficiency and potentially limiting cooling capacity.
Both are essential. The evaporator absorbs the cabinet's heat, while the condenser releases that heat outdoors. If either side is improperly designed, the overall refrigeration system will suffer.
No. They have different operating conditions and perform different functions. The evaporator is designed for low-pressure refrigerant and heat absorption, while the condenser is designed for high-pressure refrigerant and heat rejection.
So, what is the easiest way to remember the difference?
The evaporator absorbs heat.
The condenser releases heat.
That's the foundation of the refrigeration cycle inside a cabinet air conditioner.
The evaporator removes heat from the equipment enclosure. The compressor raises the refrigerant pressure and temperature. The condenser transfers the accumulated heat to the outdoor environment. Finally, the expansion device reduces the refrigerant pressure and prepares it for another trip through the evaporator.
The cycle then repeats.
For telecom cabinets, electrical enclosures, industrial control systems, and energy-storage applications, this process needs to work reliably day after day, often under challenging outdoor conditions.
That's why choosing a cabinet air conditioner isn't simply about selecting a cooling capacity. You also need to consider the evaporator and condenser design, airflow, refrigerant system, ambient temperature, power supply, environmental protection, and long-term reliability.
A good cabinet air conditioner doesn't simply produce cold air. It continuously moves unwanted heat from where it shouldn't be to where it can safely go.
