CY950650650
CY TECH
Telecom
IP 65, NEMA 4
Floor Mount
500W/1700BTU
19inch, 23inch
600mm/24inch
16U
Product Description
Product introduction video

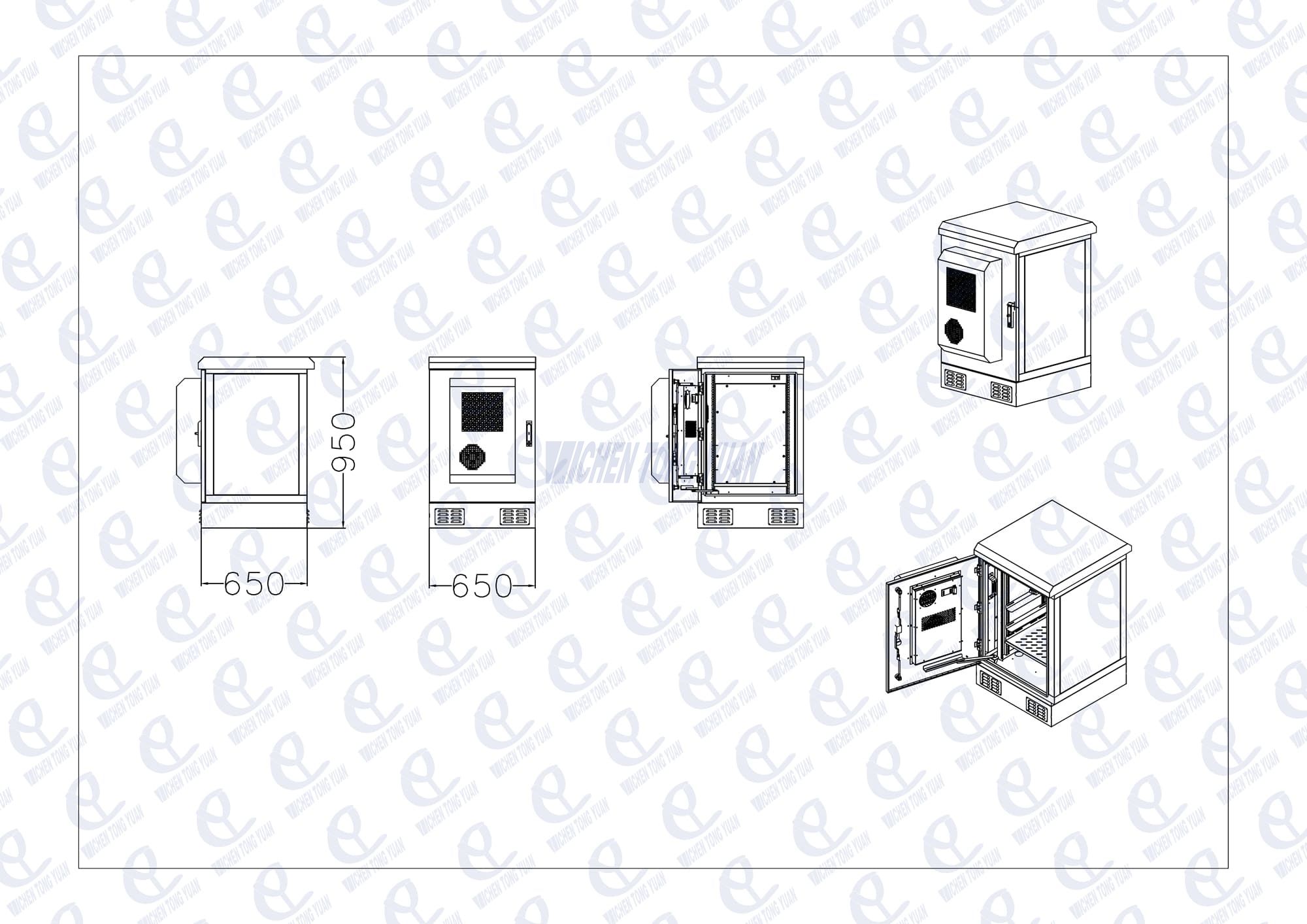

| Name | Technical Parameter |
| External Size | H*W*D=950x650x650mm (37"x 26"x 26") |
| Cabinet layout | One compartment, for installing 19inch/23inch equipment |
| Cabinet material | Double layer Stainless steel with EPS thermal isolation |

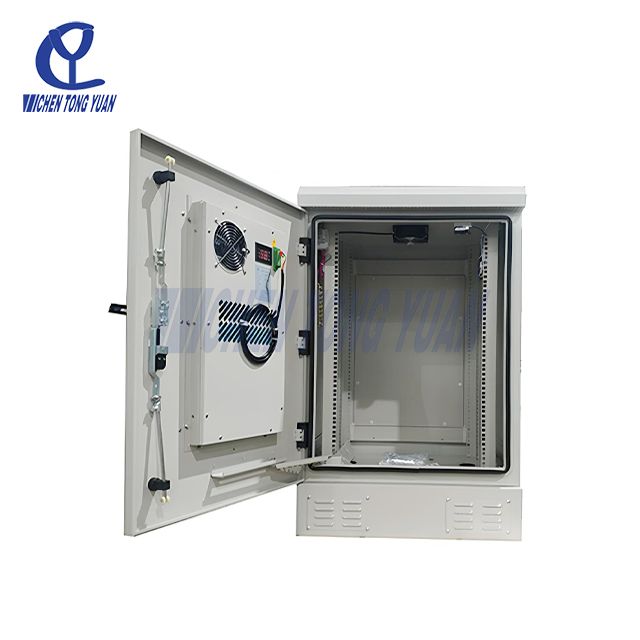

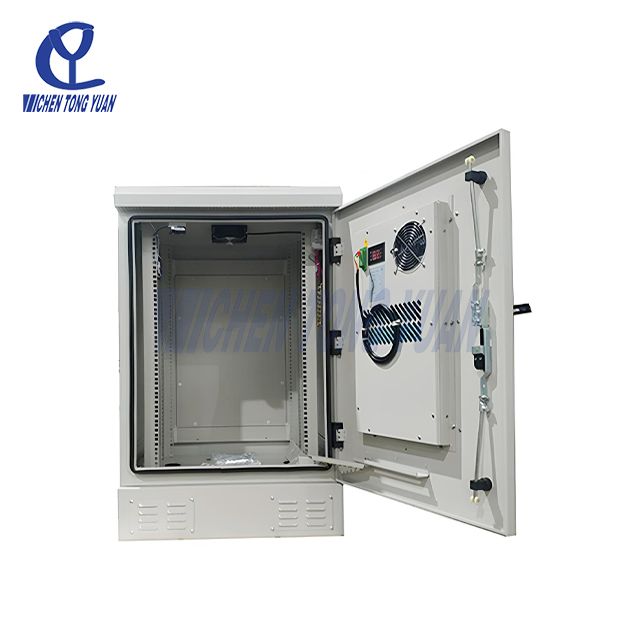

| Security design | Embedded door, embedded hinges, 3-point security lock |
| Protection level | IP65,NEMA 4 or 4X |
| Color | RAL7035 |

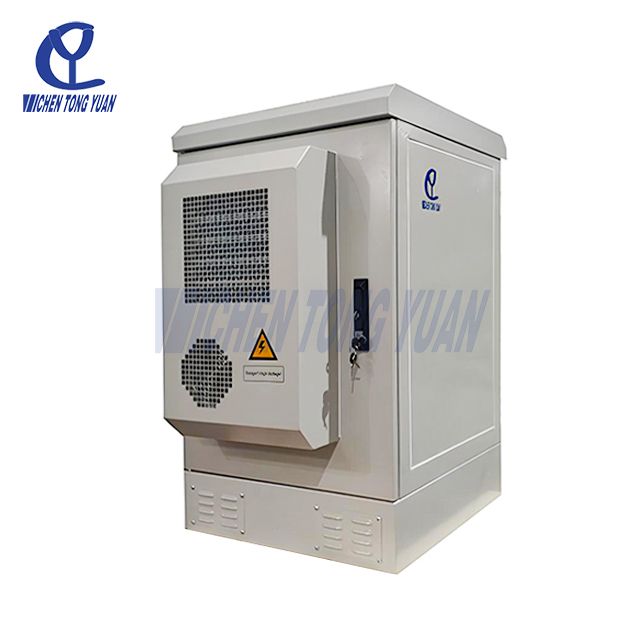

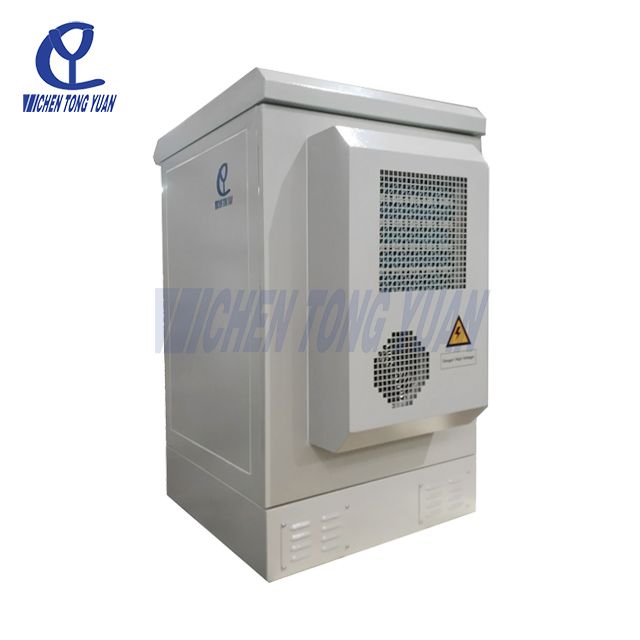

| Climate control | AC220V air conditioner and DC48V fan |
| Lighting system | Door sensor+48V LED light(door open, the LED will light on; door closed, the LED will go out.) |
| Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
| Working temperature | - 40 ℃ ~ + 55 ℃ |
| Working Humidity | ≤ 95% (+ 40 ℃) |
| Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Note：The air conditioner can also choose AC 110V 60HZ or DC 48V, and the fan can also choose AC 110V or 220V.
Includes: locking door with air conditioner,19inch rackmount rails,floormount plinth or hardwares.
| Name | Quantity | Unit | Technical parameter |
| Outdoor telecom cabinet | 1 | set | External Size:H*W*D=950x650x650mm (37"x 26"x 26") |
| Air conditioner | 1 | set | Power supply:AC 220V 50/60Hz Cooling capacity:500W |
| Fan | 1 | set | DC48V with temperature control |
| LED Lamp | 1 | set | DC48V,used for illumination in the cabinet |
| Grounding bus bar | 1 | set | 200A Copper bar(13 point M6 and 2 point M8) |
| Equipment supporting | 1 | set | |
| Package | 1 | set | Wooden box , wooden pallet+stretch film or wooden pallet +wooden box |
The following accessories are available for optional ordering.
| Item | Technical parameter | Picture |
| EMS | 19 inch environment monitoring unit 1U; DC48V, support RS232,RS485, SNMP,TCP/IP communication protocol. 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor.
Environmental monitoring system is a comprehensive network of devices and technologies designed to track and assess various aspects of the environment. This system plays a crucial role in gathering data to understand environmental conditions, detect changes, and manage natural resources. |
|
| Fire Extinguisher | Hot aerosol fire extinguishing device is a new, efficient and environment-friendly fire fighting product with Vanguard International Semiconductor Corporation level, which is the first in China. It is a high-tech green fire protection product that benefits humanity, born under the background of the International Montreal Agreement and China's increased awareness of environmental protection. It is an ideal substitute for halon fire extinguishing devices and is suitable for relatively enclosed spaces such as distribution cabinets.
Electric or hot start: Hot start temperature ≥170℃; Electric start temperature ≥700mA. |
|
| Wiring type PDU | AC input：63A/2P*2 with interlock； AC/SPD：30-60KA/2P*1； AC output：63A/1P*1,32A/1P*1，16A/1P*3，3 holes Maintenance socket*1 |
|
| Integrated PDU | Can be customized according to customer requirements. |
|
| Rectifier | AC220V/110V transfer to DC48V, Connect the battery as a backup power,also can be customized according to customer requirements. |
|
ODF | Optic Distribution Frame (ODF) is a critical component in a fiber optic network infrastructure. It serves as a centralized point for the termination, organization, and distribution of fiber optic cables. The primary purpose of a distribution frame is to facilitate efficient and organized connectivity, making it easier to manage, troubleshoot, and expand the network.
Function: 1)Termination Point; 2)Organization and Management; 3)Splicing Trays; 4)Labeling and Documentation; 5)Security and Protection; 6)Scalability;
Can be customized according to customer requirements. |
|
| Backup battery | Can be lithium battery or lead acid battery. |
Flexibility
(1)Material can be Constructed of durable, galvanized steel,sandwich panel ,stainless steel SS304,aluminium.
(2)Compartments can be configured to support between 1-4 bays,multi-compartments supported.
(3)Front and rear access doors allow technicians access to equipment storage areas and cable routing.
(4)Side doors design also ok.
(5)Customized color ,standard color RAL7035,other color acceptable based on appointed color code.
(6)Wide range of thermal management options for even the most demanding heat dissipation needs allows for optimization of thermal performance and reduced energy costs.
(7)The cooling solution adopted compressed air conditioner ,TEC (Thermoelectric Cooler),Hex (heat exchanger),Fans,Combined AC&HEX.
(8)Offers a wide range of configuration options providing maximum flexibility including PDU, rectifier ,integrated AC-DC power systems.
(9)Silk screening Logo and environmental friendly painting artwork for outdoor telecom cabinet.
(10)Offers all kinds environment sensors,including doors,smoke,temperature sensors.
(11)Remote monitoring system supported, communication protocol is RS232/RS485/SNMP.
Options
Model | Height | Type | Rate | Color | H*W*D | Climate control | Application |
CY800650650 | 14U | Floor stand | IP55 | Grey | 800mm*650mm*650mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1050650650 | 18U | Floor stand | IP55 | Grey | 1050mm*650mm*650mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1400800800 | 26U | Floor stand | IP55 | Grey | 1400mm*800mm*800mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1600800800 | 30U | Floor stand | IP55 | Grey | 1600mm*800mm*800mm | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1700750750 | 32U | Floor stand | IP55 | Grey | 1700mm*700mm*700mm | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY2100900900 | 42U | Floor stand | IP55 | Grey | 2100mm*900mm*900mm | Air conditioner 1500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
Other size to be continued ,please send us inquiry for futher discussion
Name | Specification |
Air conditioner | AC220V 50HZ |
AC220V 60HZ | |
AC110V 60HZ / DC48V | |
Cooling capacity from 300W-5000W | |
Heat exchanger | DC48V |
40W/K-200W/K | |
Combined air conditioner & heat exchanger | AC220V 50HZ & DC48V |
1500W&80W/K | |
TEC | DC48V |
200W-1200W | |
Fan | AC220V 50HZ |
AC220V 60HZ | |
AC110V 60HZ / DC48V |
How to order
◆acceptable temperature range for your equipment;
◆Heat load of equipment;
◆The highest local ambient temperature；
◆Noise Level；
◆Future Expansion；
By carefully considering these factors, you can select a cabinet climate control system that meets the specific needs of your equipment and environmental conditions.
(1)If conditions permit, try to install the outdoor telecom cabinet in a cool and ventilated place with clean surrounding environment .
(2)After the cable construction is completed, please make sure to seal the gap around the cable with the sealant provided randomly in the cabinet, so as to avoid the condensation caused by moisture entering and affecting the use performance of the equipment.
(3)The grounding bar of the cabinet must be reliably grounded, and the grounding resistance to the ground shall be less than 10 Ω .
(4)Please clean the ventilation and dust screen in the cabinet regularly every month. According to the actual situation, the period of cleaning dust screen can be shortened or extended properly.
Outdoor field cabinets are crucial in various applications where durable, weather-resistant enclosures are required to protect sensitive equipment and ensure reliable operations. Here are some common applications:
1. Telecommunications Infrastructure:
Outdoor field cabinets are extensively used in the telecommunications industry to house network equipment such as routers, switches, and power supplies. They protect these components from environmental factors like rain, dust, and extreme temperatures, ensuring uninterrupted communication services.
2. Power Distribution:
These cabinets are used in power distribution networks to house control equipment, transformers, and circuit breakers. They provide secure and weatherproof environments that are essential for the reliability of power supply in both urban and rural areas.
3. Traffic Management Systems:
Outdoor field cabinets play a vital role in traffic management by housing the control systems for traffic lights, surveillance cameras, and sensors. They ensure that the equipment remains operational in all weather conditions, contributing to road safety and efficient traffic flow.
4. Railway and Transportation:
In railway and transportation networks, outdoor field cabinets are used to protect signaling equipment, communication systems, and power supplies. They are critical for maintaining the safety and efficiency of transportation systems.
5. Security and Surveillance:
These cabinets are used to enclose surveillance cameras, security systems, and other monitoring equipment. They are commonly deployed in public spaces, industrial sites, and critical infrastructure to ensure continuous monitoring and security.
6. Environmental Monitoring:
Outdoor field cabinets are essential for housing sensors and data loggers used in environmental monitoring applications. These systems track weather conditions, air quality, and other environmental factors, and the cabinets protect the sensitive equipment from harsh outdoor conditions.
7. Renewable Energy Systems:
In solar and wind energy installations, outdoor field cabinets protect inverters, controllers, and other electrical components. They are designed to withstand exposure to the elements while maintaining the efficiency and safety of renewable energy systems.
8. Military and Defense:
These cabinets are used in military applications to house communication systems, radar equipment, and other critical electronics. Their robust construction ensures that sensitive equipment remains operational in challenging environments.
9. Oil and Gas Industry:
In the oil and gas sector, outdoor field cabinets protect control systems and monitoring equipment in remote and hazardous locations. They are built to withstand corrosive environments and extreme temperatures.
10. Utilities and Smart Grids:
Outdoor field cabinets are increasingly used in smart grid applications to house metering equipment, communication devices, and control systems. They support the automation and monitoring of utility networks, contributing to more efficient energy management.
These are just a few examples of the wide range of applications for outdoor field cabinets, showcasing their versatility and importance in protecting critical infrastructure across various industries.
