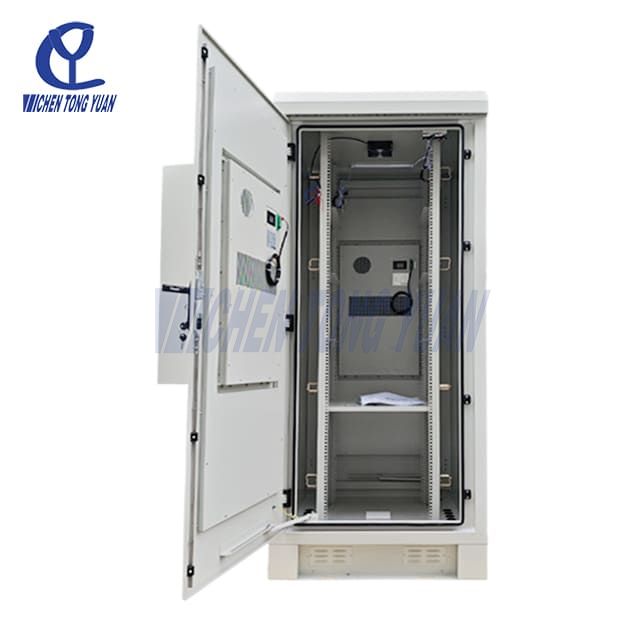

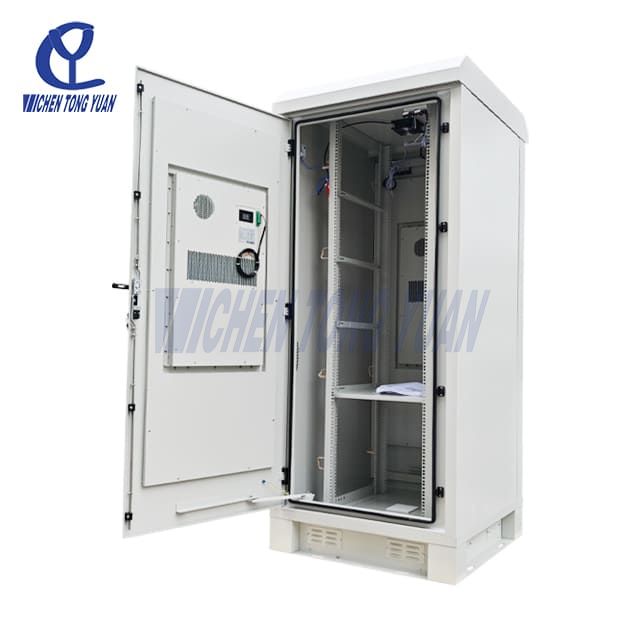

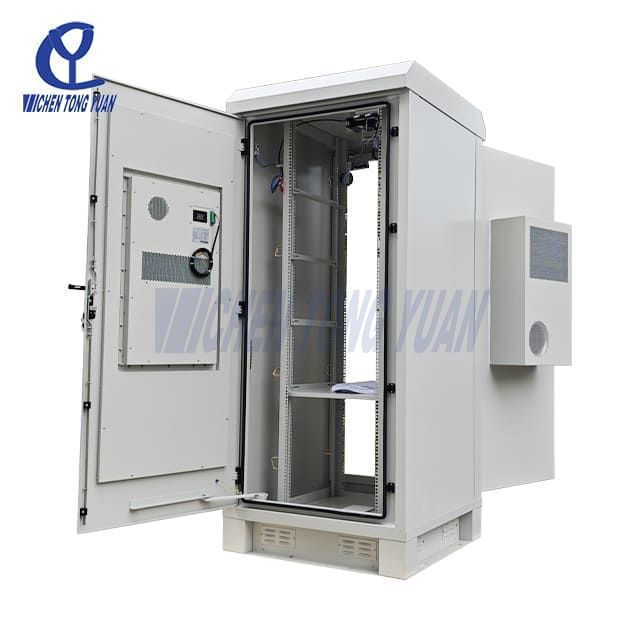

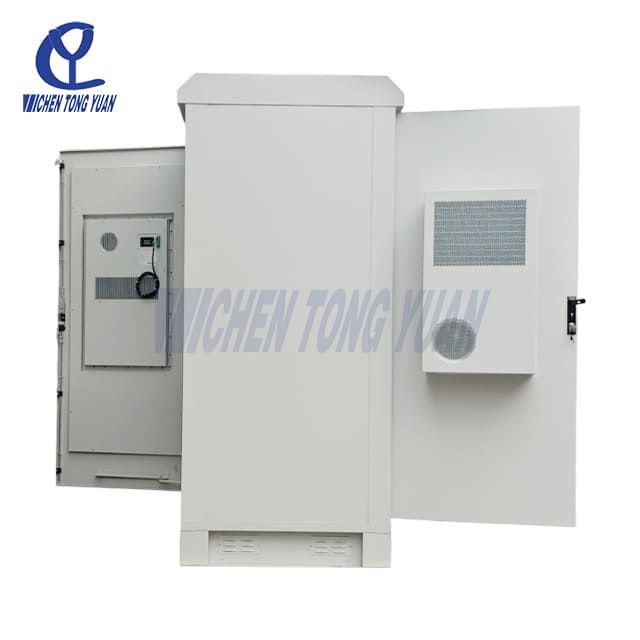

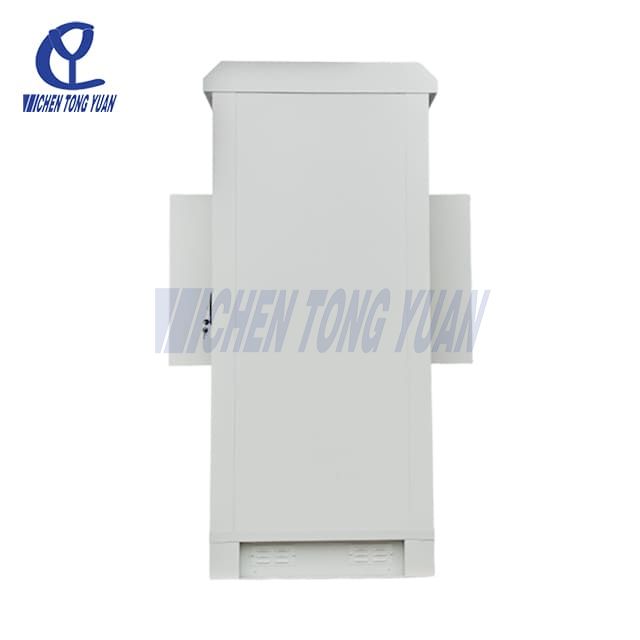

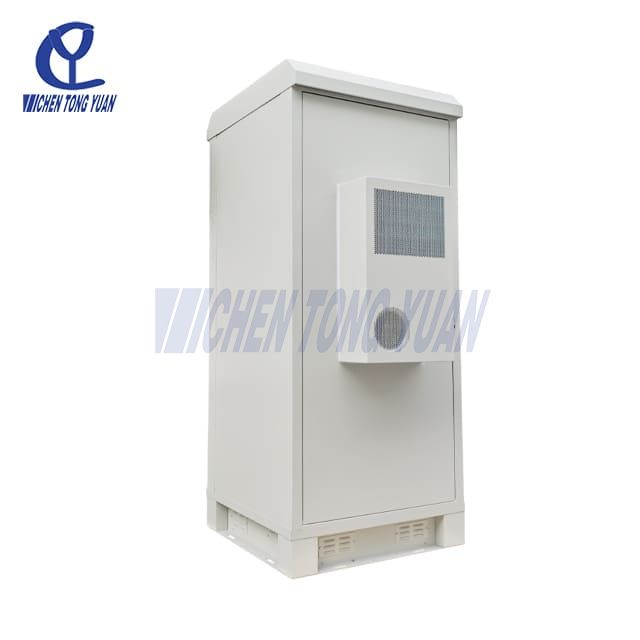

CY2100900900
CY TECH
Telecom
IP 55, NEMA 3R, NEMA 4, NEMA 4X
Floor Mount
1500W/5100BTU
19inch, 23inch
800mm/32inch
42U

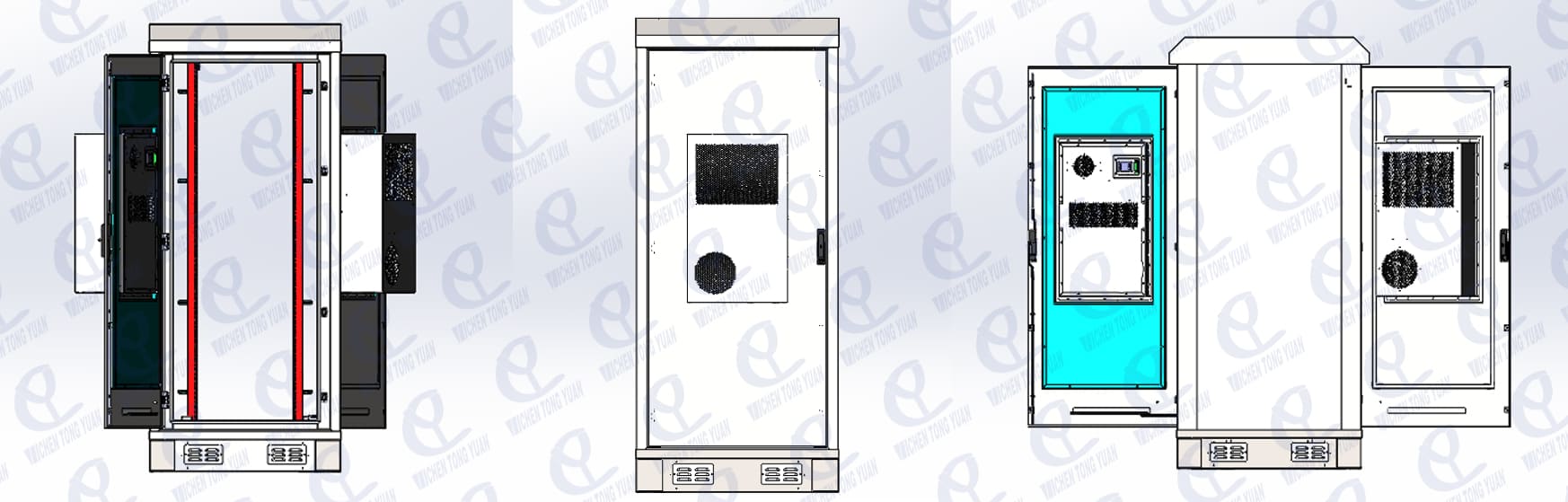

Product Description
| Name | Technical Parameter |

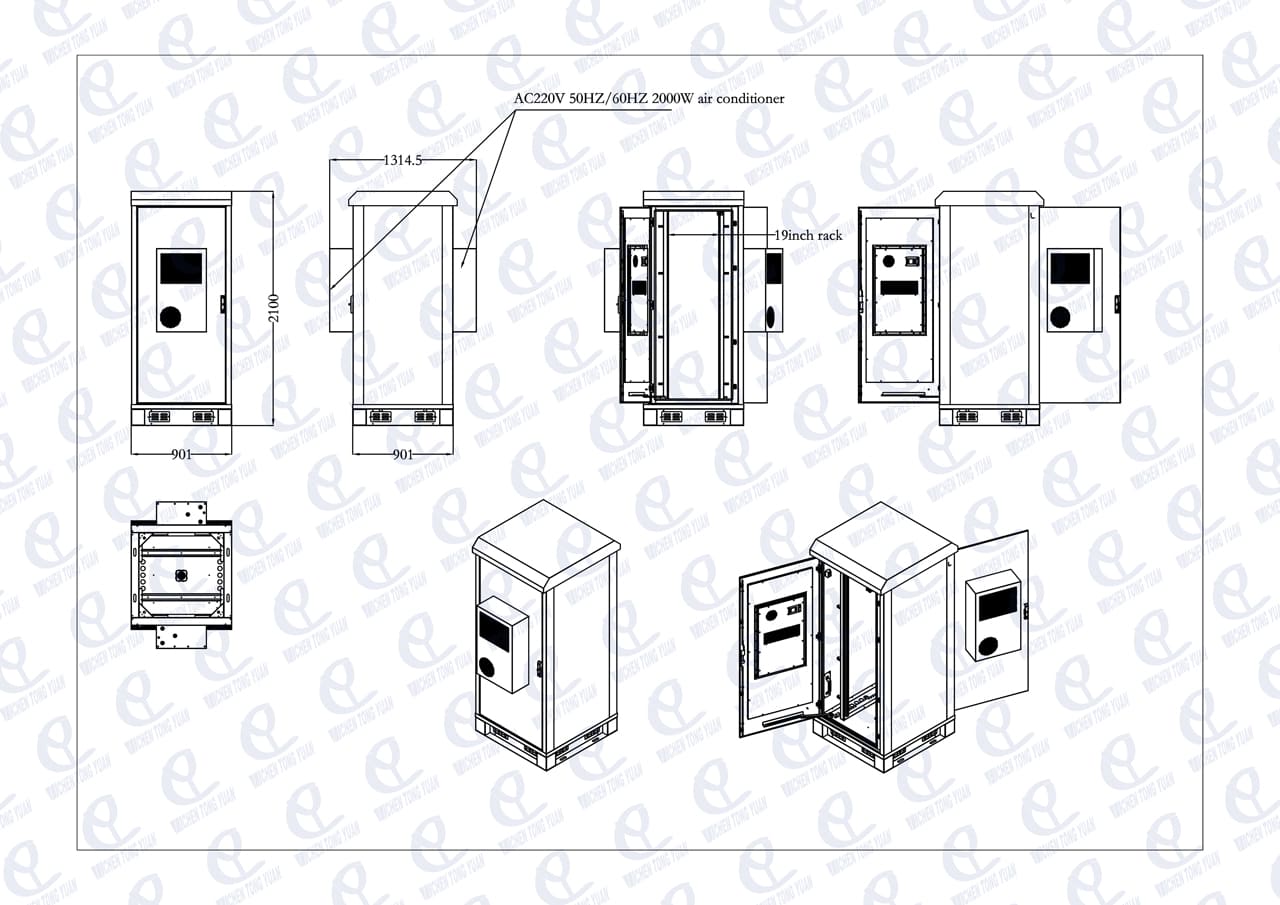

| External Size | H*W*D=2100*900*900mm ( 83 x 35 x 35 inch) |
| Rack Unit | 42U |
| Cabinet layout | One compartment, for installing 19inch/23inch equipment, floor stand |
| Cabinet material | Double layer galvanized steel with isolation cotton |
| Security design | Embedded door, embedded hinges, 4-point security lock |
| Protection level | IP55, IP65, NEMA 3R, NEMA 4 or NEMA 4 |
| Color | RAL7035 Greg |
| Climate control | AC220V air conditioner and DC48V fan |
| Lighting system | Door sensor+48V LED light(when open the door, the LED will light on;When the door is closed, the LED will go out.) |
| Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
| Working temperature | - 40 ℃ ~ + 55 ℃ |
| Working Humidity | ≤ 95% (+ 40 ℃) |
| Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Note：The air conditioner can also choose AC 110V 60HZ or DC 48V, and the fan can also choose AC 110V or 220V.
Includes: locking door with air conditioner,19inch rackmount rails,floormount plinth or hardwares.
| Name | Quantity | Unit | Technical parameter |
| Outdoor telecom cabinet | 1 | set | H*W*D=2100*900*900mm ( 83 x 35 x 35 inch) |
| Air conditioner | 1 | set | Power supply:AC 220V 50/60Hz Cooling capacity:1500W |
| Fan | 1 | set | DC48V with temperature control |
| LED Lamp | 1 | set | DC48V,used for illumination in the cabinet |
| Grounding bus bar | 1 | set | 200A Copper bar(13 point M6 and 2 point M8) |
| Equipment supporting | 1 | set | |
| Package | 1 | set | Wooden box , wooden pallet+stretch film or wooden pallet +wooden box |
The following accessories are available for optional ordering.
| Item | Technical parameter | Picture |
| EMS | 19 inch environment monitoring unit 1U; DC48V, support RS232,RS485, SNMP,TCP/IP communication protocol. 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor.
Environmental monitoring system is a comprehensive network of devices and technologies designed to track and assess various aspects of the environment. This system plays a crucial role in gathering data to understand environmental conditions, detect changes, and manage natural resources. |
|
| Fire Extinguisher | Hot aerosol fire extinguishing device is a new, efficient and environment-friendly fire fighting product with Vanguard International Semiconductor Corporation level, which is the first in China. It is a high-tech green fire protection product that benefits humanity, born under the background of the International Montreal Agreement and China's increased awareness of environmental protection. It is an ideal substitute for halon fire extinguishing devices and is suitable for relatively enclosed spaces such as distribution cabinets.
Electric or hot start: Hot start temperature ≥170℃; Electric start temperature ≥700mA. |
|
| Wiring type PDU | AC input：63A/2P*2 with interlock； AC/SPD：30-60KA/2P*1； AC output：63A/1P*1,32A/1P*1，16A/1P*3，3 holes Maintenance socket*1 |
|
| Integrated PDU | Can be customized according to customer requirements. |
|
| Rectifier | AC220V/110V transfer to DC48V, Connect the battery as a backup power,also can be customized according to customer requirements. |
|
ODF | Optic Distribution Frame (ODF) is a critical component in a fiber optic network infrastructure. It serves as a centralized point for the termination, organization, and distribution of fiber optic cables. The primary purpose of a distribution frame is to facilitate efficient and organized connectivity, making it easier to manage, troubleshoot, and expand the network.
Function: 1)Termination Point; 2)Organization and Management; 3)Splicing Trays; 4)Labeling and Documentation; 5)Security and Protection; 6)Scalability;
Can be customized according to customer requirements. |
|
| Backup battery | Can be lithium battery or lead acid battery. |
Flexibility
The Waterproof Outdoor Electrical Cabinet is designed to provide maximum durability, flexibility, and efficiency for various outdoor applications. With its customizable features and robust construction, the Waterproof Outdoor Electrical Cabinet ensures reliable performance in harsh environmental conditions.
The Waterproof Outdoor Electrical Cabinet can be constructed from durable galvanized steel, sandwich panel, stainless steel (SS304), or aluminum.
These high-quality materials ensure corrosion resistance, longevity, and optimal protection against external elements.
The Waterproof Outdoor Electrical Cabinet supports configurations ranging from 1 to 4 bays, with multi-compartment options available.
This design flexibility allows for customized layouts to meet specific equipment and storage needs.
The Waterproof Outdoor Electrical Cabinet features front and rear access doors for easy equipment installation and maintenance.
Side door designs are also available to accommodate different site requirements.
The Waterproof Outdoor Electrical Cabinet comes in standard RAL7035 color.
Custom colors can be applied based on specific appointed color codes to match branding or environmental aesthetics.
A wide range of thermal management solutions is available for the Waterproof Outdoor Electrical Cabinet, ensuring efficient heat dissipation.
Cooling options include compressed air conditioners, TEC (Thermoelectric Cooler), HEX (heat exchanger), fans, and combined AC & HEX systems.
These solutions optimize thermal performance while reducing energy costs.
The Waterproof Outdoor Electrical Cabinet offers multiple configuration options, ensuring adaptability to various applications.
Supported power systems include PDU, rectifiers, and integrated AC-DC power systems.
The Waterproof Outdoor Electrical Cabinet supports silk-screened logos and environmentally friendly painting artwork.
These features ensure durability and compliance with environmental standards for outdoor telecom applications.
The Waterproof Outdoor Electrical Cabinet supports various environmental sensors, including door, smoke, and temperature sensors.
A remote monitoring system is integrated, supporting communication protocols such as RS232, RS485, and SNMP for real-time status updates and control.
By incorporating advanced features and flexible design configurations, the Waterproof Outdoor Electrical Cabinet ensures reliability, efficiency, and adaptability in outdoor environments.
Options
Model | Height | Type | Rate | Color | H*W*D | Climate control | Application |
CY800650650 | 14U | Floor stand | IP55 | Grey | 800mm*650mm*650mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1050650650 | 18U | Floor stand | IP55 | Grey | 1050mm*650mm*650mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1400800800 | 26U | Floor stand | IP55 | Grey | 1400mm*800mm*800mm | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1600800800 | 30U | Floor stand | IP55 | Grey | 1600mm*800mm*800mm | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY1700750750 | 32U | Floor stand | IP55 | Grey | 1700mm*700mm*700mm | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY2100900900 | 42U | Floor stand | IP55 | Grey | 2100mm*900mm*900mm | Air conditioner 1500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
Other size to be continued ,please send us inquiry for futher discussion
Name | Specification |
Air conditioner | AC220V 50HZ |
AC220V 60HZ | |
AC110V 60HZ / DC48V | |
Cooling capacity from 300W-5000W | |
Heat exchanger | DC48V |
40W/K-200W/K | |
Combined air conditioner & heat exchanger | AC220V 50HZ & DC48V |
1500W&80W/K | |
TEC | DC48V |
200W-1200W | |
Fan | AC220V 50HZ |
AC220V 60HZ | |
AC110V 60HZ / DC48V |
How to order
Choosing the right Waterproof Outdoor Electrical Cabinet control system is essential to maintaining the performance and longevity of your equipment. Key factors to consider include:
Acceptable Temperature Range: Ensure the Waterproof Outdoor Electrical Cabinet can maintain stable temperatures for sensitive components.
Heat Load of Equipment: Evaluate the heat generated by the devices inside the Waterproof Outdoor Electrical Cabinet and select an appropriate cooling solution.
Highest Local Ambient Temperature: Consider the external temperature conditions where the Waterproof Outdoor Electrical Cabinet will be installed.
Noise Level: Choose a cooling system for the Waterproof Outdoor Electrical Cabinet that operates within an acceptable noise range for your environment.
Future Expansion: Ensure the Waterproof Outdoor Electrical Cabinet can accommodate future equipment upgrades or increased power needs.
By considering these factors, you can select a Waterproof Outdoor Electrical Cabinet control system that ensures efficient thermal management and operational reliability.
To maximize the performance and lifespan of the Waterproof Outdoor Electrical Cabinet, follow these essential installation and maintenance guidelines:
Optimal Location: If possible, install the Waterproof Outdoor Electrical Cabinet in a cool, ventilated area with minimal exposure to extreme weather.
Sealing Protection: After cable installation, seal any gaps with the provided sealant to prevent moisture ingress and condensation inside the Waterproof Outdoor Electrical Cabinet.
Proper Grounding: The grounding bar of the Waterproof Outdoor Electrical Cabinet must be securely grounded, with a resistance of less than 10Ω.
Regular Maintenance: Clean the ventilation system and dust filter of the Waterproof Outdoor Electrical Cabinet monthly. The cleaning frequency may be adjusted based on environmental conditions.
The Waterproof Outdoor Electrical Cabinet is designed to protect critical electrical equipment from environmental hazards. It serves various industries by providing durable, weather-resistant enclosures for electrical systems.
The Waterproof Outdoor Electrical Cabinet is widely used in power distribution systems to house and protect equipment such as:
Circuit Breakers
Transformers
Fuses
Switchgear
These cabinets ensure safe and uninterrupted power distribution, safeguarding critical electrical components.
In solar and wind energy projects, the Waterproof Outdoor Electrical Cabinet protects essential components like:
Solar Inverters
Wind Turbine Controllers
Battery Storage Systems
These enclosures help maintain system efficiency and prevent damage from extreme weather conditions.
For urban infrastructure, the Waterproof Outdoor Electrical Cabinet is essential for housing:
Lighting Controls
Timers
Fuse Protection
These cabinets enhance the reliability of streetlights by ensuring consistent power supply and protection.
Similar to outdoor telecom cabinets, the Waterproof Outdoor Electrical Cabinet supports:
Power Supplies
Backup Batteries
Network Equipment
This ensures stable power and protection for telecom systems, preventing service disruptions.
The Waterproof Outdoor Electrical Cabinet is crucial for housing:
Traffic Signal Controllers
Sensors
Backup Power Systems
These cabinets maintain uninterrupted operation of traffic signals and monitoring systems in all weather conditions.
Industrial facilities rely on the Waterproof Outdoor Electrical Cabinet to protect electrical control systems, including:
Control Panels
Motor Starters
Relays
These cabinets shield industrial equipment from dust, moisture, and temperature fluctuations.
In water treatment facilities, the Waterproof Outdoor Electrical Cabinet houses essential electrical systems for:
Pump Controls
Monitoring Systems
Backup Power Systems
These enclosures ensure reliable operation of water purification and distribution systems.
For security and outdoor lighting, the Waterproof Outdoor Electrical Cabinet protects:
Security Camera Systems
Outdoor Lighting Controls
Motion Sensors
This ensures consistent power supply and protection against environmental damage.
The Waterproof Outdoor Electrical Cabinet plays a crucial role in protecting electrical systems across various industries. With its advanced thermal management, durable construction, and versatile applications, the Waterproof Outdoor Electrical Cabinet ensures reliable and safe operation in even the most challenging outdoor environments.
