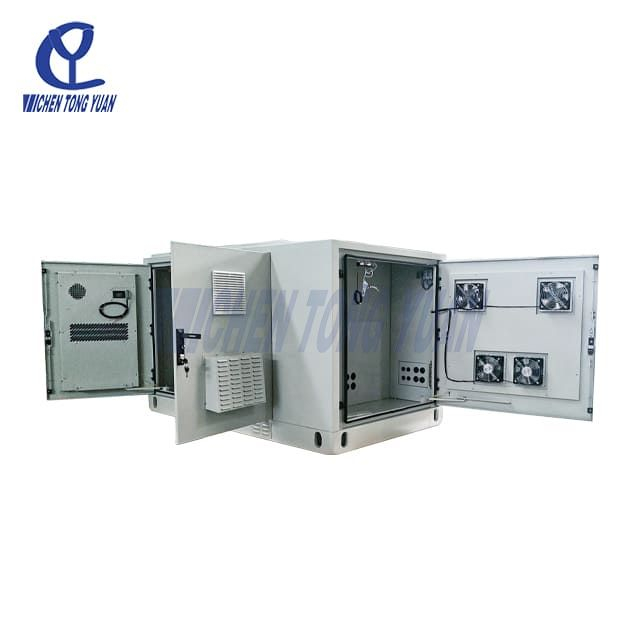

NEMA Type Triple Bay Industrial Lithium Battery Storage Cabinet with Cooling

CYTECH provides customized Industrial Lithium Battery Storage Cabinet tailored for battery energy storage system manufacturer. Designed to integrate batteries, inverters, and AC/DC distribution units, these cabinets ensure efficient, safe, and scalable energy storage for factories and commercial applications. Ideal for standalone use or as part of a Commercial ESS (Energy Storage System) , they deliver high performance, durability, and reliability in demanding industrial environments.

◆Temperature-controlled 500W Air Conditioner *2pcs
◆Welded galvanized steel, powder-coated construction
◆Full size front access door, 4 point with latch with pad-lockable security
◆Earthing bar conveniently located at the front and rear
◆Includes 150mm high plinth for floor mount or ground mount
  • CY107218001000

  • CY TECH

  • Battery

  • IP 55, IP 65, NEMA 4, NEMA 4X

  • Floor Mount

Detail:
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

Industrial Lithium Battery Storage Cabinet Video




Industrial Lithium Battery Storage Cabinet Certificate





CY107218001000 Features


Name
Technical Parameter
External Size
H*W*D=1072*1800*1000mm (42 x 71 x 39 inch)
Cabinet layout
Two compartment, one compartment for lithium battery, one compartment for inverter and AC/DC electric box
Cabinet material
Double layer Galvanized steel with EPS thermal isolation
Security design
Embedded door, embedded hinges, 4-point security lock
Protection level
IP55 / IP65/ NEMA 4 / Nema 4X
Color RAL7035
Climate control   AC220V air conditioner and DC48V fan
Lighting system   Door sensor+48V LED light(door open, the LED will light on; door closed, the LED will go out.)
Grounding system 200A Copper bar(13 point M6 and 2 point M8)
Working temperature - 40 ℃ ~ + 55 ℃
Working Humidity ≤ 95% (+ 40 ℃)
Air Pressure   62kpa ~ 106kpa (similar to 0m ~ 5000m altitude)

Note:The air conditioner can also choose AC 110V 60HZ or DC 48V, and the fan can also choose AC 110V or 220



The General Drawing for Industrial Lithium Battery Storage Cabinet


Energy Storage Cabinet



3D Drawing for Industrial Lithium Battery Storage Cabinet


Other size to be continued ,please send us inquiry for futher discussion


Features

Industrial Lithium Battery Storage Cabinet Features


◆ Industrial Lithium Battery Storage Cabinet has no exposed detachable components on the outside, and the enclosure structure is compact and easy to install;


◆ Industrial Lithium Battery Storage Cabinet has good sealing performance and an overall protection level of IP55;


◆ Industrial Lithium Battery Storage Cabinets are made of flame-retardant insulation cotton, which has excellent insulation performance;


◆  Industrial Lithium Battery Storage Cabinet adopts embedded hinges and a four point fixed mechanical lock, with a sturdy structure and strong anti-theft performance;


◆  Industrial Lithium Battery Storage Cabinet adopts bottom incoming and bottom outgoing lines, and the enclosure is equipped with a cable rack inside, which is overall beautiful;


◆  Industrial Lithium Battery Storage Cabinet can be equipped with industrial air conditioning or water-cooled units for temperature regulation, which can meet the cooling needs in summer and heating in winter according to equipment performance requirements, and operate at a constant temperature, thereby extending the service life of the battery pack;


◆  Industrial Lithium Battery Storage Cabinet can be equipped with optional fire protection devices and AC/DC distribution units.


Function

Industrial Lithium Battery Storage Cabinet Function


Industrial Lithium Battery Storage Cabinet is a specialized enclosure designed to house and manage energy storage systems. These enclosures are crucial components in various applications, including renewable energy systems, backup power solutions, and electric vehicle charging stations. The primary purpose of an energy battery enclosure is to provide a secure and controlled environment for the batteries or energy storage devices it contains.


Here are its key functions:


1. Battery Housing and Protection

     ● The cabinet provides a secure, weatherproof, and sometimes fire-resistant enclosure for batteries, safeguarding them from external environmental factors like temperature fluctuations, moisture, and dust.


2. Thermal Management

     ● Lithium Battery Storage Cabinets often include cooling systems such as fans or air conditioning units to maintain optimal battery operating temperatures, preventing overheating or performance degradation.


3. Electrical Safety

     ● These cabinet s incorporate electrical safety features like circuit breakers, fuses, and grounding to protect against short circuits, overcurrent, or electrical faults that could lead to dangerous conditions.


4. Space Optimization

     ● By organizing batteries and related components (such as inverters, power controllers, etc.) in a compact and well-structured manner, solar energy battery enclosure help to optimize space, especially in industrial and commercial settings.


5. Easy Maintenance and Access

     ● The enclosure design allows for easy access to batteries for maintenance, inspection, and replacement, minimizing downtime.


6. Integration with Energy Systems

     ● Lithium Battery Storage Cabinets are designed to integrate seamlessly with larger energy systems (solar, wind, grid, etc.), facilitating efficient energy storage, distribution, and management.


7. Safety and Compliance

     ●  Cabinets ensure that the battery system complies with relevant safety standards, including fire protection and electrical safety regulations.


These functions make solar energy battery enclosure essential for ensuring the safe, efficient, and long-lasting operation of energy storage systems in a wide variety of applications.


Flexibility

Lithium Battery Storage Cabinet Flexibility


(1) Material can be Constructed of durable,  galvanized steel,sandwich panel ,stainless steel SS304,aluminium.


(2) Compartments can be configured to support between 1-4 bays,multi-compartments supported.


(3) Front and rear access doors allow technicians access to equipment storage areas and cable routing.


(4) Side doors design also ok.


(5) Customized color ,standard color RAL7035,other color acceptable based on appointed color code.


(6) Wide range of thermal management options for even the most demanding heat dissipation needs allows for optimization of thermal performance and reduced energy costs.


(7) The cooling solution adopted compressed air conditioner ,TEC (Thermoelectric Cooler),Hex (heat exchanger),Fans,Combo Aircon with Heat Exchanger and air cooled liquid cooler.


(8) Offers a wide range of configuration options providing maximum flexibility including PDU, rectifier ,integrated AC-DC power systems.


(9) Silk screening Logo and environmental friendly painting artwork.


Application

Lithium Battery Storage Cabinet Application


The Industrial Lithium Battery Storage Cabinet is a key component in modern energy infrastructure, designed to store and discharge electrical energy efficiently. It typically incorporates one or more lithium-ion battery modules and is widely deployed in commercial solar battery storage, large-scale energy storage systems, and industrial power management solutions.


One of the primary advantages of this system is its ability to optimize grid performance. By storing energy during periods of low demand and releasing it during peak load times, these cabinets help balance grid loads, enhance stability, and improve the overall reliability of the power system. This function is especially valuable in lithium-ion battery storage commercial applications where energy efficiency and cost savings are critical.


Additionally, Industrial Lithium Battery Storage Cabinets serve as reliable backup power sources. In the event of grid malfunctions or power outages, the system can rapidly deliver emergency power, ensuring the continuous operation of mission-critical equipment. This capability is essential for industries such as healthcare, telecommunications, and financial services, where power continuity is vital.


These systems are also indispensable during emergencies such as natural disasters or grid failures. Their ability to deliver high-capacity power instantly makes them a crucial part of disaster response and resilience planning, safeguarding both infrastructure and public safety.
