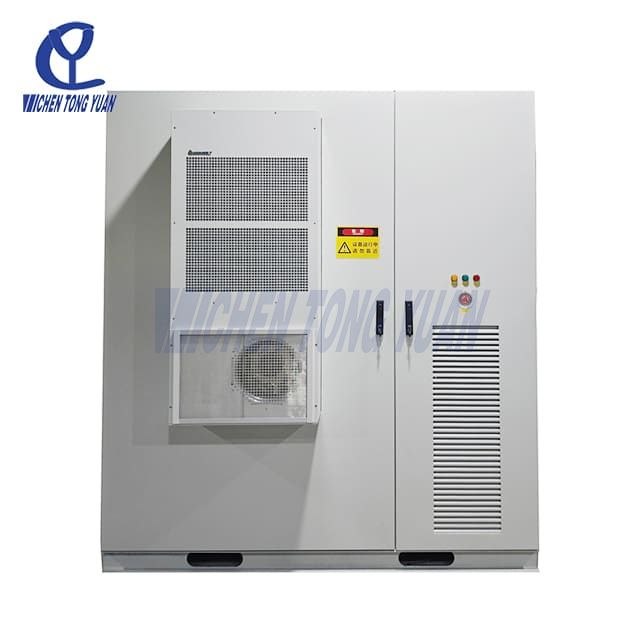

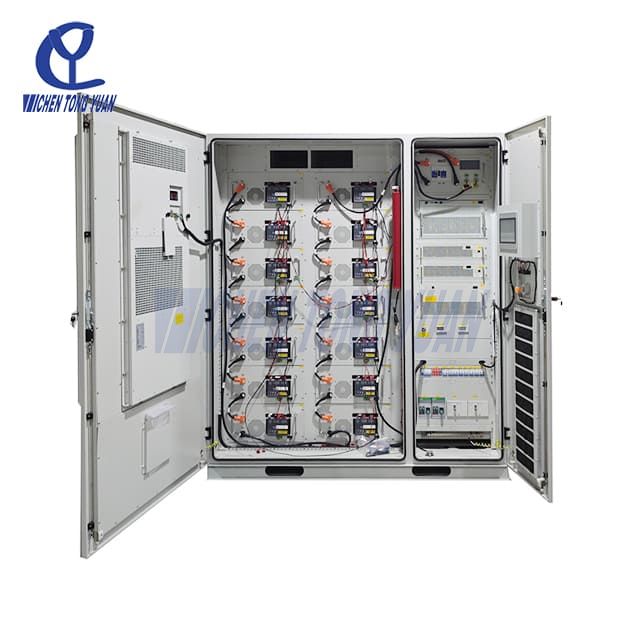

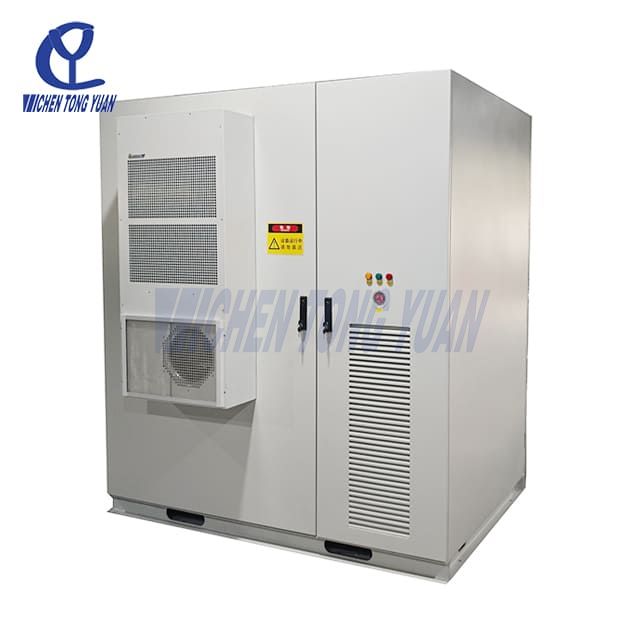

CYESS105KW215KWH
CYTECH
| Detail: | |
|---|---|
Product Description
Solar and Battery Storage System or solar system energy storage is a system that can store electric energy and supply power, with smooth transition, peak shaving and valley filling, frequency and voltage regulation and other functions. It can smooth the output of solar and wind power generation, and reduce the impact of its randomness, gap and fluctuation on the power grid and users; Charging in the valley price period and discharging in the peak price period can reduce the user's electricity expense; In case of power failure in the large power grid, it can operate independently to ensure uninterrupted power supply to users.
◆ Support photovoltaic access；
◆ Multiple communication methods, supporting remote upgrades；
◆ Ultra high energy density, small size, easy installation and transportation；
◆ Modular design, flexible expansion, convenient transportation and maintenance；
◆ Supports 100% unbalanced load and 110% long-term overload；
◆ Adjustable output power, adjustable charging and discharging power, strong adaptability to the power grid.
Rated power | 105KW |
Lithium battery capacity | 215KWH |
On Grid parameter | |
Rated grid voltage | 400V±15% |
Rated current | 167A |
Power Factor | 0.99 |
Rated grid frequency | 50±5Hz |
Overload capacity | 110% Long term |
Access method | 3P4L |
Off grid parameter | |
Rated output voltage | 400V |
Rated output power | 100KW |
Rated output frequency | 50±5Hz |
THDU | ＜3%（Linear power） |
Unbalanced load capacity | 100% |
Overload capacity | 110% Long term |
Charge and discharge conversion time (ms) | ＜20 |
Battery parameter | |
Rated voltage | 716.8V |
Operating voltage | 650-796V |
Battery Capacity | 215KWh |
PV input | |
PV voltage range | 500~620V |
Maximum input power( | 100KW |
Maximum efficiency | ≥99% |
System efficiency | |

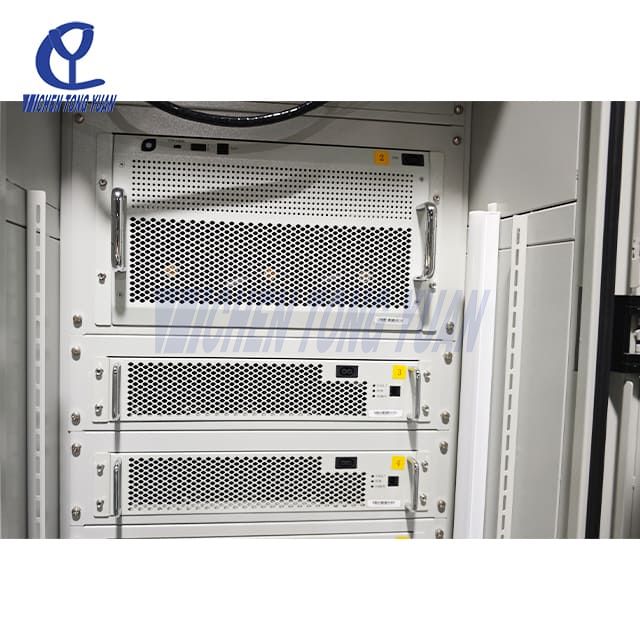

PCS maximum efficiency | ≥98% |
System maximum efficiency | ＞90% |
Battery charge and discharge rate | ≤0.5C |
Ambient condition | |
Working temperature | -10°C~40°C |
Storage temperature | -15°C~60°C |
Noise | ≤55dB |
Relative humidity | <95%RH，non-condensing |
Application
Cytech’s dc-coupled hybrid ultracapacitor battery energy storage system merges ultracapacitor modules with a high-performance lithium energy storage system to mitigate volatile output from solar PV and wind farms. By absorbing surplus generation during peaks and dispatching stored energy during troughs, Cytech’s Battery Energy Storage System:
Smooths renewable output profiles for enhanced grid stability
Minimizes costly curtailment events
Maximizes asset utilization across utility-scale and wholesale energy storage system deployments
Cytech’s integrated Battery Energy Storage System platforms provide sophisticated load leveling and grid support:
Peak shaving & valley filling: Advanced algorithms forecast demand peaks, enabling Cytech’s system to discharge stored energy at high-price intervals and recharge during off-peak periods
Sub-second frequency response: Rapid dispatch capability ensures Cytech units actively stabilize voltage and frequency on both large interconnections and islanded microgrids
Microgrid resilience: In island mode, Cytech solutions maintain uninterrupted power for mission-critical infrastructure—data centers, hospitals, and industrial operations alike
Cytech’s wholesale energy storage system strategy helps operators capitalize on time-of-use tariffs while safeguarding continuous operation:
Energy arbitrage: Cytech systems charge during low-cost off-peak hours and discharge at peak rates to boost revenue and reduce utility bills
Demand charge reduction: By flattening peak consumption profiles, Cytech solutions lower both infrastructure strain and demand-based pricing
Seamless backup mode: During grid outages, Cytech’s Battery Energy Storage System instantly transitions to stored energy, ensuring business continuity and mitigating operational risks
Leveraging Cytech’s hybrid ultracapacitor-battery energy storage system and cutting-edge lithium energy storage system technology, organizations can deploy comprehensive wholesale energy storage system and Battery Energy Storage System solutions. These turn-key offerings deliver end-to-end benefits—grid smoothing, load management, frequency support, cost optimization, and fail-safe backup power—driving both economic and operational excellence.
