CY228020001000
CY TECH

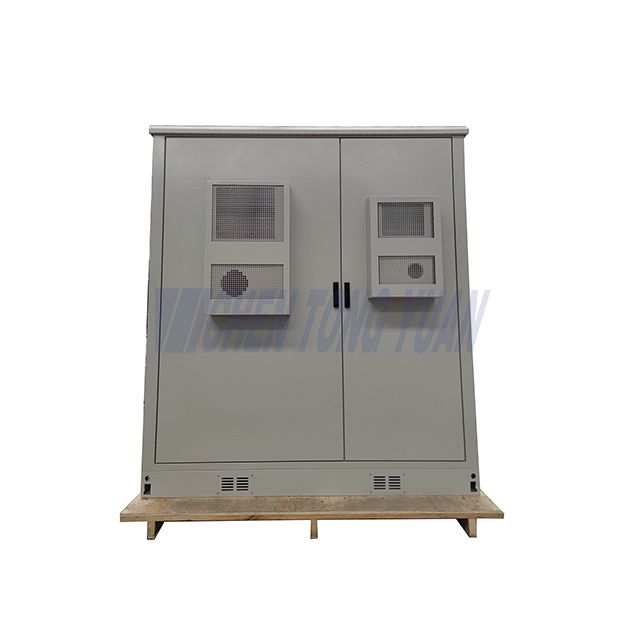

Product Description
Item | Name | Technical parameter |

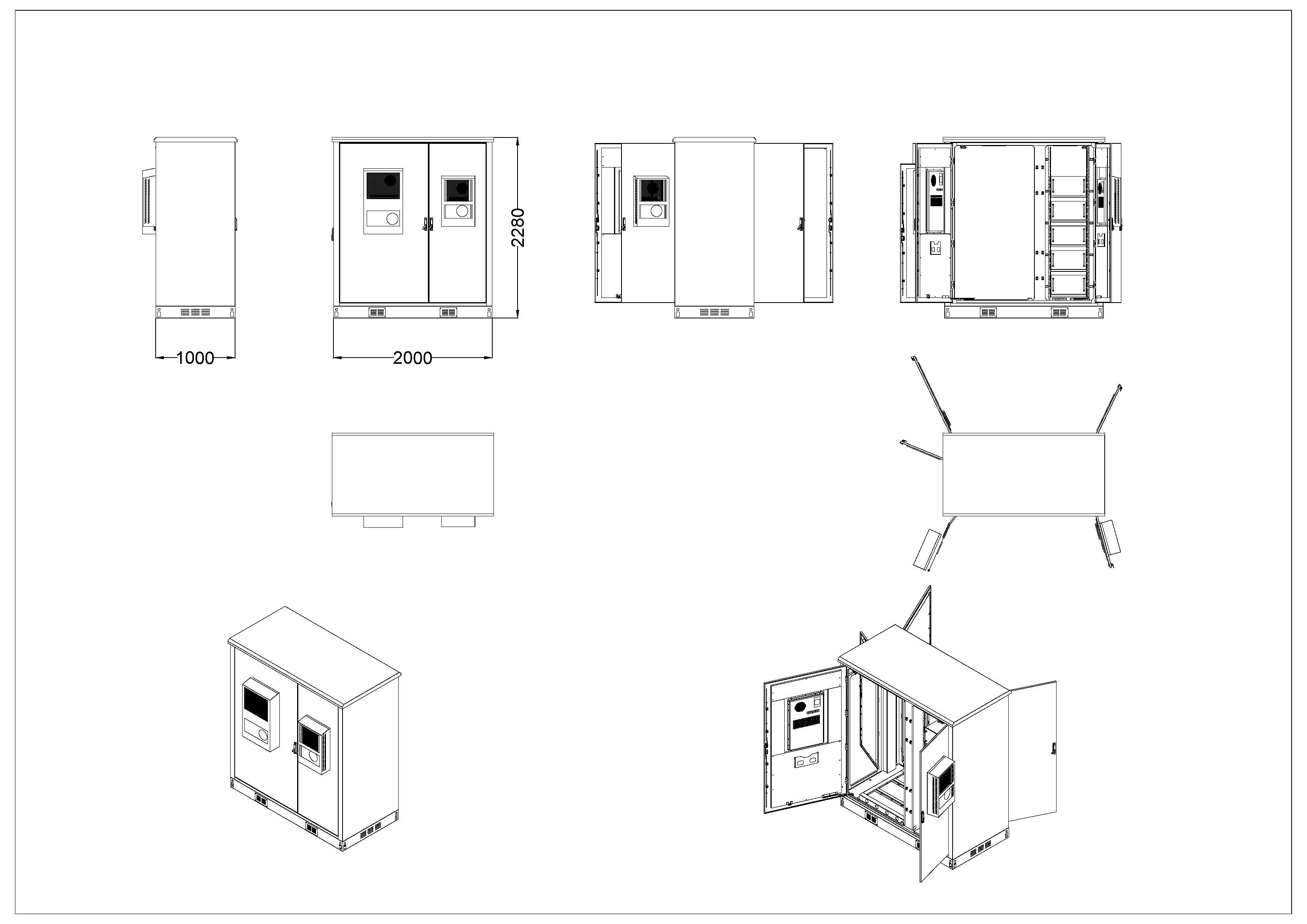

1 | Size | External Size:H*W*D=2280*2000*1000mm |

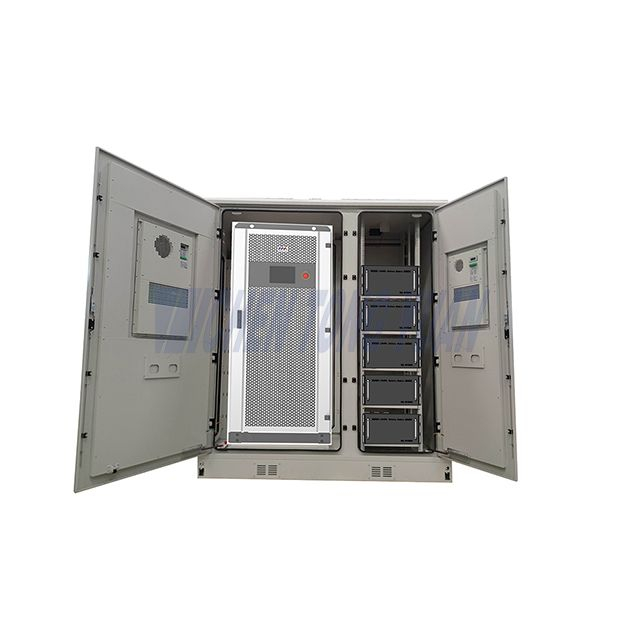

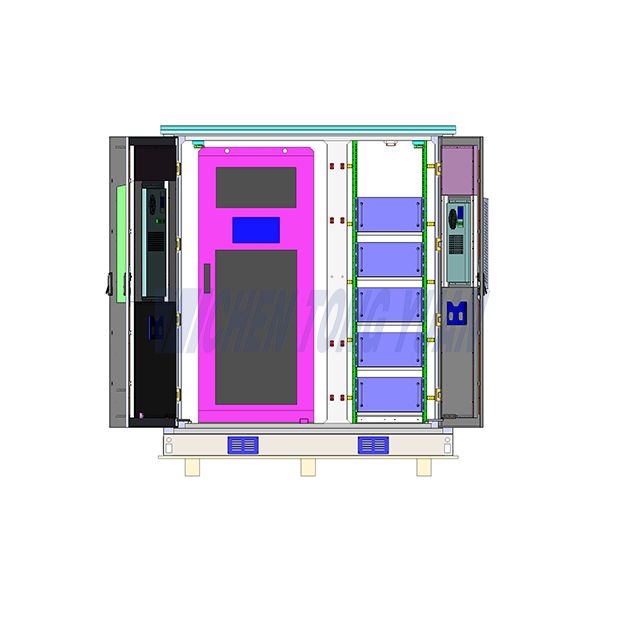

2 | Cabinet layout | Two compartment, one compartment for lithium battery, one compartment for inverter and AC/DC electric box |
3 | Cabinet material | Double layer Galvanized steel with PEF thermal isolation |
4 | Security design | Embedded door, embedded hinges, 4-point security lock |
5 | Protection level | IP55 |
6 | Color | RAL7035 |
7 | Climate control | AC220V air conditioner and DC48V fan |
8 | Lighting system | Door sensor+48V LED light(when open the door, the LED will light on;When the door is closed, the LED will go out.) |
9 | Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
10 | Working temperature | - 40 ℃ ~ + 55 ℃ |
11 | Working Humidity | ≤ 95% (+ 40 ℃) |
12 | Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Note：The air conditioner can also choose AC 110V 60HZ or DC 48V, and the fan can also choose AC 110V or 220V.
Other size to be continued ,please send us inquiry for futher discussion
◆Outdoor battery energy storage cabinet has no exposed detachable components on the outside, and the cabinet structure is compact and easy to install;
◆Outdoor battery energy storage cabinet has good sealing performance and an overall protection level of IP55;
◆Outdoor battery energy storage cabinets are made of flame-retardant insulation cotton, which has excellent insulation performance;
◆Outdoor battery energy storage cabinet adopts embedded hinges and a four point fixed mechanical lock, with a sturdy structure and strong anti-theft performance;
◆Outdoor battery energy storage cabinet adopts bottom incoming and bottom outgoing lines, and the cabinet is equipped with a cable rack inside, which is overall beautiful;
◆Outdoor battery energy storage cabinets can be equipped with industrial air conditioning or water-cooled units for temperature regulation, which can meet the cooling needs in summer and heating in winter according to equipment performance requirements, and operate at a constant temperature, thereby extending the service life of the battery pack;
◆Outdoor battery energy storage cabinets can be equipped with optional fire protection devices and AC/DC distribution units.
(1)Material can be Constructed of durable, galvanized steel,sandwich panel ,stainless steel SS304,aluminium.
(2)Compartments can be configured to support between 1-4 bays,multi-compartments supported.
(3)Front and rear access doors allow technicians access to equipment storage areas and cable routing.
(4)Side doors design also ok.
(5)Customized color ,standard color RAL7035,other color acceptable based on appointed color code.
(6)Wide range of thermal management options for even the most demanding heat dissipation needs allows for optimization of thermal performance and reduced energy costs.
(7)The cooling solution adopted compressed air conditioner ,TEC (Thermoelectric Cooler),Hex (heat exchanger),Fans,Combined AC&HEX and air cooled liquid cooler.
(8)Offers a wide range of configuration options providing maximum flexibility including PDU, rectifier ,integrated AC-DC power systems.
(9)Silk screening Logo and environmental friendly painting artwork.
Battery energy storage cabinet is a specialized enclosure designed to house and manage energy storage systems. These cabinets are crucial components in various applications, including renewable energy systems, backup power solutions, and electric vehicle charging stations. The primary purpose of an energy storage cabinet is to provide a secure and controlled environment for the batteries or energy storage devices it contains.
Key features of an energy battery storage cabinet may include:
Energy storage cabinets play a vital role in the reliability and performance of energy storage systems, contributing to the efficient use of renewable energy, grid stability, and the overall resilience of power infrastructure.
Battery energy storage cabinet is a device used for storing and releasing electrical energy. It consists of one or more batteries that can store electrical energy for use when needed. Energy storage cabinets are commonly used in power systems to balance grid loads, provide backup power, and respond to emergencies.
One of the main advantages of energy storage cabinets is their efficient energy storage and release capabilities. It can store electrical energy during peak load periods of the power grid and release electrical energy during low load periods, thereby balancing the power grid load and improving the stability and reliability of the power system.
In addition, the energy storage cabinet can also be used as a backup power source. When there is a malfunction or power outage in the power system, the energy storage cabinet can be quickly started to provide emergency power supply and ensure the normal operation of critical equipment. This is particularly important for industries that require high electricity supply, such as healthcare, communication, and finance.
Energy storage cabinets can also cope with unexpected events, such as natural disasters or power system failures. It can provide a large amount of electricity in the power system in a short period of time to meet emergency needs. This is crucial for protecting people's lives and property safety.
