CY22702100850
CY TECH
Battery
IP 55, NEMA 4
Floor Mount
500W/1700BTU
| Detail: | |
|---|---|
Description
| Name | Technical Parameter |
| External Size | H*W*D=2270*2100*850mm (89*83*34inch) |

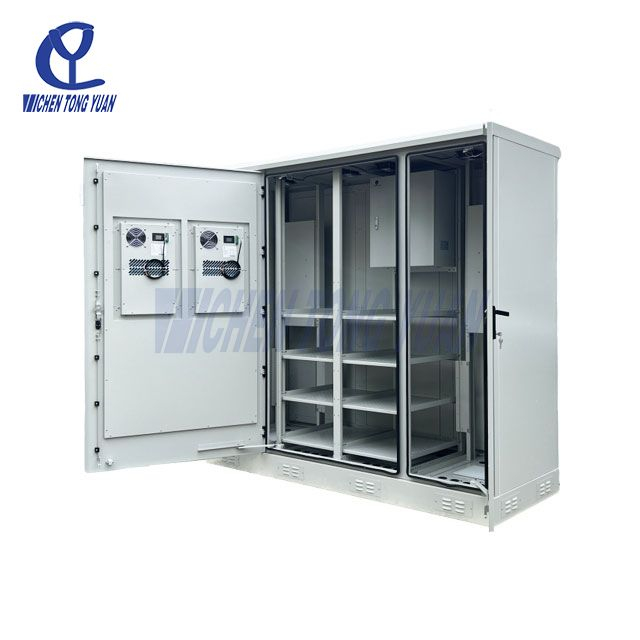

| Cabinet layout | Four compartment, two compartment for lithium battery, two compartment for inverter and AC/DC electric box |
| Cabinet material | Double layer Galvanized steel with PEF thermal isolation |
| Security design | Embedded door, embedded hinges, 4-point security lock |
| Protection level | IP55 |
| Color | RAL7035 |
| Climate control | AC220V air conditioner and DC48V fan |
| Lighting system | Door sensor+48V LED light(when open the door, the LED will light on;When the door is closed, the LED will go out.) |
| Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
| Working temperature | - 40 ℃ ~ + 55 ℃ |
| Working Humidity | ≤ 95% (+ 40 ℃) |
| Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Other size to be continued ,please send us inquiry for futher discussion
◆ Bess Battery Storage System has no exposed detachable components on the outside, and the cabinet structure is compact and easy to install;
◆ Bess Battery Storage System has good sealing performance and an overall protection level of IP55;
◆ Bess Battery Storage Systems are made of flame-retardant insulation cotton, which has excellent insulation performance;
◆ Bess Battery Storage System adopts embedded hinges and a four point fixed mechanical lock, with a sturdy structure and strong anti-theft performance;
◆ Bess Battery Storage System adopts bottom incoming and bottom outgoing lines, and the cabinet is equipped with a cable rack inside, which is overall beautiful;
◆ Bess Battery Storage System can be equipped with industrial air conditioning or water-cooled units for temperature regulation, which can meet the cooling needs in summer and heating in winter according to equipment performance requirements, and operate at a constant temperature, thereby extending the service life of the battery pack;
◆ Bess Battery Storage System can be equipped with optional fire protection devices and AC/DC distribution units.
Flexibility
(1) Material can be Constructed of durable, galvanized steel,sandwich panel ,stainless steel SS304,aluminium.
(2) Compartments can be configured to support between 1-4 bays,multi-compartments supported.
(3) Front and rear access doors allow technicians access to equipment storage areas and cable routing.
(4) Side doors design also ok.
(5) Customized color ,standard color RAL7035,other color acceptable based on appointed color code.
(6) Wide range of thermal management options for even the most demanding heat dissipation needs allows for optimization of thermal performance and reduced energy costs.
(7) The cooling solution adopted compressed air conditioner ,TEC (Thermoelectric Cooler),Hex (heat exchanger),Fans,Combined AC&HEX and air cooled liquid cooler.
(8) Offers a wide range of configuration options providing maximum flexibility including PDU, rectifier ,integrated AC-DC power systems.
(9) Silk screening Logo and environmental friendly painting artwork.
Function
Energy Storage and Release:
At its heart, a BESS Battery Storage System captures energy—typically from renewable sources like solar or wind—and stores it in electrochemical cells. When demand increases or when intermittent generation drops, the stored energy is quickly converted back to electricity and fed into the grid, ensuring a stable power supply.
Grid Stabilization and Frequency Regulation:
BESS Battery Storage Systems can rapidly respond to fluctuations in grid frequency. By absorbing or injecting power in milliseconds, they help maintain grid stability and reliability, thereby reducing the risk of blackouts or power quality issues.
Peak Shaving and Load Shifting:
These systems are used to level out the load curve by discharging during periods of high demand (peak shaving) and charging during off-peak periods (load shifting). This not only optimizes the usage of generation assets but also contributes to cost savings and deferred infrastructure investments.
Backup Power and Resilience:
BESS Battery Storage System units provide uninterrupted power during grid outages, serving as critical backup systems for essential facilities. Their ability to quickly switch to island mode enhances the resilience of microgrids and critical infrastructure.
Renewable Energy Integration:
By mitigating the variability of renewable energy sources, BESS facilitates higher penetration of clean energy into the grid. It ensures that surplus energy produced during periods of high generation is not wasted but stored for future use.
Safety:The cabinet is designed to ensure the safety of the stored energy devices, protecting them from external factors such as temperature fluctuations, moisture, and physical damage.
Ventilation: Adequate ventilation is essential to dissipate heat generated during charging and discharging cycles. Proper airflow helps maintain optimal operating temperatures for the energy storage system.
Monitoring and Control: BESS cabinets often include monitoring and control systems to track the performance of the stored energy, manage charging and discharging processes, and provide real-time data for maintenance and optimization.
Fire Suppression: In some cases, energy storage cabinets may incorporate fire suppression systems to mitigate the risk of fire in the event of a malfunction or external factors.
Integration: The cabinet is designed for easy integration with the overall energy storage system or the power infrastructure where it is deployed. This includes electrical connections, communication interfaces, and compatibility with other components.
Bess Cabinet plays a vital role in the reliability and performance of energy storage systems, contributing to the efficient use of renewable energy, grid stability, and the overall resilience of power infrastructure.
Application
Bess Battery Storage System is a device used for storing and releasing electrical energy. It consists of one or more batteries that can store electrical energy for use when needed. Bess Battery Storage Systems are commonly used in power systems to balance grid loads, provide backup power, and respond to emergencies.
One of the main advantages of Bess Battery Storage System is their efficient energy storage and release capabilities. It can store electrical energy during peak load periods of the power grid and release electrical energy during low load periods, thereby balancing the power grid load and improving the stability and reliability of the power system.
In addition, theBess Battery Storage System can also be used as a backup power source. When there is a malfunction or power outage in the power system, the Bess Battery Storage System can be quickly started to provide emergency power supply and ensure the normal operation of critical equipment. This is particularly important for industries that require high electricity supply, such as healthcare, communication, and finance.
Energy storage systems can also cope with unexpected events, such as natural disasters or power system failures. It can provide a large amount of electricity in the power system in a short period of time to meet emergency needs. This is crucial for protecting people's lives and property safety.
