CY107218001000
CY TECH
Battery
IP 55, IP 65, NEMA 4, NEMA 4X
Floor Mount
| Detail: | |
|---|---|
Product Description
| Name | Technical Parameter |

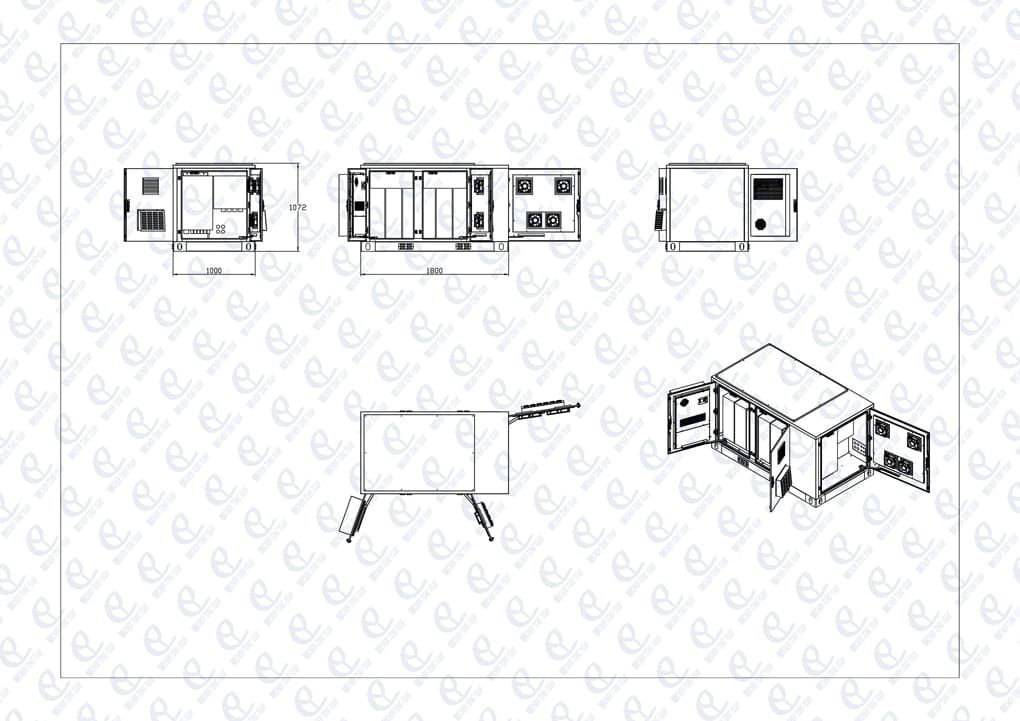

| External Size | H*W*D=1072*1800*1000mm (42 x 71 x 39 inch) |

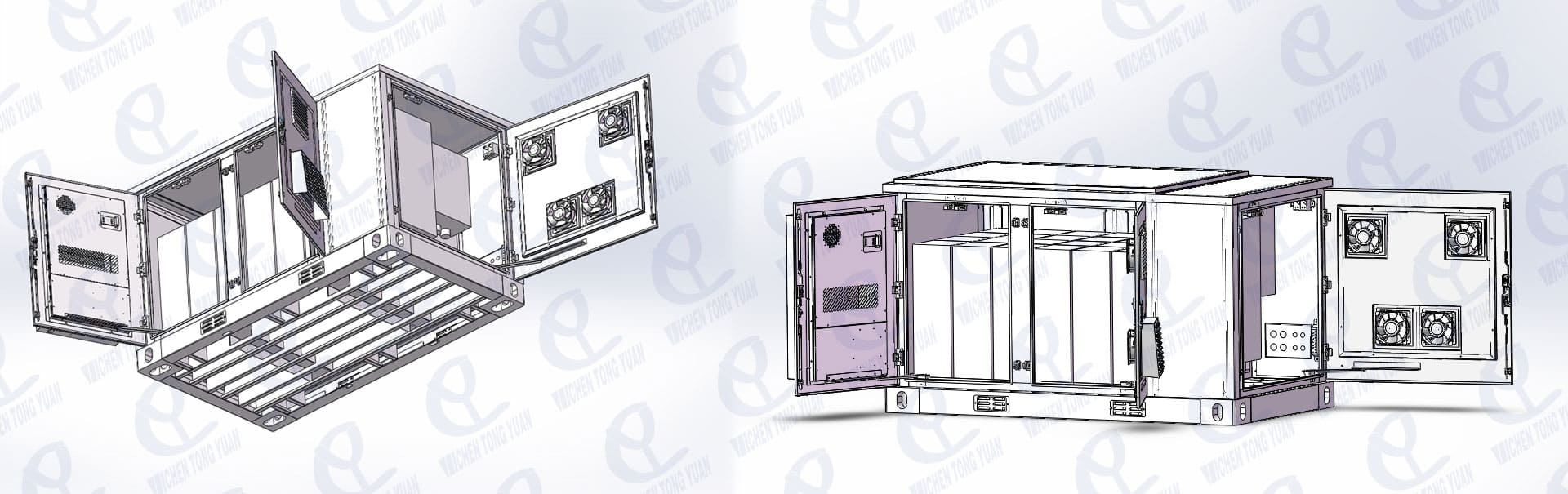

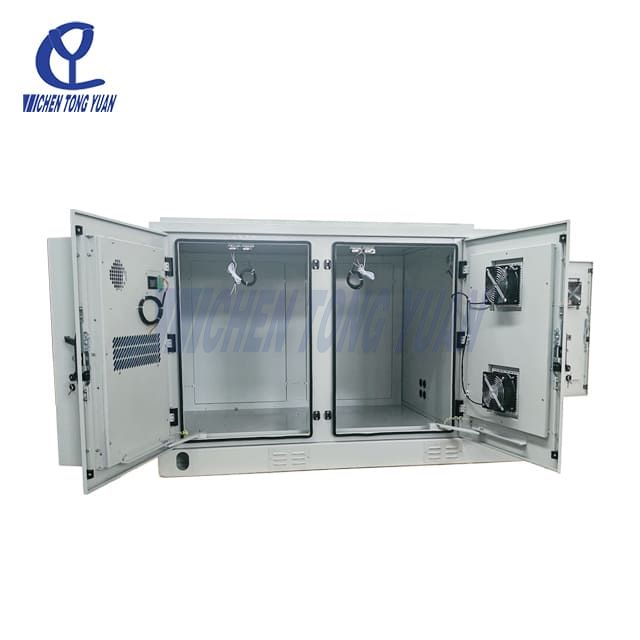

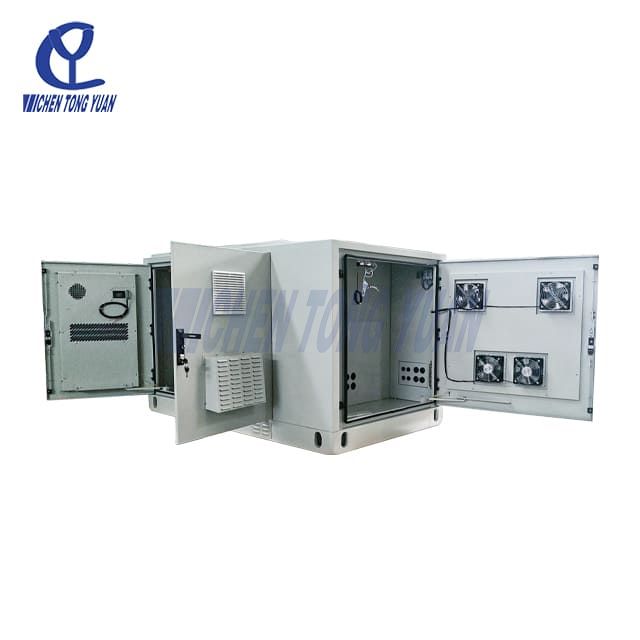

| Cabinet layout | Two compartment, one compartment for lithium battery, one compartment for inverter and AC/DC electric box |
| Cabinet material | Double layer Galvanized steel with EPS thermal isolation |
| Security design | Embedded door, embedded hinges, 4-point security lock |
| Protection level | IP55 / IP65/ NEMA 4 / Nema 4X |
| Color | RAL7035 |

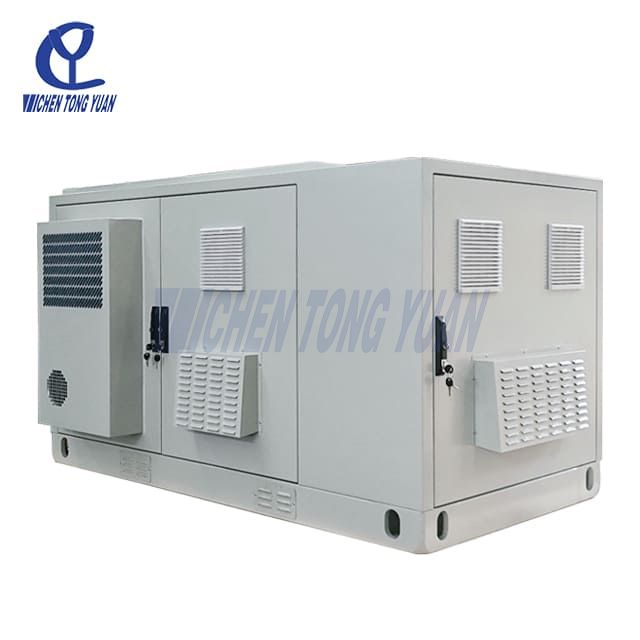

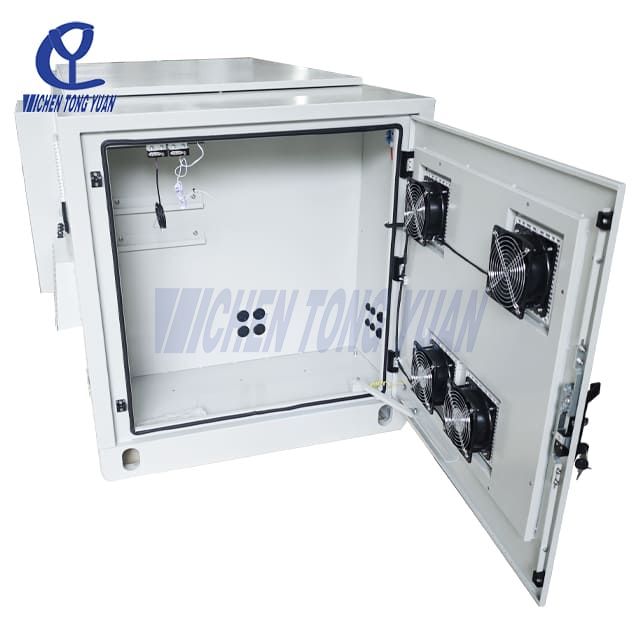

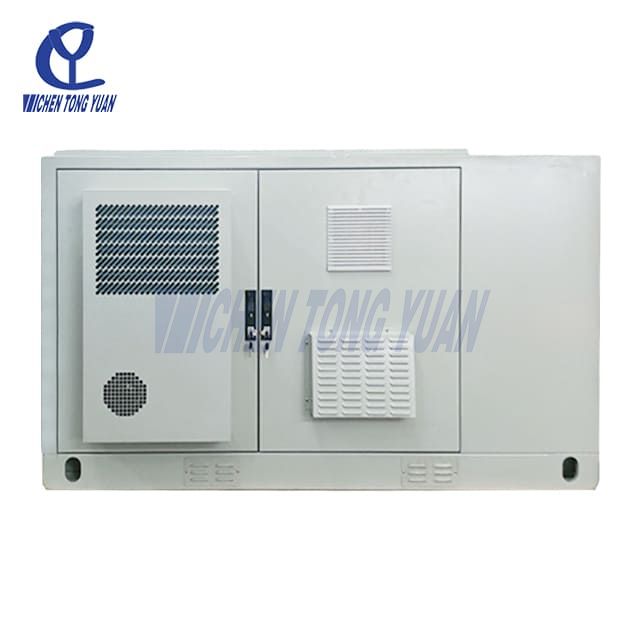

| Climate control | AC220V air conditioner and DC48V fan |
| Lighting system | Door sensor+48V LED light(door open, the LED will light on; door closed, the LED will go out.) |
| Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
| Working temperature | - 40 ℃ ~ + 55 ℃ |
| Working Humidity | ≤ 95% (+ 40 ℃) |
| Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
Note：The air conditioner can also choose AC 110V 60HZ or DC 48V, and the fan can also choose AC 110V or 220
Other size to be continued ,please send us inquiry for futher discussion
Features
◆ Solar energy battery enclosure has no exposed detachable components on the outside, and the enclosure structure is compact and easy to install;
◆ Solar energy battery enclosure has good sealing performance and an overall protection level of IP55;
◆ Solar energy battery enclosure are made of flame-retardant insulation cotton, which has excellent insulation performance;
◆ Solar energy battery enclosure adopts embedded hinges and a four point fixed mechanical lock, with a sturdy structure and strong anti-theft performance;
◆ Solar energy battery enclosure adopts bottom incoming and bottom outgoing lines, and the enclosure is equipped with a cable rack inside, which is overall beautiful;
◆ Solar energy battery enclosure can be equipped with industrial air conditioning or water-cooled units for temperature regulation, which can meet the cooling needs in summer and heating in winter according to equipment performance requirements, and operate at a constant temperature, thereby extending the service life of the battery pack;
◆ Solar energy battery enclosure can be equipped with optional fire protection devices and AC/DC distribution units.
Function
Solar energy battery enclosure is a specialized enclosure designed to house and manage energy storage systems. These enclosures are crucial components in various applications, including renewable energy systems, backup power solutions, and electric vehicle charging stations. The primary purpose of an energy battery enclosure is to provide a secure and controlled environment for the batteries or energy storage devices it contains.
Here are its key functions:
● The enclosure provides a secure, weatherproof, and sometimes fire-resistant enclosure for batteries, safeguarding them from external environmental factors like temperature fluctuations, moisture, and dust.
● Solar energy battery enclosures often include cooling systems such as fans or air conditioning units to maintain optimal battery operating temperatures, preventing overheating or performance degradation.
● These enclosures incorporate electrical safety features like circuit breakers, fuses, and grounding to protect against short circuits, overcurrent, or electrical faults that could lead to dangerous conditions.
● By organizing batteries and related components (such as inverters, power controllers, etc.) in a compact and well-structured manner, solar energy battery enclosure help to optimize space, especially in industrial and commercial settings.
● The enclosure design allows for easy access to batteries for maintenance, inspection, and replacement, minimizing downtime.
● Solar energy battery enclosures are designed to integrate seamlessly with larger energy systems (solar, wind, grid, etc.), facilitating efficient energy storage, distribution, and management.
● Enclosures ensure that the battery system complies with relevant safety standards, including fire protection and electrical safety regulations.
These functions make solar energy battery enclosure essential for ensuring the safe, efficient, and long-lasting operation of energy storage systems in a wide variety of applications.
Flexibility
(1) Material can be Constructed of durable, galvanized steel,sandwich panel ,stainless steel SS304,aluminium.
(2) Compartments can be configured to support between 1-4 bays,multi-compartments supported.
(3) Front and rear access doors allow technicians access to equipment storage areas and cable routing.
(4) Side doors design also ok.
(5) Customized color ,standard color RAL7035,other color acceptable based on appointed color code.
(6) Wide range of thermal management options for even the most demanding heat dissipation needs allows for optimization of thermal performance and reduced energy costs.
(7) The cooling solution adopted compressed air conditioner ,TEC (Thermoelectric Cooler),Hex (heat exchanger),Fans,Combined AC&HEX and air cooled liquid cooler.
(8) Offers a wide range of configuration options providing maximum flexibility including PDU, rectifier ,integrated AC-DC power systems.
(9) Silk screening Logo and environmental friendly painting artwork.
Application
Solar energy battery enclosure is a device used for storing and releasing electrical energy. It consists of one or more batteries that can store electrical energy for use when needed. Solar energy battery enclosure are commonly used in power systems to balance grid loads, provide backup power, and respond to emergencies.
One of the main advantages of solar energy battery enclosure is their efficient energy storage and release capabilities. It can store electrical energy during peak load periods of the power grid and release electrical energy during low load periods, thereby balancing the power grid load and improving the stability and reliability of the power system.
In addition, the solar energy battery enclosure can also be used as a backup power source. When there is a malfunction or power outage in the power system, the Solar energy battery enclosure can be quickly started to provide emergency power supply and ensure the normal operation of critical equipment. This is particularly important for industries that require high electricity supply, such as healthcare, communication, and finance.
Solar energy battery enclosure can also cope with unexpected events, such as natural disasters or power system failures. It can provide a large amount of electricity in the power system in a short period of time to meet emergency needs. This is crucial for protecting people's lives and property safety.
