In the world of electrical engineering and equipment manufacturing, ensuring the protection of sensitive components from environmental factors is paramount. Two widely used standards for determining the degree of protection offered by enclosures are NEMA (National Electrical Manufacturers Association ) ratings and IP (Ingress Protection) ratings. Understanding the differences between these two systems is crucial for selecting the appropriate enclosure for any given application.
NEMA and IP ratings are industry-standard classifications used to assess the level of protection an enclosure provides against various environmental elements such as dust, water, and other foreign objects. While both serve the same purpose, they originate from different organizations and follow distinct testing methodologies.
NEMA ratings are developed and maintained by the National Electrical Manufacturers Association, a trade association representing electrical equipment manufacturers in the United States. NEMA ratings consist of a numerical code that indicates the enclosure's ability to withstand specific environmental conditions.
NEMA ratings range from 1 to 13, with each number corresponding to a specific set of environmental protection criteria. For example, NEMA 1 enclosures provide basic protection against dust and dripping water, while NEMA 4X enclosures are suitable for use in corrosive environments and offer protection against ingress of water during temporary submersion.
IP ratings, also known as Ingress Protection ratings, are defined by the International Electrotechnical Commission (IEC) https://www.iec.ch/homepage . These ratings consist of two digits, where the first digit indicates protection against solids, and the second digit indicates protection against liquids.
An IP rating of IP65, for instance, signifies complete protection against dust ingress (6) and protection against low-pressure water jets from any direction (5). IP68, on the other hand, indicates protection against dust ingress and continuous immersion in water beyond 1 meter.
While both NEMA and IP ratings assess protection against environmental factors, they prioritize different aspects. NEMA ratings tend to focus more on the enclosure's ability to withstand environmental hazards such as corrosive agents and oil ingress, whereas IP ratings provide detailed specifications regarding protection against dust and water ingress.
NEMA ratings are primarily based on self-declaration by manufacturers, with adherence to standards set by the NEMA organization. In contrast, IP ratings require rigorous testing by certified laboratories according to IEC standards, ensuring consistent and reliable results across different products and manufacturers.
NEMA enclosures are often preferred in industrial settings where durability and resistance to harsh conditions are critical. IP ratings, on the other hand, are more commonly used in consumer electronics and outdoor applications due to their detailed specifications regarding dust and water ingress protection.
The following table summarizes the various IP number designations
First Number | Protection From Solid Objects | Second Number | Protection From Water |
| 0 | No Protection | 0 | No Protection |
| 1 | Protected from solid objects over 50mm | 1 | Protected from vertically falling drops of water |
| 2 | Protected from solid objects over 12mm | 2 | Protected from direct sprays of water up to 15 degrees from vertical |
| 3 | Protected from solid objects over 2.5mm | 3 | Protected from direct sprays of water up to 60 degrees from vertical |
| 4 | Protected from solid obiects over 1mm | 4 | Protected against sprays from all directions-limited ingress permitted |
| 5 | Protected from dust-limited ingress | 5 | Protected from low pressure jets of water from all directions - limited ingress permitted |
| 6 | Totally protected from dust | 6 | Protected against strong jets of water -limited ingress permitted |
| NA | 7 | Protected from the effects of temporary immersion between 15cm and 1m | |
| NA | 8 | Protected against long periods ofimmersion under pressure |
| NEMA | Description | IP |
| 1 | GENERAL PURPOSE. Intended for use indoors. | 10 |
| 2 | GENERAL PURPOSE. Intended for use indoors with additional drip protection. | 11 |
| 3&3S | GENERAL PURPOSE WEATHER-RESISTANT. Intended for use outdoors with protection from windblown dust, rain and sleet, and undamaged by the formation of ice. | 54 |
| 3R | GENERAL PURPOSE WEATHER-RESISTANT. Intended for use outdoors with protection from falling rain and sleet, and undamaged by the formation of ice. | 14 |
| 4 & 4X | GENERAL PURPOSE WEATHER-PROOF. Intended for use indoors or outdoors with protection from wash-down environment and corrosion resistance. | 65 |
| 5 | GENERAL PURPOSE DUST-TIGHT. Intended for use indoors or outdoors with protection from dust provided by gaskets. | 52 |
| 6 & 6P | GENERAL PURPOSE SUBMERSIBLE. Intended for use indoors or outdoors with protection from occasional submersion. | 67 |
| 7 | HAZARDOUS. Intended for indoor use in Class I, Groups A, B, C, and D environments per NFPA rating system. | N/A |
| 8 | HAZARDOUS. Intended for indoor or outdoor use in Class I, Groups A, B, C, and D environments per NFPA rating system. | N/A |
| 9 | HAZARDOUS. Intended for indoor or outdoor use in Class II, Groups E, F, and G environments per NFPA rating system. | N/A |
| 12 and 12K | INDUSTRIAL USE. Intended for use in industrial applications with protection from dust and non-corrosive liquid drip. | 52 |
| 13 | INDUSTRIAL USE. Intended for use in industrial applications with protection from dust, spraying water, oil and non-corrosive liquid drip. | 54 |
Established standards widely recognized in the industry
Versatile range of ratings catering to diverse environmental conditions
Reliance on manufacturer self-declaration may lead to inconsistent interpretations
Limited international recognition compared to IP ratings
Internationally recognized standards ensuring consistency in testing and interpretation
Detailed specifications provide precise information on the level of protection offered
Limited range of ratings compared to NEMA, especially in terms of corrosion resistance
Testing procedures may be more costly and time-consuming for manufacturers
When selecting between NEMA and IP ratings, it's essential to consider factors such as the specific environmental conditions where the equipment will be used, regulatory requirements, and compatibility with existing systems. For example, an outdoor lighting fixture may require an IP65 rating to withstand exposure to rain and dust, while an industrial motor control panel may benefit from a NEMA 4X rating for protection against corrosion and oil ingress.
In practice, the choice between NEMA and IP ratings often depends on the application's requirements and industry standards. For instance, equipment deployed in marine environments may necessitate NEMA-rated enclosures due to their superior corrosion resistance, while consumer electronics manufacturers may opt for IP-rated enclosures to ensure product reliability and compliance with international regulations.
In industrial settings such as manufacturing plants and chemical processing facilities, NEMA-rated enclosures are commonly used to protect electrical components from exposure to moisture, dust, and corrosive substances. These enclosures provide robust protection against harsh environmental conditions, ensuring the reliability and longevity of critical equipment.
In the realm of consumer electronics, IP-rated enclosures play a crucial role in safeguarding devices such as smartphones, tablets, and wearables against everyday hazards like dust, water splashes, and accidental spills. Manufacturers often highlight the IP rating of their products as a measure of durability and reliability, reassuring consumers of their device's suitability for various environments.

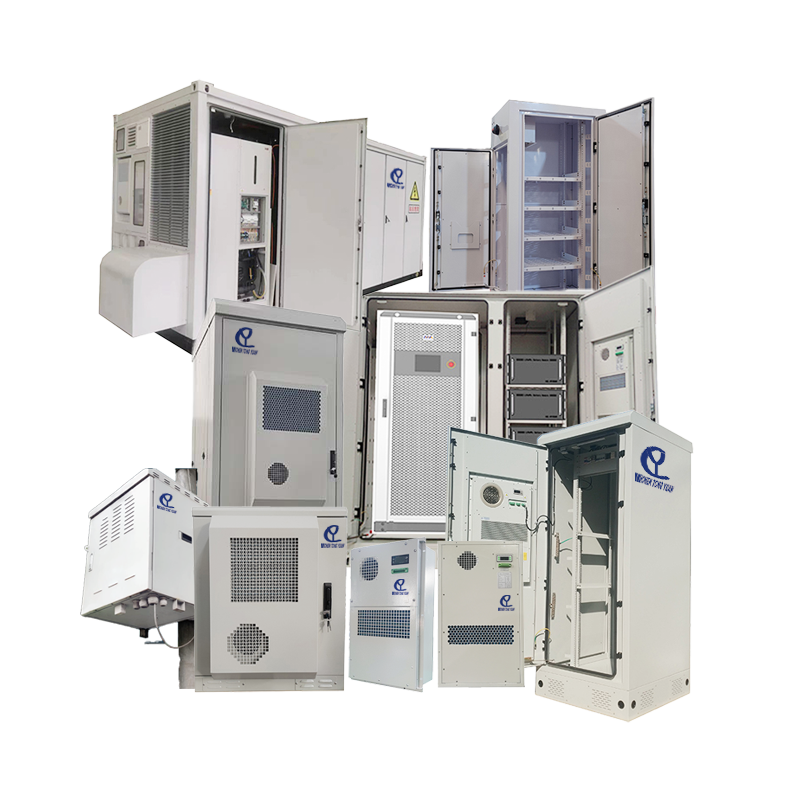

You can purchase IP and NEMA rated enclosures from various sources, including hardware stores, electrical supply stores, online retailers such as Amazon or eBay, and specialized distributors that focus on industrial or electrical equipment. Additionally, manufacturers of enclosures often have their own websites or authorized dealers where you can purchase directly. Cytech is a company specializing in the production of outdoor cabinet and enclosures. You can buy the IP and NEMA enclosures you need here, and we can custom design the cabinets for you.
In conclusion, both NEMA and IP enclosure ratings serve the essential purpose of safeguarding electrical equipment from environmental hazards. While NEMA ratings are widely recognized in the United States and offer a broad range of options suitable for industrial applications, IP ratings provide internationally recognized standards with detailed specifications for protection against dust and water ingress. When selecting between NEMA and IP ratings, it's crucial to assess the specific requirements of the application and choose the rating that best aligns with the desired level of protection and regulatory compliance.
What does NEMA stand for?
NEMA stands for the National Electrical Manufacturers Association, an organization that develops standards for electrical equipment and enclosures.
Are NEMA and IP ratings interchangeable?
While there may be some overlap in terms of environmental protection criteria, NEMA and IP ratings follow different testing methodologies and standards, making them non-interchangeable.
Do higher NEMA or IP ratings indicate better protection?
Both higher.NEMA and IP ratings indicate increased protection against environmental hazards, but the specific level of protection may vary depending on the application requirements.
Can enclosures be rated with both NEMA and IP ratings?
Yes, some manufacturers provide enclosures with dual ratings, offering customers flexibility in choosing the most suitable option for their needs.
How often should enclosures be tested for compliance with NEMA or IP standards?
Enclosures should be periodically tested to ensure continued compliance with NEMA or IP standards, especially if subjected to harsh environmental conditions or modifications that may affect their protective properties.
