Installing an outdoor cabinet is a systematic project that requires rigorous planning and operation.
It is not simply about placing the cabinet outdoors, but involves site selection, foundation construction, environmental control, safety, and compliance.
For this reason, choosing a weatherproof outdoor telecom cabinet is critical, as it ensures long-term reliability for sensitive equipment in harsh environments.
（Cytech's 14U outdoor enclosure waterproof video as follows:）
Below is a detailed and professional outdoor cabinet installation guide, covering the entire process from preparation to acceptance.
（Cytech's 14U outdoor enclosure demonstration video as follows:）

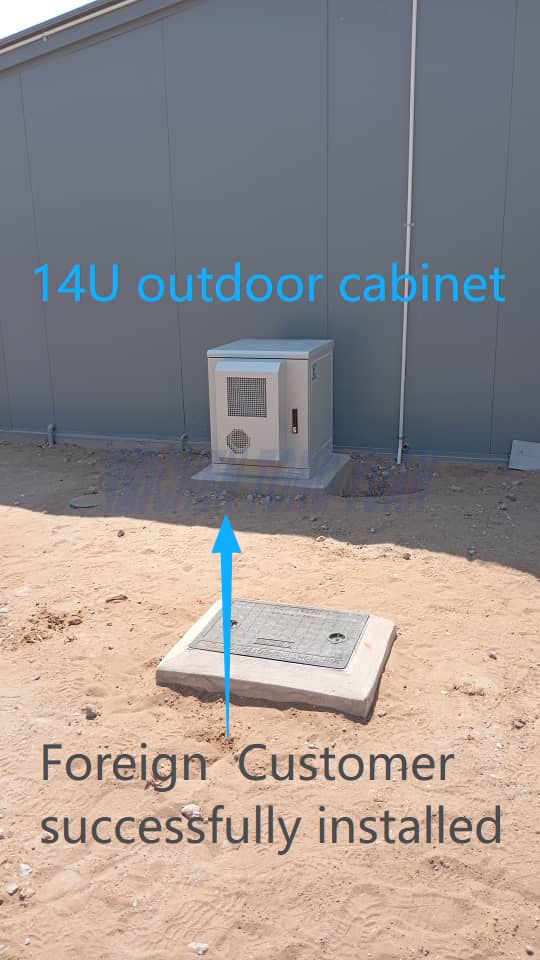

(Feedback from a foreign customer who successfully installed a 14U outdoor cabinet as follows:)
1) Safety first: including electrical safety, structural safety, and personal safety.
2) Planning ahead: thorough planning is half of successful installation.
3) Follow standards: strictly comply with national, local, and industry standards and rgulations.
4) Professional operation: work involving high voltage, grounding, etc. must be performed by certified professionals.
This is the most critical step, as improper site selection can lead to countless subsequent problems.
When choosing a location, consider whether you are installing an outdoor telecom cabinet for fiber optic or outdoor telecom cabinet for wireless networks, since each application has unique environmental requirements.
• Load-bearing and foundation: The ground must be level, solid, and able to support the weight of the cabinet and its fully loaded equipment. A concrete surface is preferred.
• Environmental factors:
– Flood prevention: Avoid low-lying areas to prevent rainwater backflow or flooding.
– Waterproofing: Stay away from sprinklers, drains, or other water sources.
–Ventilation and cooling: Avoid direct sunlight (especially west-facing) and poorly ventilated corners. Ensure adequate airflow around the cabinet.
• Safety: Choose areas with surveillance or accessibility to personnel to prevent vandalism or theft. Also, avoid locations where vehicles may collide with the cabinet.
• Accessibility:
– Power supply: Ensure a reliable grid power connection nearby.
– Network: Confirm that fiber optic or network cables can be conveniently routed to the cabinet.
–Maintenance: Front and rear doors must open fully, leaving at least 1 meter of space for installation and servicing.
• Outdoor cabinet: Select based on equipment quantity, size, cooling needs (whether air conditioning or fans are required), and protection level (IP65 is a common high standard).
•When choosing a location, consider whether you are installing an outdoor telecom cabinet for fiber optic or outdoor telecom cabinet for wireless networks, since each application has unique environmental requirements.
Detailed product specifications can help you confidently select the right outdoor telecommunications cabinet.
Cytech Outdoor Cabinet and Enclosure.pdf

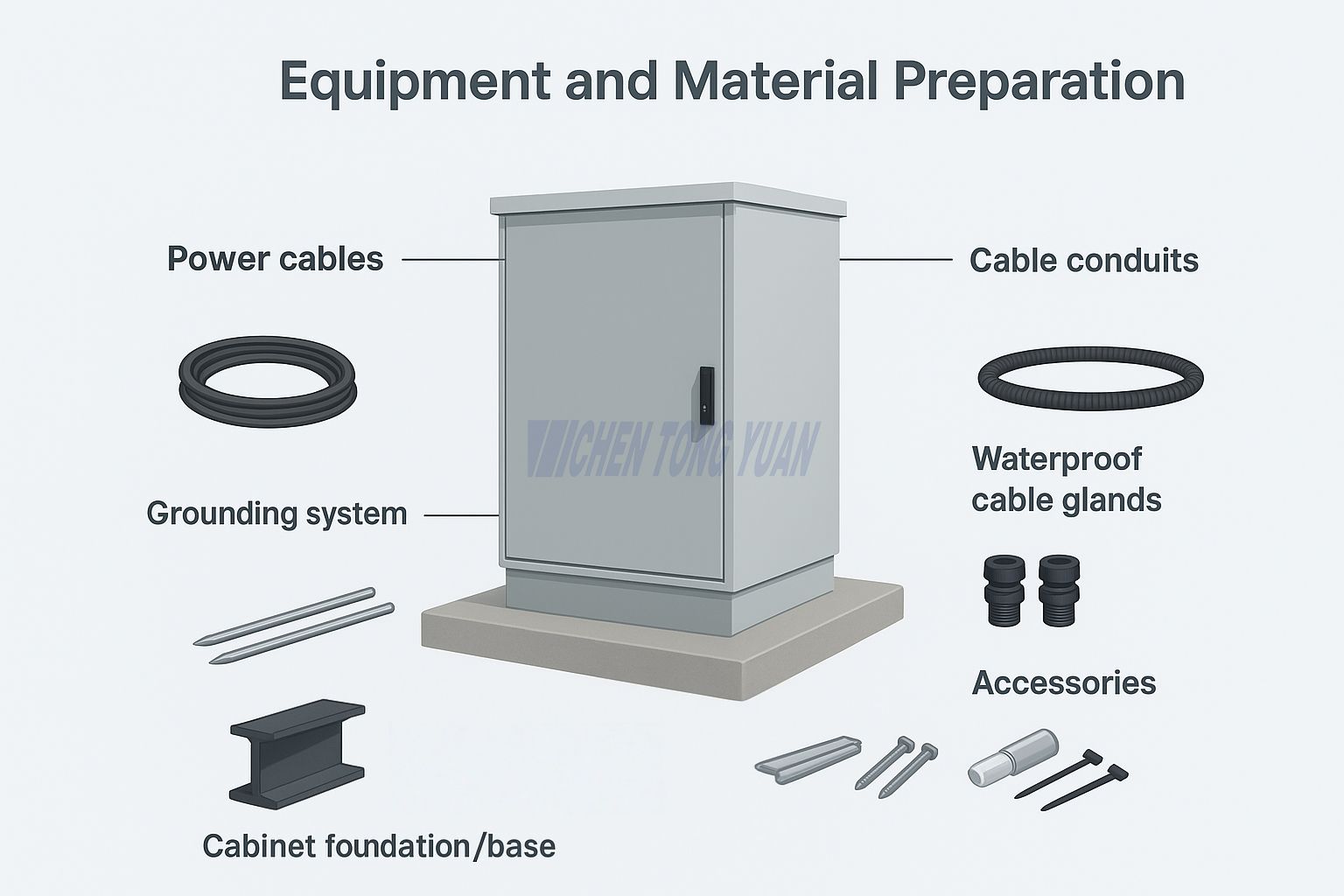

• Cabinet foundation/base:
– Concrete foundation: Most stable. Requires a platform raised 10–20 cm above ground with embedded
expansion bolts.

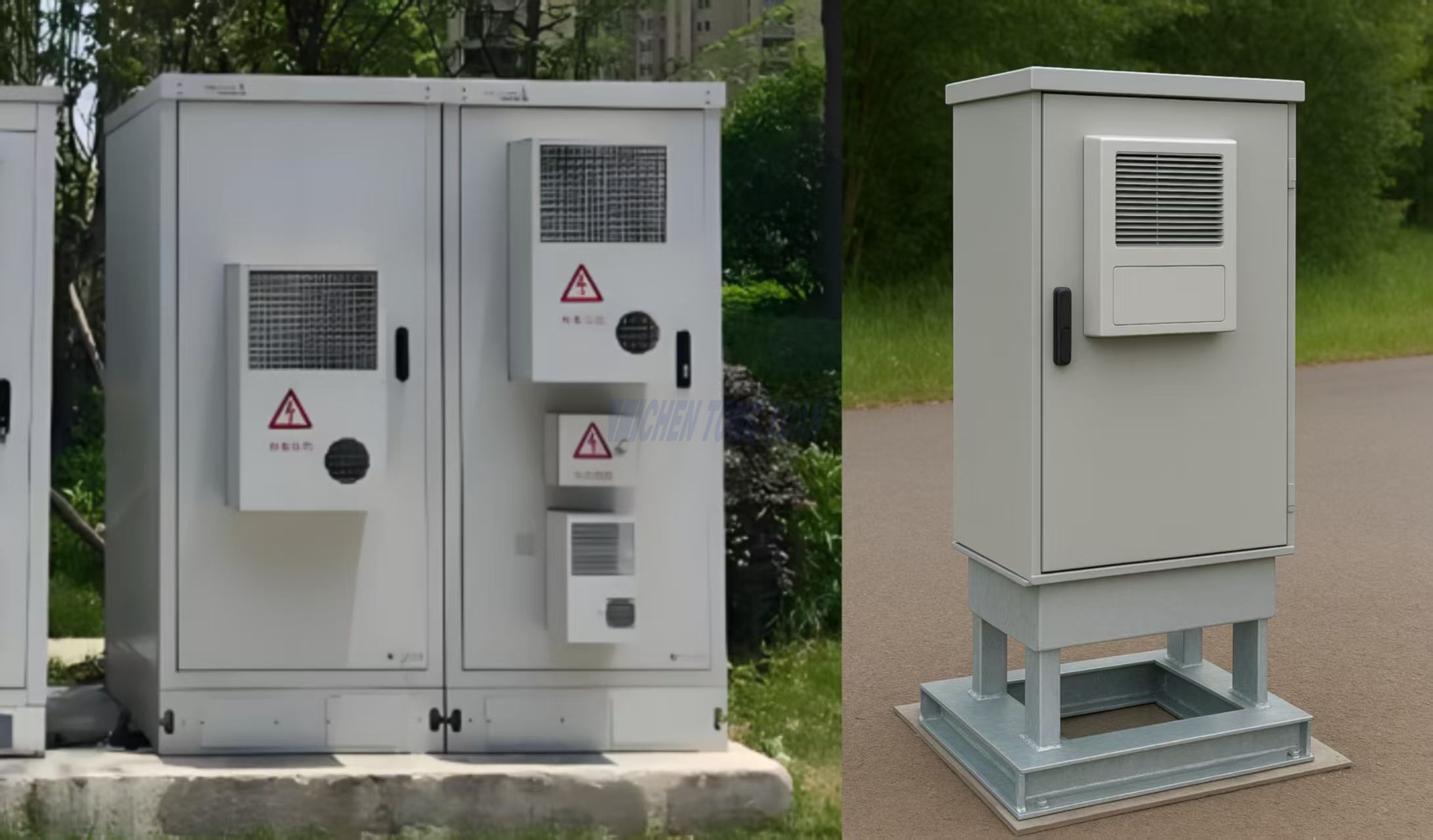

– H-shaped or channel steel base: use a metal base fixed firmly with ground nails or bolts.
• Power cables: Use armored cables or protected conduits suitable for outdoor use.
• Cable conduits: Protect incoming/outgoing power and signal lines (e.g., PE pipes, flexible metal conduits).
• Grounding system: Very important! Prepare grounding rods, flat steel/copper strips, lugs, etc., to build an independent grounding system.
• Accessories: Waterproof sealant, waterproof cable glands, screws, zip ties, etc.
• PPE: Insulated gloves, helmet, safety shoes.
• Electrical tools: Drill, screwdriver, wire stripper, crimping pliers, multimeter.
• Other tools: Level, tape measure, hammer, scaffolding or ladder (if working at height).

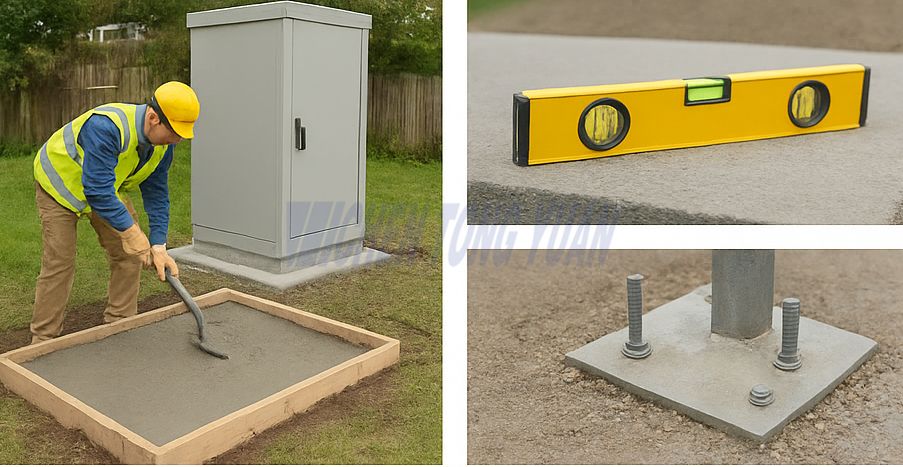

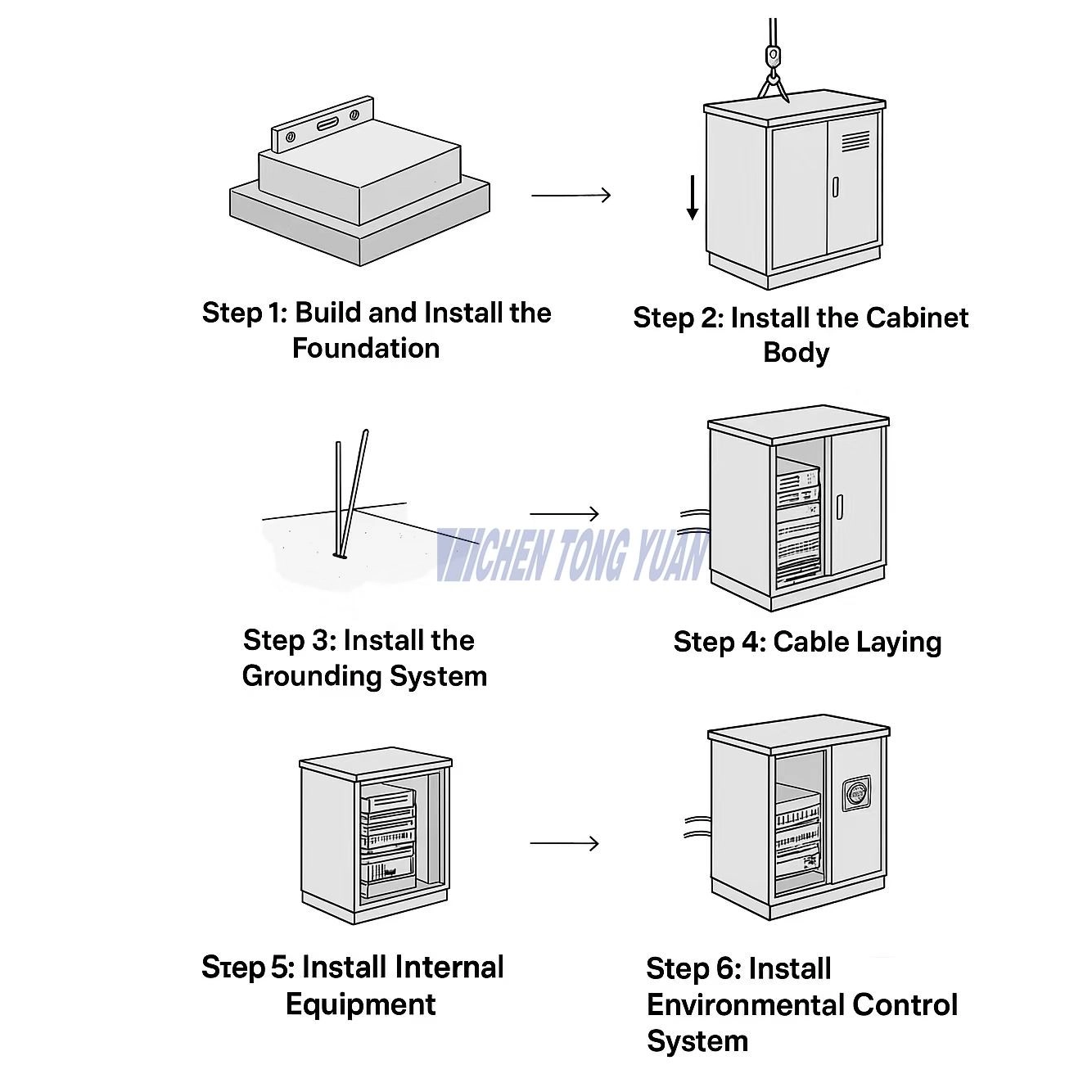

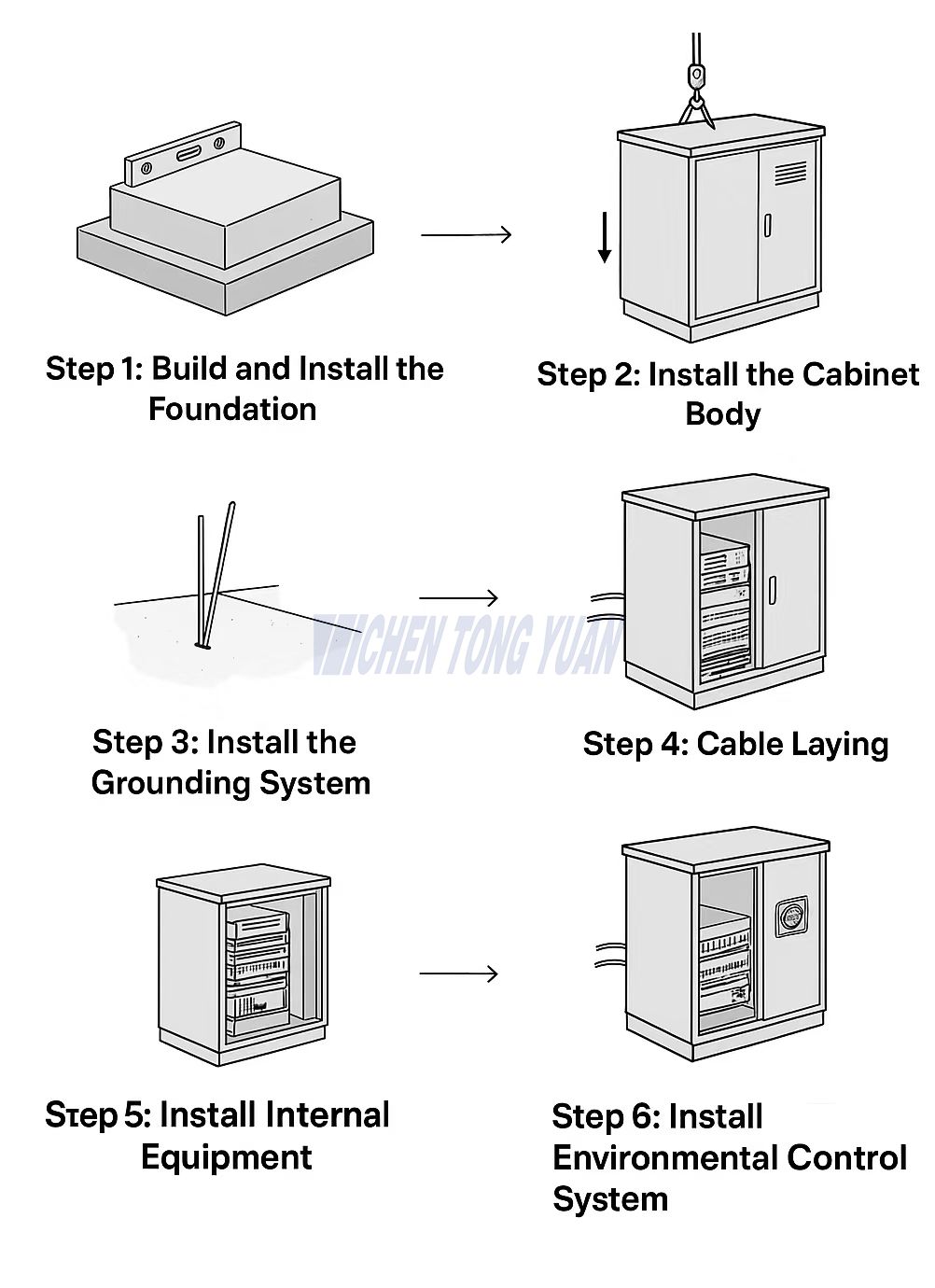

- Pour the concrete foundation or install the metal base according to design drawings.
- Use a level to ensure the base is perfectly flat.
- Mark cabinet fixing holes and pre-embed expansion bolts.

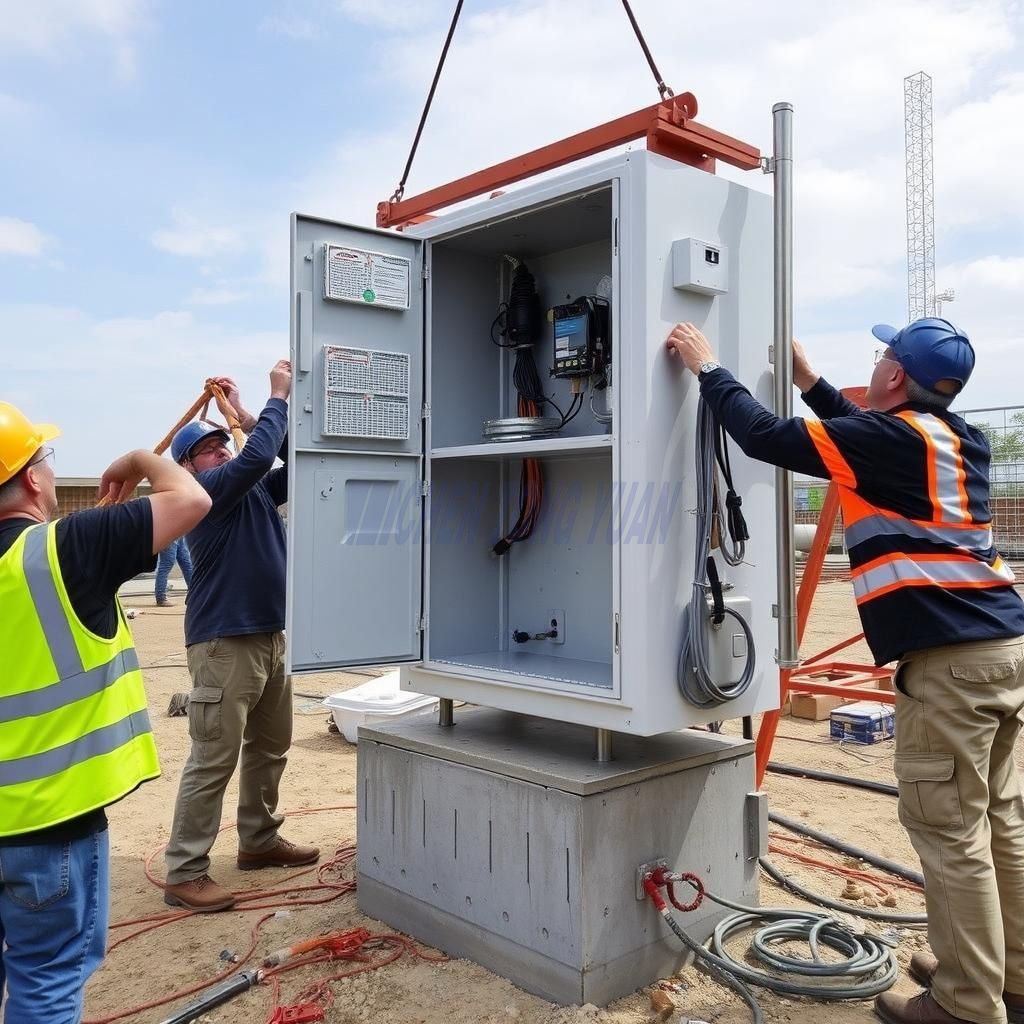

- Use lifting equipment or multiple people to place the cabinet safely on the foundation. Avoid collisions.
- An outdoor server cabinet designed for harsh conditions provides greater durability during installation and operation, reducing risks over time.
- Fix the cabinet to the embedded bolts or base through the bottom fixing holes.
- Check with a level to ensure vertical and horizontal alignment. Use shims if necessary.

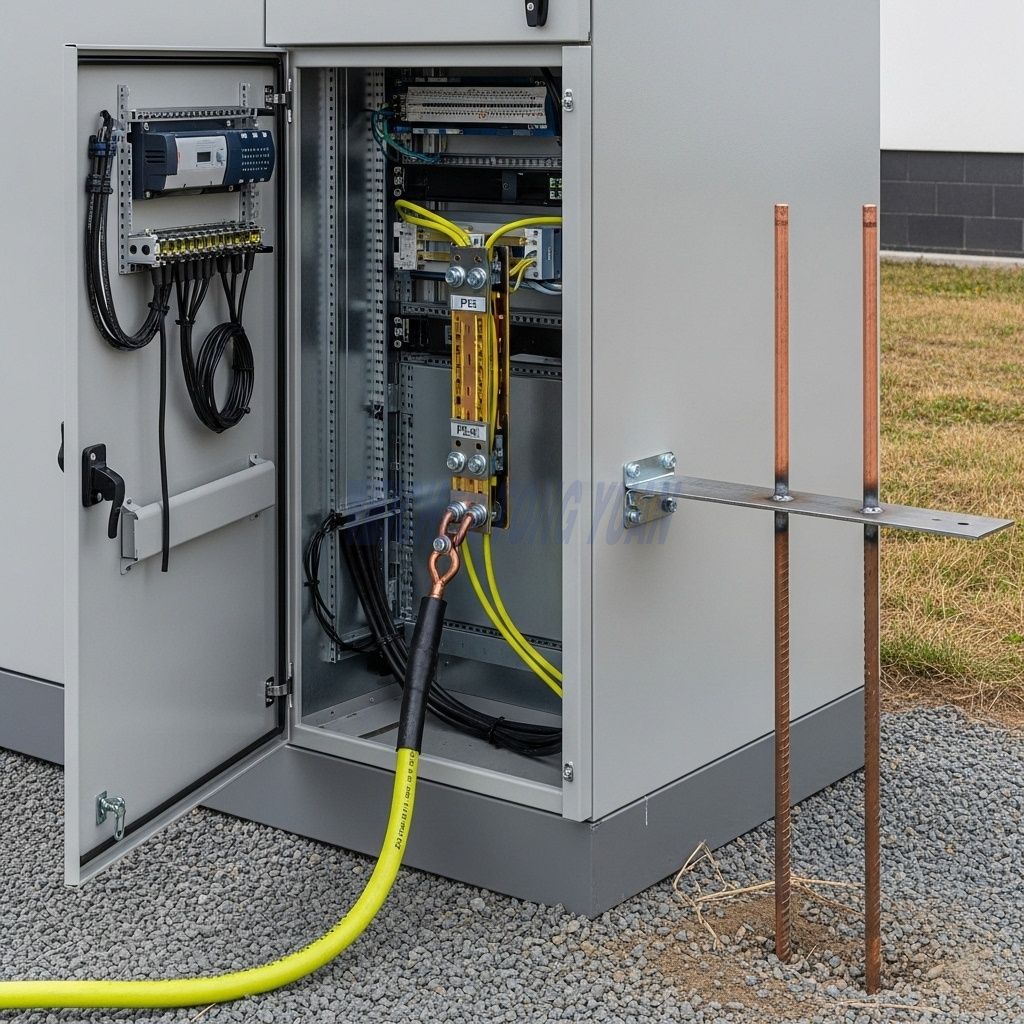

- Drive at least two grounding rods (angle steel or copper-clad steel) 2+ meters deep within 1–3 meters of the cabinet. Connect with flat steel by welding.
- Use yellow-green grounding cables, crimped with copper lugs, connecting the grounding system to the PE bar inside the cabinet.
- Measure ground resistance with a tester. Resistance must be <4Ω (or <1Ω if equipment requires stricter grounding).

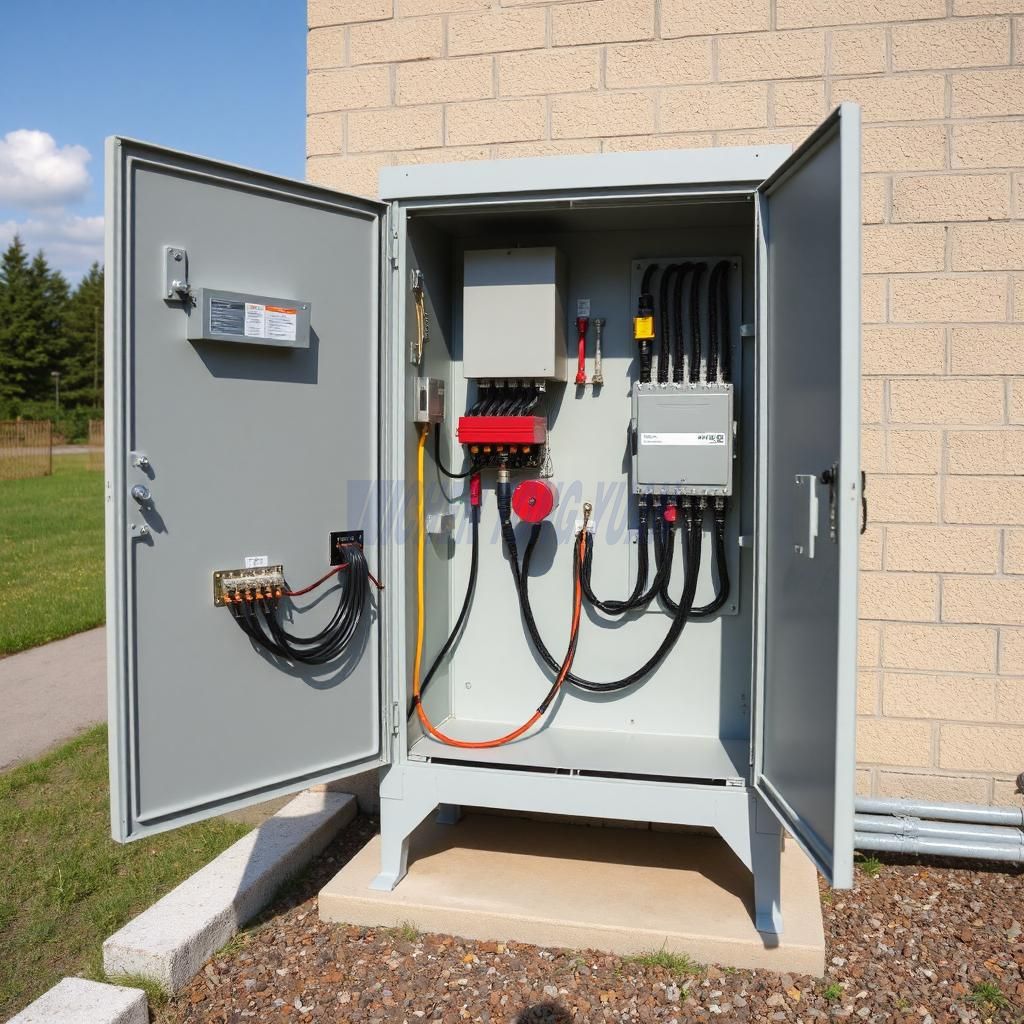

- Power cables: Run from the grid connection to the cabinet inside conduits. Seal entries with waterproof glands. Correctly connect live (L), neutral (N), and ground (PE).
- Signal cables: Fiber, network, etc., should enter through different ports, separated from power lines to reduce interference. Seal with waterproof glands.
- An outdoor telecom cabinet for fiber optic networks requires careful cable routing to maintain performance and prevent potential signal loss.
- Organize all cables neatly with proper slack.

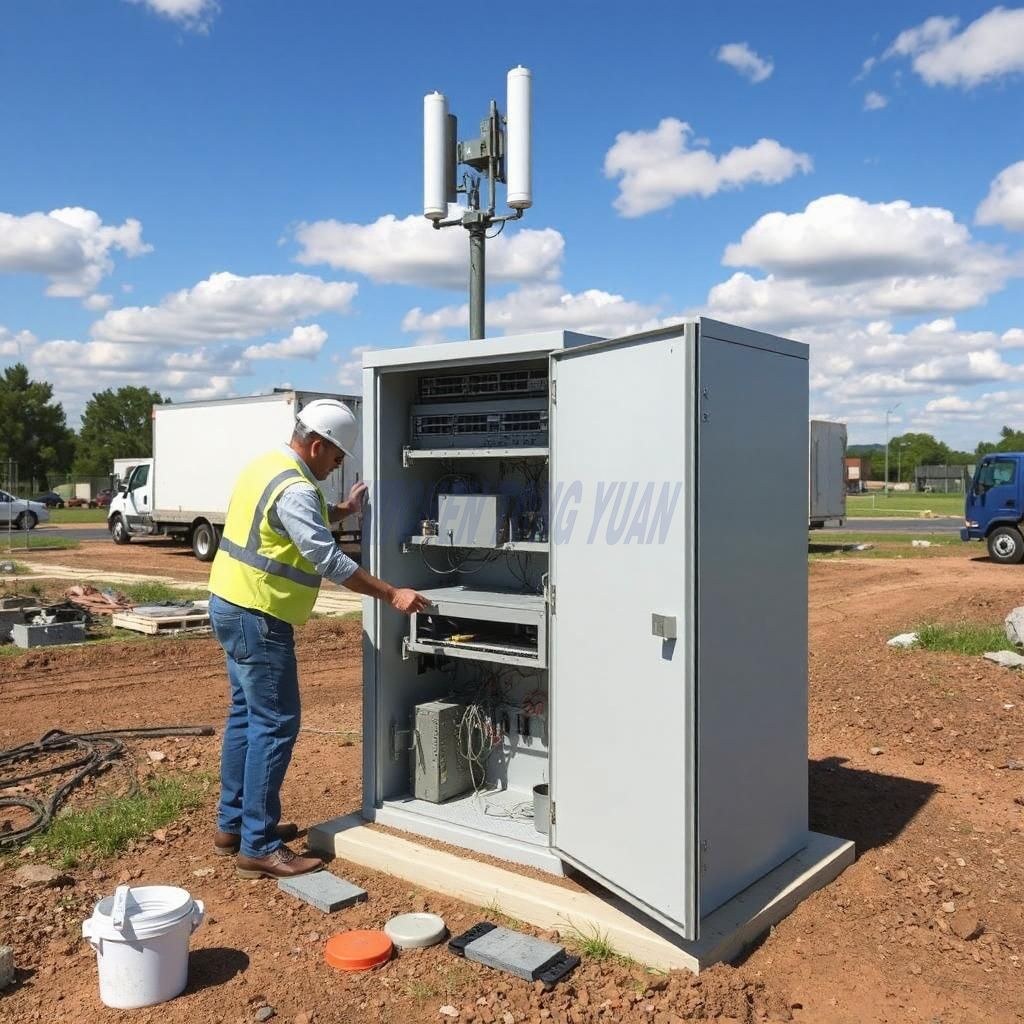

- Mount servers, switches, power modules, etc., on cabinet racks per design drawings.
- Connect power and data cables.c
- Bundle cables neatly to allow airflow, improve aesthetics, and ease maintenance.
- Connect and configure air conditioners or fans. Set temperature thresholds.
- Install and connect temperature/humidity sensors to monitoring systems if available.
• Electricians check voltage stability and correct wiring with a multimeter. Confirm reliable grounding.
• Power on devices one by one and check for normal operation.
• Verify temperature control system operation using a handheld thermometer. Ensure fans or AC units switch on/off as set.
• Waterproof check: Inspect all cable entries and seals (do not spray water directly).
• Check smooth door operation and lock functionality.
• Clean the cabinet inside and out.
• Affix warning labels (“High Voltage,” “Keep Away During Thunderstorms”), equipment list, responsible person, and contact details.
• Professional work only: Civil works, electrical wiring, and grounding must be performed by certified personnel.
• Lightning protection: In storm-prone regions, install secondary surge protectors (at main distribution box) and tertiary protectors (inside cabinet) linked to the grounding system.
• Monitoring: Install sensors for doors, temperature, humidity, water leakage, etc., and integrate into remote monitoring systems.
• Regular maintenance: Inspect seals, clean AC filters, test ground resistance, and tighten cable connections periodically.
