With communications networks now pervasive across the globe, a stable energy supply is the lifeline for unimpeded information flow. Our intelligent hybrid energy switching power cabinet is a cutting-edge hybrid power supply solution designed to address complex and diverse power supply environments, integrating solar power, diesel generators (generators), and mains power. More than just a simple power conversion device, it's a smart, reliable, and efficient comprehensive energy management system dedicated to providing "never-ending power" for your communications equipment.
Cytech's intelligent hybrid power cabinet provides a hybrid power supply solution for communications equipment powered primarily by solar power, diesel generators, and mains power.
Among them, HPC2300800800 is our Cytech's most representative hybrid power cabinet. And the product introduction document is as follows:
Cytech Technology Hybrid Power Cabinet With Batteries Technical solution.pdf
About Cytech:
The components of the hybrid power Cabinet supply solution can be functionally divided into the following categories:
The EPS serves as the energy input branch of the smart hybrid power cabinet for telecom applications, feeding power into the electronic control system for conversion and distribution.
The CCS provides installation space, physical protection, and suitable operating temperatures for the physical components of the power generation, electronic control, and energy storage subsystems in the intelligent power cabinet for communication network systems.
The ICC is the core subsystem of the hybrid power cabinet energy management system, responsible for logical scheduling of the entire solution, monitoring the operating status of other subsystems, and reporting operational information to the communication network power system.
The ESS serves as an energy storage system within the smart hybrid power cabinet, ensuring continuous and reliable power for telecom and communication networks.
The OSS (Operations Support System) provides remote monitoring and management for each solution system within the smart hybrid power cabinet for telecom networks , enabling real-time viewing of system operating status and alarms, as well as configuration of system operating parameters through the intelligent power cabinet energy management platform.

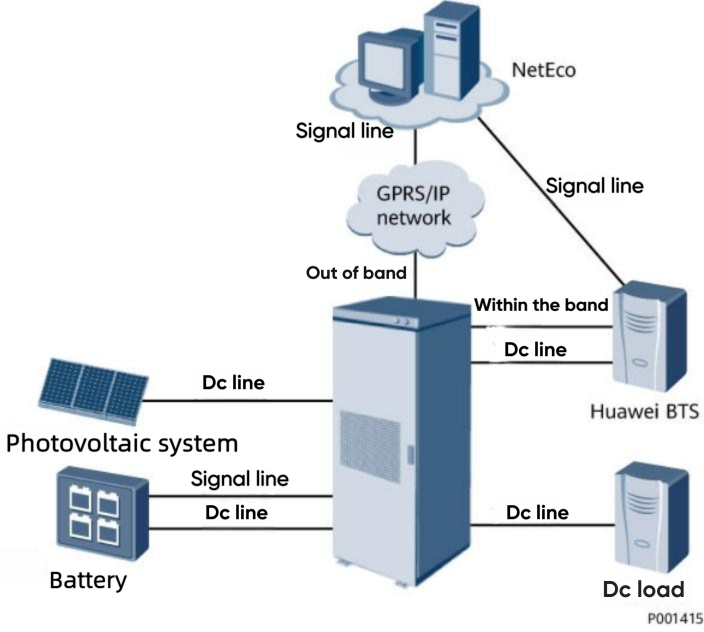

The solar-only scenario operates in the following order, with power supply priority being solar power > battery power:
1. When sunlight is sufficient, solar power supplies both the load and the battery.
2. When sunlight is insufficient, both solar power and the battery power the load.
3. When there is no sunlight, the battery powers the load，ensuring stable operation of the smart hybrid power cabinet for telecom base stations.

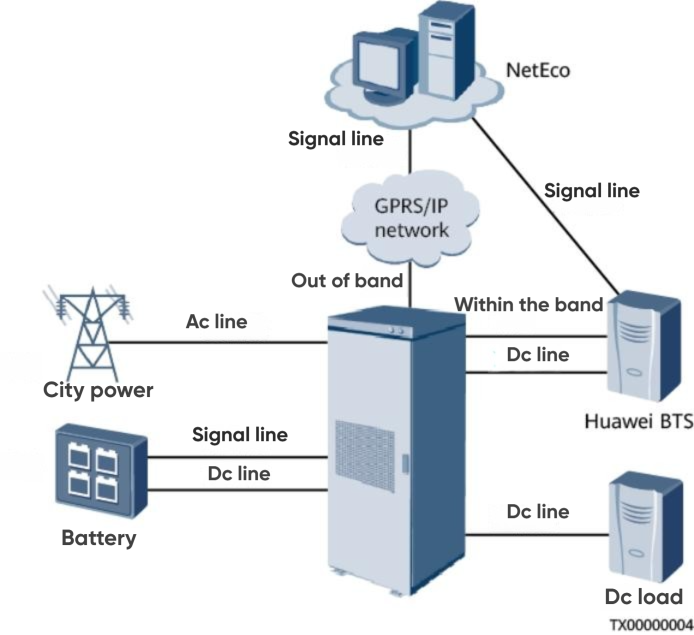

In the pure city power scenario, the system operates in the following order, with the power supply priority being city power > battery power:
1. When the city power is normal, the city power supplies the load and the battery through the intelligent power cabinet energy management system.
2.When the city power is abnormal, the battery supplies the load, maintaining continuous operation of the communication network power system．

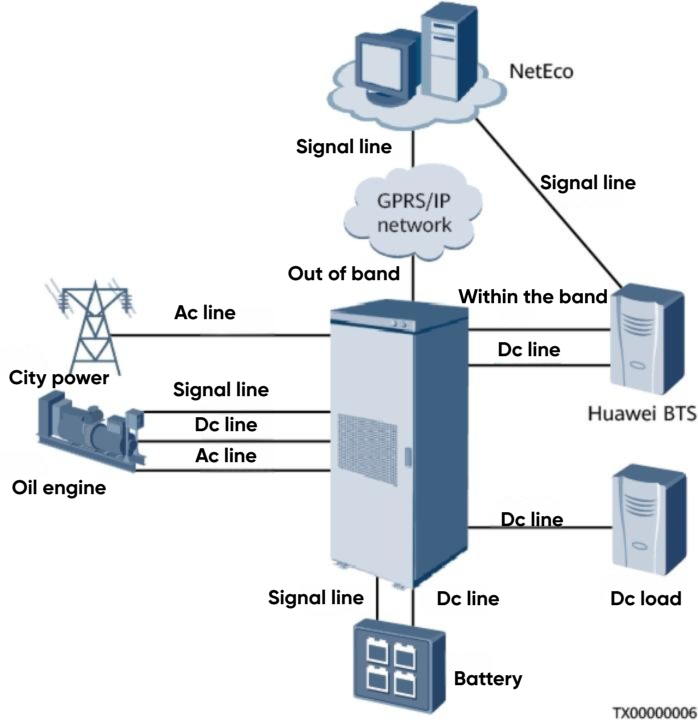

In the hybrid diesel-electric scenario, the system operates in the following order, with the power supply priority being city power > battery power > diesel generator:
1. When the city power is normal, the city power supplies the load and the battery.
2. After a city power outage, the battery supplies the load until the battery reaches the set depth of discharge.
3. The diesel generator starts and supplies power to the load while simultaneously charging the battery within the hybrid power cabinet for off-grid communication towers.
4. When the battery is fully charged or the mains power returns to normal, the diesel generator stops operating, and the battery supplies power to the load, or the mains power supplies power to the load and the battery via the smart hybrid energy system cabinet.

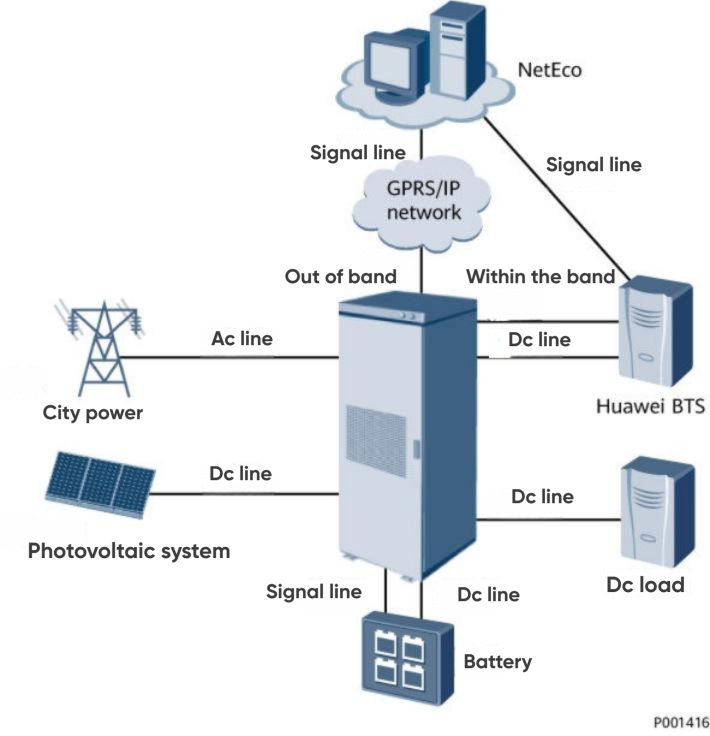

In the photovoltaic hybrid scenario, the power supply priority order is solar > city power > battery.

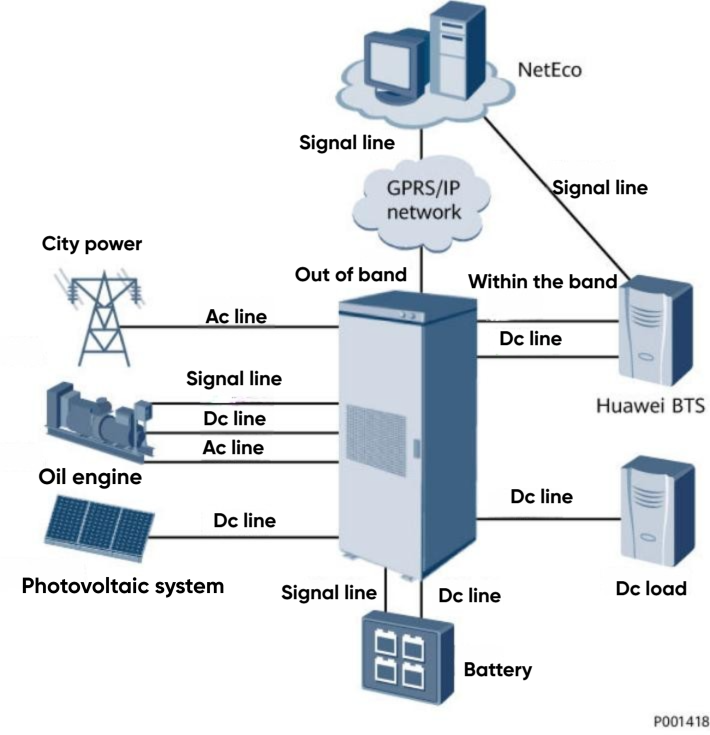

In the photovoltaic, diesel, and electric hybrid scenario, the power supply priority order is solar > city power > battery > diesel generator.
The diesel generator only starts to supply power to the load and battery when there is no sunlight, no mains power, and the battery discharge reaches the set depth, ensuring continuous operation of the Cytech hybrid power cabinet for communication network reliability.
As communication networks increasingly become the nerve center of society, an efficient, reliable, and intelligent energy security system is crucial. Cytech's intelligent hybrid power cabinet, with its comprehensive capabilities of multi-energy integration, intelligent scheduling, and remote management, truly implements an energy supply strategy tailored to local conditions and time. It not only effectively addresses real-world challenges such as unstable utility power, varying sunlight levels, and fuel constraints, but also achieves breakthroughs in energy conservation and consumption reduction, as well as simplified operations and maintenance.
We believe that as communications networks continue to expand into remote areas and complex environments, this telecom power cabinet with hybrid energy management will become a crucial energy cornerstone for building a rock-solid communications infrastructure, facilitating global connectivity and enabling a smarter future.
