The National Electrical Manufacturers Association (NEMA) establishes standards for enclosures that house electrical and electronic equipment. NEMA ratings indicate the enclosure's ability to protect against environmental hazards, such as water, dust, and corrosive substances. Among these ratings, NEMA 4 and NEMA 4X are particularly notable for their use in demanding industrial and outdoor environments. In this article, we will explore the differences between these two types of enclosures and discuss Cytech's NEMA 4 and NEMA 4X outdoor enclosures, providing recommendations for various applications.
NEMA, or the National Electrical Manufacturers Association, is a U.S.-based organization that develops standards to ensure the safety, performance, and compatibility of electrical products. NEMA standards are recognized internationally and provide guidelines for the proper selection and use of electrical enclosures to protect against environmental factors.
NEMA ratings classify enclosures based on their ability to protect internal equipment from external elements like dust, water, and corrosion. These ratings are crucial in determining the suitability of an enclosure for specific applications. NEMA 4 and NEMA 4X are commonly used ratings for enclosures that need to withstand exposure to water, dust, and in the case of NEMA 4X, corrosive substances.
Choosing the correct NEMA-rated enclosure is vital for protecting sensitive equipment in industrial environments. The right enclosure can prevent equipment failures, reduce downtime, and ensure safety. NEMA 4 and NEMA 4X enclosures are specifically designed for environments where equipment is exposed to water, dust, or corrosive elements.

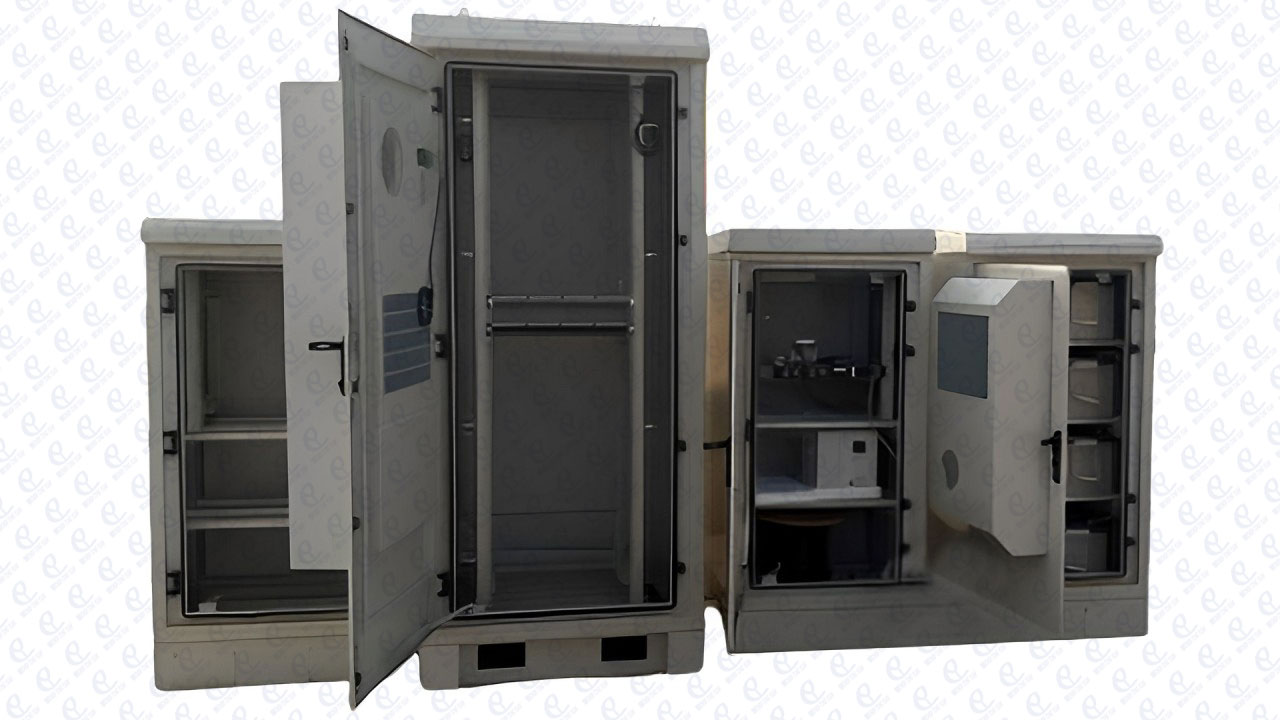

Cytech Nema rated waterproof testing

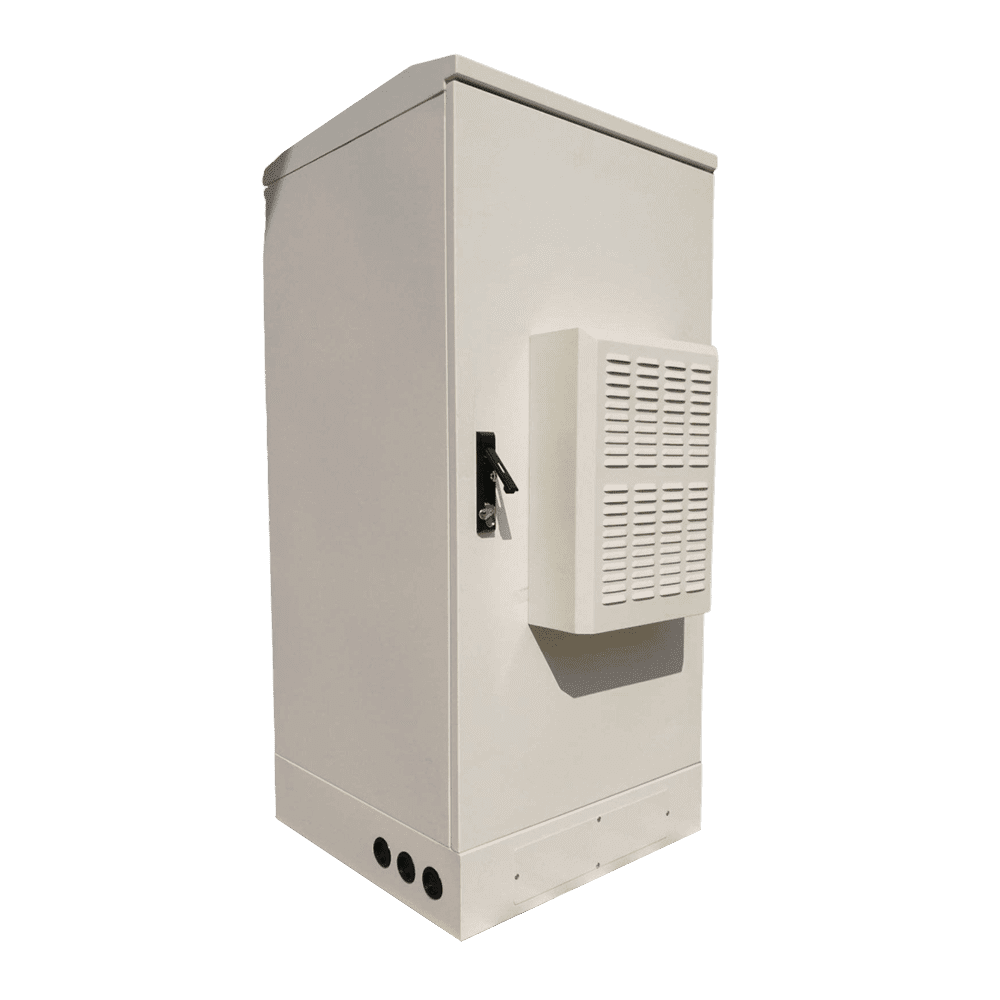

NEMA 4 enclosures are designed to protect electrical components from dust, rain, sleet, snow, and hose-directed water. These enclosures are suitable for indoor and outdoor use, where exposure to water and dust is a concern but corrosion is not a significant risk. They are typically constructed from painted steel or aluminum.
Water-Tight: Protects against hose-directed water and rain.
Dust-Tight: Prevents the ingress of dust and other solid particles.
Indoor and Outdoor Use: Suitable for a variety of environments.
Temperature Resistance: Capable of withstanding a broad range of temperatures.
NEMA 4 enclosures are used in environments where equipment needs protection from water and dust, such as:
Electrical junction boxes
Control panels
Telecommunications equipment
Outdoor lighting systems

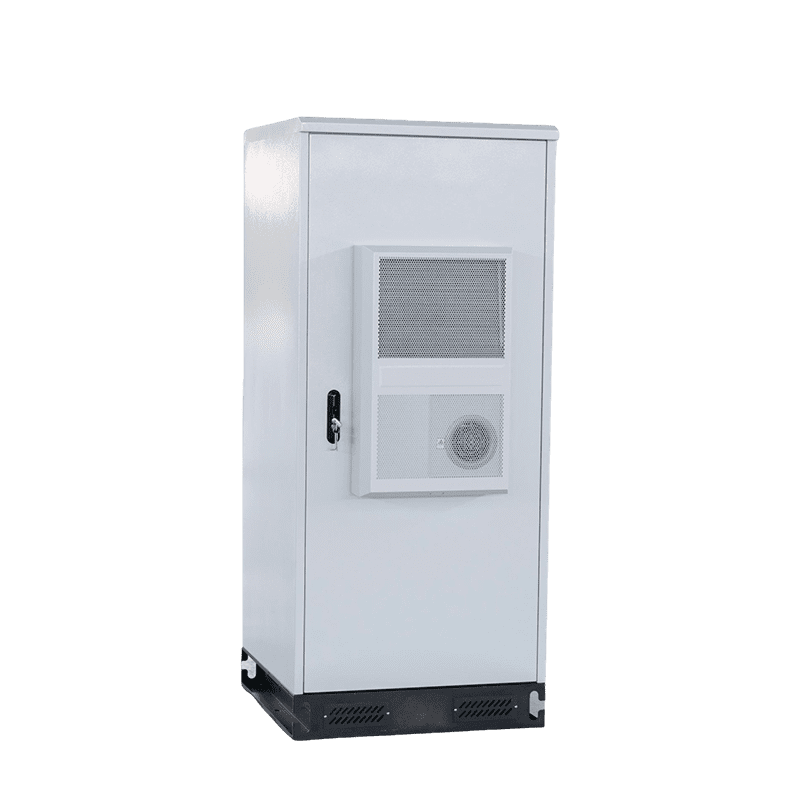

NEMA 4X enclosures offer the same protection as NEMA 4 enclosures, with the added benefit of corrosion resistance. This makes them ideal for use in environments where corrosive elements, such as saltwater or chemicals, are present. NEMA 4X enclosures are often made from stainless steel, fiberglass, or other non-corrosive materials.
Corrosion Resistance: Designed to withstand corrosive environments.
Water-Tight and Dust-Tight: Same level of protection against water and dust as NEMA 4.
Durable Materials: Typically constructed from stainless steel or fiberglass for enhanced durability.
Indoor and Outdoor Use: Suitable for both indoor and outdoor applications, particularly in corrosive environments.

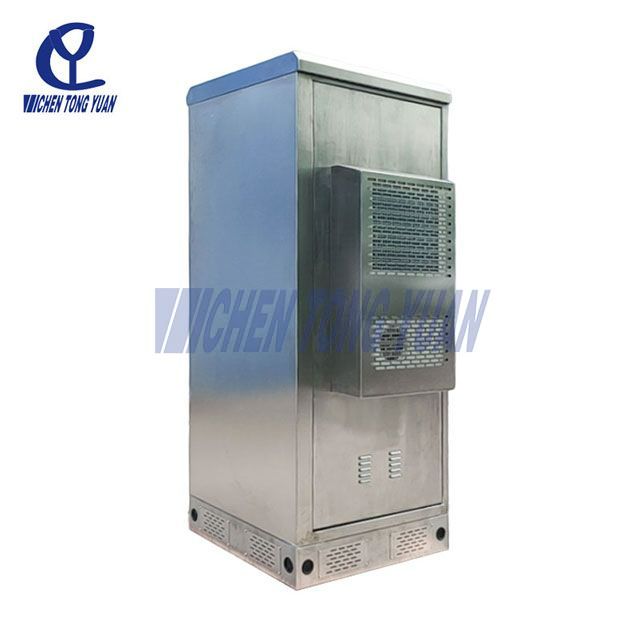

Cytech Stainless Steel NEMA 4X Outdoor Cabinet with cooling unit
NEMA 4X enclosures are ideal for environments requiring protection from both water and corrosive substances, such as:
Marine applications
Chemical processing plants
Food and beverage facilities
Pharmaceutical production
Protects equipment against rain, sleet, snow, and hose-directed water.
Provides a degree of protection against dust and dirt.
Mainly used in indoor and outdoor environments where water exposure is likely.
Offers all the same protection as NEMA 4.
Additional corrosion resistance (often made from stainless steel, fiberglass, or other corrosion-proof materials).
Designed for harsh or coastal environments, such as marine areas, chemical plants, or places with high humidity and salt exposure.
In short: NEMA 4 protects against water and dust, while NEMA 4X provides the same protection plus corrosion resistance.
A Table For Comparison Clearly
Feature | NEMA 4 Enclosure | NEMA 4X Enclosure |
Protection from water | ✅ Yes | ✅ Yes |
Protection from dust | ✅ Yes | ✅ Yes |
Protection from ice | ✅ Yes | ✅ Yes |
Corrosion resistance | ❌ No | ✅ Yes |
Typical material | Painted steel | Stainless steel, fiberglass, or corrosion-resistant metals |
Best used in | Industrial, outdoor with water exposure | Harsh, coastal, marine, or chemical-heavy environments |
Choose NEMA 4 if your application only needs protection against water and dust.
Choose NEMA 4X if your equipment will be exposed to saltwater, chemicals, or corrosive environments.
The main difference is that NEMA 4 protects against water, dust, and ice, while NEMA 4X offers the same protection plus corrosion resistance. NEMA 4X is ideal for harsh, marine, or chemical environments.
Yes. Both NEMA 4 and NEMA 4X enclosures are suitable for outdoor use. NEMA 4 is best for general outdoor applications, while NEMA 4X is recommended for corrosive environments like coastal or industrial areas.
NEMA 4: Typically made from painted steel or powder-coated metal.
NEMA 4X: Made from stainless steel, fiberglass, or corrosion-resistant materials.
Yes. Both are designed to resist rain, splashing water, hose-directed water, and snow. However, they are not intended for submersion in water.
Food and beverage facilities
Industrial factories
Outdoor electrical systems
Equipment exposed to washdowns
Coastal and marine environments
Wastewater treatment plants
Chemical processing industries
Outdoor telecom or power equipment in corrosive areas
Yes. A NEMA 4X enclosure provides all the protection of NEMA 4 with added corrosion resistance. If budget allows, NEMA 4X is a safer long-term investment for harsh environments.
Not exactly. NEMA and IP ratings are two different standards. NEMA 4 and 4X are roughly comparable to IP66 in terms of water and dust protection, but NEMA 4X additionally specifies corrosion resistance, which IP ratings do not cover.
Choose NEMA 4 if you only need water and dust protection in non-corrosive environments. Choose NEMA 4X if your equipment faces salt spray, humidity, or chemical exposure.
Yes, especially in corrosive environments. While NEMA 4X enclosures cost more, they reduce maintenance, prevent premature equipment failure, and extend the lifespan of your system
Both NEMA 4 and NEMA 4X enclosures provide strong protection against dust, water, and ice, making them suitable for demanding applications. However, the critical difference lies in corrosion resistance. While NEMA 4 is ideal for general industrial use, NEMA 4X should be your choice in harsh, corrosive, or marine environments
