Iraq’s climate presents unique challenges for outdoor telecom and battery cabinets. With scorching summers exceeding 50°C, freezing winters, and frequent sandstorms, selecting the right equipment is critical to ensure reliable telecommunications and power backup systems. This guide outlines key considerations for choosing cabinets that can withstand Iraq’s extreme conditions while maintaining performance and longevity
1.Extreme Heat: Summer temperatures often soar above 50°C, putting stress on equipment and batteries.
2.Cold Winters: In northern regions, temperatures can drop below 0°C, affecting battery efficiency.
3.Sand and Dust Storms: Frequent sandstorms can infiltrate poorly sealed cabinets, damaging sensitive components.
4.High Solar Radiation: Intense sunlight accelerates material degradation and increases cooling demands.
5.Power Instability: Unreliable grid power necessitates robust battery backup systems.
Feature | Standard Cabinet | Iraq-Optimized Cabinet |
Temperature Range | -20°C~45°C | -30°C~60°C |

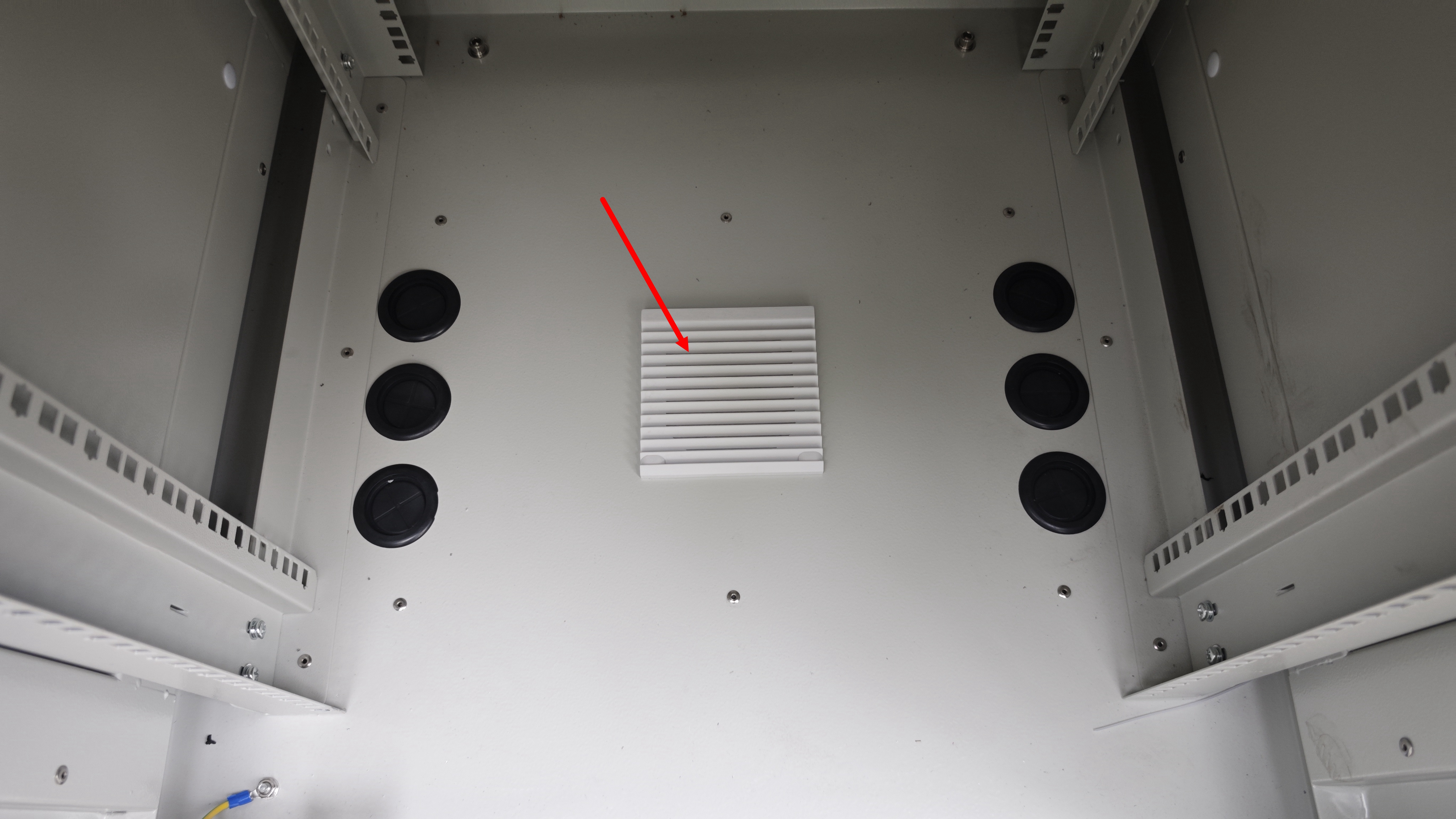

Dust Protection | IP54 | IP65 + Removable Air Filters |
Material | Cold-rolled steel | Hot-dip galvanized + UV-resistant coating |
These factors demand cabinets designed for durability, thermal management, and environmental protection
The cabinet’s material must resist corrosion, UV radiation, and physical wear. Common options include:
Stainless Steel: Offers excellent corrosion resistance, ideal for Iraq’s dusty and humid conditions. Ensure it’s treated with anti-corrosive coatings.
Aluminum: Lightweight and corrosion-resistant but less durable than stainless steel in extreme conditions.
Galvanized Steel: Cost-effective but requires high-quality coatings to prevent rust in Iraq’s climate.
Look for cabinets with powder-coated or anodized finishes to enhance UV and corrosion resistance.
Effective cooling is non-negotiable in Iraq’s heat. Cabinets must maintain internal temperatures within safe operating ranges (typically 0°C to 45°C for telecom equipment and 20°C to 25°C for batteries). Consider:
Active Cooling: Air conditioners or heat exchangers are effective but require reliable power and regular maintenance.
Passive Cooling: Features like heat sinks, sunshades, and reflective coatings reduce heat absorption. Ventilated designs with dust filters are essential for passive systems in dusty environments.
Insulation: High-quality insulation minimizes heat ingress and protects against cold snaps.
Choose cabinets with a high IP (Ingress Protection) rating, such as IP55 or IP65, to ensure dust and water resistance while supporting cooling mechanisms.
Batteries, especially lead-acid or lithium-ion, are sensitive to temperature extremes. Cabinets must:
Regulate Battery Temperature: Include dedicated compartments with thermal insulation or active cooling to keep batteries within optimal ranges.
Support Ventilation: For lead-acid batteries, ensure proper venting to release gases safely.
Allow Scalability: Choose cabinets with modular designs to accommodate additional batteries as power demands grow.
Verify that the cabinet supports your battery type and has space for future upgrades.
Iraq’s sandstorms make a high IP rating critical. An IP55 rating protects against dust ingress and low-pressure water jets, while IP65 offers complete dust protection and resistance to heavier water exposure. Ensure gaskets, seals, and door designs are robust to prevent dust penetration.
Vandalism and theft are concerns in remote Iraqi locations. Opt for cabinets with:

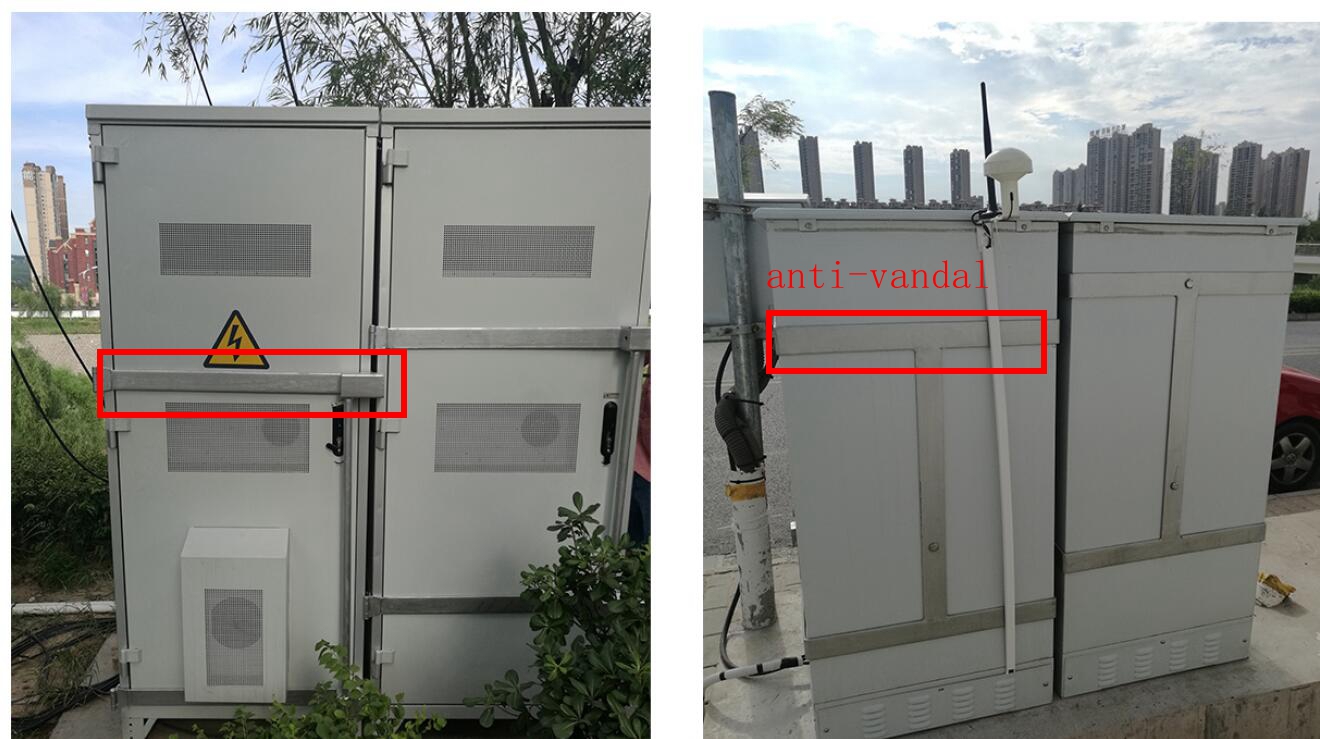

Reinforced Locks: Multi-point locking systems deter unauthorized access.
Tamper-Proof Designs: Hidden hinges and secure mounting prevent forced entry.
Alarm Systems: Integrated alarms can alert operators to tampering or environmental breaches.
Given Iraq’s unstable power grid, cabinets should integrate seamlessly with backup systems:
Battery Management Systems (BMS): Ensure compatibility with BMS to monitor battery health and optimize charging.
Hybrid Power Options: Cabinets should support solar or generator inputs for off-grid sites.
Cable Management: Look for designs with organized cable routing to prevent damage and simplify maintenance.
Choose a cabinet size that balances current needs with future expansion. Modular designs allow easy upgrades as telecom demands grow. Ensure the cabinet fits the site’s footprint and can be transported to remote locations.
Select cabinets that meet international standards, such as:
Compliance ensures reliability and compatibility with global telecom systems.
Site Assessment: Conduct a thorough site survey to understand local climate, power availability, and security risks. For example, southern Iraq (e.g., Basra) experiences higher humidity, requiring enhanced corrosion resistance.
Vendor Reputation: Choose reputable manufacturers with experience in extreme climates. Request case studies or references from deployments in similar environments, like Saudi Arabia or Kuwait.
Maintenance Plan: Factor in maintenance costs and accessibility. Cabinets with easy-to-replace filters and modular components reduce downtime.
Testing: Request test data for thermal performance, dust resistance, and durability. Some vendors provide simulation results for extreme conditions.

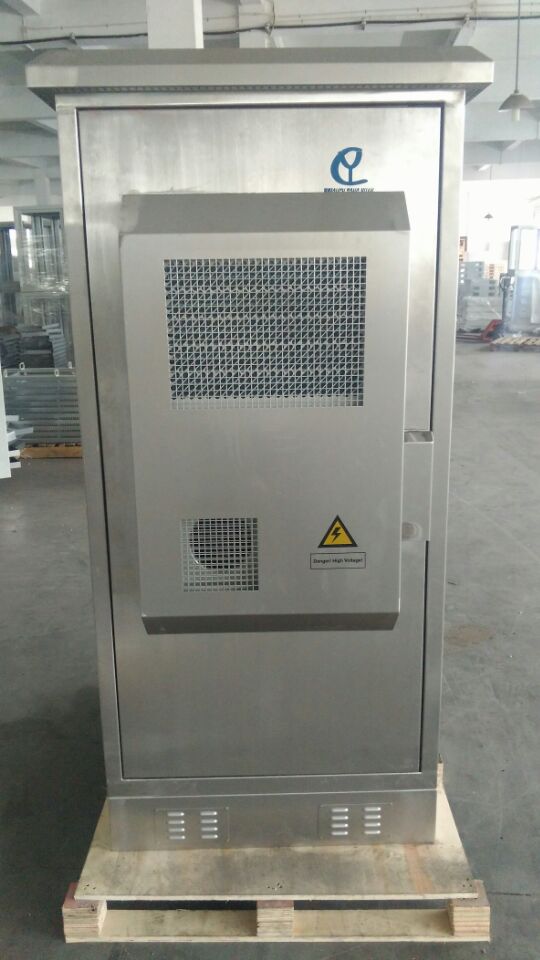

In 2023, a telecom provider in Baghdad upgraded its outdoor cabinets to withstand summer heat and sandstorms. They selected stainless steel cabinets with IP65 ratings, equipped with hybrid cooling (air conditioners and passive ventilation). The cabinets included insulated battery compartments for lithium-ion batteries and integrated BMS for real-time monitoring. After one year, the provider reported a 30% reduction in equipment failures and a 25% increase in battery lifespan compared to previous setups
Choosing outdoor telecom and battery cabinets for Iraq’s extreme climate requires careful consideration of material durability, thermal management, ingress protection, and security. By prioritizing high-quality materials, robust cooling systems, and compliance with international standards, you can ensure reliable performance and longevity. Conduct thorough site assessments, choose reputable vendors, and plan for maintenance to maximize your investment. With the right cabinets, your telecom infrastructure and power system can thrive in Iraq’s challenging environment.
