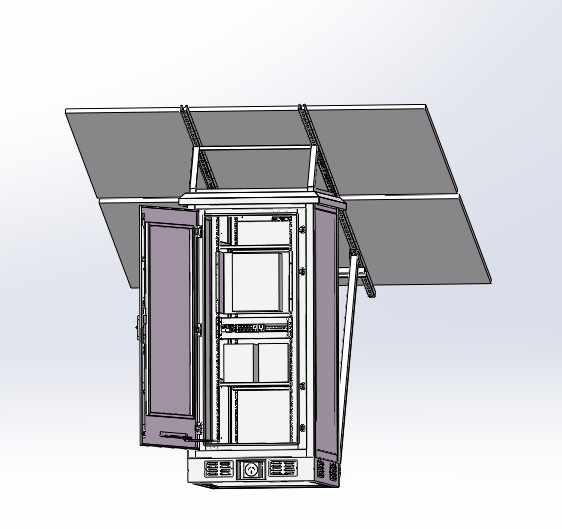

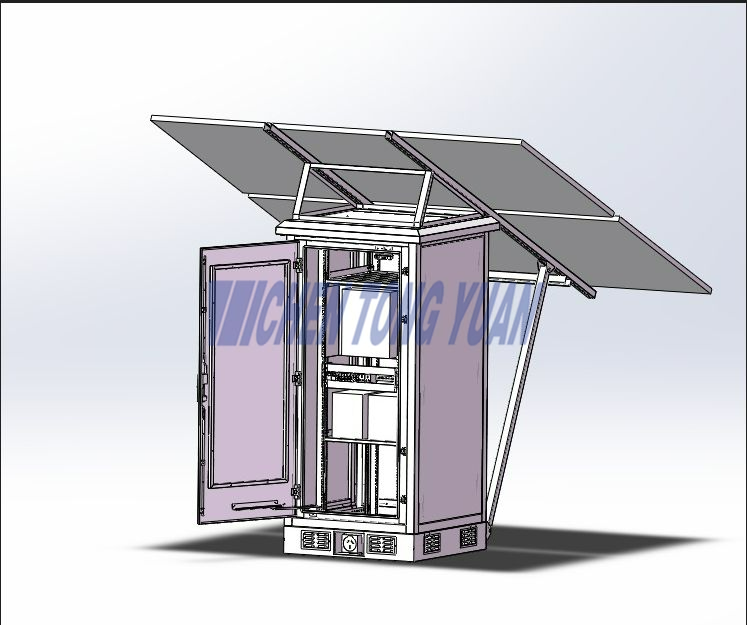

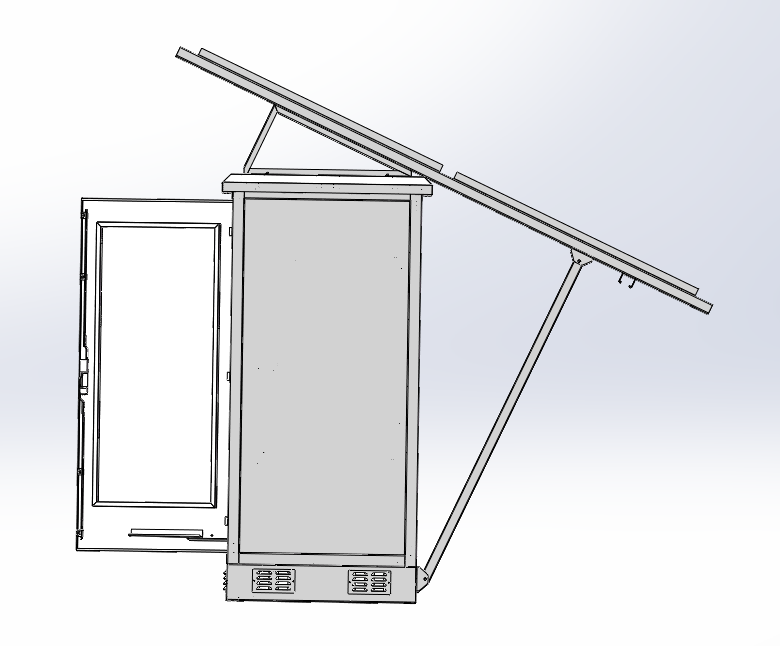

Outdoor Battery Rack with Solar Panel Mount is a dual-purpose solution designed to store solar batteries while securely supporting solar panels on top. Built from powder-coated, rust-proof steel, this rack ensures long-term durability in harsh outdoor conditions.
As solar energy systems grow in popularity, efficient storage solutions are crucial. An outdoor battery rack with an integrated solar panel mount provides:
✅ Space-saving design – Combines battery storage + solar panel support
✅ Weather resistance – Protects batteries from rain, snow, and UV damage
✅ Improved efficiency – Keeps batteries ventilated while optimizing solar panel angle
Powder-coated steel prevents rust and corrosion
UV-resistant materials for long-term sun exposure
Waterproof design to protect batteries from rain and humidity
Adjustable tilt for optimal sun exposure
Supports 1-4 solar panels (check weight capacity)
Pre-drilled holes for easy installation
Airflow slots prevent battery overheating
Cable management for organized wiring
Lockable design for theft prevention
Fits Tesla Powerwall, LG Chem, Battle Born, and other solar batteries
Modular design allows for additional battery expansion
1.Cabinet Size:H*W*D=1800*800*800mm;
2.Cooling system:DC48V fan;
3.Single layer 1.5mm thickness Galvanized steel plate;(SS304 optional)
4.Solar photovoltaic panel support bracket；
5.Can hold 3.5kw inverter and 2pcs lithium battery.
6.Including Battery Tray
7.Service provided :cable pre-wire for the inverter
8.Inverter installation
-Measure and mark the rack’s footprint using stakes and string.
-Ensure proper spacing between multiple racks for maintenance access.
1.Dig holes (~2 ft deep) for each footing.
2.Insert rebar for reinforcement and pour concrete.
3.Embed anchor bolts while concrete is wet.
4.Allow 48 hours to cure before mounting the rack
1.Screw ground anchors into the soil using a torque wrench.
2.Attach mounting brackets to the anchors.
1.Secure the rack base to the foundation using bolts.
2.Use a level to ensure the rack is perfectly horizontal.
3.Tighten all fasteners and apply anti-corrosion spray
1.Align solar panel rails with the rack’s mounting points.
2.Secure panels using clamps, ensuring no overhang obstructs airflow.
3.Connect wiring through waterproof conduits.
-Measure the slope angle (use an inclinometer).
-Determine if terracing or custom footings are needed
-Use tilt-adjustable mounting systems to compensate for slope.
-For steep slopes, consider pier foundations or retaining walls
-Install footings at varying depths to maintain a level rack.
-Use adjustable legs or shims to balance the structure.
-Build a terraced platform using retaining blocks.
-Secure the rack with helical piles driven deep into the slope.
-Reinforce with guy wires if needed for stability
-Adjust tilt angle based on latitude for maximum efficiency.
-Ensure panels face the correct azimuth (typically true south/north)
– Use concrete anchors or wall brackets for stability.
– Adjust tilt based on your geographic location for best efficiency.
– Some areas require permits for outdoor battery storage.
1.Off-Grid Solar Systems – Store excess energy for nighttime use.
2.RV & Van Life – Compact power storage for mobile setups.
3.Backup Power for Homes – Keep essential appliances running during outages.
A: High-quality racks support 500-1000 lbs, including batteries and solar panels.
A: Yes, most racks come with pre-drilled holes and hardware for DIY installation.
A: Yes, a solar charge controller is recommended to regulate battery charging.
An outdoor battery rack with solar panel mounting is a smart investment for anyone using solar energy. Look for durability, weather resistance, and expandability to future-proof your system.
