CY2100900900
cytech
Telecom
IP 55, NEMA 4
Floor Mount
1500W/5100BTU
19inch, 23inch
800mm/32inch
42U
Product Description
IP55 weatherproof protection against rain, dust, and outdoor exposure
Corrosion-resistant steel structure with long service life
Standard 19-inch 42U rack space for telecom and power equipment
Flexible cooling options to maintain stable operating temperature
Enhanced physical security with multi-point locking system
Suitable for harsh outdoor environments including roadside, urban streets, and remote rural sites

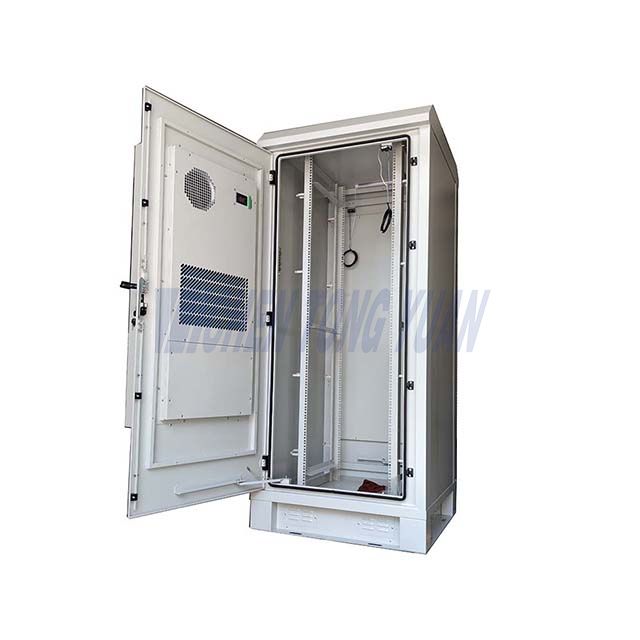

▼EXAMPLE OF OUTDOOR STREET CABINETS▼
The cabinet is engineered for outdoor use with a sealed structure, ensuring that moisture, dust, and debris cannot enter the enclosure. It maintains consistent performance even during heavy rain or extreme weather.
Made from galvanized steel and coated with UV-resistant outdoor powder paint, the cabinet resists rust, corrosion, and long-term environmental damage.
The 42U 19-inch rack rail system supports a wide range of telecom, fiber, and power products. Cable entry points with waterproof seals ensure clean, secure routing of power and signal cables.
Choose from natural ventilation, DC/AC fans, heat exchangers, or air conditioner systems depending on the installation environment and heat load.
A reinforced door and multi-point locking mechanism protect internal devices from tampering and theft. Optional alarm sensors (door, smoke, temperature) further enhance system security.
Item | Name | Technical parameter |
1 | Size | External Size:H*W*D=2100*900*900mm Height :42U |
2 | Cabinet layout | One compartment, for installing 19inch/23inch rack |
3 | Cabinet material | Double layer Galvanized steel with EPS thermal isolation |
4 | Security design Installation Method | Embedded door, embedded hinges, 4-point security lock Floor standing on concrete or steel foundation |
5 | Protection level | IP55,NEMA 4 or 4X |
6 | Color and surface treatment | RAL7035 Outdoor-grade powder coating Light grey/customizable |
7 | Cooling options | Fan, heat exchanger, air conditioner |
8 | Lighting system | Door sensor+48V LED light(when open the door, the LED will light on;When the door is closed, the LED will go out.) |
9 | Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
10 | Working temperature | - 40 ℃ ~ + 55 ℃ |
11 | Working Humidity | ≤ 95% (+ 40 ℃) |
12 13 | Air Pressure Monitoring Options: | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) Temperature, humidity, smoke, door sensor |
Note：The air conditioner can also choose AC 110V 60HZ or DC 48V, and the fan can also choose AC 110V or 220V.
Includes: locking door with air conditioner,19inch rackmount rails,floormount plinth or hardwares.
No | Name | Quantity | Unit | Technical parameter |
1 | Telecom cabinet outdoor | 1 | set | 1)External Size:H*W*D=2100*900*900mm |
2 | Air conditioner | 1 | set | Power supply:AC 220V 50/60Hz Cooling capacity:1500W |
3 | Fan | 1 | set | DC48V with temperature control |
4 | LED Lamp | 1 | set | DC48V,used for illumination in the cabinet |
5 | Grounding bus bar | 1 | set | 200A Copper bar(13 point M6 and 2 point M8) |
6 | Equipment supporting | 3 | set | |
7 | Package | 1 | set | Wooden box , wooden pallet+stretch film or wooden pallet +wooden box |
The following accessories are available for optional ordering.
Item | Technical parameter | Picture |
EMS | 19 inch environment monitoring unit 1U; DC48V, support RS232,RS485, SNMP,TCP/IP communication protocol. 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor. Environmental monitoring system is a comprehensive network of devices and technologies designed to track and assess various aspects of the environment. This system plays a crucial role in gathering data to understand environmental conditions, detect changes, and manage natural resources. | |
Fire Extinguisher | Hot aerosol fire extinguishing device is a new, efficient and environment-friendly fire fighting product with Vanguard International Semiconductor Corporation level, which is the first in China. It is a high-tech green fire protection product that benefits humanity, born under the background of the International Montreal Agreement and China's increased awareness of environmental protection. It is an ideal substitute for halon fire extinguishing devices and is suitable for relatively enclosed spaces such as distribution cabinets.
Electric or hot start: Hot start temperature ≥170℃; Electric start temperature ≥700mA. | |
Wiring type PDU | AC input：63A/2P*2 with interlock； AC/SPD：30-60KA/2P*1； AC output：63A/1P*1,32A/1P*1，16A/1P*3，3 holes Maintenance socket*1 | |
Integrated PDU | Can be customized according to customer requirements. | |
Rectifier | AC220V/110V transfer to DC48V, Connect the battery as a backup power,also can be customized according to customer requirements. | |
ODF | Optic Distribution Frame (ODF) is a critical component in a fiber optic network infrastructure. It serves as a centralized point for the termination, organization, and distribution of fiber optic cables. The primary purpose of a distribution frame is to facilitate efficient and organized connectivity, making it easier to manage, troubleshoot, and expand the network.
Function: 1)Termination Point; 2)Organization and Management; 3)Splicing Trays; 4)Labeling and Documentation; 5)Security and Protection; 6)Scalability;
Can be customized according to customer requirements. | |
Backup battery | Can be lithium battery or lead acid battery. |
(1)Material can be Constructed of durable, galvanized steel,sandwich panel ,stainless steel SS304,aluminium.
(2)Compartments can be configured to support between 1-4 bays,multi-compartments supported.
(3)Front and rear access doors allow technicians access to equipment storage areas and cable routing.
(4)Side doors design also ok.
(5)Customized color ,standard color RAL7035,other color acceptable based on appointed color code.
(6)Wide range of thermal management options for even the most demanding heat dissipation needs allows for optimization of thermal performance and reduced energy costs.
(7)The cooling solution adopted compressed air conditioner ,TEC (Thermoelectric Cooler),Hex (heat exchanger),Fans,Combined AC&HEX.
(8)Offers a wide range of configuration options providing maximum flexibility including PDU, rectifier ,integrated AC-DC power systems.
(9)Silk screening Logo and environmental friendly painting artwork for outdoor telecom cabinet.
(10)Offers all kinds environment sensors,including doors,smoke,temperature sensors.
(11)Remote monitoring system supported, communication protocol is RS232/RS485/SNMP.
Model | Height | Type | Rate | Color | H*W*D | Climate Control | Application |
| CY700650650 | 12U | Floor stand | IP55 | Grey | 700x650x650mm / 27.56 x 25.59 x 25.59inch | DC48V fan | Telecom Wireless/Broadband Solar-based installation |
CY800650650 | Floor stand | IP55 | Grey | 800x650x650mm / 31.50 x 25.59 x 25.59inch | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
CY1050650650 | Floor stand | IP55 | Grey | 1050x650x650mm / 41.34 x 25.59 x 25.59inch | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
CY1400800800 | Floor stand | IP55 | Grey | 1400x800x800mm / 55.12 x 31.50 x 31.50inch | Air conditioner 500W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
CY1600800800 | Floor stand | IP55 | Grey | 1600x800x800mm / 63.00 x 31.50 x 31.50inch | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
CY1700750750 | Floor stand | IP55 | Grey | 1700x700x700mm / 66.93 x 27.56 x 27.56inch | Air conditioner 1000W DC48V fan | Telecom Wireless/Broadband Solar-based installation | |
| CY2100900900 | 42U | Floor stand | IP55 | Grey | 2100x900x900mm / 82.68 x 35.43 x 35.43inch | Air conditioner 1500W DC48V fan | Telecom Wireless/Broadband Solar-based installation |
Other size to be continued ,please send us inquiry for futher discussion
Name | Specification |
AC220V 50HZ | |
AC220V 60HZ | |
AC110V 60HZ / DC48V | |
Cooling capacity from 300W-5000W | |
DC48V | |
40W/K-200W/K | |
AC220V 50HZ & DC48V | |
1500W&80W/K | |
DC48V | |
200W-1200W | |
AC220V 50HZ | |
AC220V 60HZ | |
AC110V 60HZ / DC48V |
◆acceptable temperature range for your equipment;
◆Heat load of equipment;
◆The highest local ambient temperature；
◆Noise Level；
◆Future Expansion；
By carefully considering these factors, you can select a cabinet climate control system that meets the specific needs of your equipment and environmental conditions.
(1)If conditions permit, try to install the outdoor telecom cabinet in a cool and ventilated place with clean surrounding environment .
(2)After the cable construction is completed, please make sure to seal the gap around the cable with the sealant provided randomly in the cabinet, so as to avoid the condensation caused by moisture entering and affecting the use performance of the equipment.
(3)The grounding bar of the cabinet must be reliably grounded, and the grounding resistance to the ground shall be less than 10 Ω .
(4)Please clean the ventilation and dust screen in the cabinet regularly every month. According to the actual situation, the period of cleaning dust screen can be shortened or extended properly.
Applications
The 42U outdoor street cabinet is widely used in
4G/5G base stations
Telecom and broadband network nodes
FTTx / FTTH fiber access points
Wireless communication systems
Smart city and roadside communication facilities
Power distribution and energy storage systems
IoT and intelligent transportation networks
Its robust design makes it suitable for highways, city streets, rural sites, and harsh outdoor conditions.
Advantages
Easy equipment loading with adjustable rack rails
Simple cable routing with waterproof cable entry design
Low maintenance requirements due to corrosion-resistant materials
Cooling system options tailored to local environment
Optional sensors allow remote monitoring and maintenance
We offer OEM/ODM customization to match your project requirements:
Custom dimensions and rack sizes
Multiple cooling system configurations
Choice of material: steel / aluminum / stainless steel
Optional thermal insulation layers
Sensor and monitoring modules
Custom colors and branding
Special anti-vandal or anti-theft features
Looking for a reliable outdoor cabinet for your telecom or energy project?
Our engineering team can provide detailed drawings, datasheets, and customized cabinet solutions.
