Thermal testing of an outdoor telecom cabinet (also known as an OSP – Outside Plant enclosure) is essential to ensure that internal equipment such as rectifiers, batteries, and EMS systems can operate safely under extreme environmental conditions.
These conditions include high ambient temperatures, solar radiation, internal heat dissipation, and cooling system performance. A well-executed thermal test ensures system reliability, prevents overheating, and validates compliance with industry standards.
Before diving in, we’ve prepared two practical documents for you—feel free to download and use them whenever needed.
Thermal_Data_Logging_Template.xlsx
Thermal_Test_Report_Template.docx
Before starting, clearly define the purpose of the thermal test:
◇Verify maximum internal temperature under full load
◇Evaluate cooling system performance (air conditioner, heat exchanger, fans)
◇Assess temperature distribution and uniformity
◇Identify hotspots and airflow issues
◇Ensure compliance with standards such as Telcordia or IEC
◎Telcordia GR-487-CORE – Widely used in North America
◎Telcordia GR-3108-CORE – Defines internal temperature classes
◎ETSI EN 300 019 – Common in Europe and global markets
◎IEC 60068 / IEC 60529 – Environmental and enclosure protection standards
☆Internal temperature ≤ 40°C (Class 1)
☆Or ≤ 45–55°C for modern high-power systems
Standard | Typical Max Ambient (test) | Solar Load | Target Internal Temp | Notes |
|---|---|---|---|---|
GR-487/GR-3108 Class 1 | 40-50°C+solar | Yes | ≤40°C | Most US telecom OSP cabinets |
ETSI EN 300 019-1-4 Class 4.1 | +40 to +55°C | Yes | Equipment- dependent | Non-weatherprotected locations |
Extreme Class (GR-3108 Class 3) | Up to +85°C | Yes | Survival only | Ruggedized equipment |

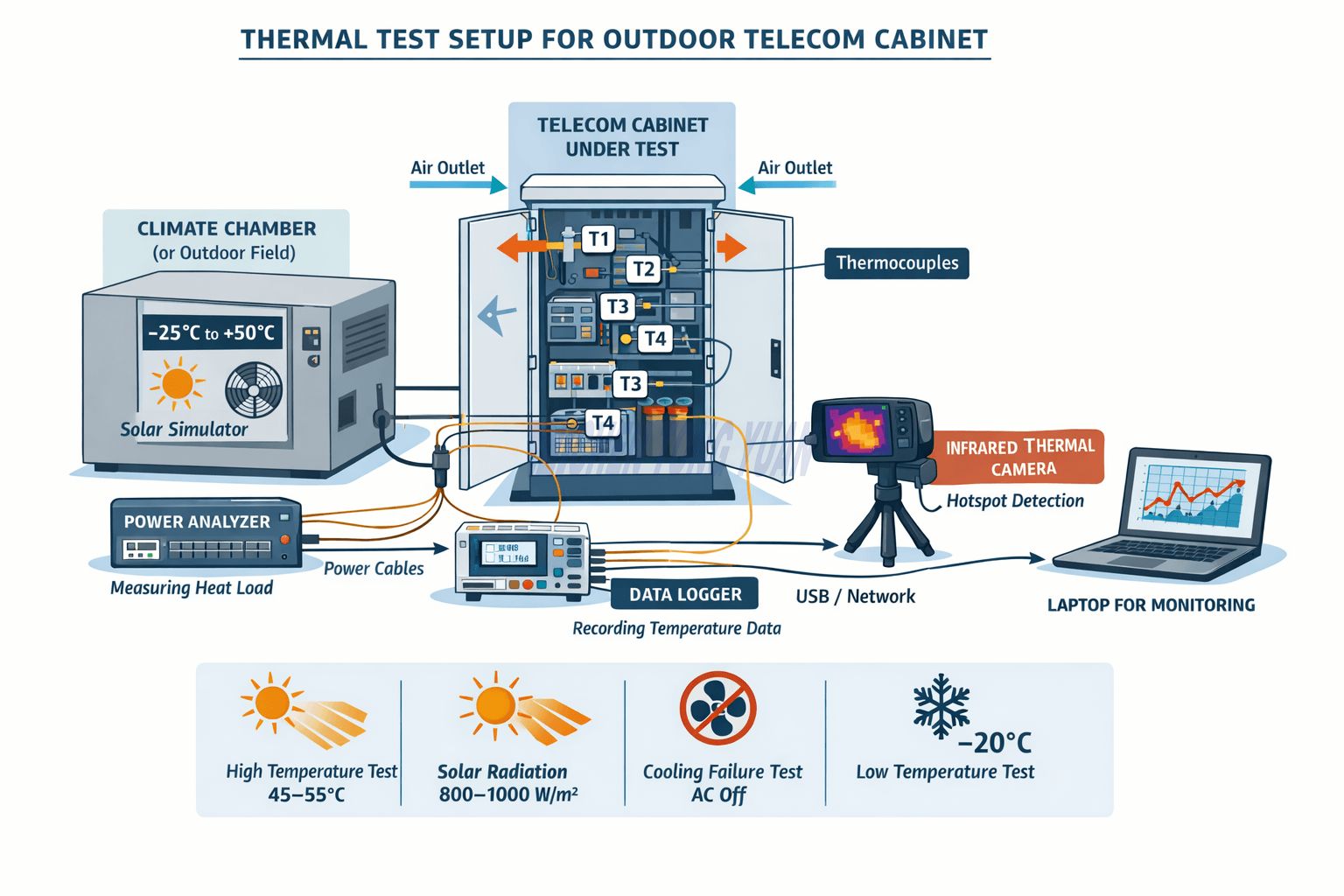

△Thermocouples (Type K recommended)
△Data logger (multi-channel)
△Infrared thermal camera (optional but useful)
△Power analyzer (to measure heat load)

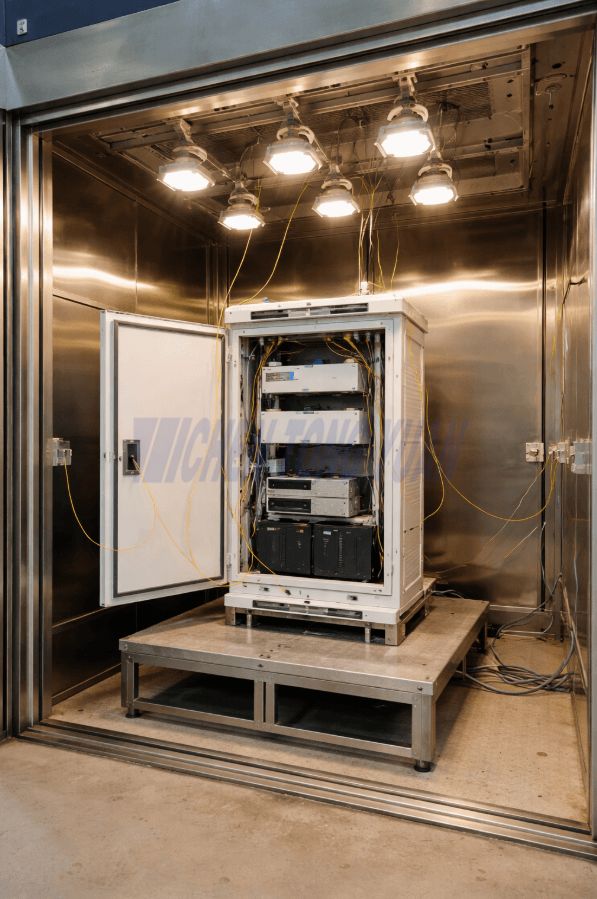

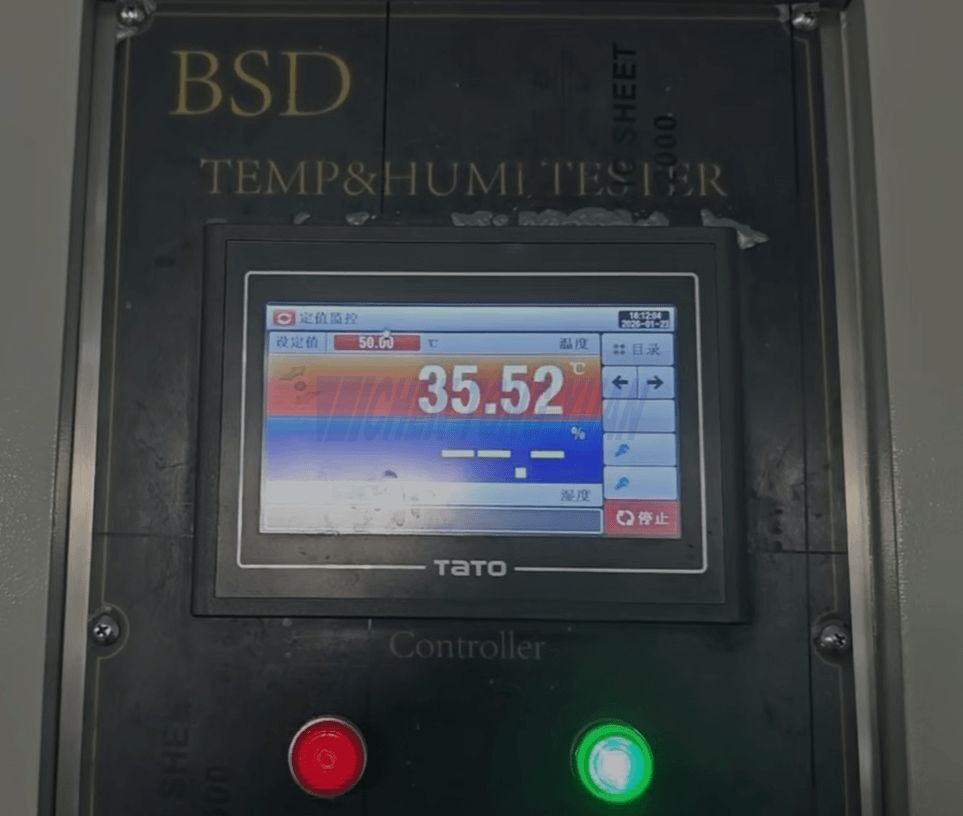

▽Climate chamber (preferred for lab testing)
▽Or outdoor field test setup (real conditions)
△Thermocouples (Type K recommended)
△Multi-channel data logger
△Infrared (IR) thermal camera
△Power analyzer
▽Climate chamber (preferred for controlled testing)
▽Outdoor field testing (for real-world validation)
Simulate real operating conditions:
♂Rectifier: e.g., 2–5 kW
♂Batteries: heat during charge/discharge
♂EMS & electronics: small but continuous load
♂Total heat load = sum of all equipment losses (W)
Example:
♀Rectifier: 3000W
♀Battery loss: 500W
♀Other electronics: 200W
➡ Total ≈ 3.7 kW heat load
Correct sensor positioning ensures accurate results.
★Top air (hottest zone)
★Middle air
★Bottom air (inlet)
★Near heat sources (rectifiers, batteries)
★Cooling system air inlet/outlet
◆Ambient temperature
◆Solar radiation (if applicable)
Typical worst-case conditions include:

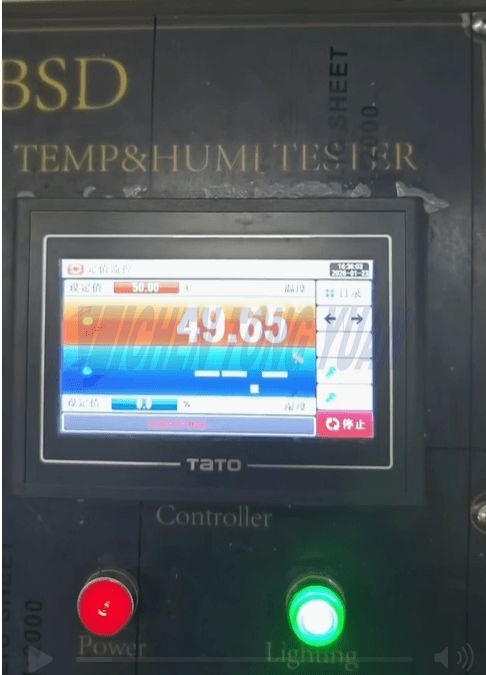

▲Ambient temperature: 45°C to 55°C
▲Solar radiation: 800–1120 W/m²
▲Low or no wind (worst-case cooling condition)
▲Cabinet fully sealed (IP55 / NEMA 4X)
1. Install all equipment or dummy heaters
2. Place sensors and connect data logger
3. Start system at nominal load
4. Stabilize for 2–4 hours (until temperatures plateau)
5. Record data continuously (1–5 min intervals)
6. Repeat for different ambient conditions
Electronics: typically < 55°C
Batteries (Li-ion): ideally < 30–35°C
ΔT = Internal temp – Ambient temp
Typical target: ΔT < 10–15°C (with AC)
Difference between top and bottom < 5–10°C
Peak temperature points
Cooling system cycling behavior
Hotspots (from thermal camera)
Time to reach steady state

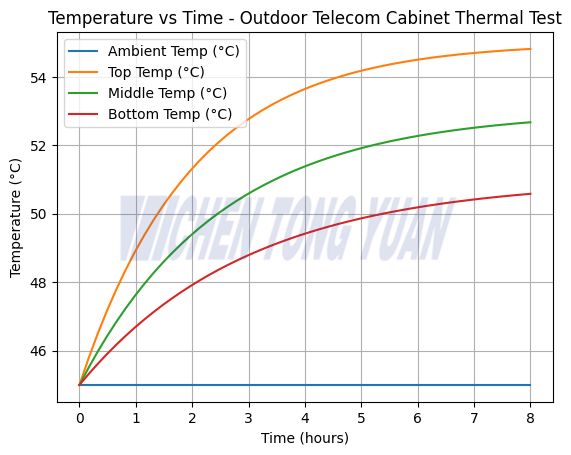

Temperature vs time
Ambient vs internal temperature

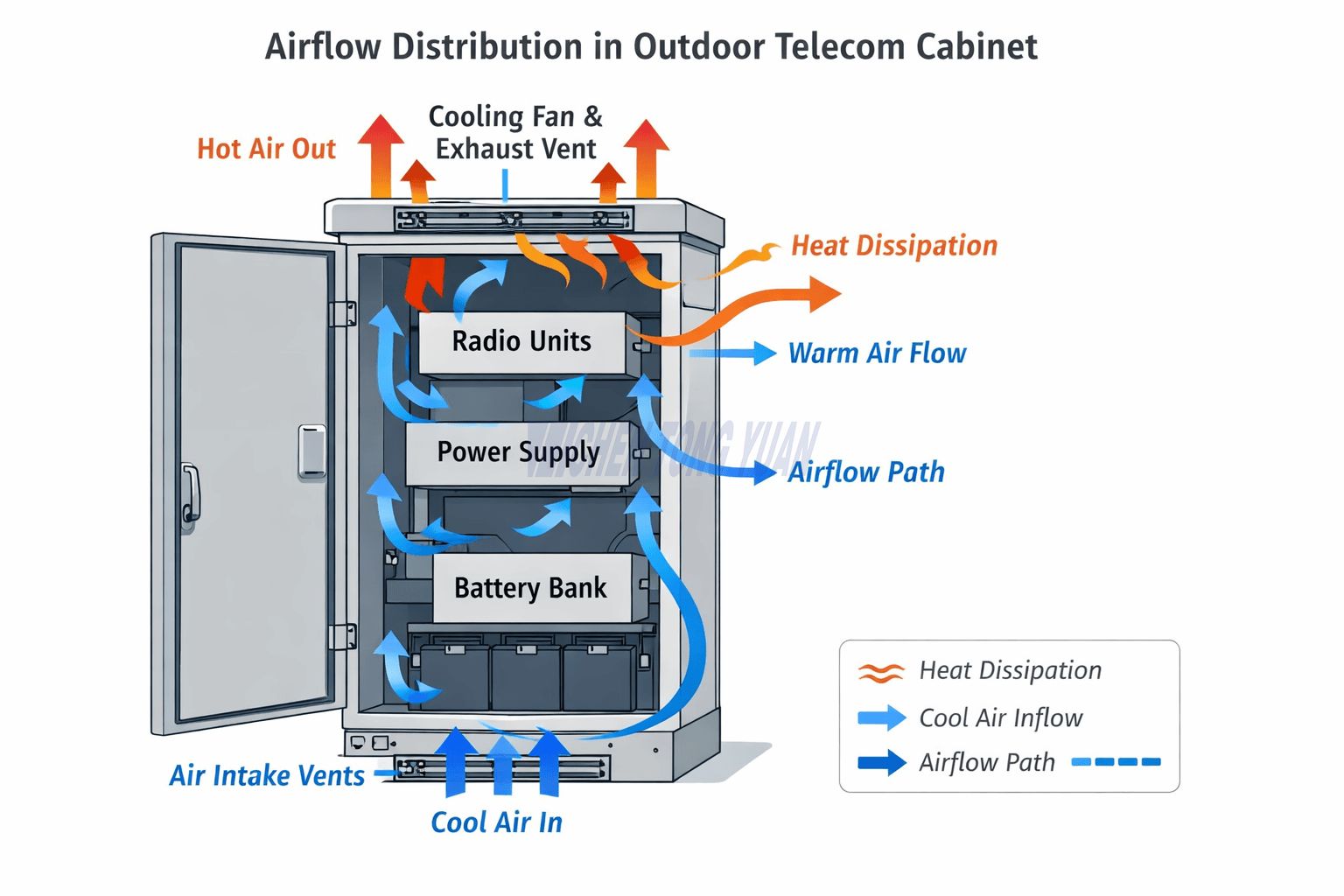

Poor airflow design → hotspots at top
Oversized heat load vs undersized AC
Solar gain not considered
Bad sealing → hot air ingress
Oversize cooling capacity by 20–30% safety margin
Use IR thermal imaging to detect hotspots
Validate airflow path, not just cooling capacity
Consider double-wall or sunshield design
Perform both lab and field testing for accuracy
Document all test conditions and sensor layouts for certification
Thermal testing is a critical step in ensuring the reliability and lifespan of outdoor telecom cabinets. By combining accurate heat load simulation, proper sensor placement, realistic environmental conditions, and standardized testing methods, manufacturers can confidently validate their designs and meet global telecom requirements.
A well-designed and thoroughly tested cabinet not only protects internal equipment but also reduces maintenance costs and improves long-term network stability.
A thermal test evaluates how well an outdoor telecom cabinet manages heat under different environmental conditions. It ensures internal equipment operates within safe temperature limits, even in extreme heat or cold.
Thermal testing prevents overheating, improves system reliability, and extends equipment lifespan. Without it, components like batteries and rectifiers may fail prematurely, leading to costly downtime.
Typically:
Electronics: below 55°C
Lithium batteries: 30–35°C (ideal range)
Maintaining these limits ensures optimal performance and safety.
Heat load is the total power loss from all internal equipment.
Formula:
Total Heat Load (W) = Sum of equipment power losses
This includes rectifiers, batteries, and auxiliary electronics.
You’ll need:
◇Thermocouples (temperature sensors)
◇Data logger
◇Thermal imaging camera
◇Power analyzer
◇Climate chamber or outdoor test setup
Most tests run 2 to 4 hours, or until the system reaches a steady-state temperature where readings stabilize.
It’s when the temperature inside the cabinet stops rising and remains stable over time, indicating thermal equilibrium has been reached.
Typical scenarios include:
☆High temperature (45–55°C)
☆Solar radiation exposure
☆Low temperature (-20°C or below)
☆Cooling failure simulation
Solar radiation is simulated using lamps or solar simulators that generate 800–1000 W/m², replicating real sunlight conditions.
Sensors should be placed:
◎At the top (hot zone)
◎Middle section
◎Bottom (air intake)
◎Near heat-generating components
◎At cooling system inlet and outlet
Common causes include:
△Poor airflow design
△Undersized cooling systems
△High ambient temperatures
△Excessive internal heat load
A well-designed system usually maintains a temperature rise of less than 10–15°C above ambient when cooling is active.
Yes, outdoor field testing can be performed. However, climate chambers provide more controlled and repeatable conditions.
It involves turning off or reducing the cooling system to evaluate how quickly temperatures rise and whether the system can handle emergency conditions.
You can:
Optimize airflow design
Increase cooling capacity
Add insulation or sunshields
Improve component layout
Common standards include:
IEC 60068 (environmental testing)
IEC 60529 (IP rating)
Telcordia GR-487 (outdoor telecom enclosures)
Lab testing: Controlled, repeatable conditions
Field testing: Real-world environmental exposure
Both are important for full validation.
Thermal testing is typically done:
During product development
After design changes
Before mass production
