Outdoor telecom cabinets are the silent guardians of modern communication networks. Whether supporting 4G, 5G, fiber optic systems, or industrial communication equipment, these cabinets protect sensitive electronics from rain, dust, heat, snow, and even vandalism. But when choosing the right enclosure, one question always pops up: should you choose a single wall or double wall outdoor telecom cabinet?
At first glance, they may look similar. Both are metal enclosures designed for outdoor use. But beneath the surface, their performance, insulation, cooling efficiency, and long-term operating costs can be dramatically different.
Think of it like clothing. A single wall cabinet is like wearing a lightweight jacket, while a double wall cabinet is like wearing a thermal winter coat with insulation layers. Both protect you, but one handles extreme conditions much better.
In this article, we’ll dive deep into the differences between single wall and double wall outdoor telecom cabinets, compare their advantages and disadvantages, and help you decide which one fits your telecom project best.
Outdoor telecom cabinets are specially designed enclosures used to house communication equipment in outdoor environments. These cabinets protect devices such as:
Routers
Switches
Batteries
Rectifiers
Fiber optic equipment
Power distribution units
Environmental monitoring systems
Unlike indoor racks, outdoor telecom cabinets must survive harsh environmental conditions 24/7. That means they need strong weather protection, effective cooling, and excellent durability.
The wall structure of a telecom cabinet directly impacts:
Internal temperature control
Energy consumption
Equipment lifespan
Cooling system efficiency
Maintenance costs
Weather resistance
A poorly selected cabinet can turn into an oven under the summer sun or a freezer during winter. Sensitive telecom equipment hates temperature fluctuations, and overheating can lead to costly downtime.
That’s why choosing between single wall and double wall cabinets is more than a simple design decision—it’s a long-term investment decision.

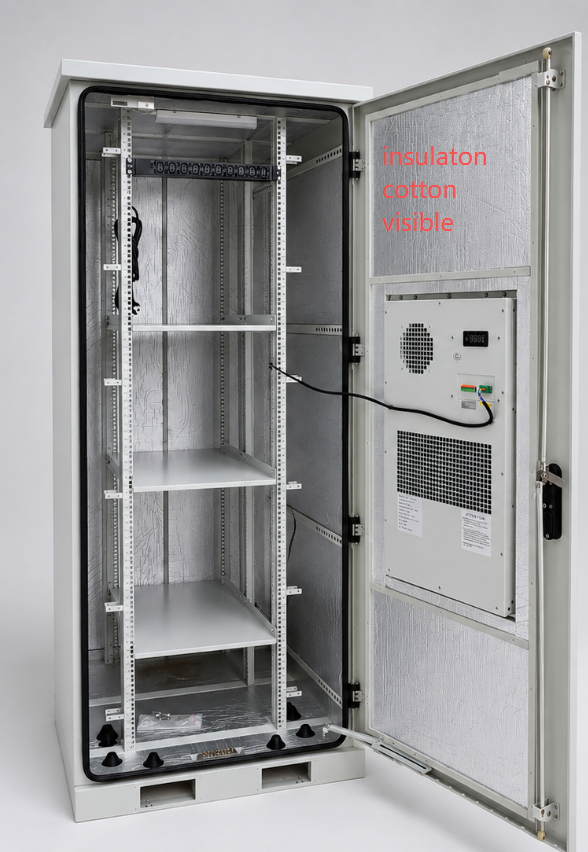

A single wall outdoor telecom cabinet uses one layer of metal as the main enclosure body. It is the most basic and cost-effective outdoor cabinet design.
The cabinet usually consists of:
One metal sheet wall
Internal mounting rails
Cooling devices
Sealing gaskets
Ventilation openings
The structure is straightforward and lightweight.
Manufacturers commonly use:
Galvanized steel
Aluminum
Stainless steel
Cabinets also include powder coating for additional corrosion resistance.
Single wall cabinets are commonly used in:
Mild climate areas
Urban telecom projects
Temporary installations
Budget-sensitive deployments
Low heat-load applications
They are popular because they cost less and are easier to manufacture.
A double wall outdoor telecom cabinet features two layers of metal with thermal insulation cotton between them. This air gap acts as thermal insulation.
It’s similar to double-glazed windows in buildings. The extra layer significantly reduces heat transfer.
The cabinet contains:
Outer metal wall
Inner metal wall
Insulated thermal cotton ,like PEF,EPS ,rubber foam insulation etc
Ventilation pathways
Thermal separation zones
Some advanced designs even include insulation foam between layers.
The air gap works like a thermal shield. Sunlight heats the outer wall first, while the inner wall remains cooler.
This helps stabilize internal temperatures and reduces cooling system workload.

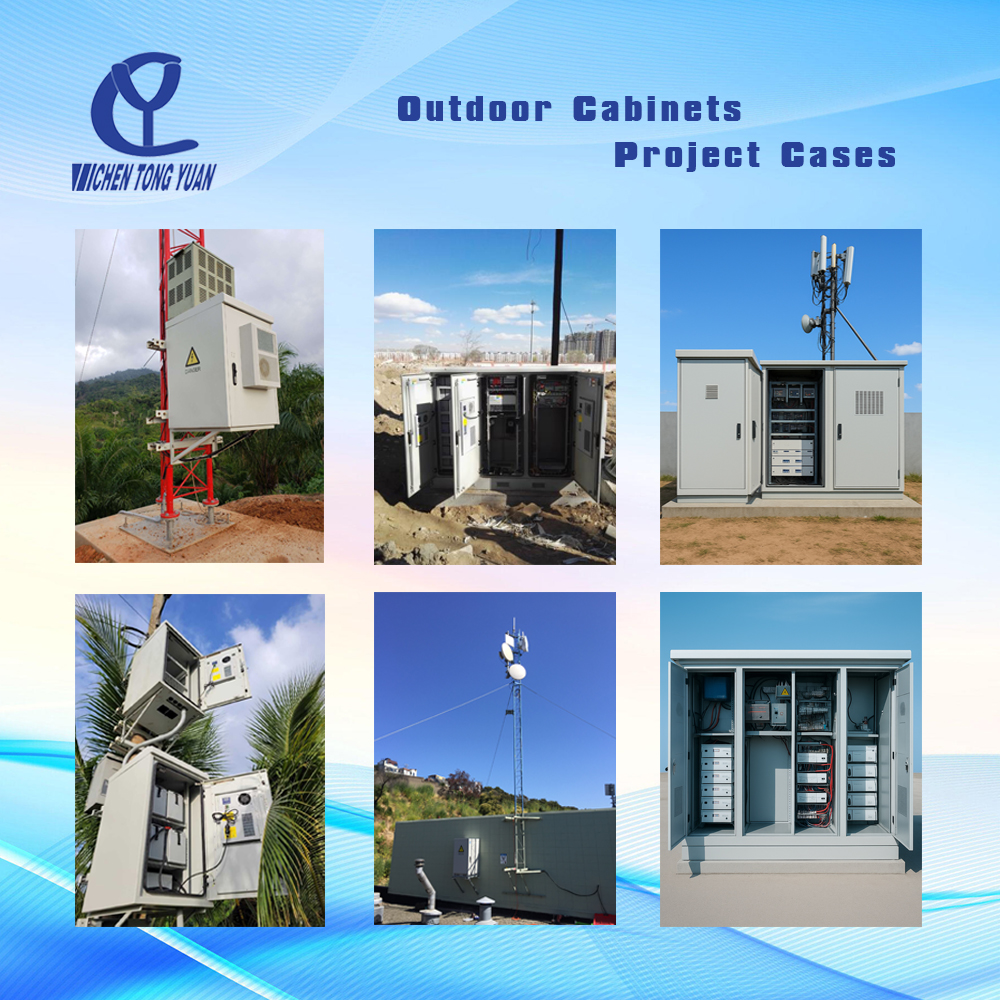

Double wall cabinets are widely used in:
5G telecom networks
Renewable energy systems
Transportation infrastructure
Oil and gas facilities
Desert environments
Coastal installations
These environments demand higher thermal performance and durability.

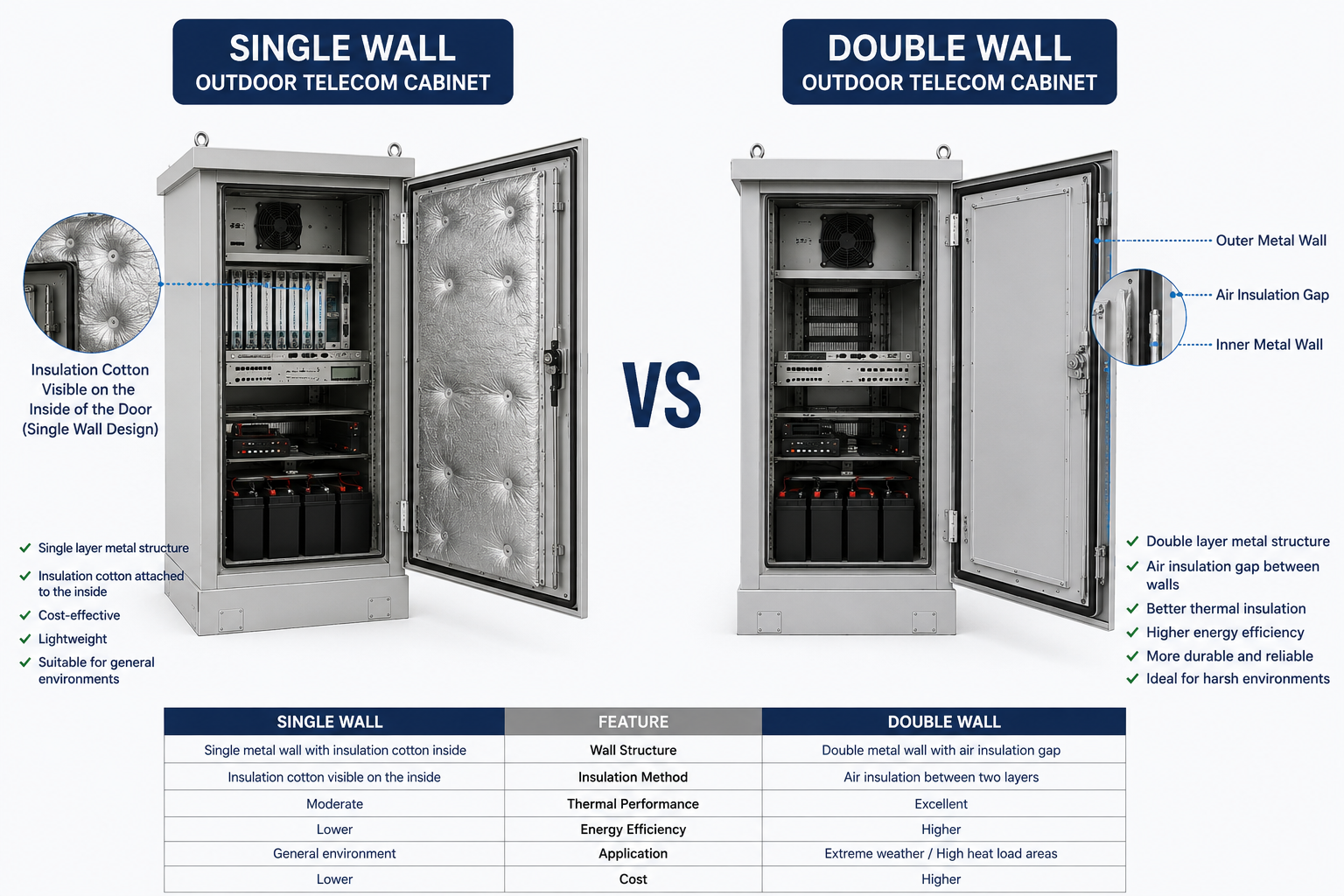

Now let’s compare them side by side.
This is where double wall cabinets truly shine.
Single wall cabinets transfer external heat directly into the enclosure. Under direct sunlight, internal temperatures can rise rapidly.
Double wall cabinets slow down heat transfer through the insulation gap.
Result?
Lower internal temperatures
Reduced thermal shock
Better equipment stability
In hot climates, this difference can be huge.
Double wall cabinets generally offer better protection against:
Solar radiation
Heavy rain
Snow
Dust storms
The extra layer acts as an additional barrier against environmental stress.
Single wall cabinets still provide good weather protection, but they are more vulnerable to rapid temperature changes.
Cooling systems consume a lot of power.
Since double wall cabinets reduce heat gain, cooling devices such as air conditioners or heat exchangers operate less frequently.
That means:
Lower electricity costs
Longer cooling system lifespan
Better energy efficiency
Single wall cabinets often require stronger cooling systems to compensate for heat exposure.
Double wall cabinets are usually stronger and more rigid.
The dual-layer structure improves:
Impact resistance
Structural stability
Anti-deformation capability
This matters in harsh outdoor environments or high-security applications.
Interestingly, double wall cabinets also reduce noise better.
The extra wall layer helps dampen vibrations from:
Fans
Air conditioners
Power systems
This can be important in urban installations where noise regulations apply.
Single wall cabinets are simpler, making maintenance easier and cheaper.
Double wall cabinets may require:
More detailed inspections
Additional cleaning
Specialized repairs
However, they often experience less thermal-related equipment failure.
Here’s the big question: which one costs more?
Double wall cabinets are more expensive because they require:
More material
More manufacturing steps
Better insulation engineering
But the higher upfront cost can be offset by energy savings and improved equipment lifespan.
Single wall cabinets win in terms of initial affordability.
Cooling is one of the most critical aspects of telecom cabinet design.
Both cabinet types can use:
DC air conditioners
Compressor cooling systems
Thermoelectric coolers
However, double wall cabinets improve cooling efficiency by reducing heat transfer.
This means smaller air conditioners may be sufficient.
Heat exchangers perform better inside double wall cabinets because:
Internal heat load becomes more stable
External heat intrusion decreases
Cooling cycles become more efficient
For energy-conscious telecom operators, this matters a lot.
Outdoor telecom cabinets face very different environments depending on location.
In desert or tropical areas, double wall cabinets are usually the preferred choice.
Why?
Because solar heat radiation can push cabinet temperatures to dangerous levels.
Double wall insulation helps prevent overheating.
Cold climates create a different challenge.
Cabinets must retain heat to avoid condensation and freezing.
Double wall structures help stabilize internal temperatures and reduce condensation risks.
Salt spray and sandstorms are brutal on telecom infrastructure.
Double wall cabinets often include:
Better sealing
Stronger corrosion protection
Improved durability
In these harsh environments, they typically last longer.
Telecom infrastructure is valuable and sometimes vulnerable to tampering.
Outdoor telecom cabinets commonly use protection ratings such as:
IP55
IP65
IP66
These ratings measure resistance to:
Dust
Water
Environmental intrusion
Both single wall and double wall cabinets can achieve high IP ratings if properly designed
Double wall cabinets often use advanced coatings and better structural separation to reduce corrosion.
Common treatments include:
Powder coating
Hot-dip galvanization
Stainless steel construction
Corrosion resistance becomes especially important near oceans or industrial zones.
The answer depends on the application.
5G equipment generates a lot of heat.
Double wall cabinets are usually preferred because they provide:
Better thermal management
Improved energy efficiency
Higher reliability
As 5G networks expand, demand for double wall cabinets continues to grow.
Fiber systems generate less heat than wireless radio equipment.
In many fiber deployments, single wall cabinets are sufficient.
Especially when:
Climate conditions are moderate
Heat load is low
Budget is limited
Factories, mining sites, and oil fields expose cabinets to harsh conditions.
Double wall cabinets are often the safer choice due to their durability and insulation performance.
Choosing the right cabinet isn’t just about price. It’s about matching the cabinet to the operating environment.
If your project has tight financial constraints, single wall cabinets may offer the best value.
But remember:
Cheaper upfront doesn’t always mean cheaper long term.
Energy costs and maintenance expenses can add up quickly.
Ask yourself:
Is the cabinet exposed to direct sunlight?
Is the climate extremely hot or cold?
Is there salt spray or dust?
How much internal heat will the equipment generate?
Harsh environments usually favor double wall designs.
Telecom networks evolve fast.
Today’s low-power cabinet could become tomorrow’s high-density 5G node.
Choosing a double wall cabinet now may provide better future-proofing.
Many buyers focus only on cabinet size and forget thermal performance.
Here are common mistakes:
Ignoring solar heat load
Underestimating equipment heat generation
Choosing insufficient cooling
Focusing only on initial price
Overlooking corrosion risks
Ignoring future expansion
A telecom cabinet is like a home for sensitive electronics. If the environment becomes uncomfortable, equipment performance suffers.
Outdoor telecom cabinets are evolving rapidly.
Future trends include:
Smart environmental monitoring
AI-based cooling control
Energy-efficient heat exchangers
Integrated lithium battery systems
Solar-powered telecom cabinets
Advanced thermal insulation materials
Double wall designs are becoming increasingly popular as telecom networks demand greater energy efficiency.
Sustainability is also pushing manufacturers toward lower-power cooling solutions.
So, which is better: single wall or double wall outdoor telecom cabinets?
The truth is, there’s no universal answer.
Single wall cabinets are:
Affordable
Lightweight
Easy to maintain
Suitable for mild environments
Double wall cabinets offer:
Better thermal insulation
Improved energy efficiency
Higher durability
Stronger environmental protection
If your telecom equipment operates in harsh climates, high temperatures, or demanding industrial environments, double wall cabinets are often worth the investment.
But for moderate conditions and lower heat loads, single wall cabinets can still deliver reliable performance at a lower cost.
At the end of the day, the best cabinet is the one that matches your environmental conditions, cooling requirements, and long-term operational goals.
The biggest advantage is improved thermal insulation, which reduces heat transfer and improves cooling efficiency.
Yes. Single wall cabinets generally cost less due to simpler construction and lower material usage.
Double wall cabinets are usually better because 5G equipment generates significant heat.
Absolutely. Both single wall and double wall cabinets can achieve high IP ratings with proper sealing design.
Yes. Better insulation reduces cooling system workload, lowering overall energy usage.
In harsh environments, double wall cabinets often last longer because they provide better protection against heat, moisture, and corrosion.
