Outdoor telecom cabinets are designed to protect sensitive equipment such as switches, power supplies, batteries, and monitoring systems. However, in real-world deployments, operators often encounter an unexpected issue: insects entering the cabinet.
Ants, spiders, wasps, beetles, and even small flying insects can find their way inside, leading to equipment failures, short circuits, overheating, and maintenance headaches. Understanding why insects get inside outdoor telecom cabinets is the first step toward preventing it.
Outdoor cabinets are installed in environments where insects are already present—such as:
Vegetation areas near roadsides
Suburban or rural telecom sites
Industrial zones with warm equipment
Energy storage or EV charging stations
Heat generated by electrical equipment further increases attraction. Many insects are drawn to warmth, shelter, and stable humidity conditions inside cabinets.
Even high-quality cabinets with IP65 or IP66 ratings still have physical entry points, such as:
Cable glands and conduit openings
Door seams and gasket interfaces
Ventilation inlets and exhaust outlets
Drain holes or pressure equalization vents
Tiny insects like ants can pass through extremely small gaps that are not considered “water ingress” risks under IP testing standards.
Many users assume that an IP65 or IP66-rated enclosure is completely sealed. However, IP ratings primarily test:
Water resistance
Dust resistance (in controlled conditions)
They do not fully simulate real-world insect behavior, such as:
Crawling through gasket micro-gaps
Following cable pathways
Entering during maintenance opening cycles
This is why insect intrusion can still occur even in high-IP-rated cabinets.
Outdoor telecom cabinets often use cooling systems such as:
Fan cooling systems
Air filters
Air-to-air heat exchangers
Cabinet air conditioners
While necessary for thermal management, these systems can unintentionally:
Create airflow that attracts insects
Provide ventilation paths for entry
Introduce filter gaps or mesh openings
Poorly designed airflow systems can increase the probability of insect ingress.
Cabinet installation conditions strongly influence insect intrusion risk:
Grass or soil directly under cabinet base
Nearby ant nests or termite activity
Poor site sealing around foundation
Standing water or humidity buildup
Insects often enter from the base of the cabinet if grounding and sealing are not properly designed.
Every time a cabinet door is opened for maintenance:
Insects can enter during the opening period
Cables may be re-routed without resealing
Gaskets may be damaged or not properly reinstalled
Over time, these small issues accumulate and increase vulnerability.
Insect intrusion is not just a cleanliness issue—it can cause serious operational problems:
Short circuits on PCB boards
Blocked cooling airflow due to nests
Sensor malfunction in monitoring systems
Battery compartment contamination
Unexpected system downtime
Even a small ant colony inside a power module can lead to service interruption.
Cable entries are the #1 entry path for insects.
Best practices:
Use high-quality IP-rated cable glands
Seal unused cable holes with proper blind plugs
Apply rubber grommets or sealing foam inserts
Avoid oversized cable cutouts
Ensure tight compression sealing during installation
Even tiny gaps around cables are enough for ants and small insects to enter.
If the enclosure uses airflow, ventilation becomes a risk point.
Recommended solutions:
Install fine stainless steel insect mesh
Use filtered air inlets with replaceable filter pads
Design airflow paths with labyrinth (maze-style) structures
Avoid large open vents without protection
A well-designed vent should block insects but still allow airflow.

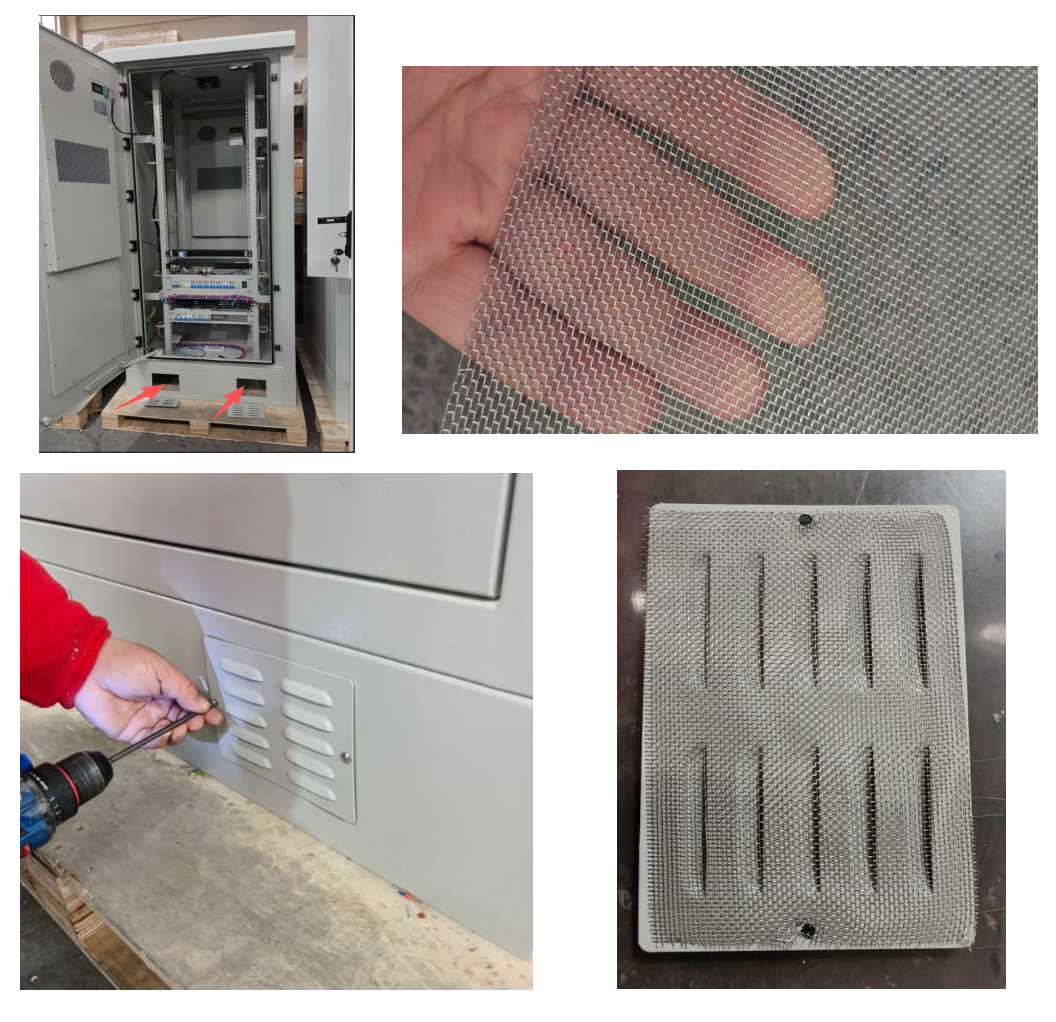

Example :stainless steel mesh installed at forklift holes
Cooling method has a direct impact on insect risk:
Fan cooling systems → higher insect risk
Air-to-air heat exchangers → lower risk
Closed-loop air conditioners → lowest risk
Why?
Because closed systems do not exchange external air directly, reducing insect entry paths significantly.
Cabinet doors are another vulnerable area.
Key improvements:
Use high-quality EPDM or silicone gaskets
Ensure uniform compression along the door frame
Add double sealing strips for critical sites
Prevent gasket aging and deformation
Even small gasket gaps can allow insects to enter over time
Many insects enter from the bottom of the cabinet.
Best practices:
Fully seal cabinet base openings after installation
Use anti-rodent / anti-insect sealing compound
Ensure no direct contact with soil or grass
Install cabinets on raised concrete plinths
Seal conduit entry from underground ducts
Ants often build colonies near warm cabinet bases.
Some telecom cabinets use slightly pressurized internal airflow:
Keeps internal pressure higher than external
Prevents insects from crawling inside through micro gaps
Often used in high-reliability telecom or industrial systems
Installation environment plays a major role:
Remove vegetation near cabinet base
Avoid standing water around site
Treat ant nests nearby if necessary
Keep site clean and dry
Less attraction = fewer insect problems.
Insects often enter during service operations.
Recommendations:
Always reseal cabinet after maintenance
Inspect gasket condition regularly
Replace damaged filters immediately
Minimize door-open time during servicing
Even if insects enter, damage can be minimized:
Use conformal coating on PCBs
Install protective mesh over sensitive ventilation paths
Use sealed connectors where possible
Apply anti-static and dust protection design
Insects enter outdoor telecom cabinets due to a combination of environmental attraction, structural entry points, cooling system design, and maintenance practices. Even high IP-rated enclosures are not fully immune.
To reduce risk, operators should consider insect-resistant cabinet design, improved sealing systems, and optimized thermal management solutions that minimize open airflow paths.
Preventing insects in outdoor telecom enclosures is not about a single solution—it requires a system-level approach:
Strong sealing (cables + doors + base)
Controlled cooling design
Smart airflow management
Proper installation practices
Regular maintenance
Among all factors, cable entry sealing and cooling design are the most critical.
